Overview of all unsupported cantilevered balcony assemblies

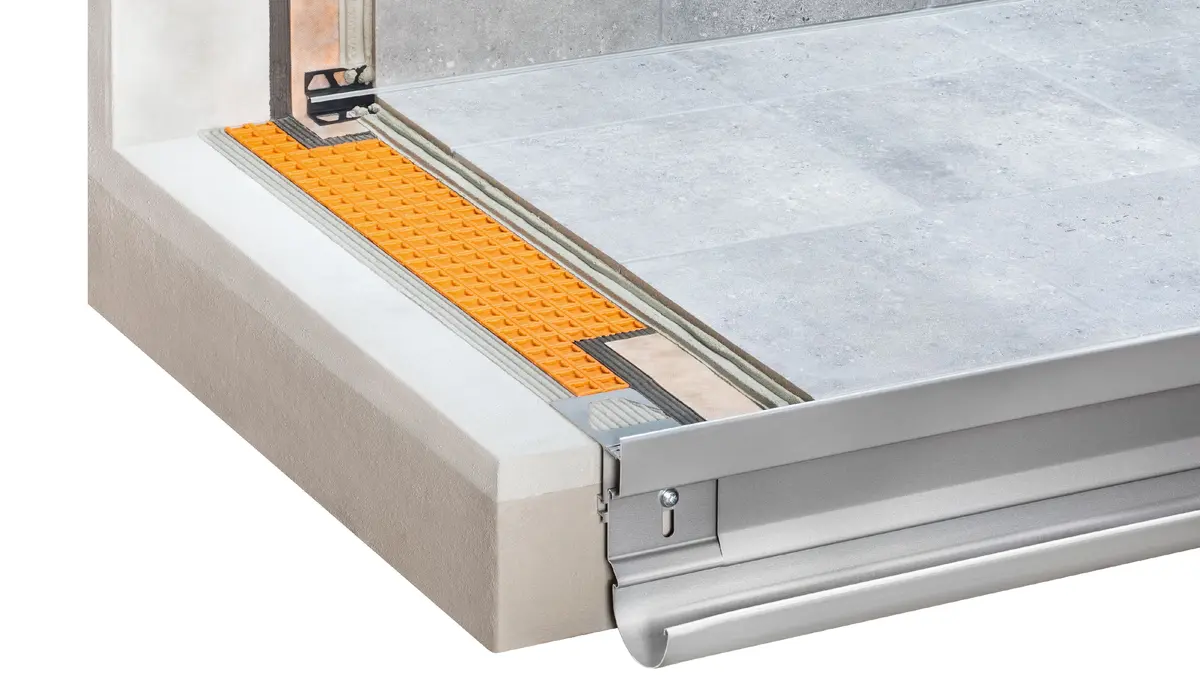

Balcony assembly A.1: Covering assembly with bonded waterproofing

Covering assembly of an unsupported cantilevered balcony with DITRA for bonded waterproofing, bonded uncoupling and vapour pressure equalisation.

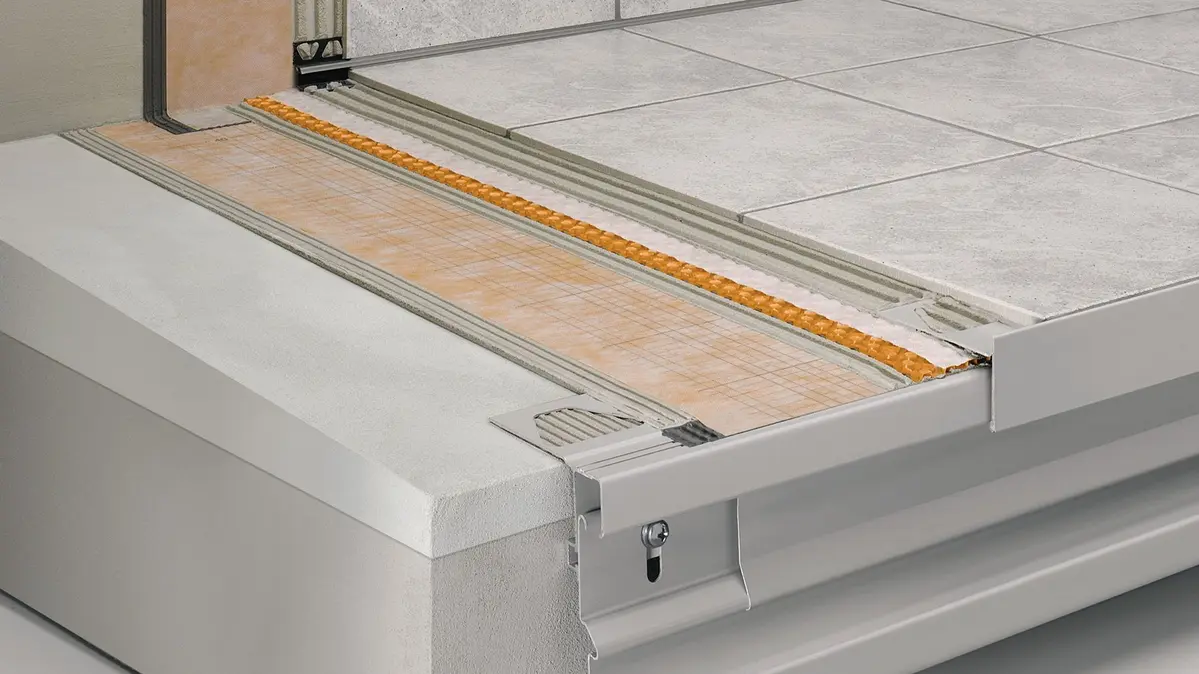

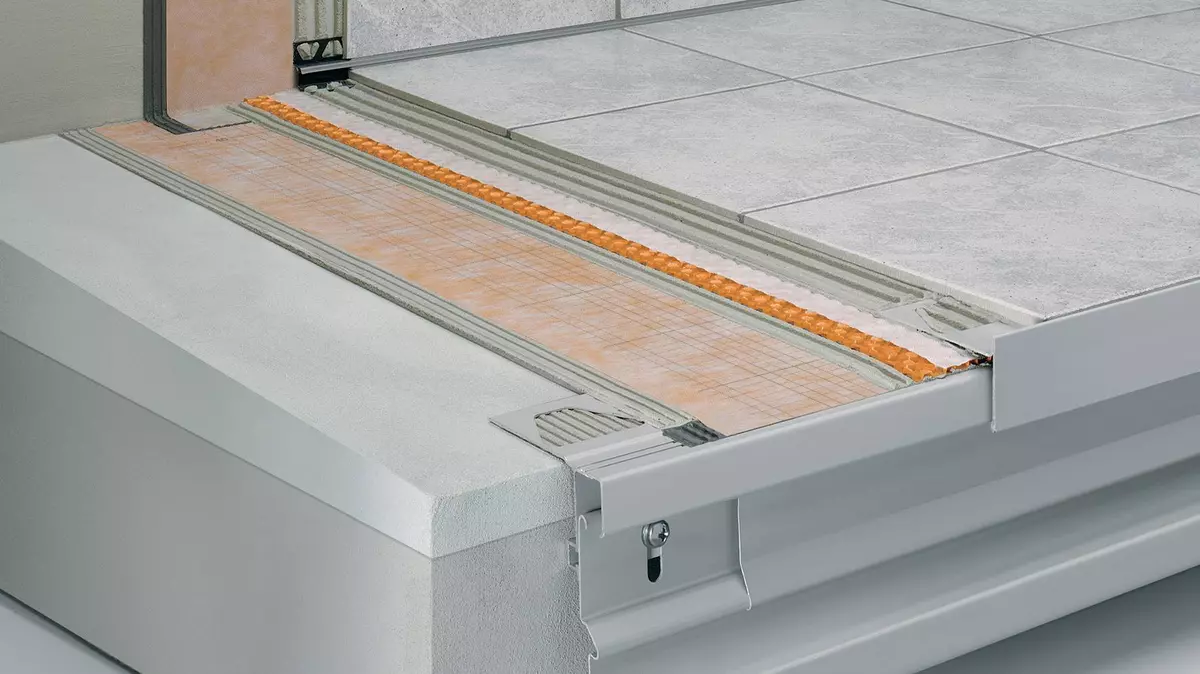

Balcony assembly A.2: Covering assembly with bonded drainage over bonded waterproofing

Covering assembly of an unsupported cantilevered balcony with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing.

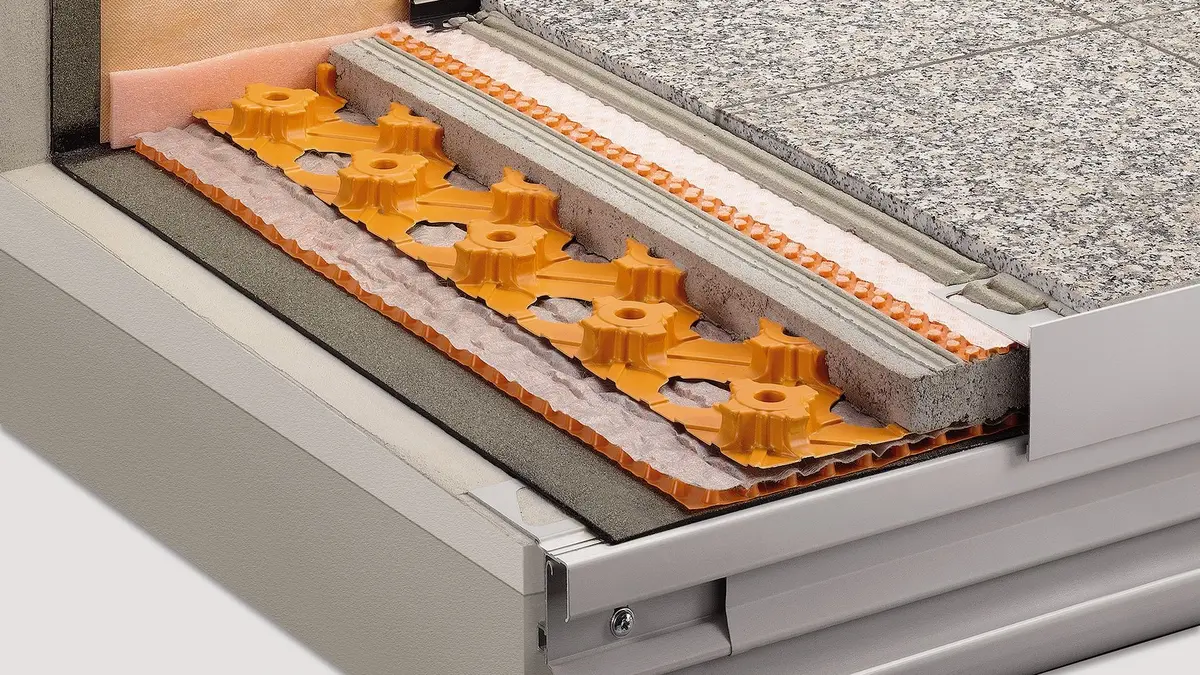

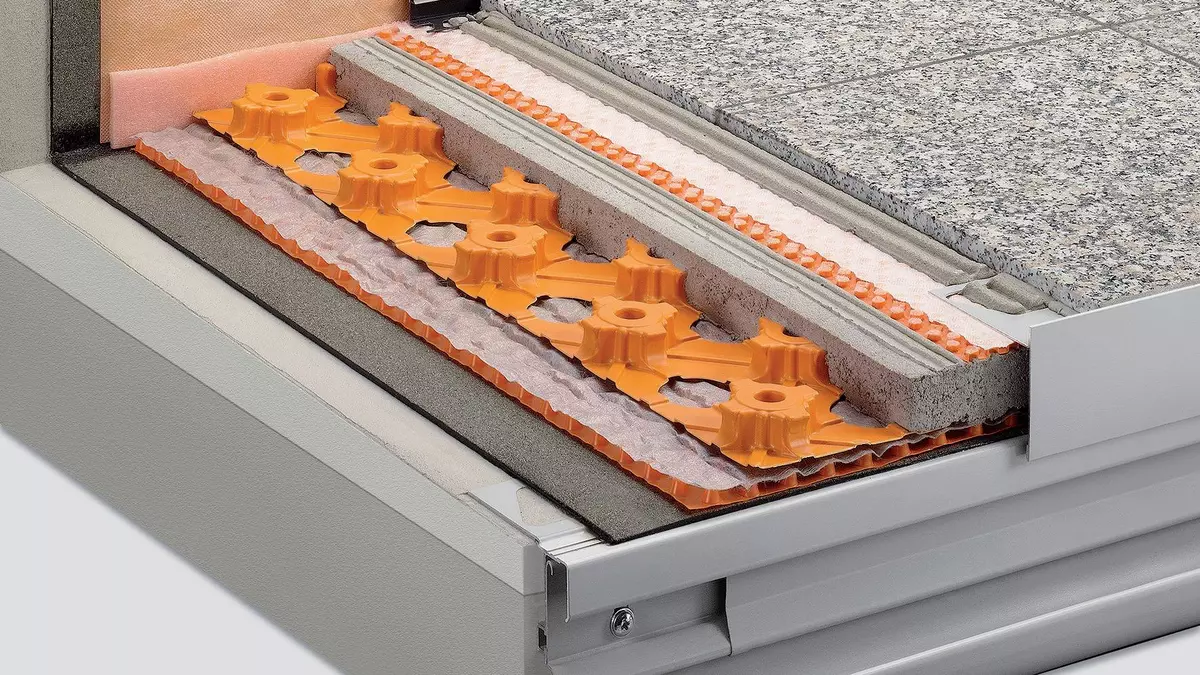

Balcony assembly A.3: Thin covering assembly over waterproofing layer

Thin covering assembly of an unsupported cantilevered balcony on DIN 18195-compliant waterproofing – DITRA-DRAIN for bonded drainage and bonded uncoupling over BEKOTEC-DRAIN screed on TROBA-PLUS drainage membrane.

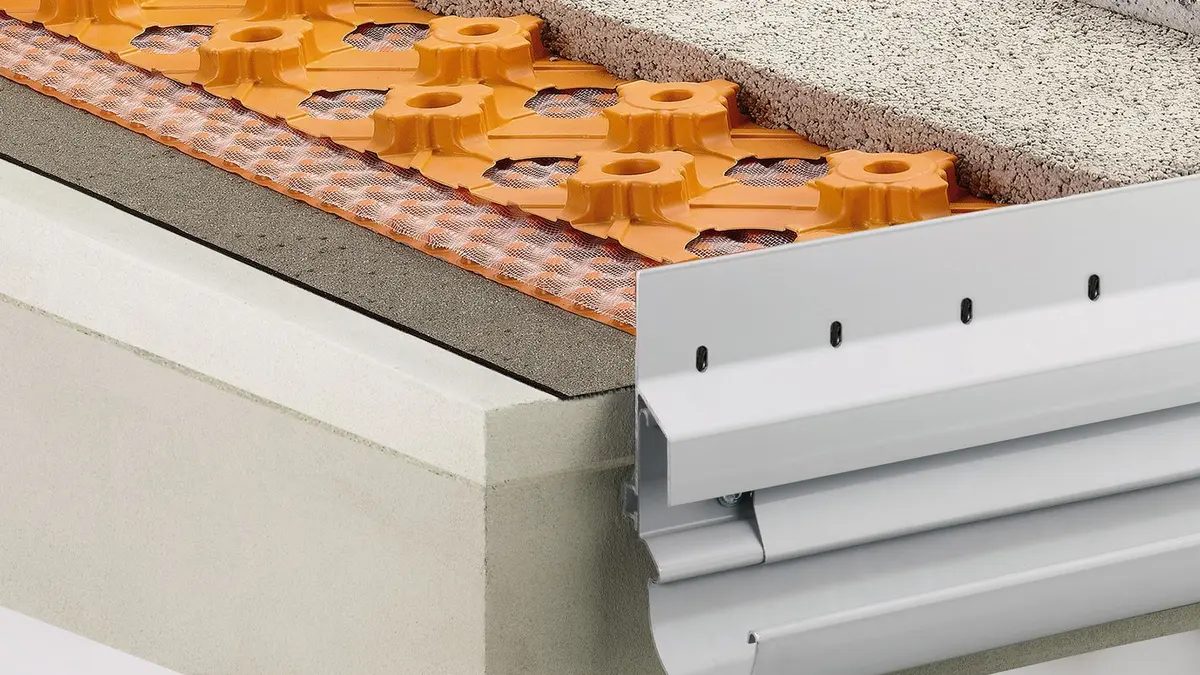

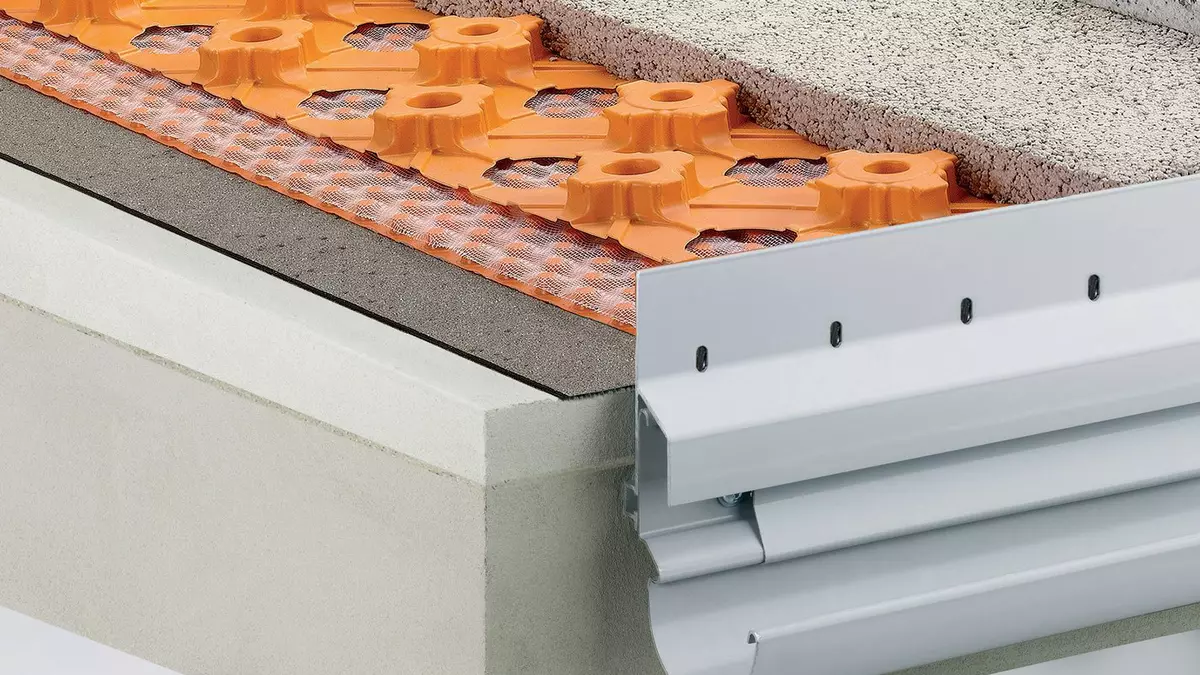

Balcony assembly A.4: Thin covering assembly in mortar bed

Thin covering assembly of an unsupported cantilevered balcony with mortar bed installation on DIN 18531-compliant waterproofing – BEKOTEC-DRAIN and mortar bed installation on area drainage with TROBA-PLUS 8G.

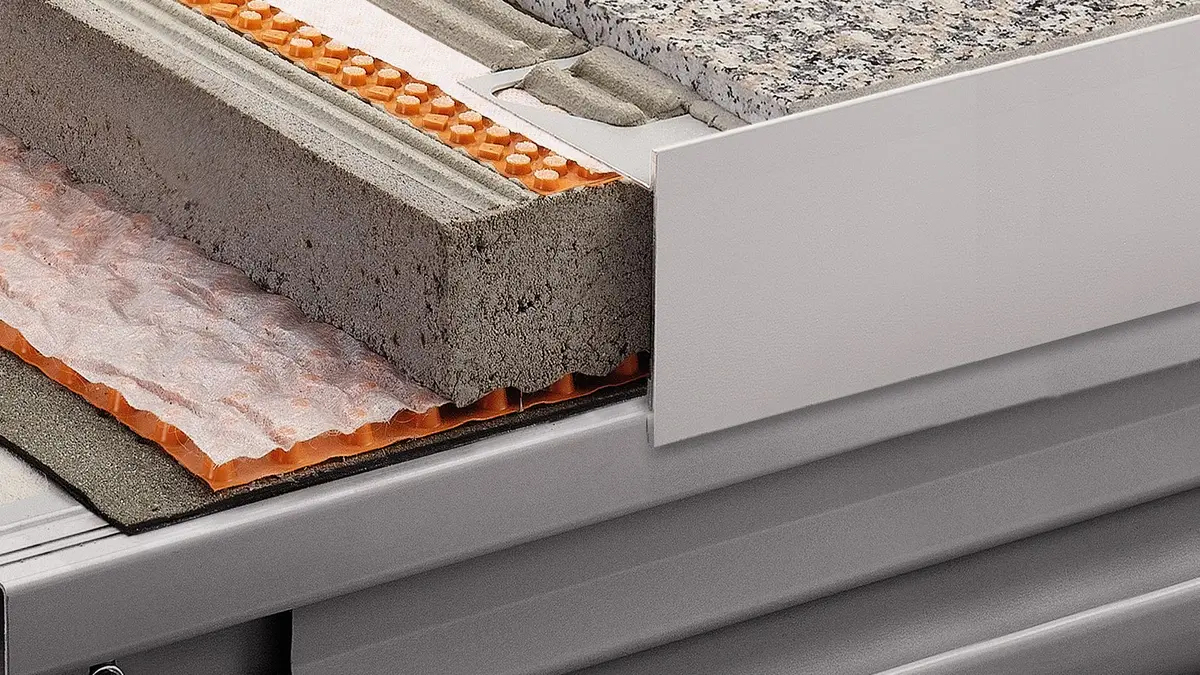

Balcony assembly A.5: Covering assembly over waterproofing layers

Covering assembly of an unsupported cantilevered balcony over DIN 18195 waterproofing assembly – waterproofing, drainage, load distribution layer, bonded drainage and bonded uncoupling.

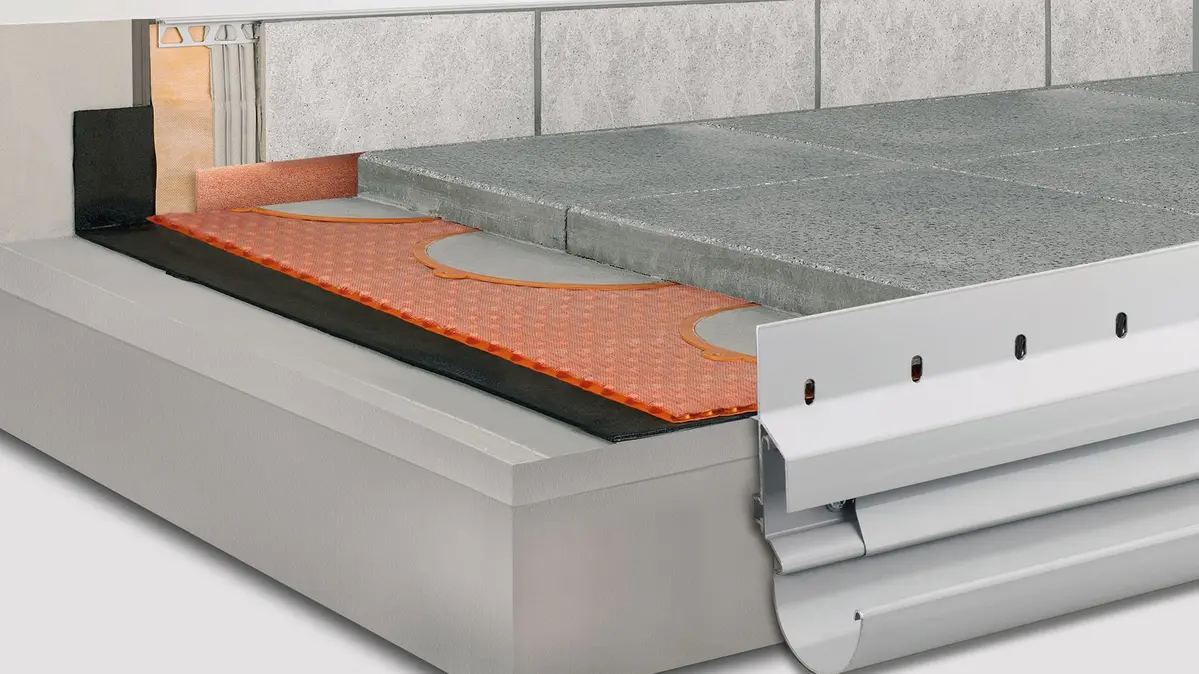

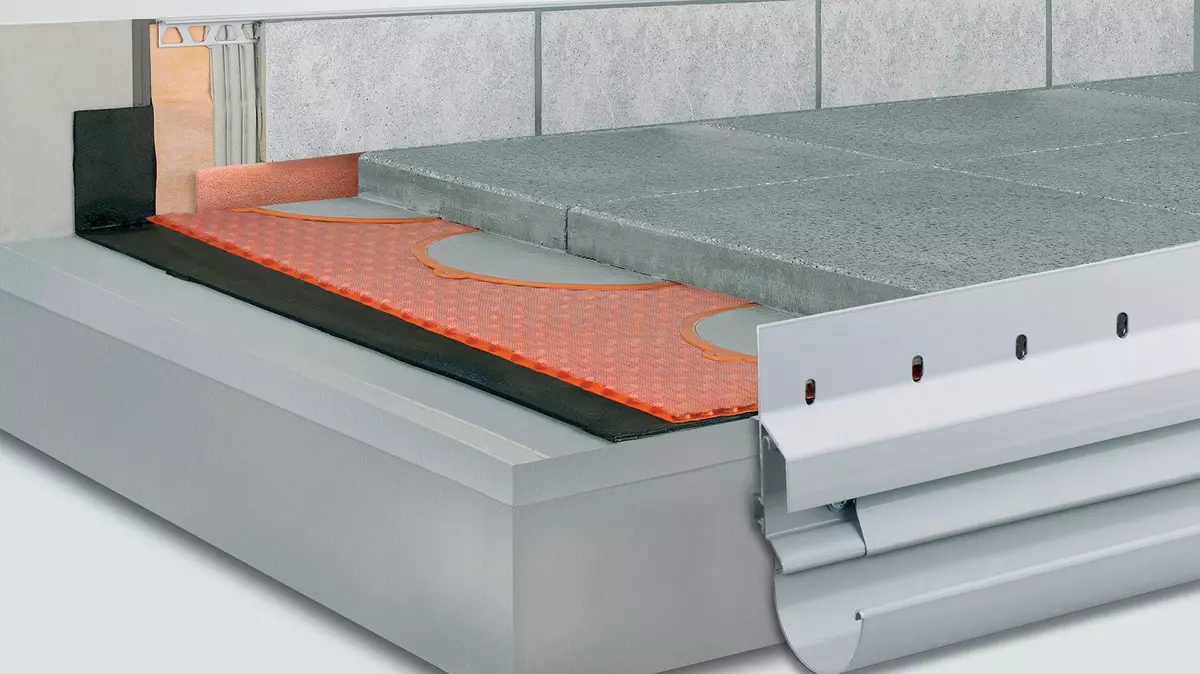

Balcony assembly A.6: Unbonded installation on surface drainage fixed in place with thin-bed mortar spots

Unbonded covering assembly of an unsupported cantilevered balcony over TROBA-PLUS 8G and thin-bed mortar spots with TROBA-STELZ-DR.

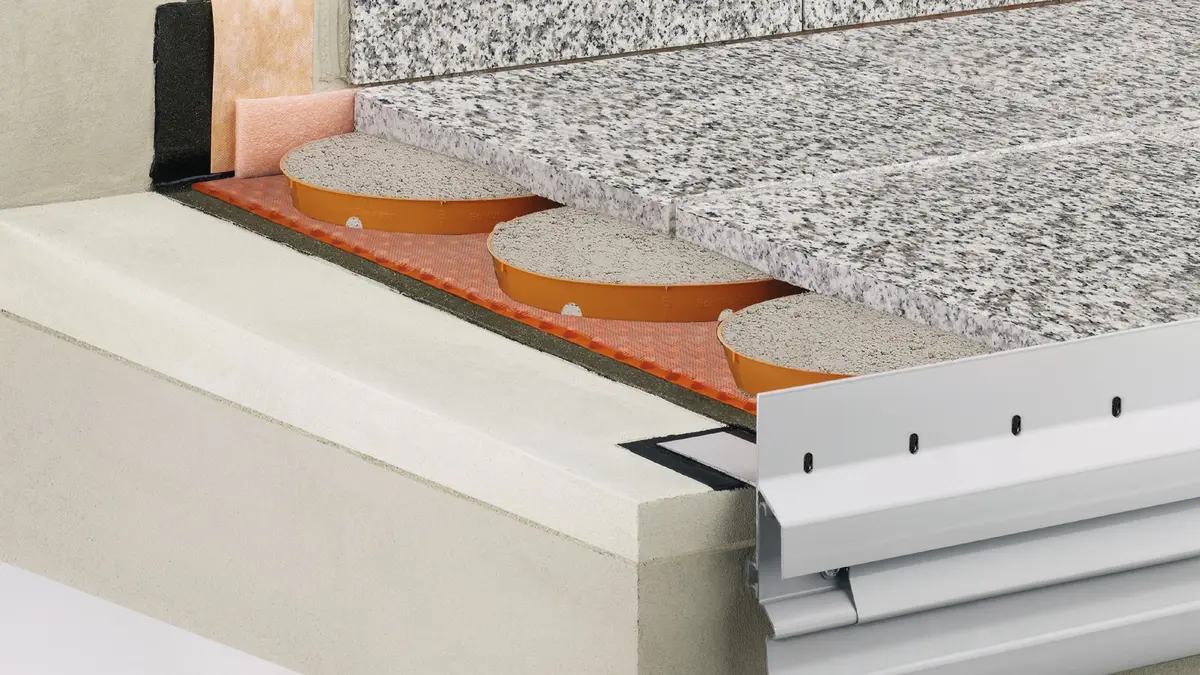

Balcony assembly A.7: Covering assembly over mortar supported pedestals

Unbonded covering assembly of a cantilevered balcony over mortar supports with TROBA-STELZ-MR.

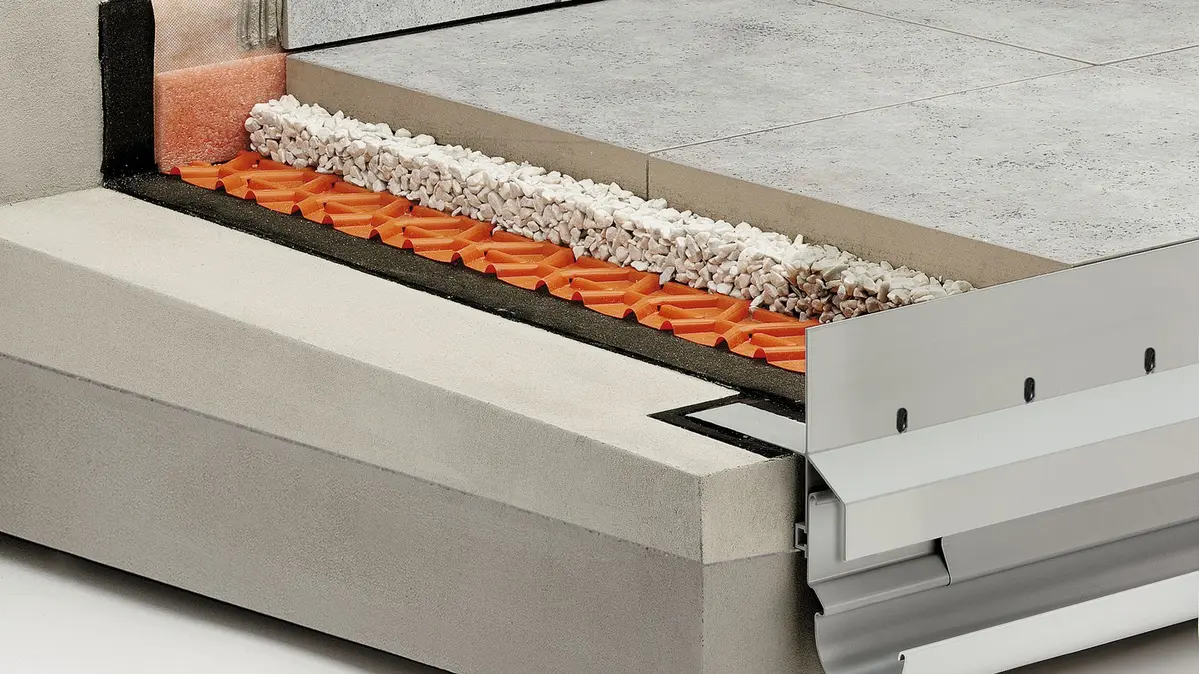

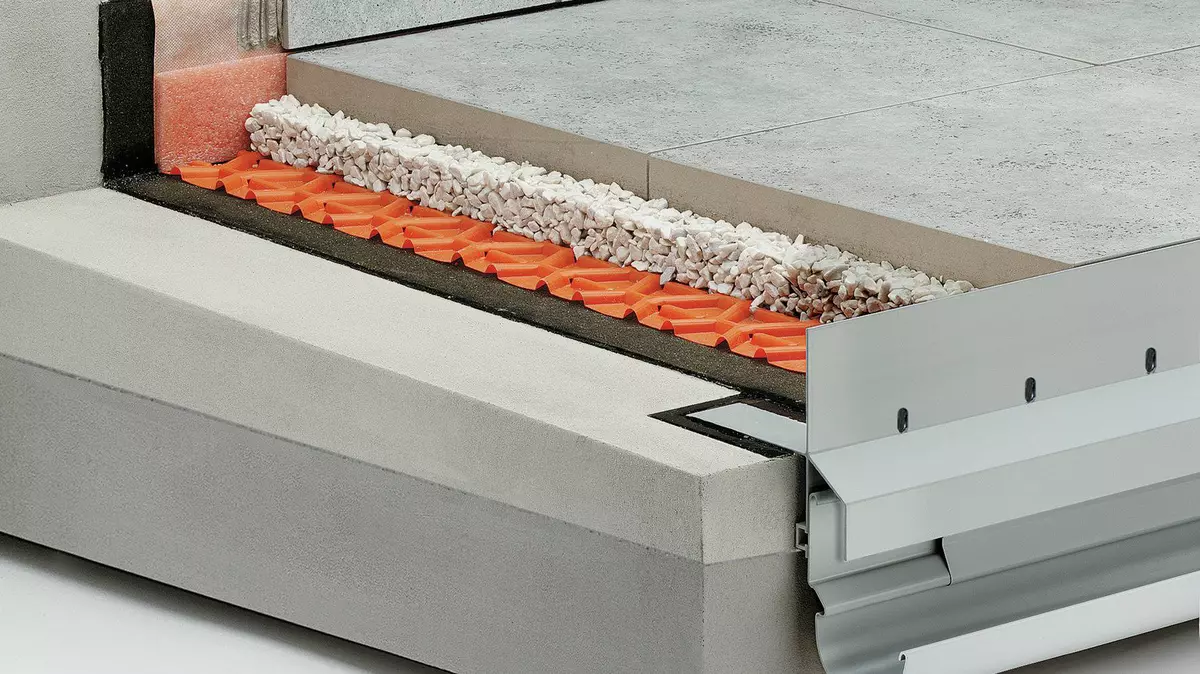

Balcony assembly A.8: Unbonded installation on a gravel or crushed stone layer

Unbonded covering assembly of an unsupported cantilevered balcony over Schlüter-TROBA in gravel or crushed stone layer.
