Balcony assembly A.5: Covering assembly over waterproofing layers

Assemblies A: Unsupported cantilevered balconies

Waterproofing, drainage, load distribution layer, bonded drainage and uncoupling

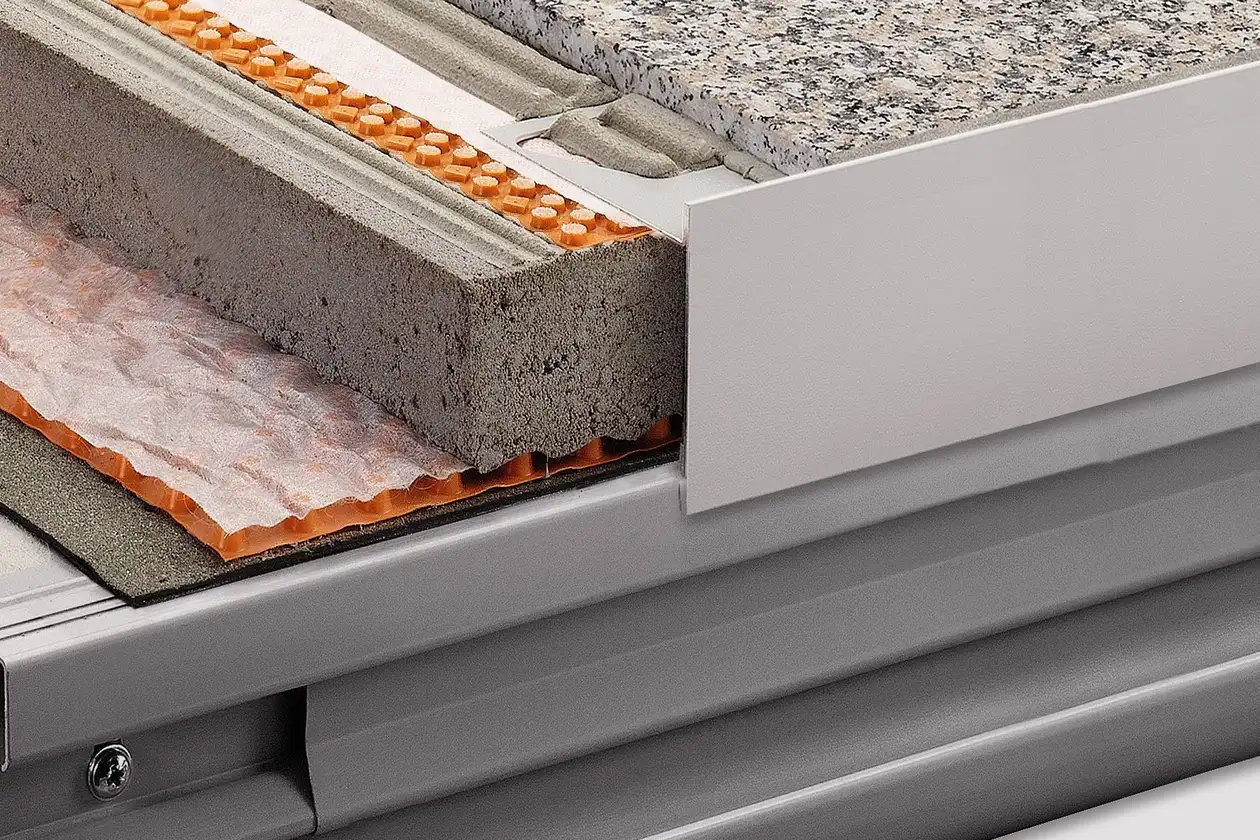

Schlüter-Systems balcony assembly Covering assemblies over waterproofing layers according to DIN 18195 © Schlueter-Systems

The waterproofing assembly, designed with a surface slope that meets the requirements of DIN 18531, protects the support structure against the penetration of water.

Schlüter-TROBA-PLUS is installed as a drainage membrane between the waterproofing layer and the load distribution layer (screed) to drain away seepage.

The passive capillary bonded drainage and bonded uncoupling Schlüter-DITRA-DRAIN is installed in thin-bed mortar between the screed and the tile covering.

This results in broad ventilation of the top covering, which in turn promotes the quick and even drying/curing of the thin-bed mortar.

A.5: Covering assemblies over waterproofing layers according to DIN 18195

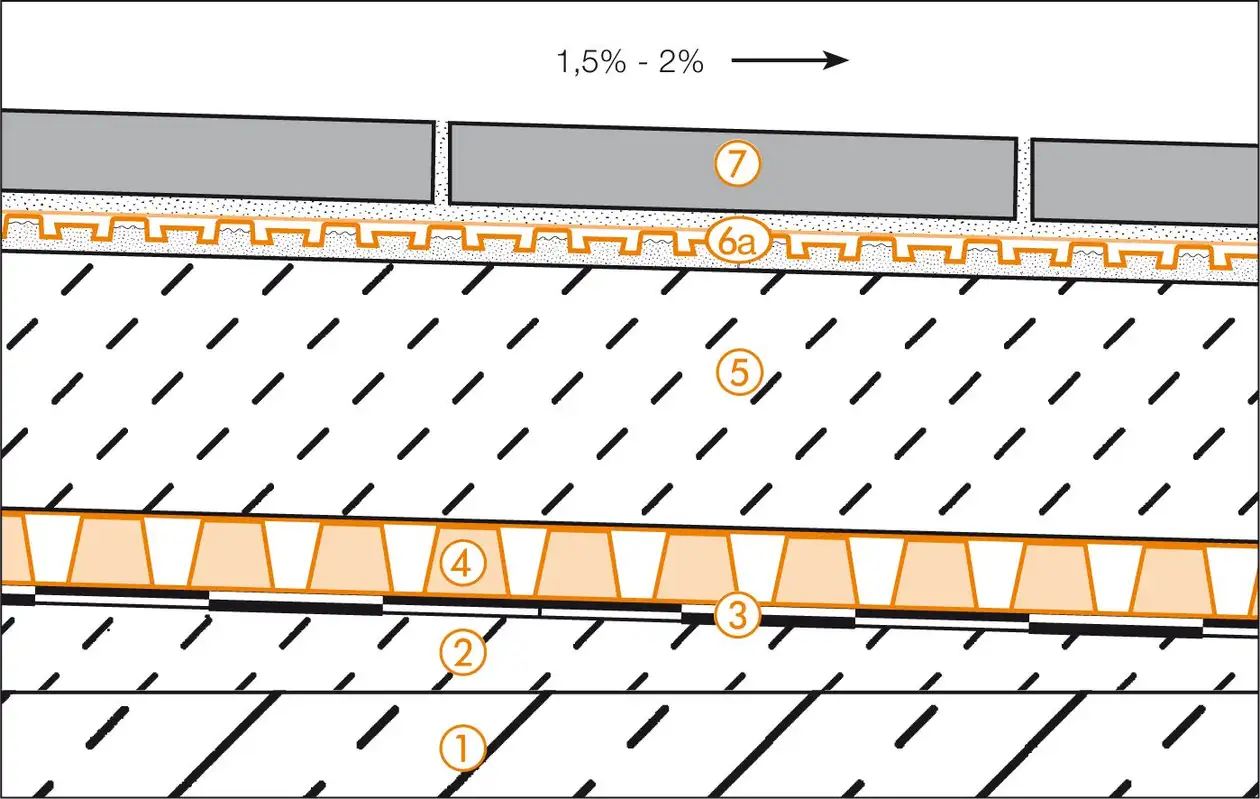

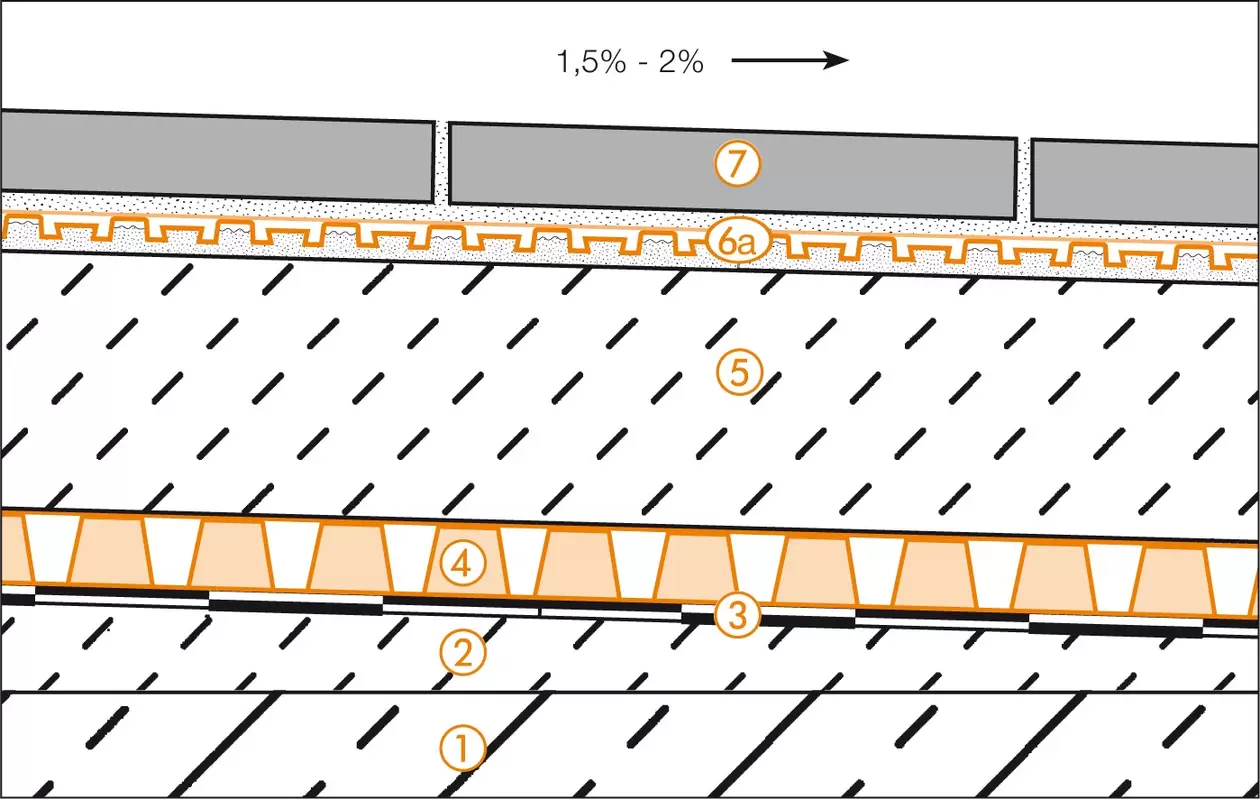

Schlüter-Systems section drawing of balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195 © Schlueter-Systems
Section drawing of balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195
  1. Cantilevered concrete slab
  2. Sloped screed
    An adequate slope (1.5–2%) is required for drainage to ensure that the structure is functional
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS
    Passive capillary surface drainage for the effective run-off of seepage water and full-surface ventilation.
  5. Load distribution layer
    Cement screed according to DIN 18560-2 or pervious mortar
  6. a) Schlüter-DITRA-DRAIN 4
    Bonded drainage membrane made of polyethylene, installed in thin-bed mortar, with the functions bonded drainage, ventilation and bonded uncoupling.
    b) Schlüter-DITRA-DRAIN 8
    Bonded drainage membrane specially designed for large areas and staircase constructions.
  7. Ceramic tiles or natural stone pavers
    Installation – also large formats – with a dry-setting, water and weather-resistant thin-bed mortar

Edge detail 1

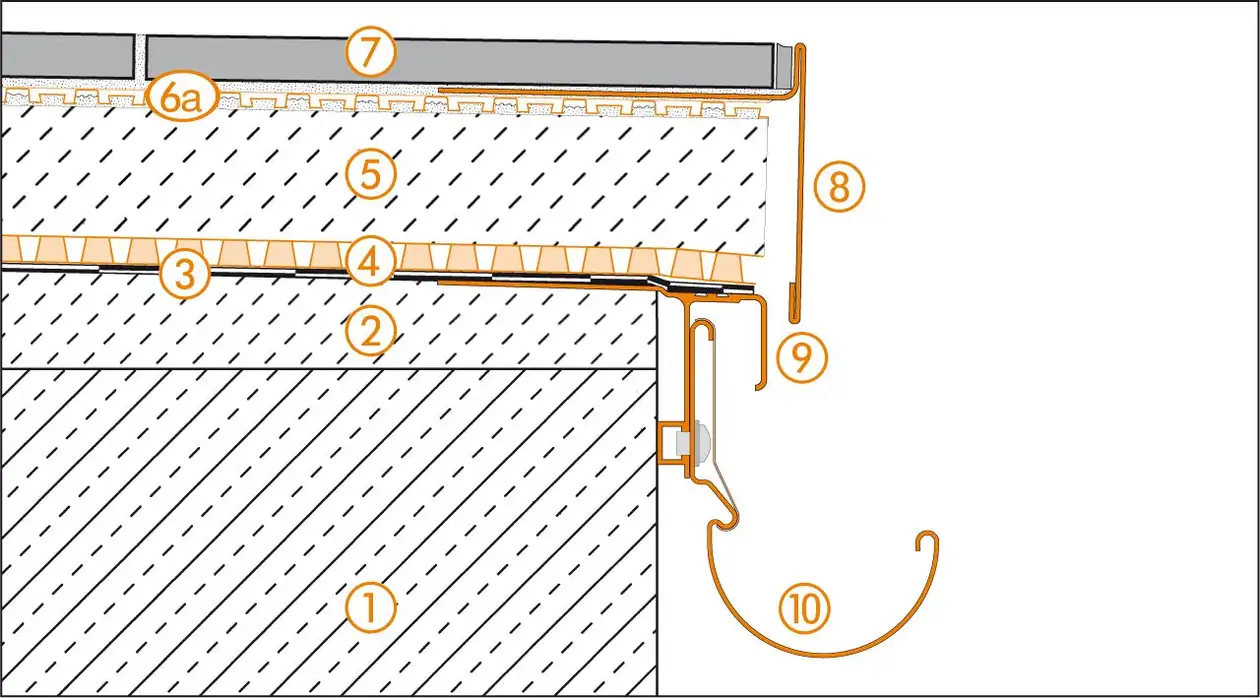

Schlüter-Systems section drawing of edge detail 1 for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195 © Schlueter-Systems
Section drawing of edge detail 1 for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS
  5. Load distribution layer
  6. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  7. Ceramic tiles or natural stone pavers
  8. Schlüter-BARA-RT
    Make sure drainage is possible!
  9. Schlüter-BARA-RTK
  10. Schlüter-BARIN

Wall connection detail

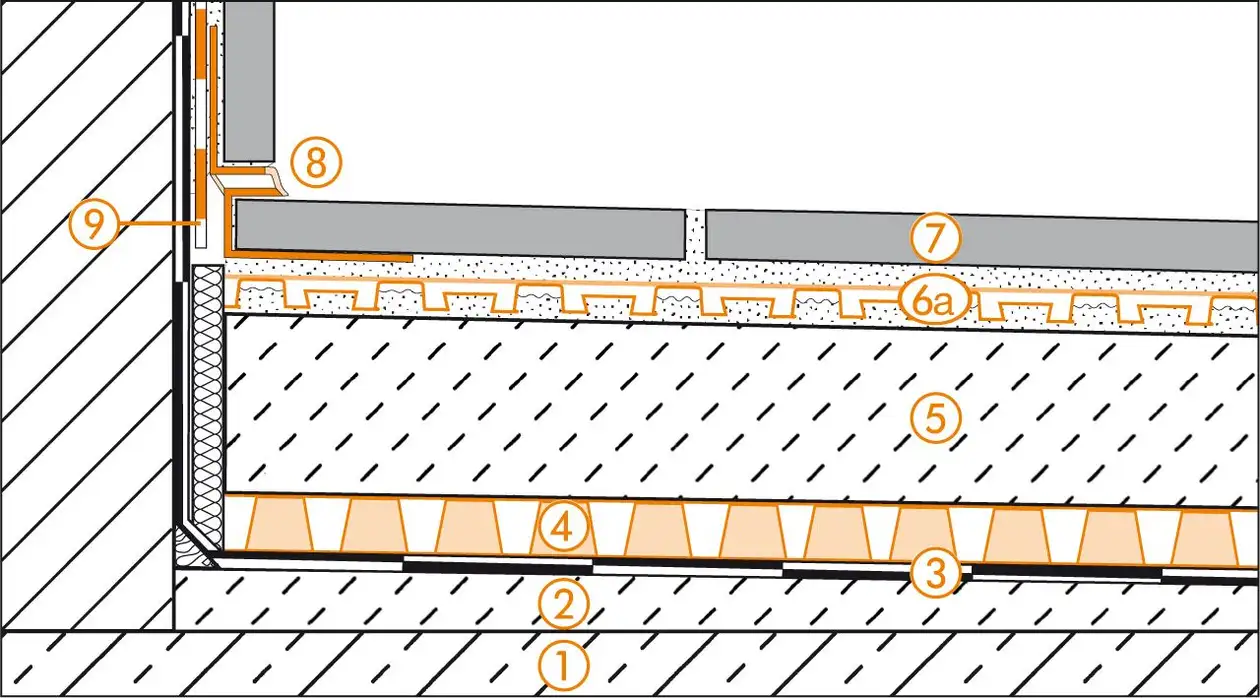

Schlüter-Systems section drawing of the wall connection detail for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195 © Schlueter-Systems
Section drawing of the wall connection detail for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS
  5. Load distribution layer
  6. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  7. Ceramic tiles or natural stone pavers
  8. Schlüter-DILEX-EKE
  9. Schlüter-KERDI-KEBA

Door transition

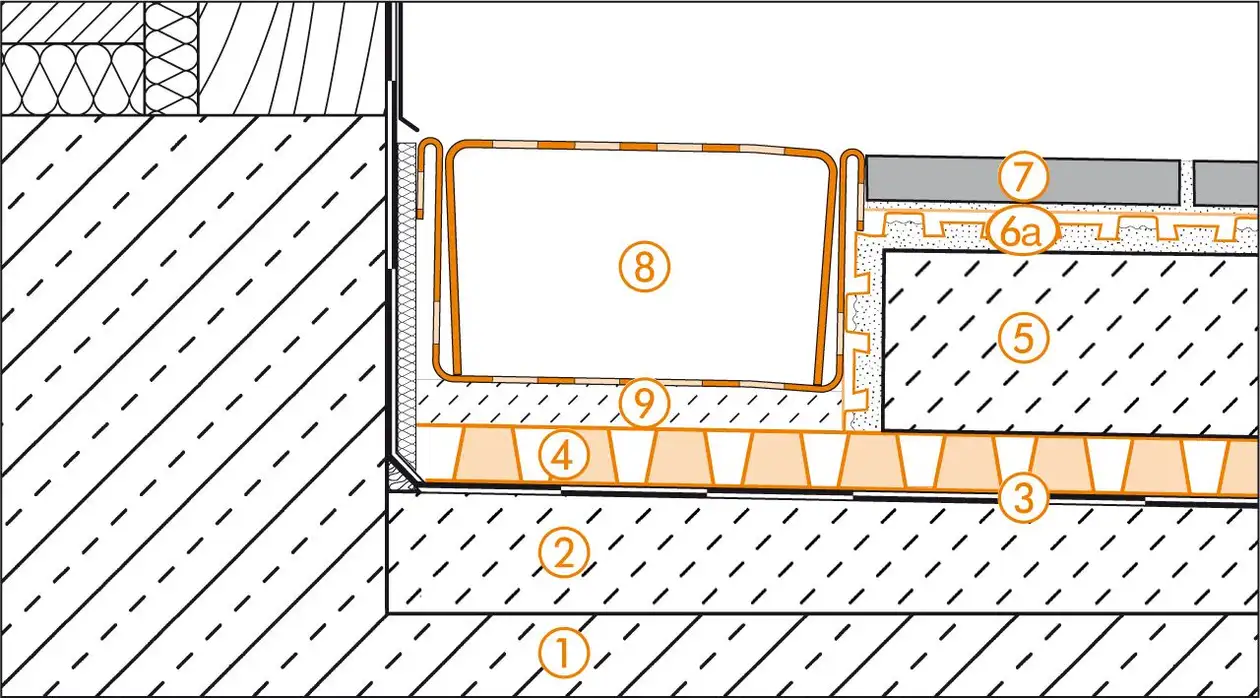

Schlüter-Systems section drawing of the door transition for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195 © Schlueter-Systems
Section drawing of the door transition for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS
  5. Load distribution layer
  6. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  7. Ceramic tiles or natural stone pavers
  8. Schlüter-TROBA-LINE-TL
    (drainage opening slots must be kept clear)
  9. Mortar spot

Floor drain

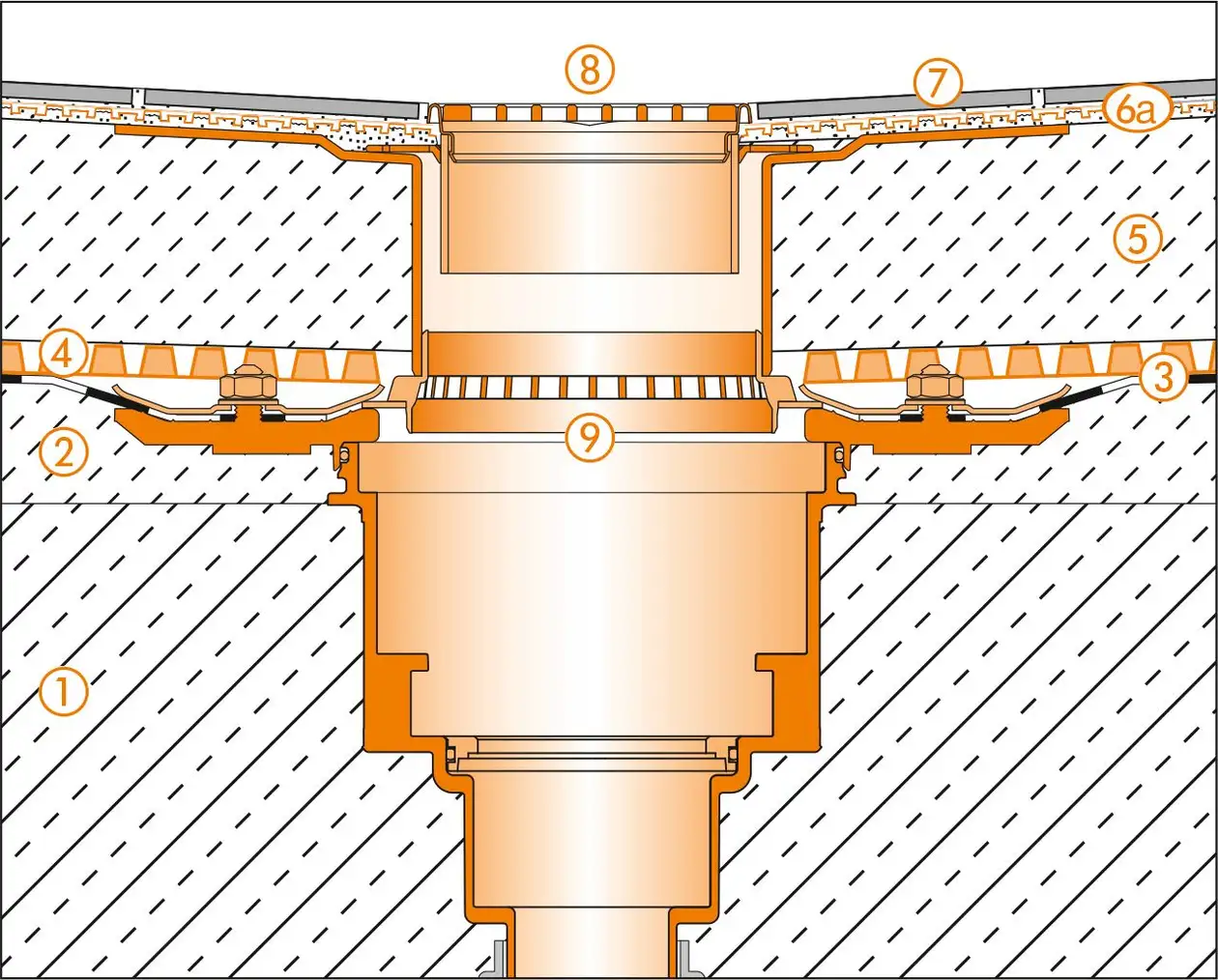

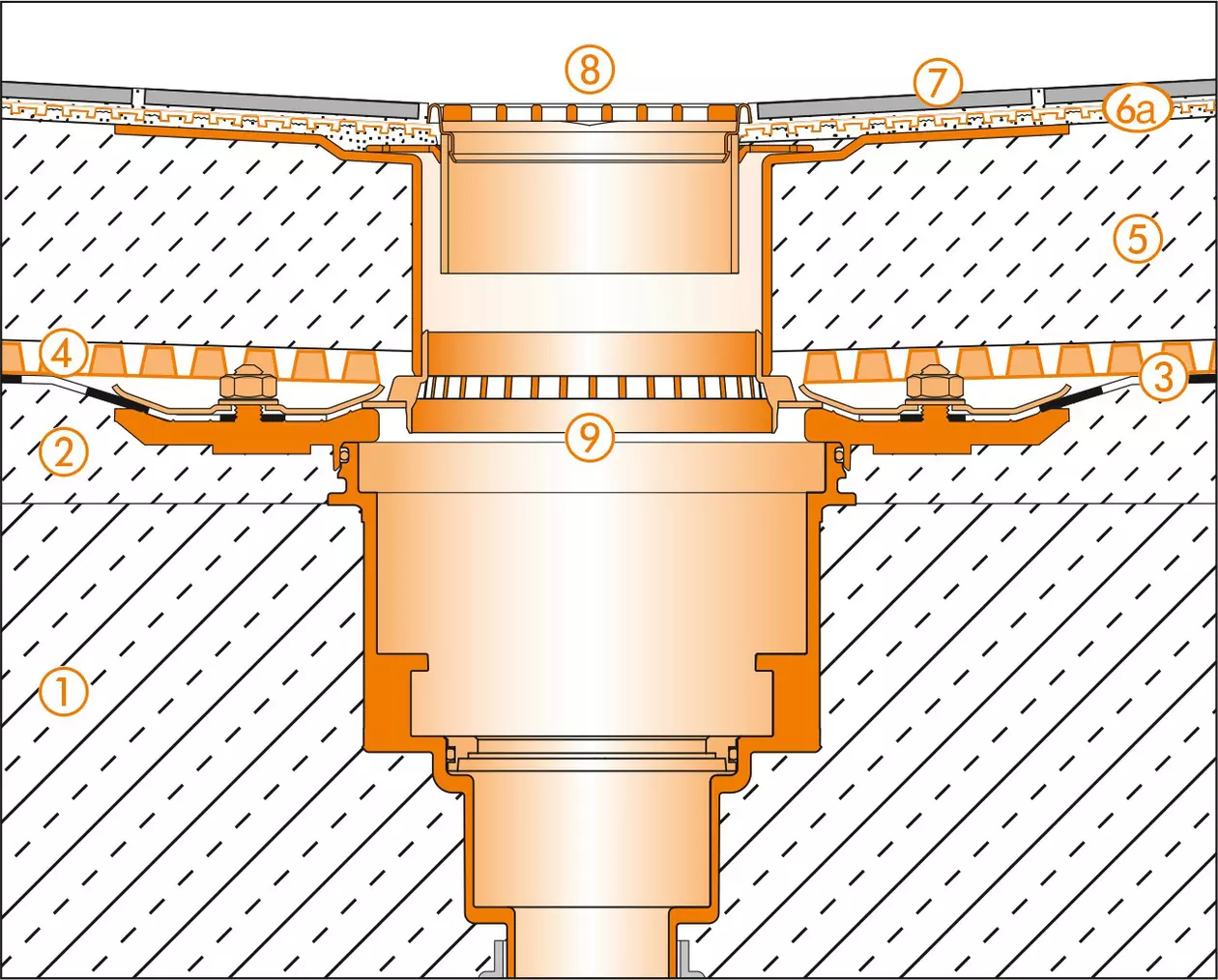

Schlüter-Systems section drawing of the floor drain for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195 © Schlueter-Systems
Section drawing of the floor drain for balcony assembly A.5 Covering assemblies over waterproofing layers according to DIN 18195
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS
  5. Load distribution layer
  6. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  7. Ceramic tiles or natural stone pavers
  8. Schlüter-KERDI-DRAIN-RRE
    Grate and frame set KD R10
    Drainage opening slots must be kept clear!
  9. Schlüter-KERDI-DRAIN-KDBV
    Floor drain set KD BV 50 MSBB
