Balcony assembly A.4: Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531

Assemblies A: Unsupported cantilevered balconies

Thin covering assembly with mortar bed installation on waterproofing with BEKOTEC-DRAIN and mortar bed installation on area drainage with TROBA-PLUS 8G

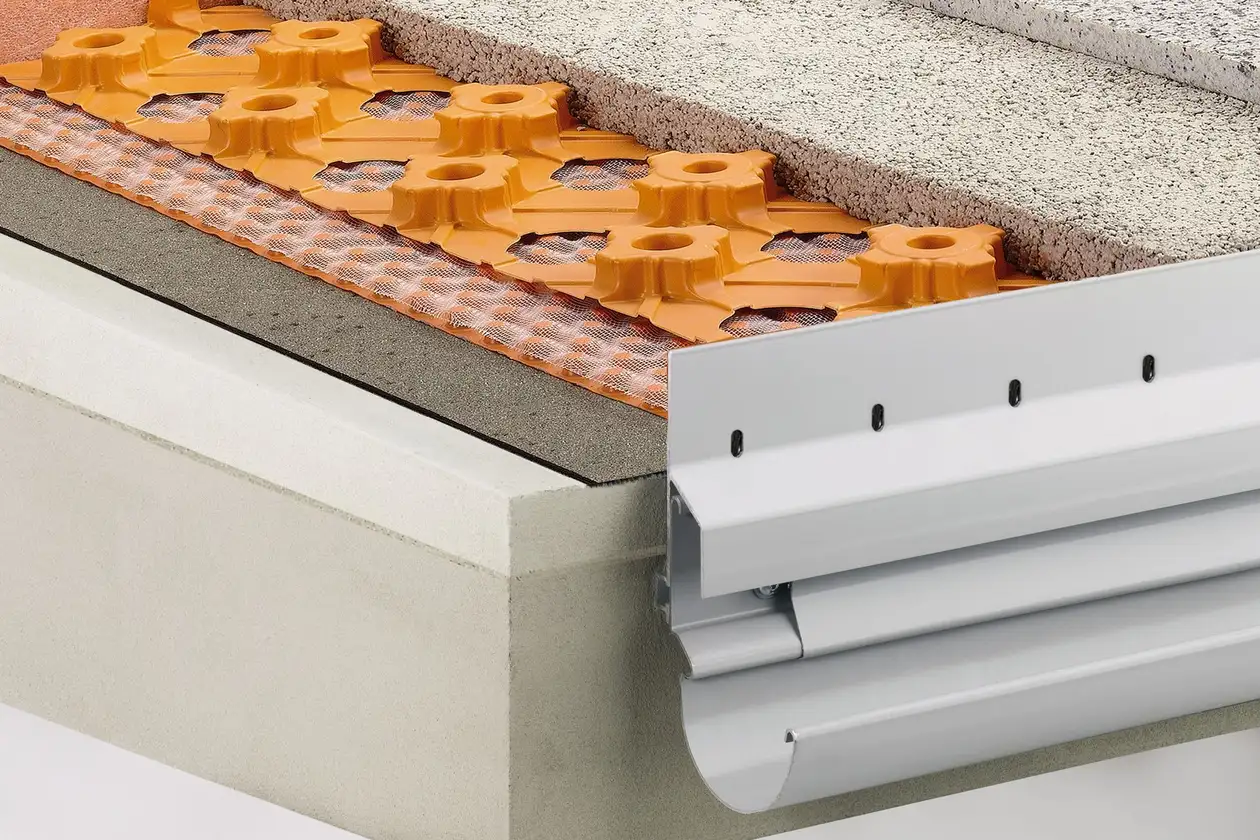

Schlüter-Systems balcony assembly A.4 Thin covering assembly with mortar bed installation, BEKOTEC-DRAIN and mortar bed installation on area drainage with TROBA-PLUS 8G © Schlueter-Systems

The waterproofing assembly, designed with a surface slope that meets the requirements of DIN 18531 protects the support structure against the penetration of water.

Schlüter-TROBA-PLUS 8G is installed as a drainage membrane between the waterproofing layer and the load distribution layer (screed) to drain away seepage.

This load distribution layer of cementitious or pervious mortar is installed as a thin layer, using the Schlüter-BEKOTEC-DRAIN system.

The natural stone pavers are embedded in the fresh mortar.

A.4: Thin covering assembly over waterproofing layers in mortar beds according to DIN 18531

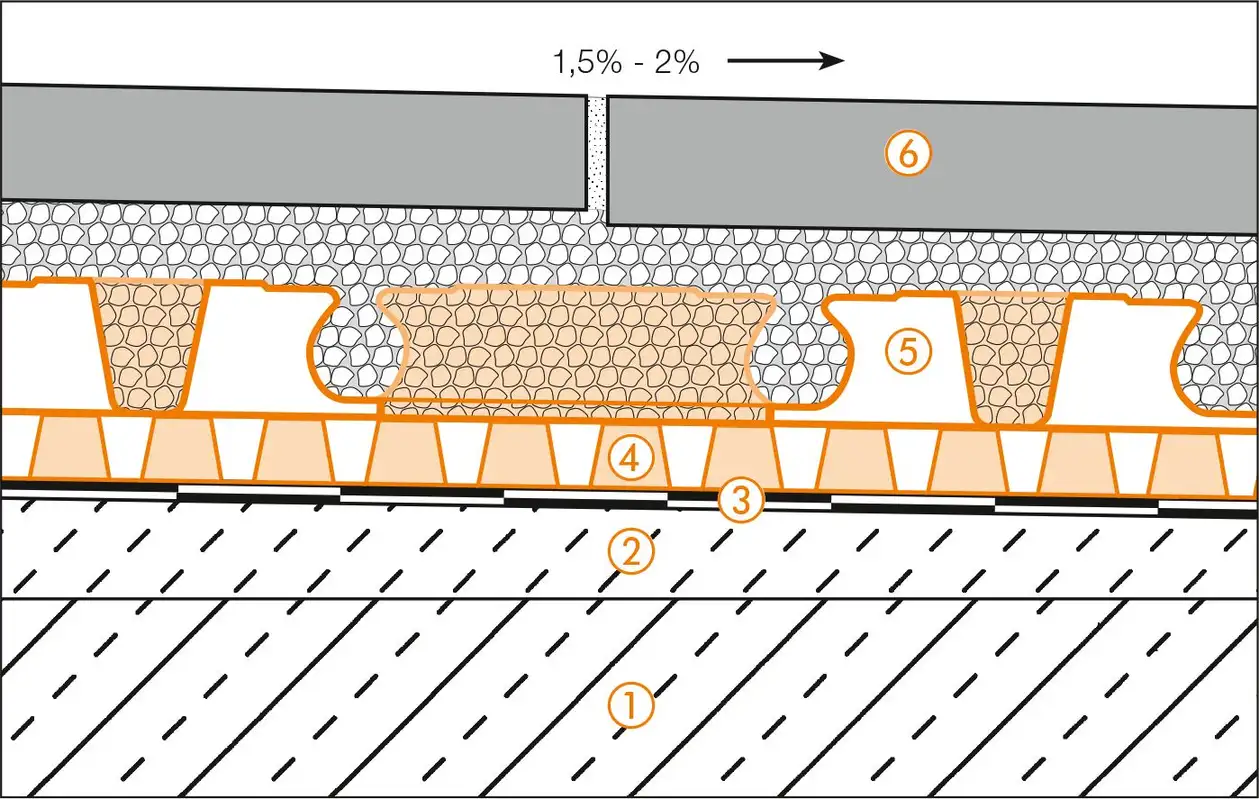

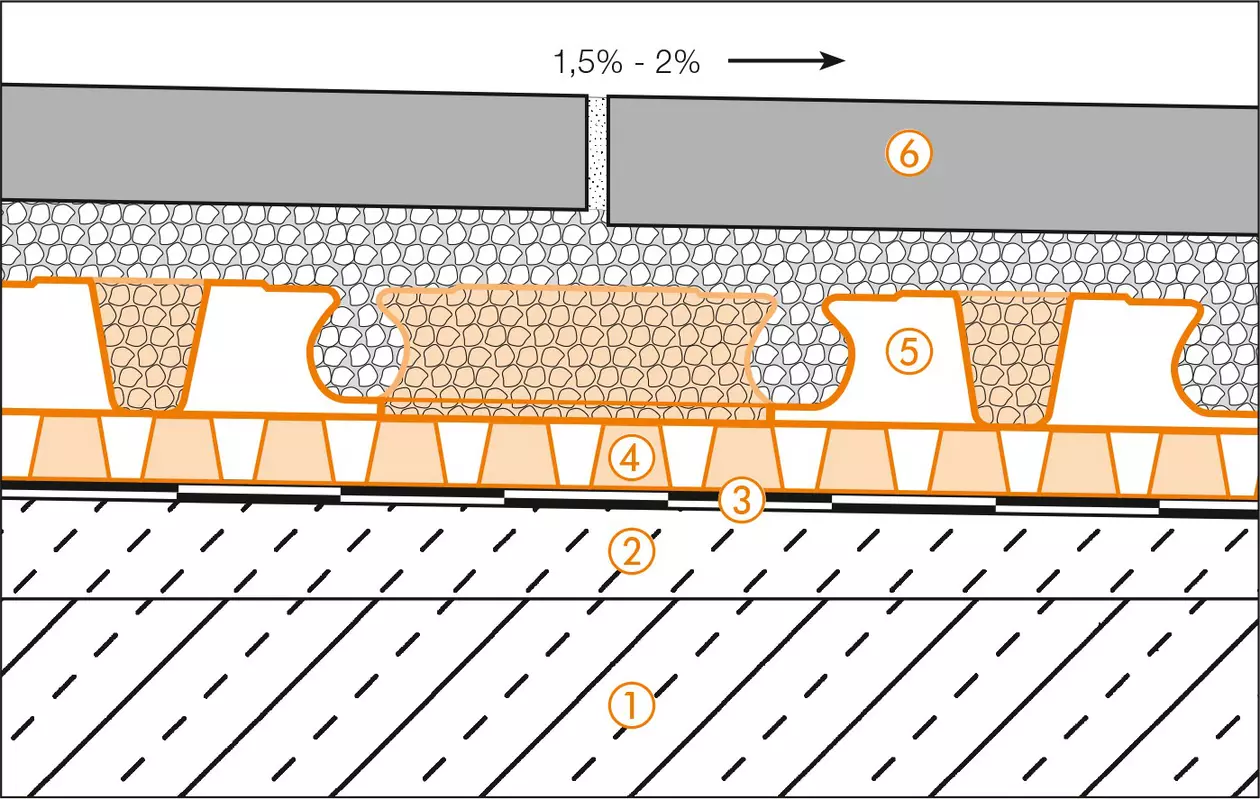

Schlüter-Systems section drawing of balcony assembly A.4 Thin covering assembly over waterproofing layers in mortar beds according to DIN 18531 © Schlueter-Systems
Section drawing of balcony assembly A.4 Thin covering assembly over waterproofing layers in mortar beds according to DIN 18531
  1. Cantilevered concrete slab
  2. Sloped screed
    An adequate slope (1.5–2%) is required for drainage to ensure that the structure
    is functional
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS 8G
    Passive capillary surface drainage for the effective run-off of seepage water and full-surface ventilation. Make sure drainage is possible!
  5. Schlüter-BEKOTEC-DRAIN
    Thin film mortar layer as a system for crack-free and functionally safe tile and natural stone coverings, freshly installed with an adhesive in a cementitious or pervious mortar bed, with high water permeability.
  6. Ceramic tiles or natural stone pavers
    Installation in fresh mortar on the load distribution layer

Edge detail 1

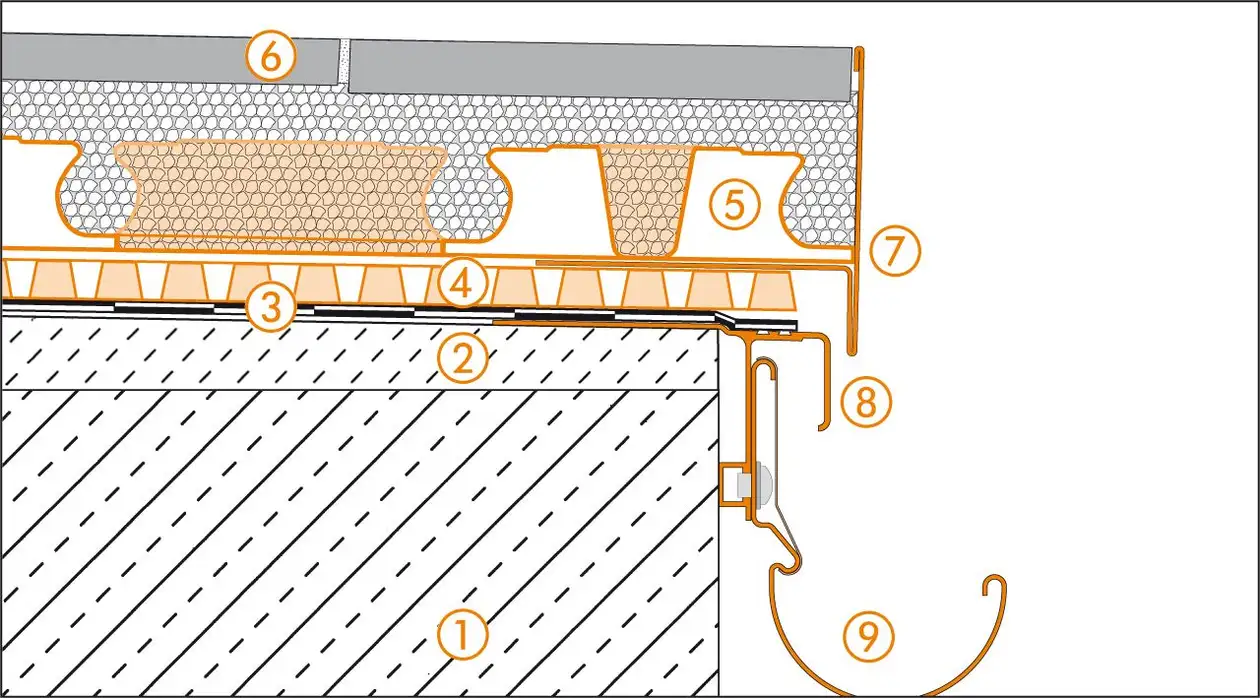

Schlüter-Systems section drawing of edge detail 1 for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531 © Schlueter-Systems
Section drawing of edge detail 1 for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS 8G
  5. Schlüter-BEKOTEC-DRAIN
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-BARA-RT
    Make sure drainage is possible!
  8. Schlüter-BARA-RTK
  9. Schlüter-BARIN

Edge detail 2

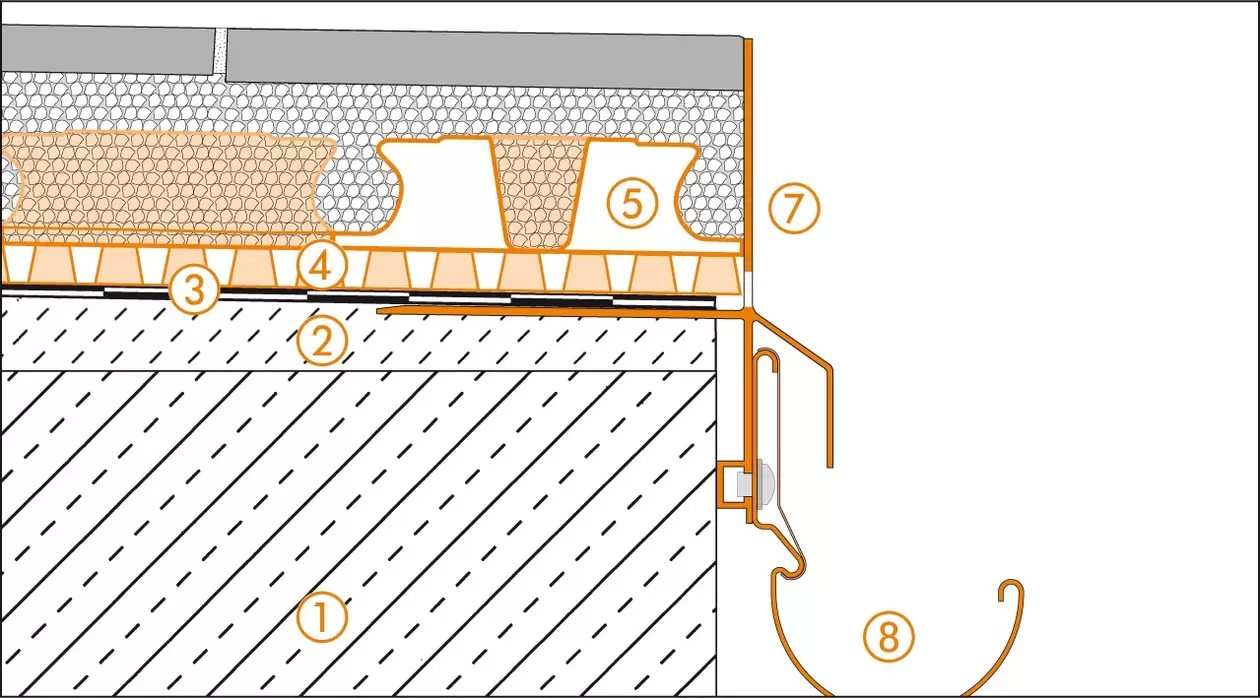

Schlüter-Systems section drawing of edge detail 2 for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531 © Schlueter-Systems
Section drawing of edge detail 2 for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS 8G
  5. Schlüter-BEKOTEC-DRAIN
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-BARA-RKLT
    Drainage opening slots must be kept clear!
  8. Schlüter-BARIN

Wall connection detail

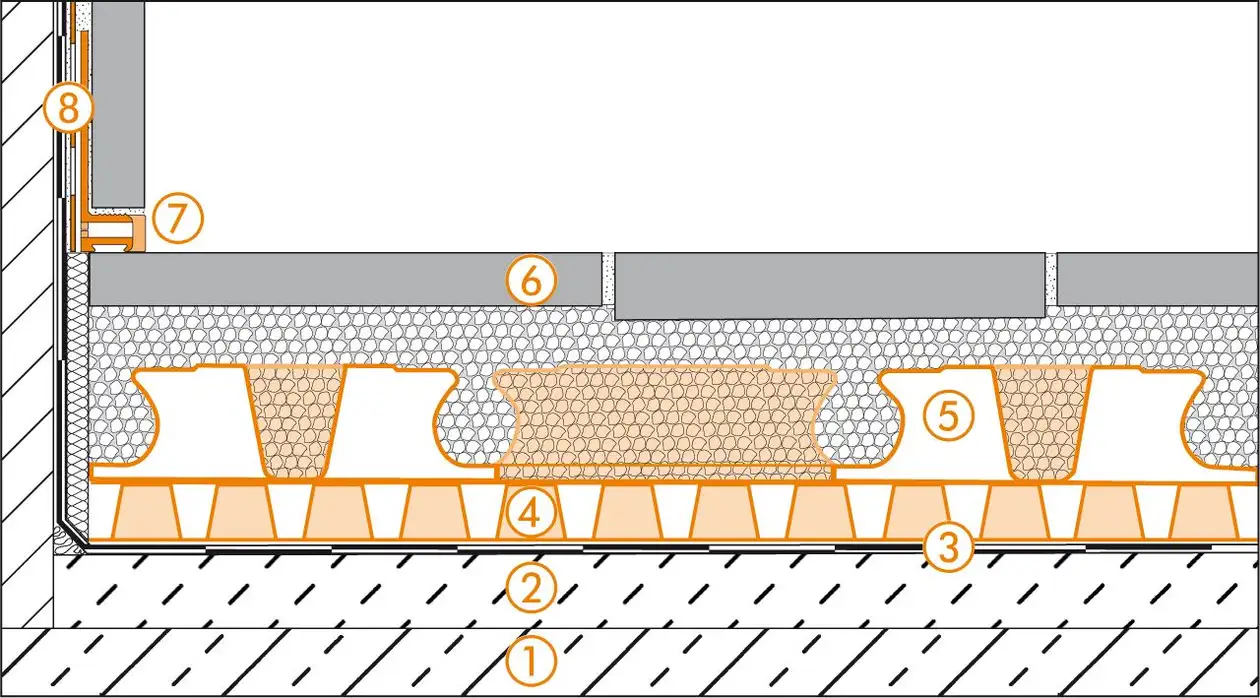

Schlüter-Systems section drawing of the wall connection detail for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531 © Schlueter-Systems
Section drawing of the wall connection detail for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS 8G
  5. Schlüter-BEKOTEC-DRAIN
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-DILEX-BWA
  8. Schlüter-KERDI-KEBA

Door transition

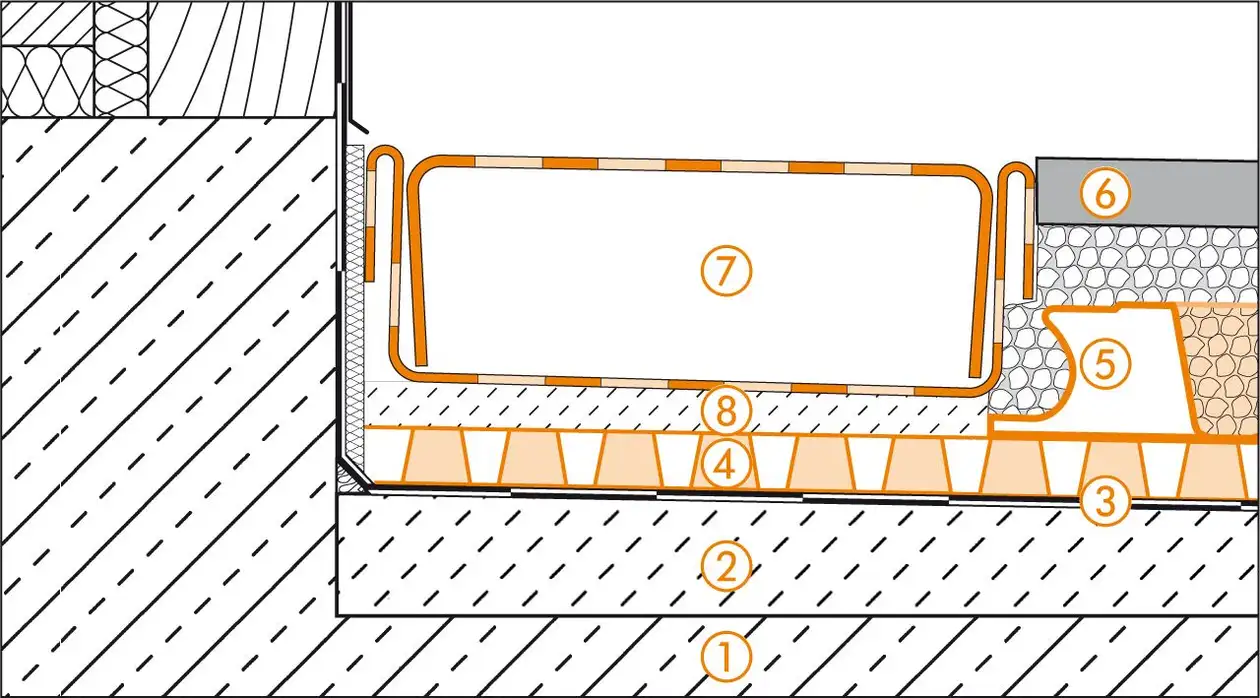

Schlüter-Systems section drawing of the door transition for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531 © Schlueter-Systems
Section drawing of the door transition for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS 8G
  5. Schlüter-BEKOTEC-DRAIN
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-TROBA-LINE-TL
    Opening slots must be kept clear
  8. Mortar spot

Floor drain

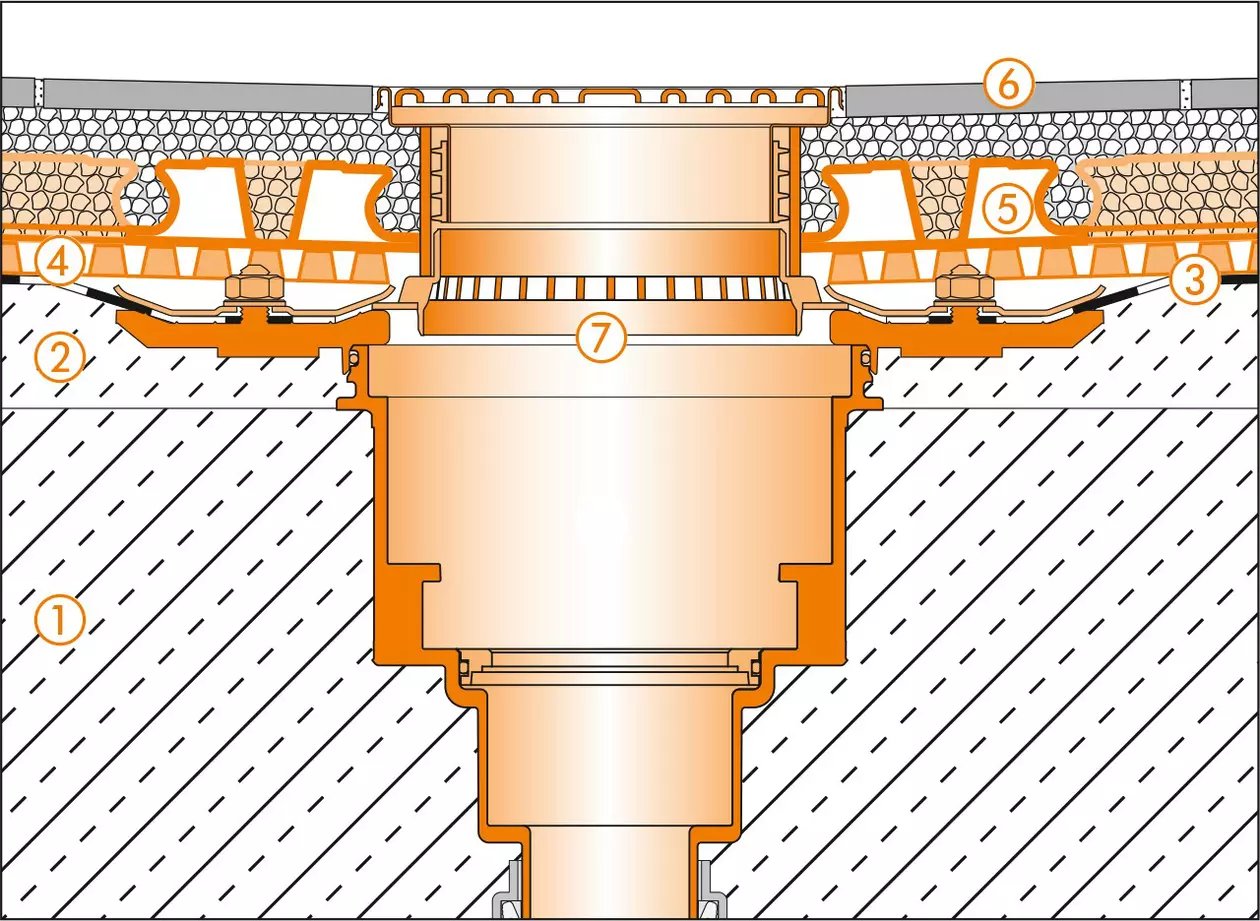

Schlüter-Systems section drawing of the floor drain for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531 © Schlueter-Systems
Section drawing of the floor drain for balcony assembly A.4 Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531
  1. Cantilevered concrete slab
  2. Sloped screed (1.5–2%)
  3. Structural waterproofing acc. to DIN 18531
  4. Schlüter-TROBA-PLUS 8G
  5. Schlüter-BEKOTEC-DRAIN
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-KERDI-DRAIN-SETS OUTDOOR
    complete set KD BV 50 ASLVB
