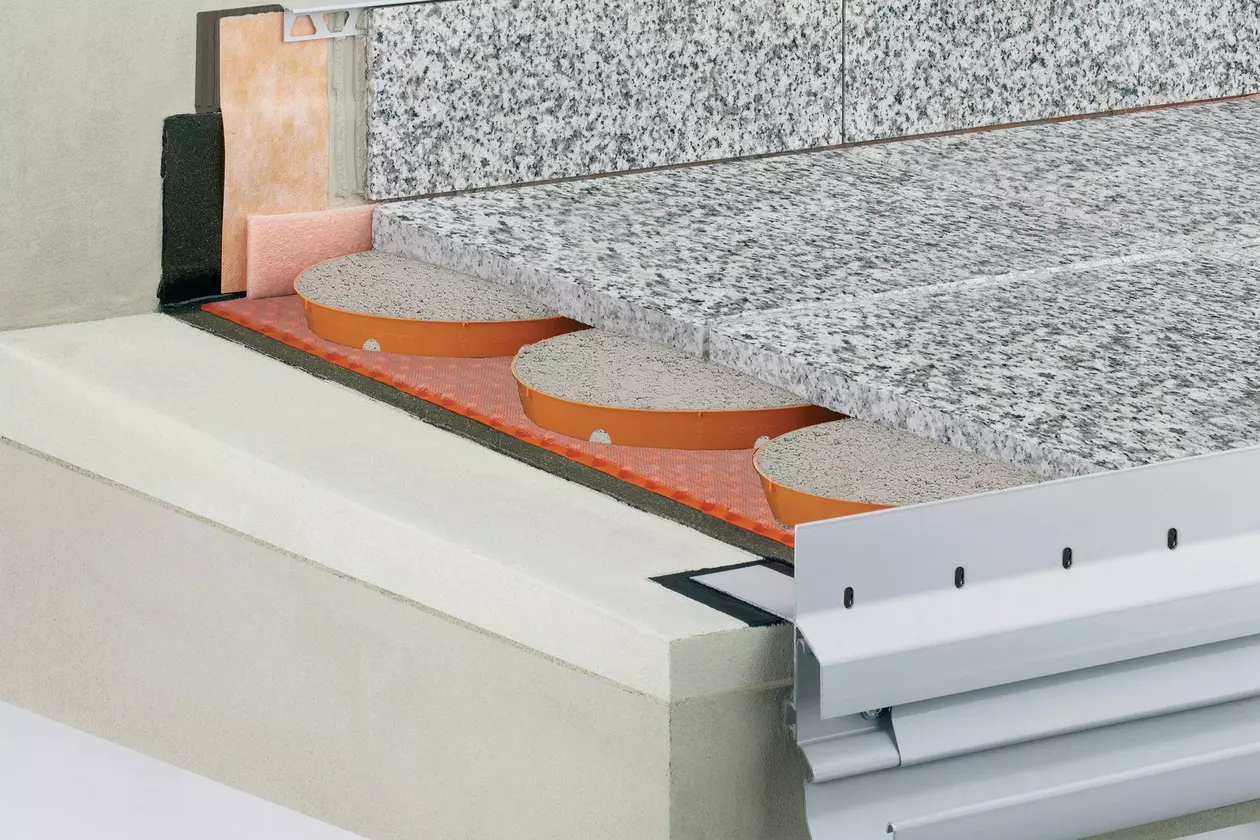

Balcony assembly A.7: Covering assembly over mortar supported pedestals

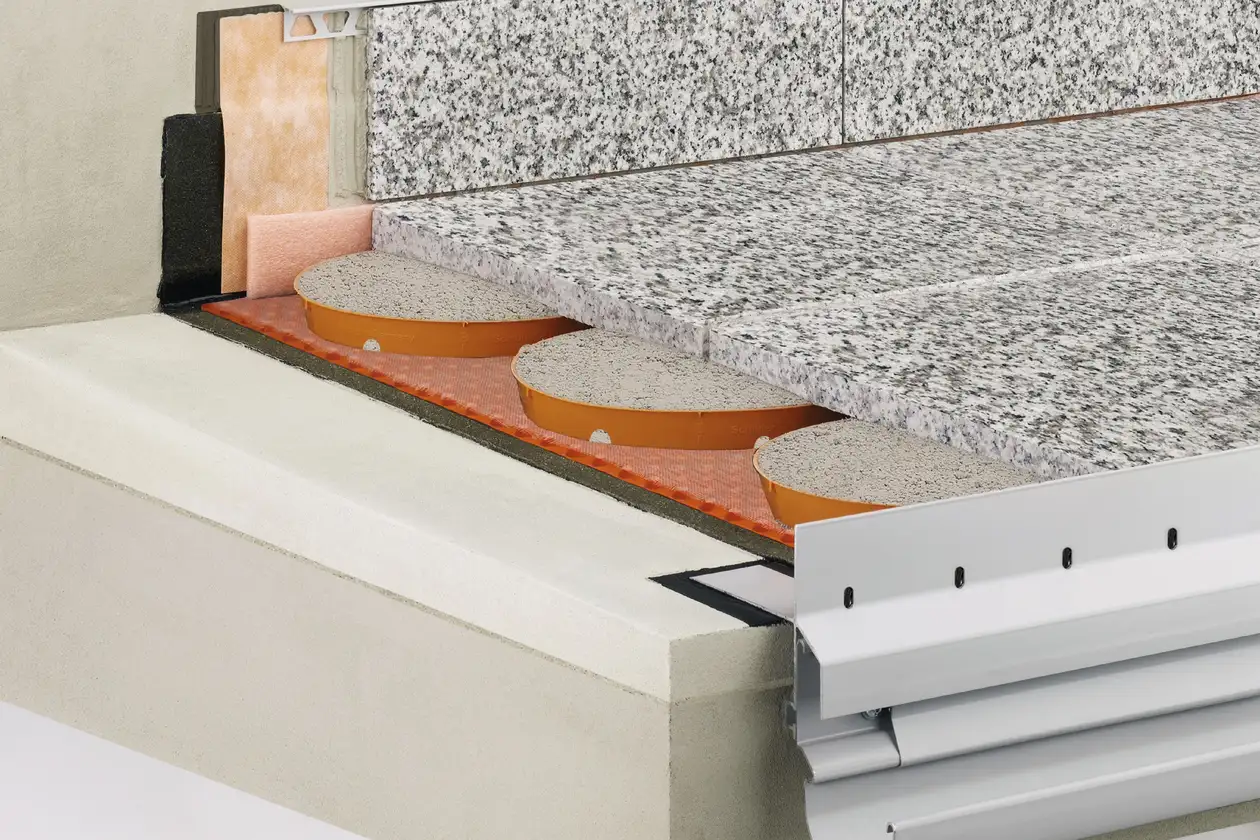

Covering assembly with TROBA-STELZ-mortar rings

© Schlueter-Systems

Schlüter-TROBA-STELZ-MR are plastic rings that provide assistance in laying large format pavers.

The 25 mm plastic rings are installed at the cross-sections of the pavers and remain in the assembly once they have been filled with fresh mortar (preferably pervious mortar). This allows for easy levelling of the covering surface.

Additionally, the open spaces between the stilts ensure the fast drainage of water permeating through the open paver joints.

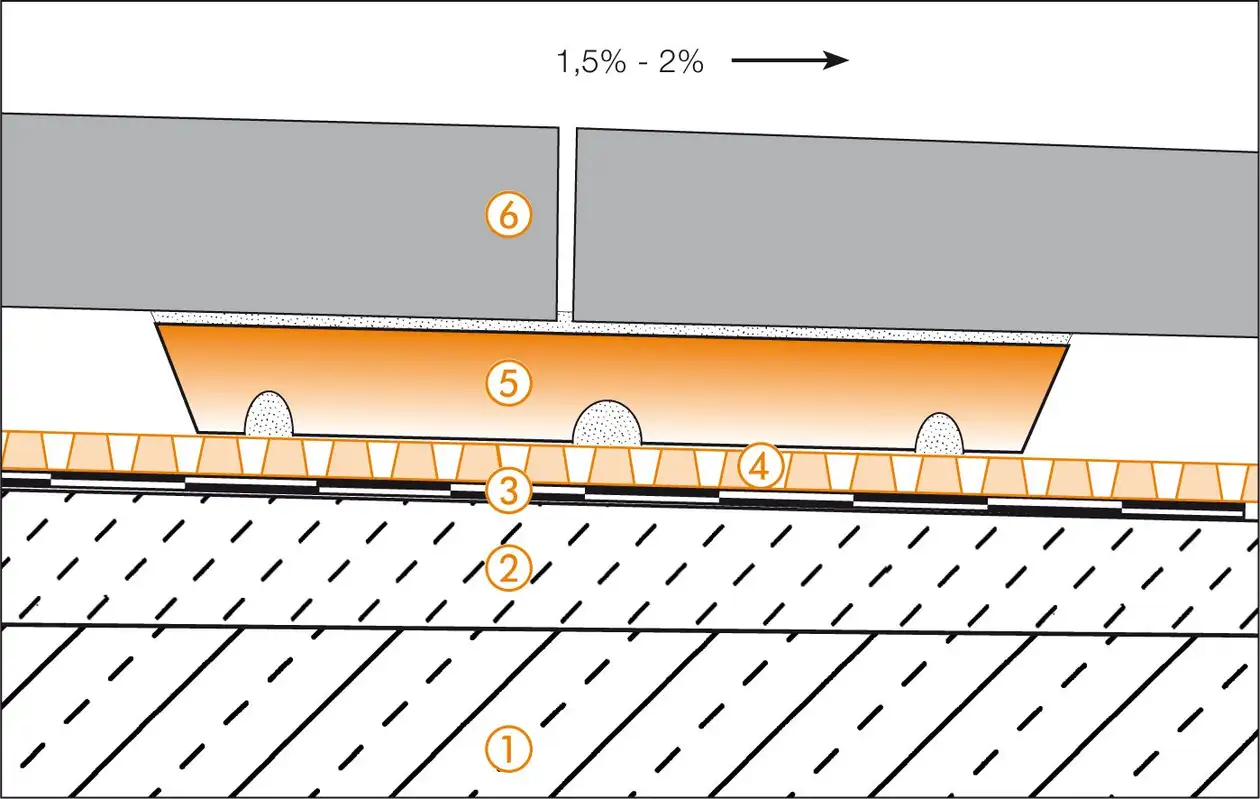

A.7 Covering assembly over mortar supports, installation with mortar rings

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed
   An adequate slope (1.5–2%) is required for drainage to ensure that the structure
   is functional
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
   High-impact drainage membrane as the support layer for self-supporting pavers and for reliable and effective drainage of seepage entering through the open joints between the pavers. Make sure drainage is possible!
5. Schlüter-TROBA-STELZ-MR
   Plastic rings that provide assistance in laying large format pavers on balconies and terraces
6. Large format, self-supporting pavers
   Concrete pavers, natural stone or ceramic elements

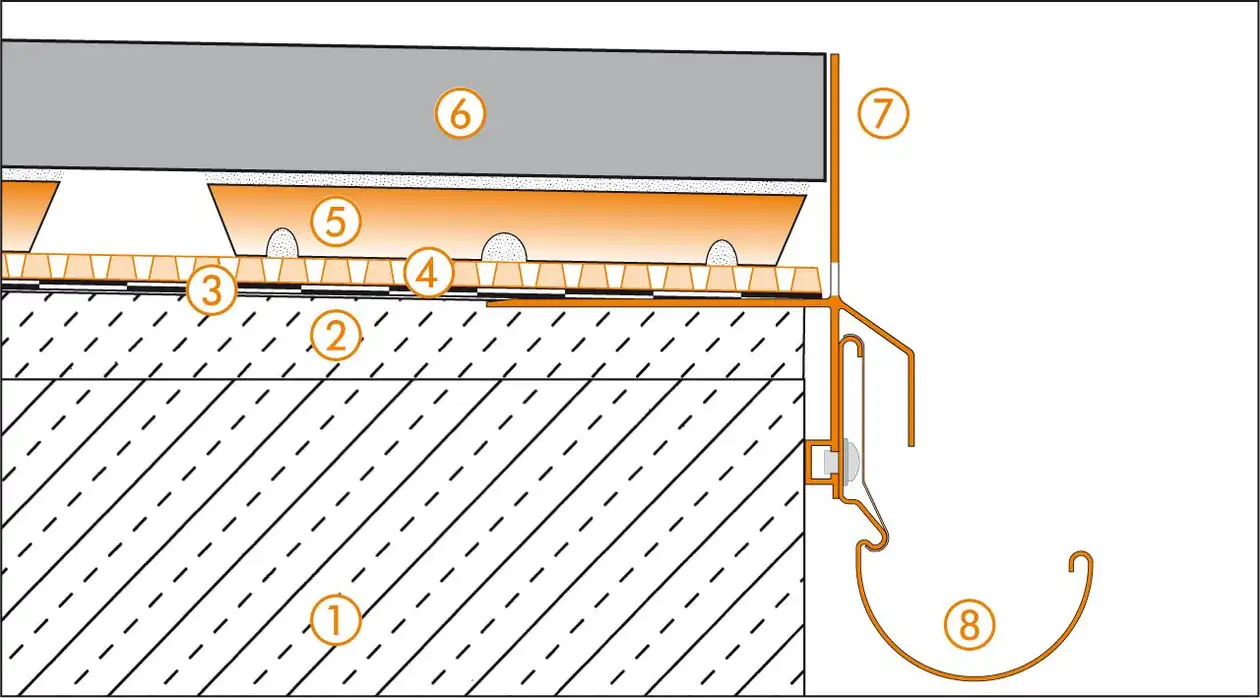

Edge detail 1

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-MR
6. Large format, self-supporting pavers
7. Schlüter-BARA-RKLT
   Keep drainage opening slots clear
8. Schlüter-BARIN

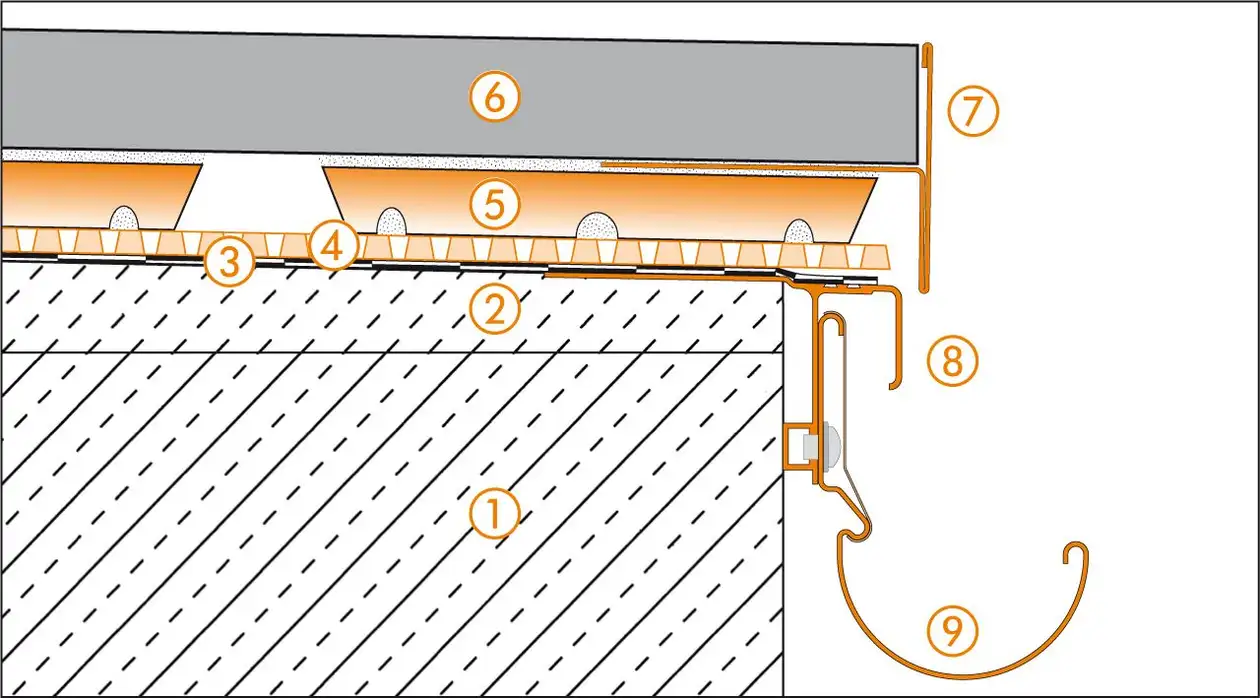

Edge detail 2

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-MR
6. Large format, self-supporting pavers
7. Schlüter-BARA-RT
   Make sure drainage is possible
8. Schlüter-BARA-RTK
9. Schlüter-BARIN

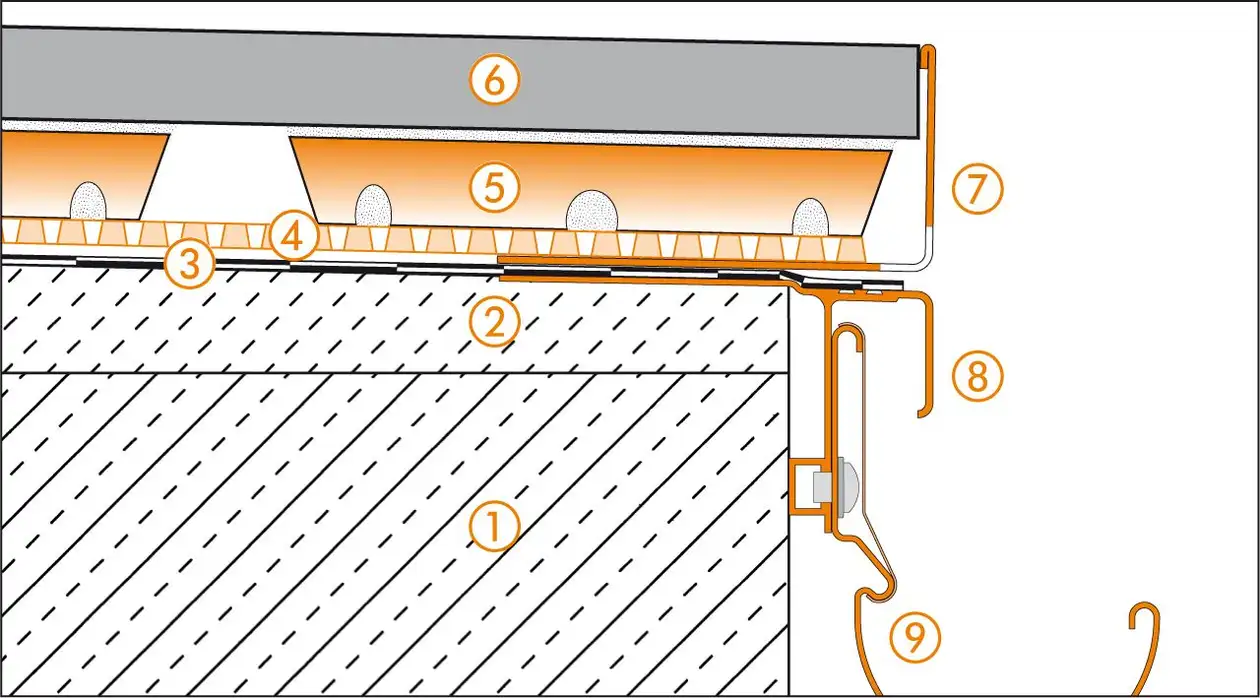

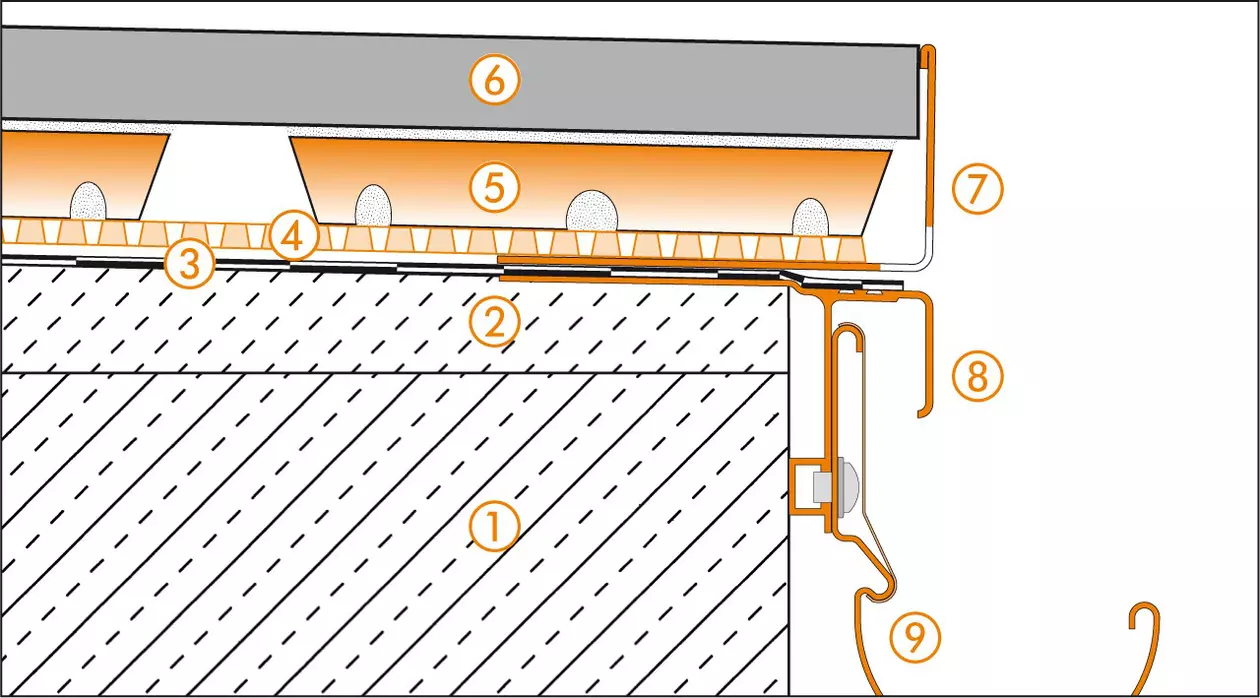

Edge detail 3

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-MR
6. Large format, self-supporting pavers
7. Schlüter-BARA-RWL
   Keep drainage opening slots clear
8. Schlüter-BARA-RTK
9. Schlüter-BARIN

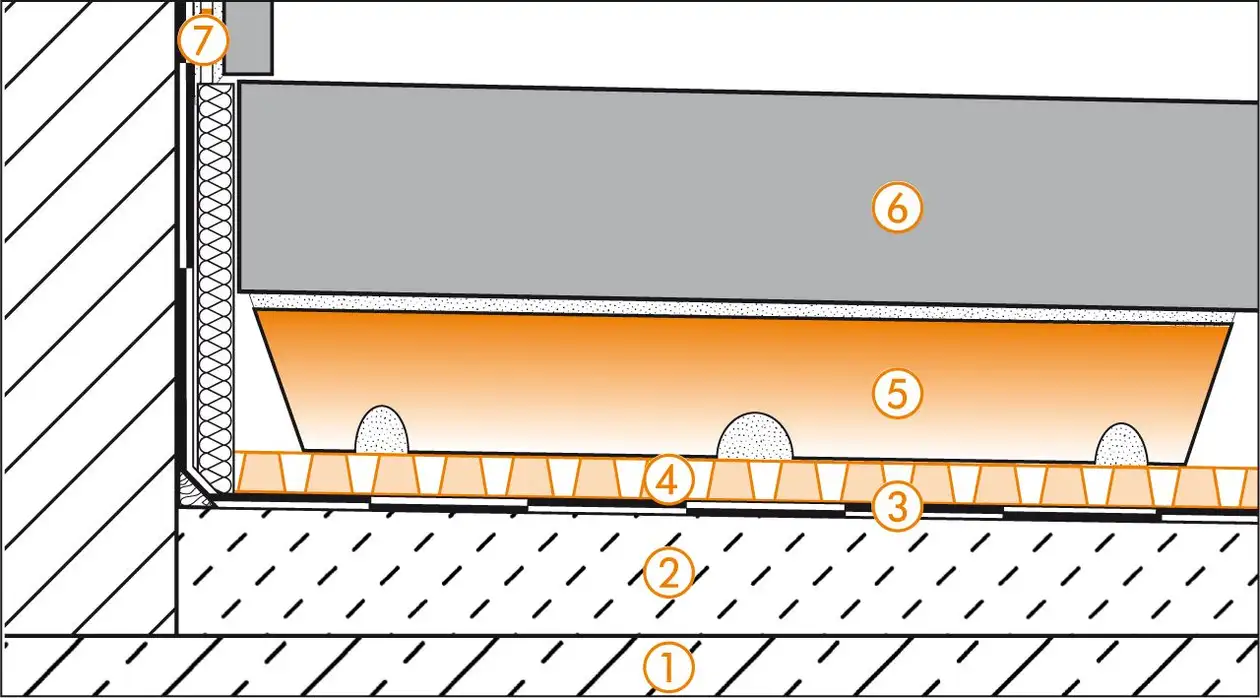

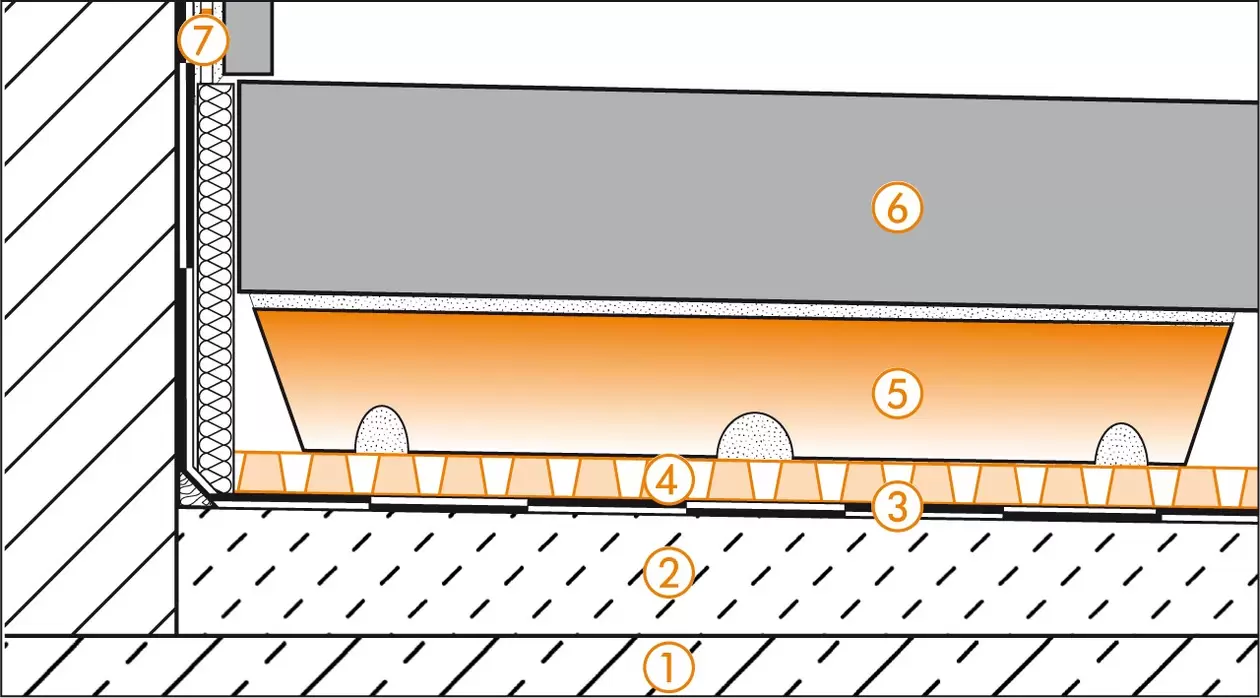

Wall connection detail

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-MR
6. Large format, self-supporting pavers
7. Schlüter-KERDI

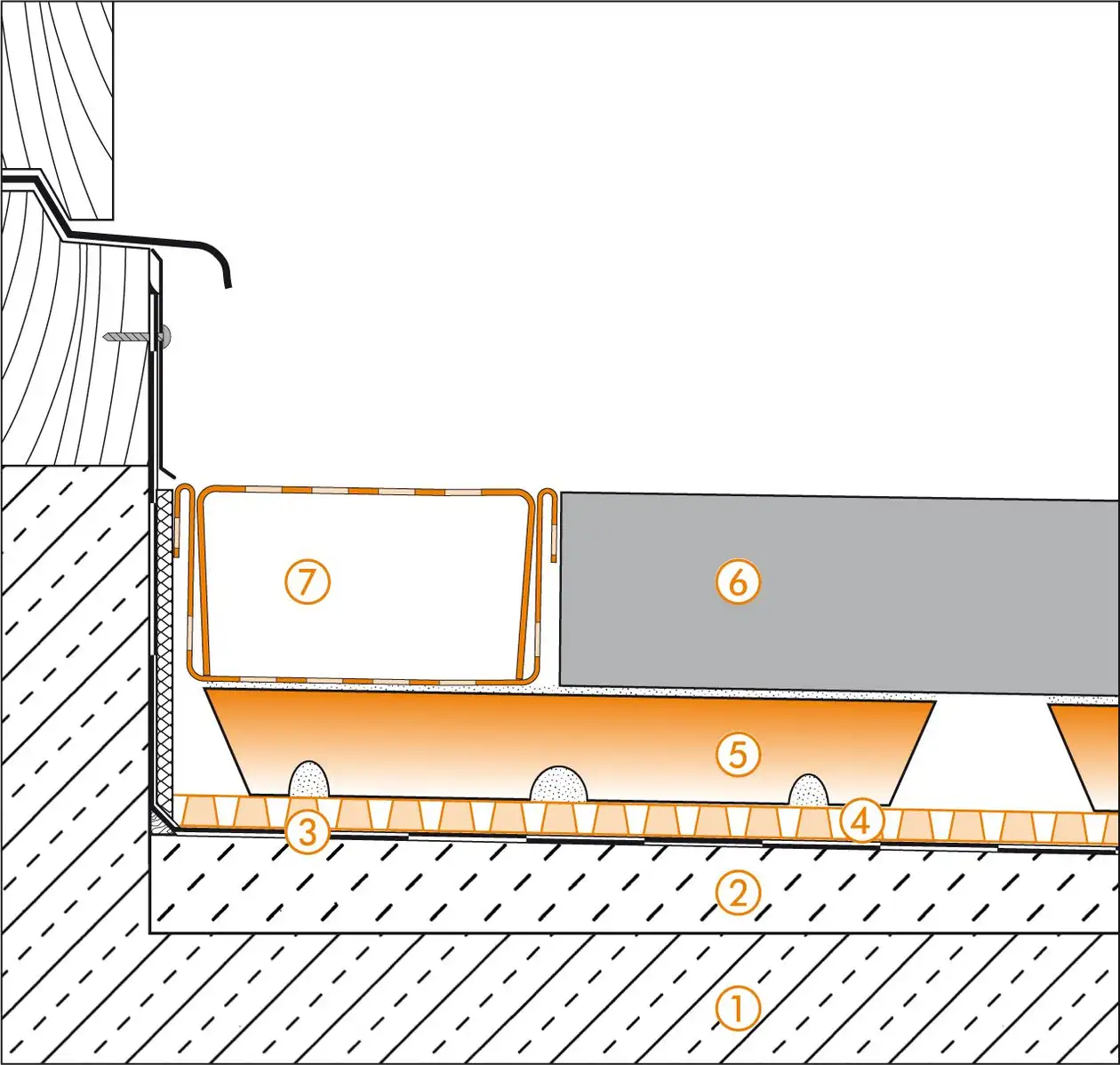

Door transition

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-MR
6. Large format, self-supporting pavers
7. Schlüter-TROBA-LINE-TL
