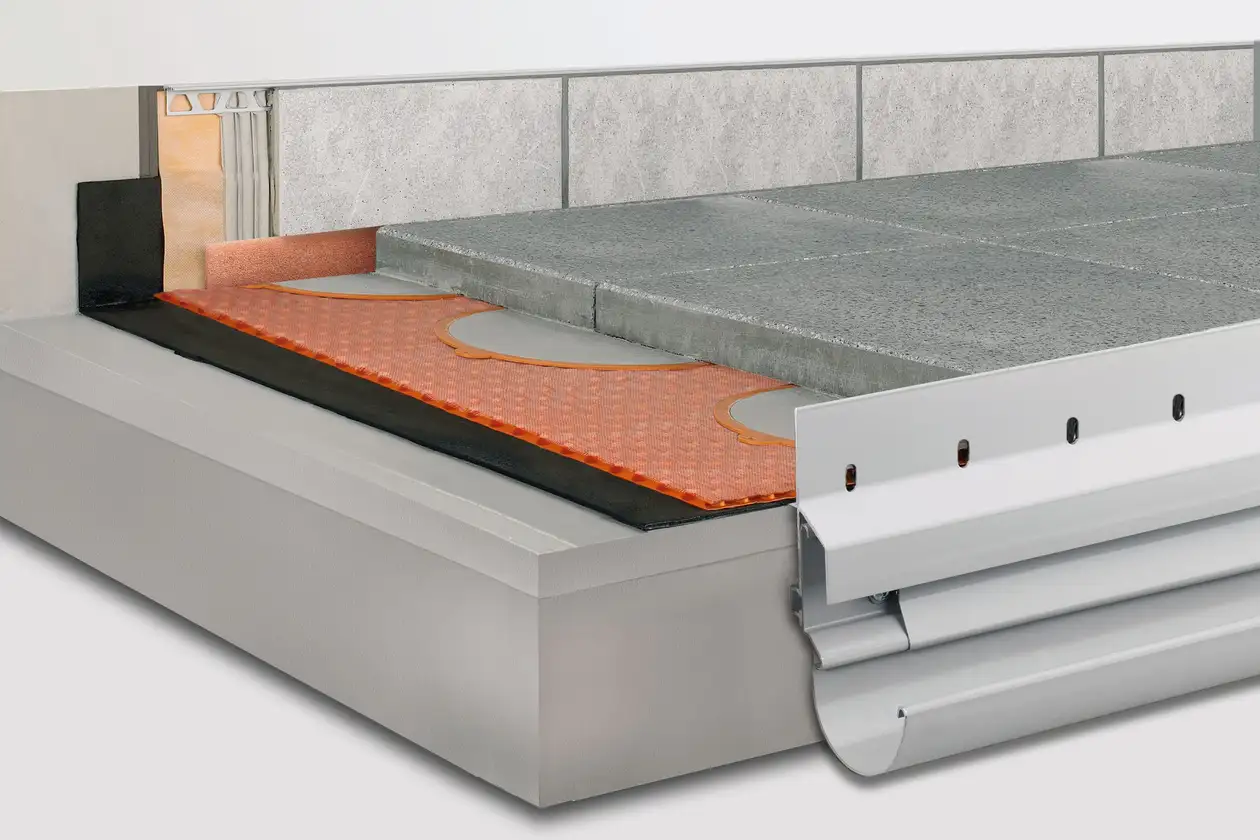

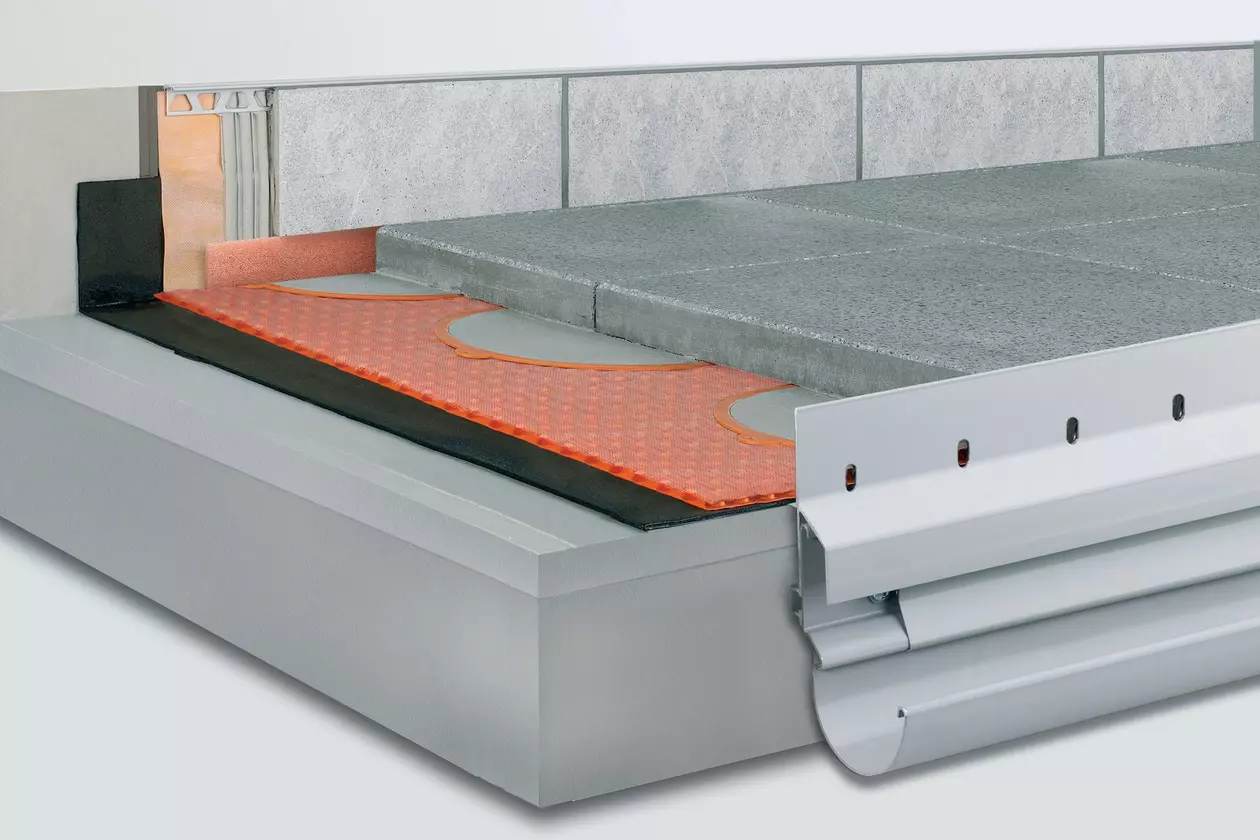

Balcony assembly A.6: Unbonded installation on surface drainage fixed in place with thin-bed mortar spots

Unbonded installation over TROBA-PLUS 8G with TROBA-STELZ-DR

© Schlueter-Systems

In this type of construction, the high-impact area drainage
Schlüter-TROBA-PLUS 8G forms the support layer for self-supporting pavers and guarantees the quick drainage of seepage entering through the open joints between the pavers.

Schlüter-TROBA-STELZ-DR are used as casting mould rings to create evenly spaced support points of thin-bed mortar for the self-supporting pavers.

Note:
The TROBA-STELZ-DR casting mould rings can be removed after the installation of the thin-bed mortar and reused in other applications.

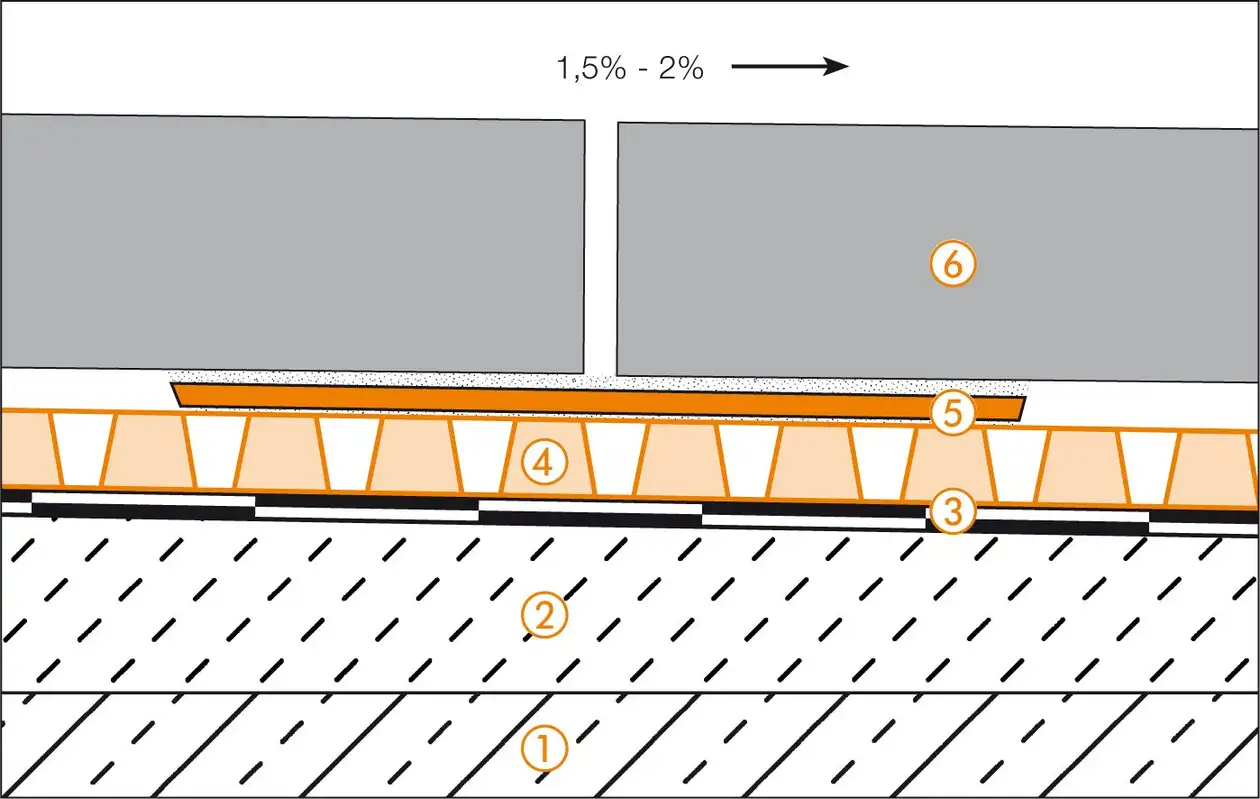

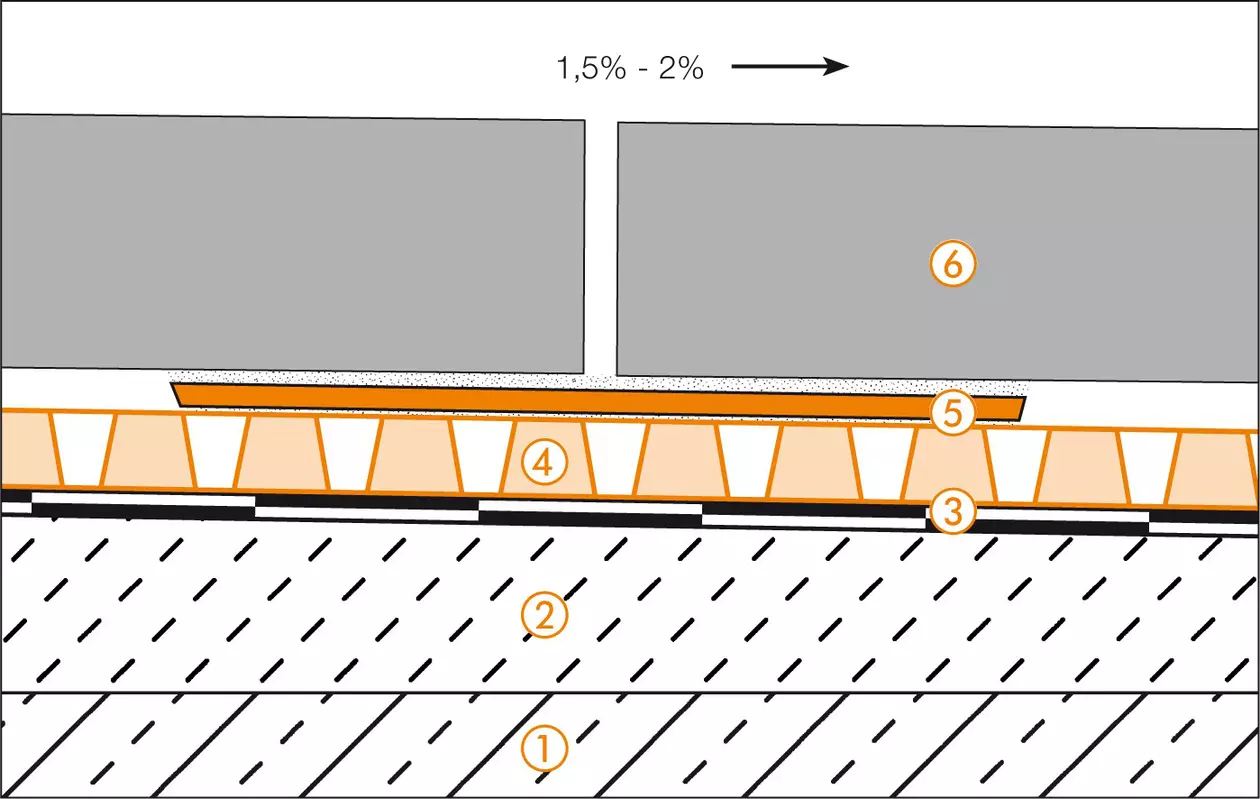

Balcony assembly A.6: Unbonded installation on TROBA-PLUS 8G fixed in place with thin-bed mortar spots

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed
   An adequate slope (1.5–2%) is required for drainage to ensure that the structure
   is functional
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
   High-impact drainage membrane as the support layer for self-supporting pavers and for reliable and effective drainage of seepage entering through the open joints between the pavers. Make sure drainage is possible!
5. Schlüter-TROBA-STELZ-DR
   Formwork rings for thin-bed mortar
6. Large format, self-supporting pavers
   Concrete pavers, natural stone or ceramic elements

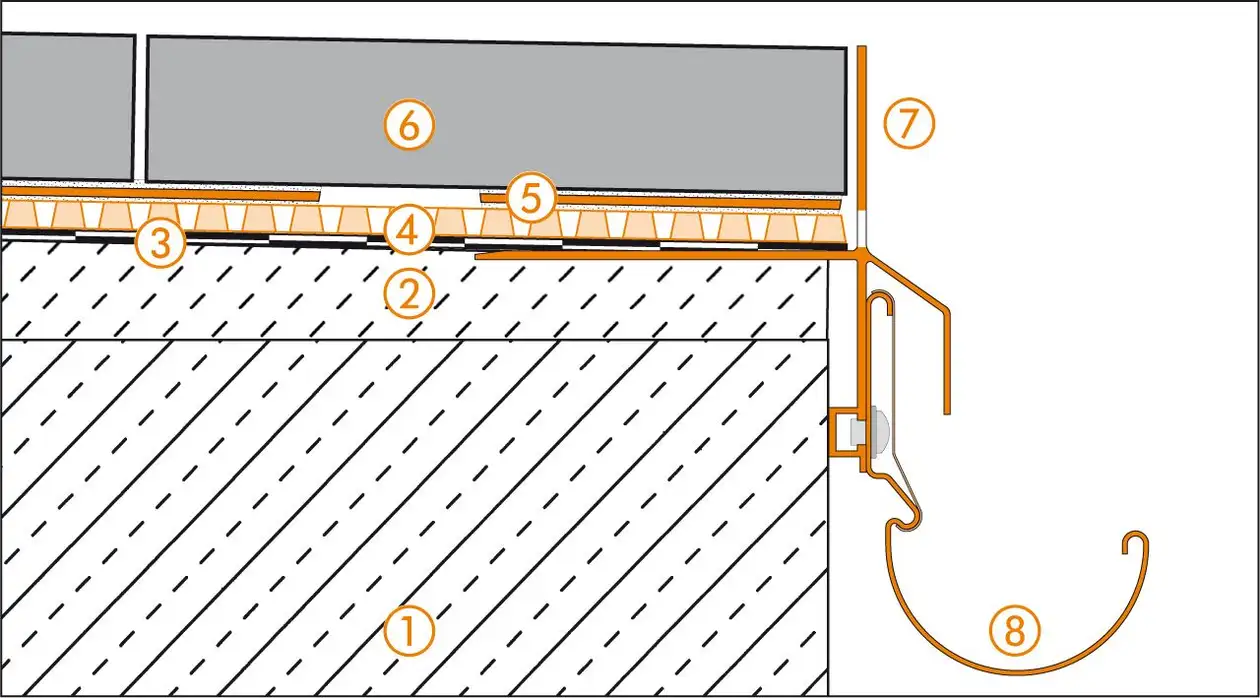

Edge detail 1

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-DR
6. Large format, self-supporting pavers
7. Schlüter-BARA-RKLT
   Keep drainage opening slots clear
8. Schlüter-BARIN

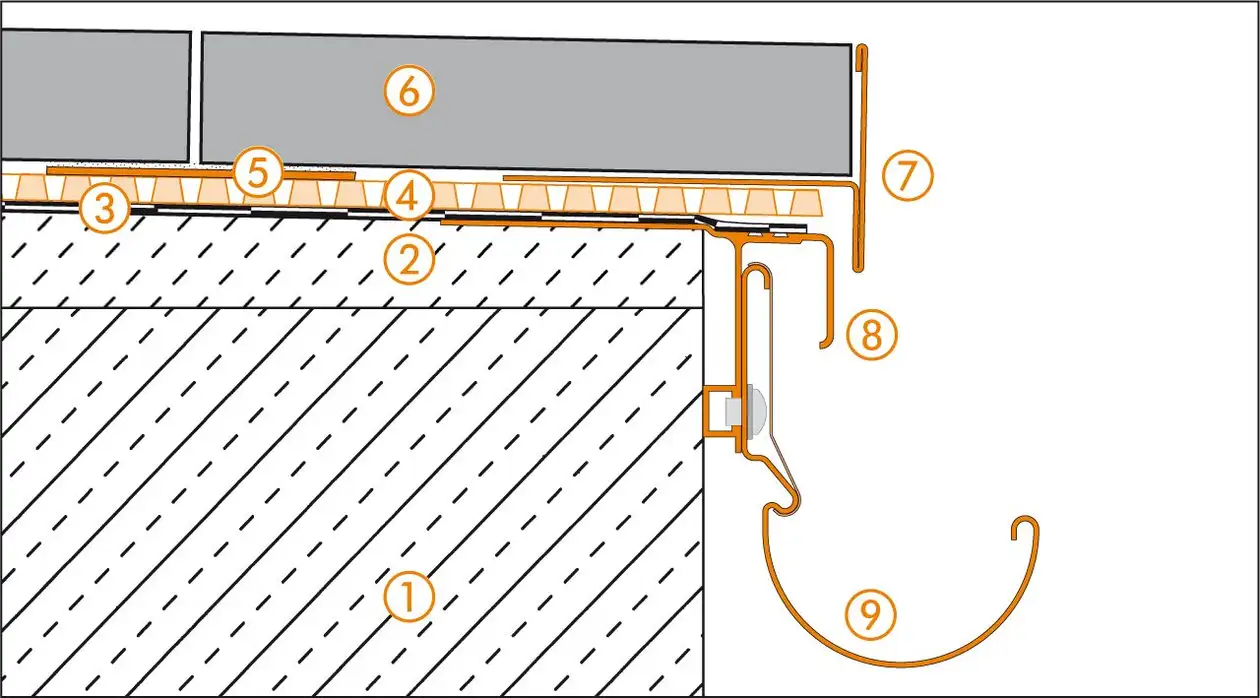

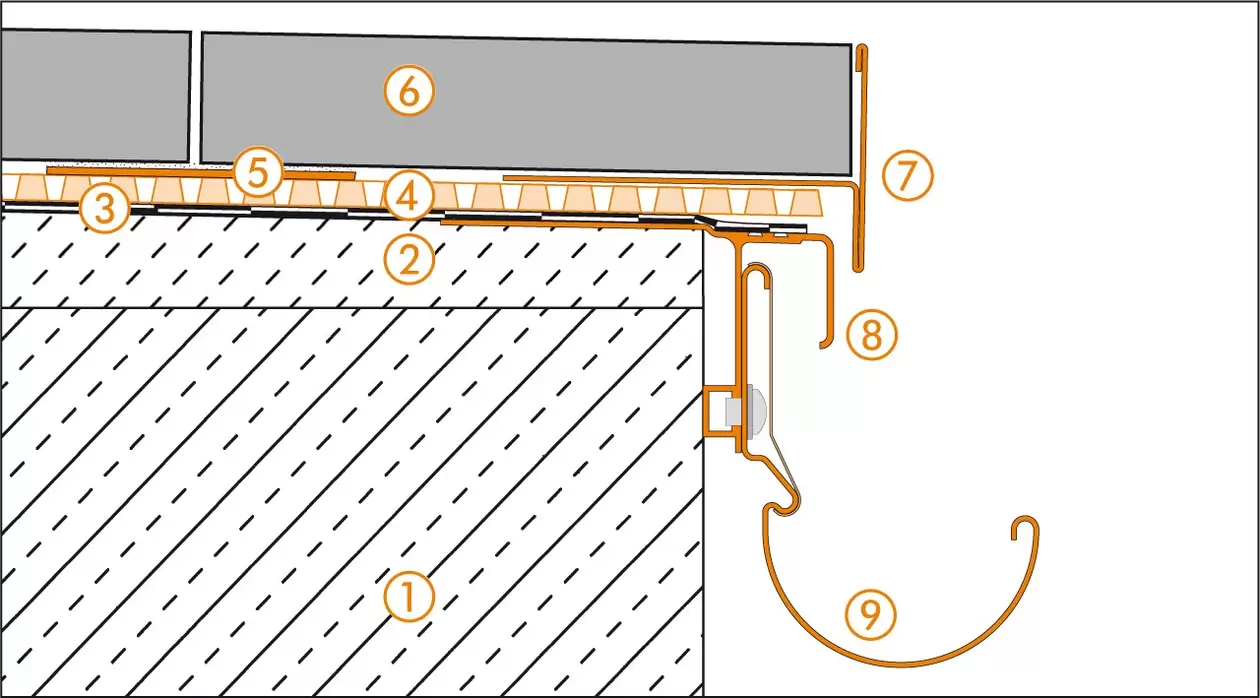

Edge detail 2

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-DR
6. Large format, self-supporting pavers
7. Schlüter-BARA-RT
   Make sure drainage is possible
8. Schlüter-BARA-RTK
9. Schlüter-BARIN

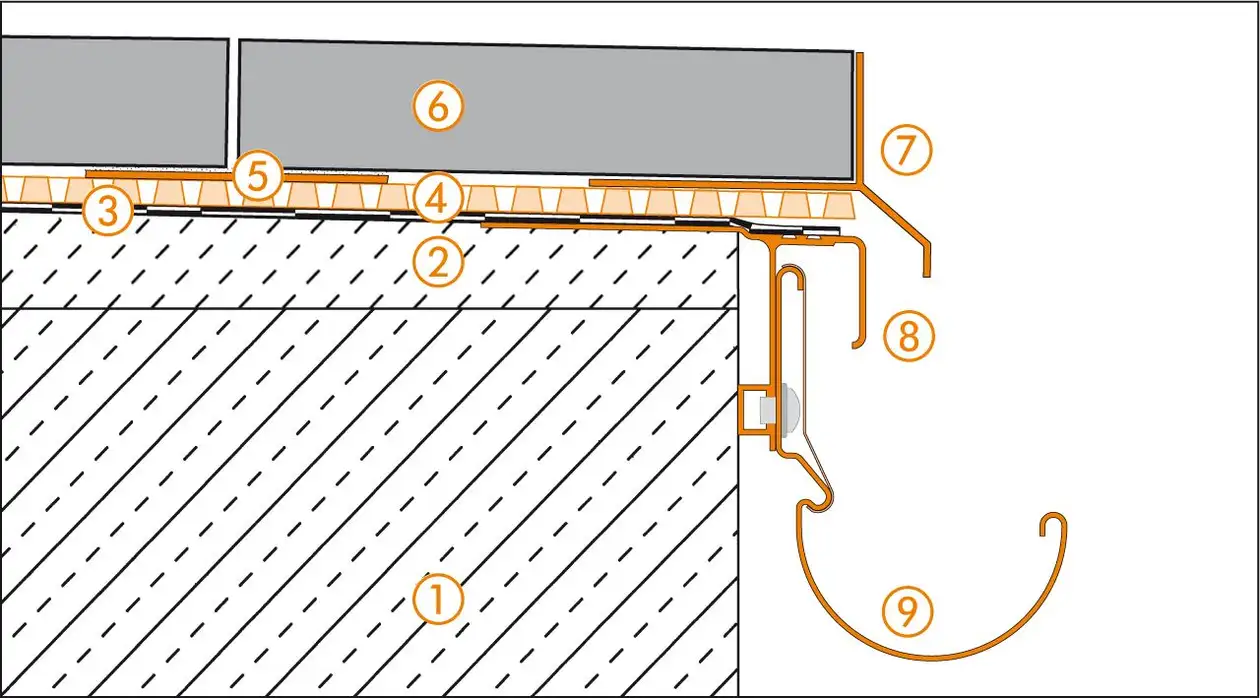

Edge detail 3

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-DR
6. Large format, self-supporting pavers
7. Schlüter-BARA-RK
8. Schlüter-BARA-RTK
   Make sure drainage is possible
9. Schlüter-BARIN

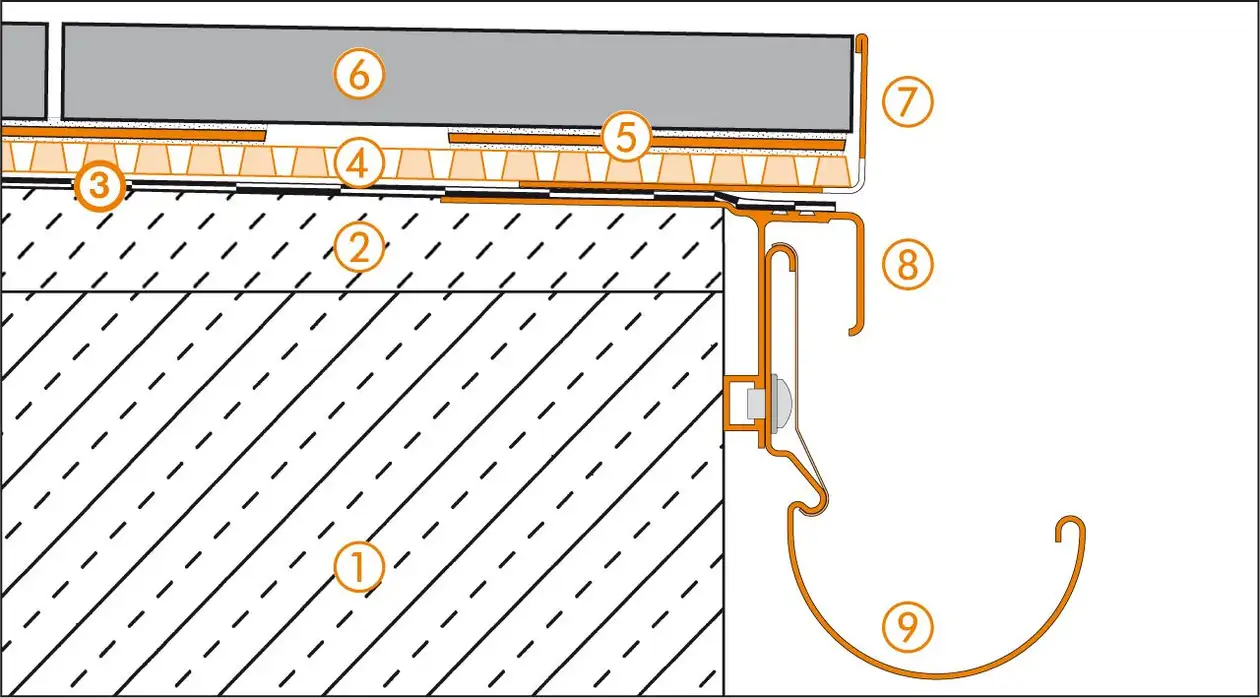

Edge detail 4

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-DR
6. Large format, self-supporting pavers
7. Schlüter-BARA-RWL
   Keep drainage opening slots clear
8. Schlüter-BARA-RTK
9. Schlüter-BARIN

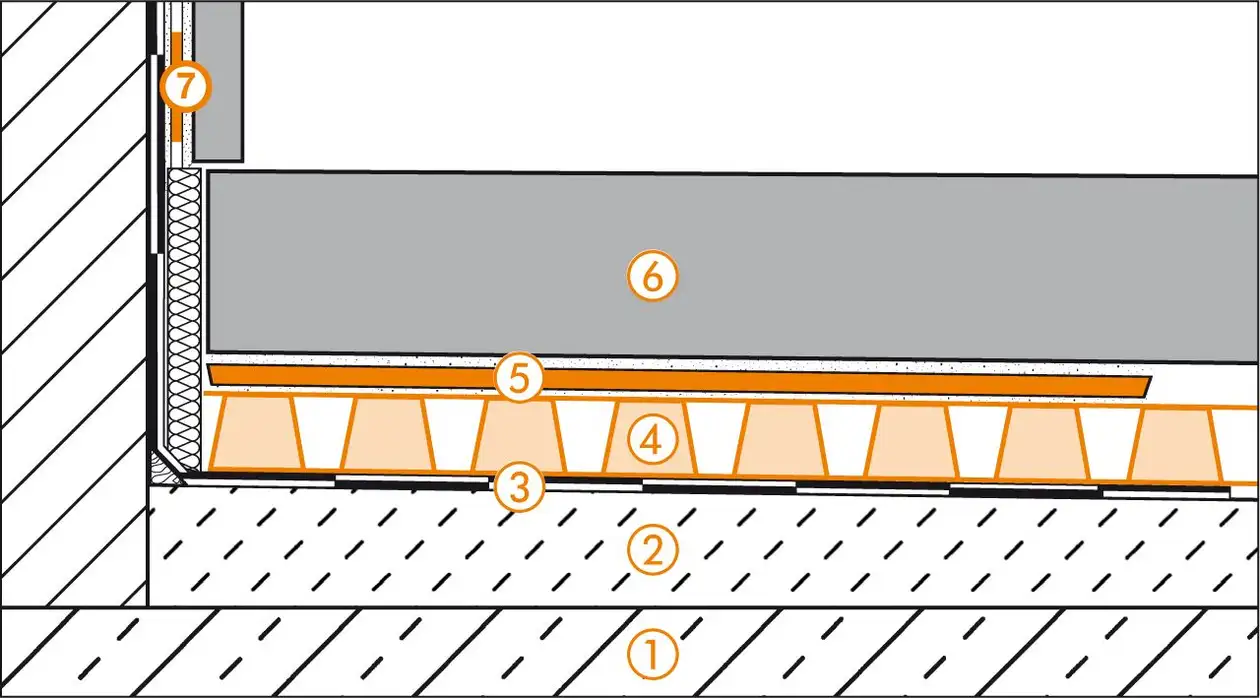

Wall connection detail

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-DR
6. Large format, self-supporting pavers
7. Schlüter-KERDI

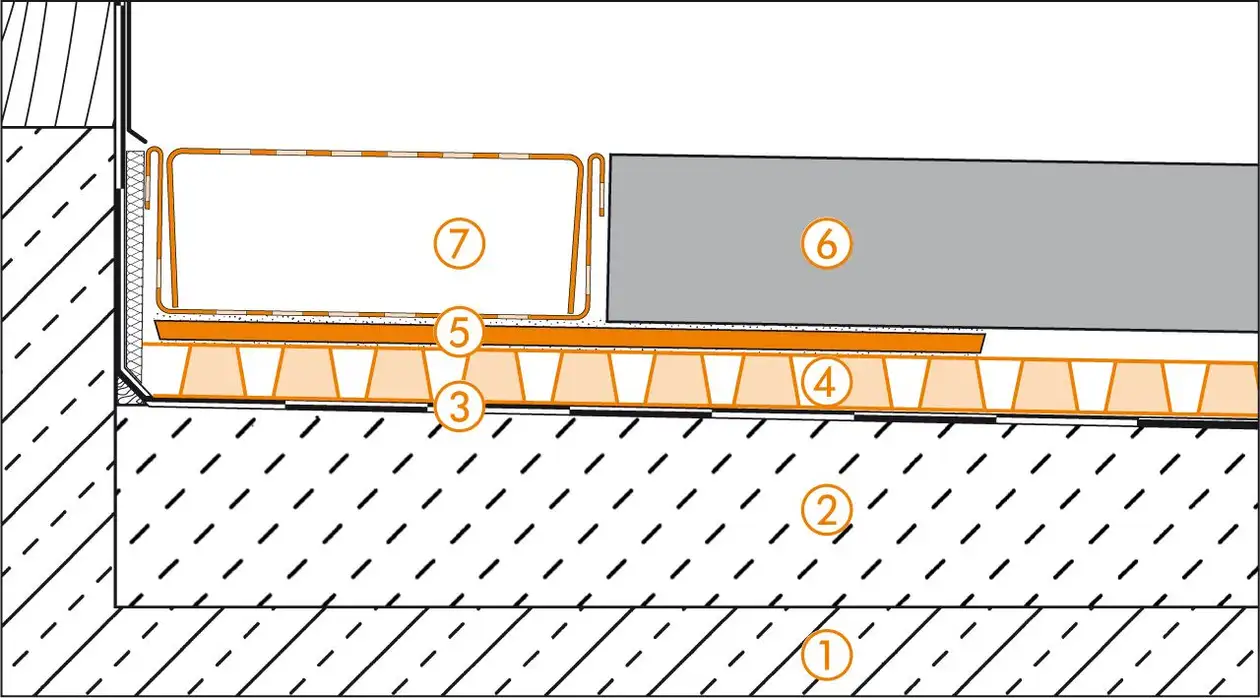

Door transition

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed (1.5–2%)
3. Structural waterproofing acc. to DIN 18531
4. Schlüter-TROBA-PLUS 8G
5. Schlüter-TROBA-STELZ-DR
6. Large format, self-supporting pavers
7. Schlüter-TROBA-LINE-TL
