Overview of all ground-level terrace assemblies

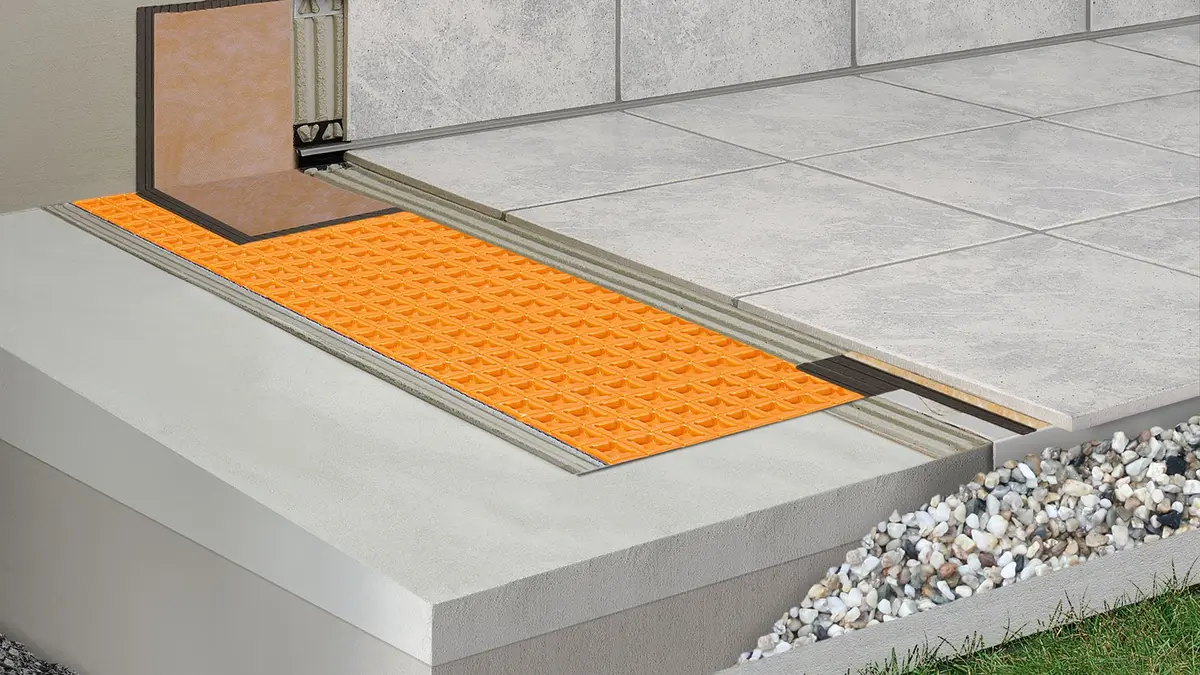

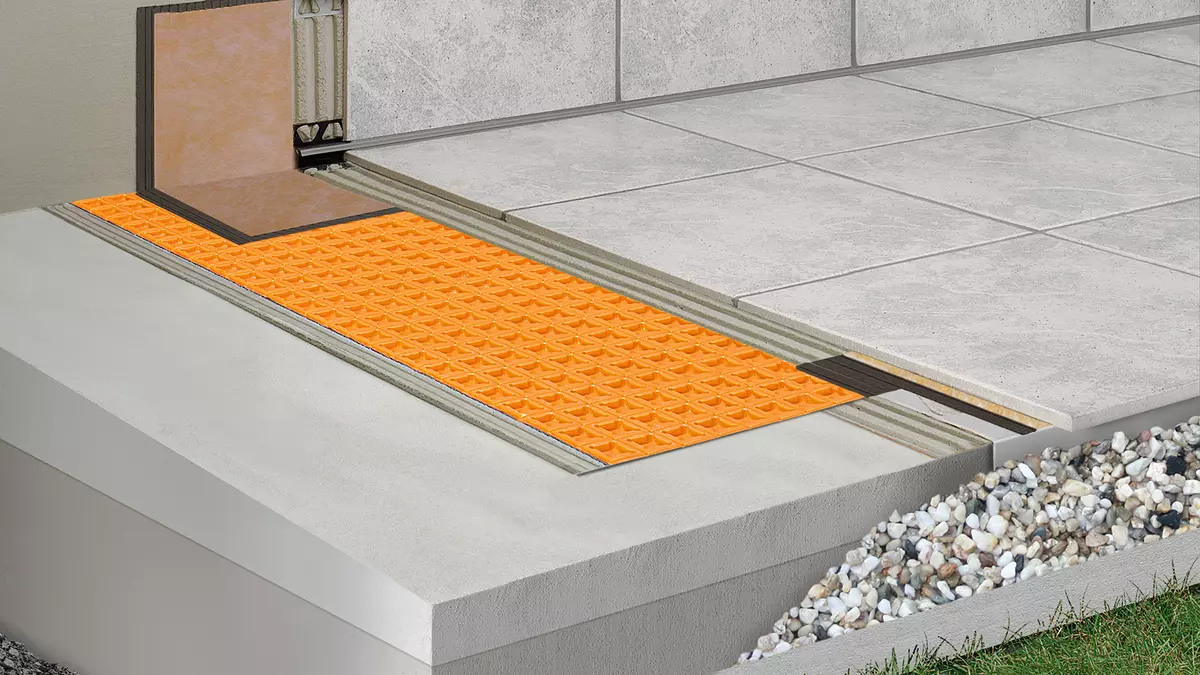

Terrace assembly B.1: Covering assembly with bonded waterproofing

Covering assembly of a ground-level terrace with DITRA for bonded waterproofing, bonded uncoupling and vapour pressure equalisation.

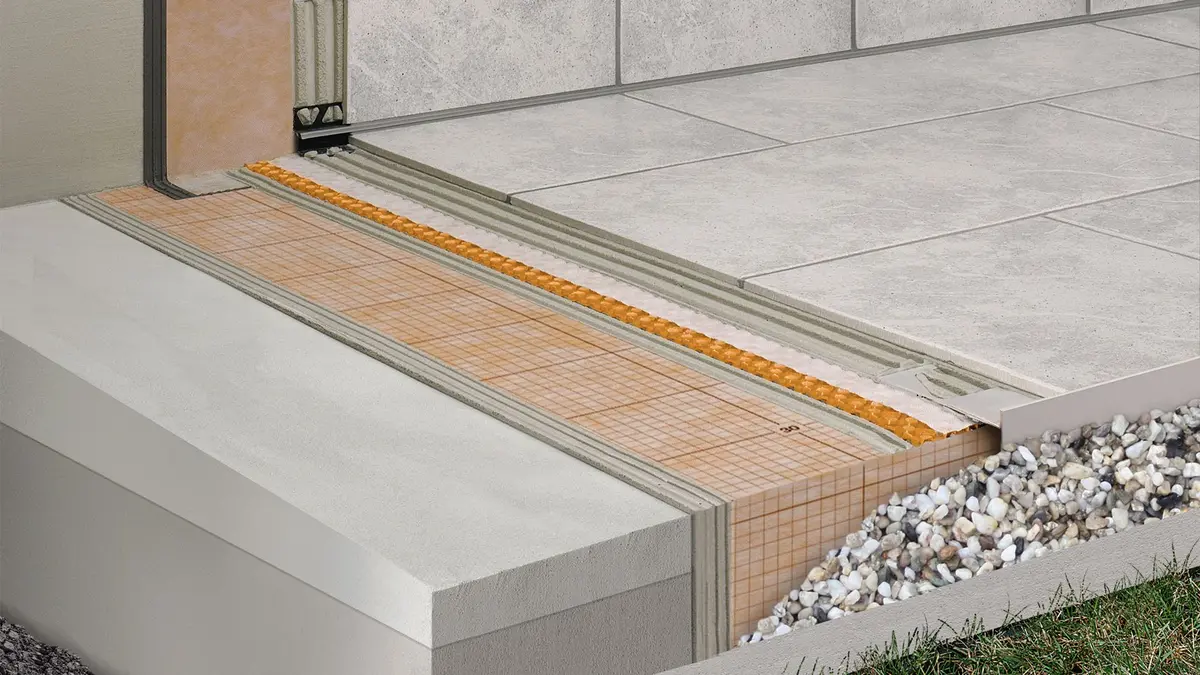

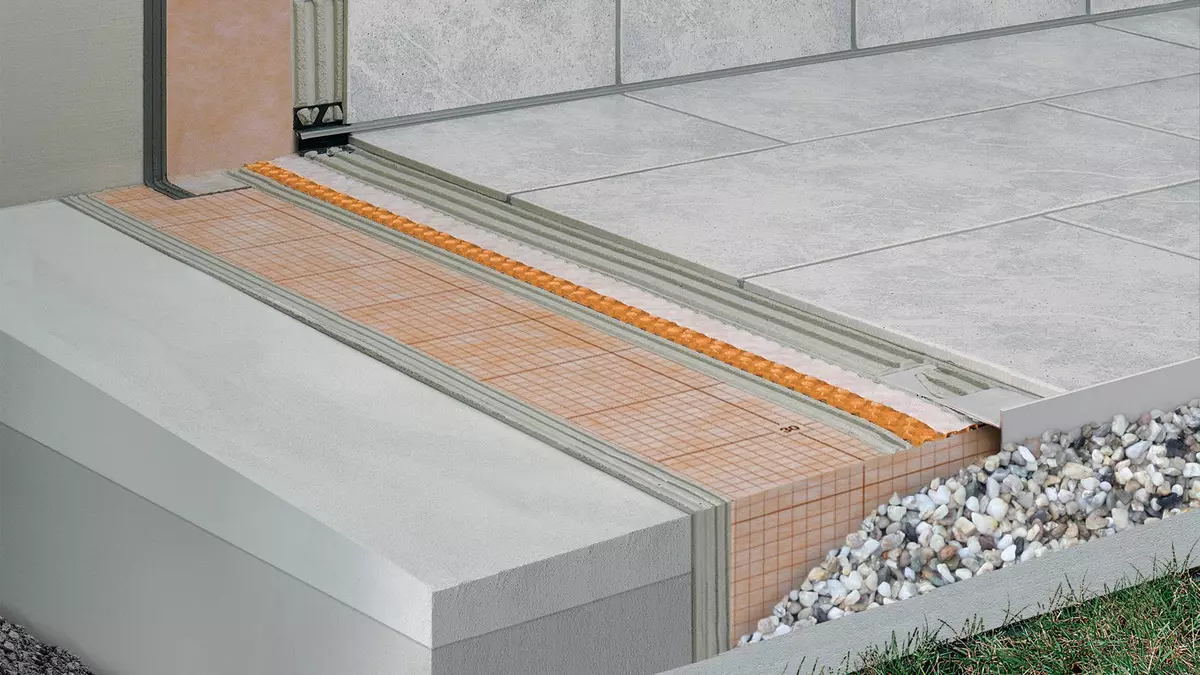

Terrace assembly B.2: Covering assembly with bonded drainage over bonded waterproofing

Assemblies of a ground-level terrace with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing.

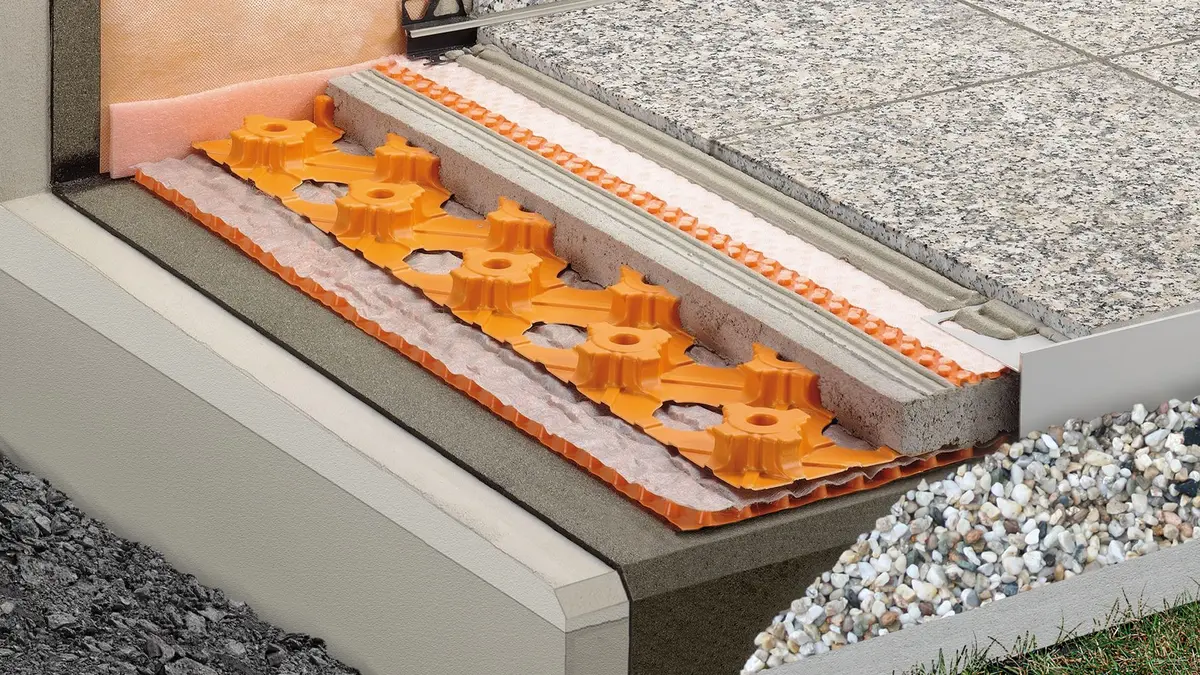

Terrace assembly B.3: Thin covering assembly over waterproofing

Thin covering assembly of a ground-level terrace over waterproofing according to DIN 18531 with DITRA-DRAIN for bonded drainage and bonded uncoupling over BEKOTEC-DRAIN screed on TROBA-PLUS drainage membrane.

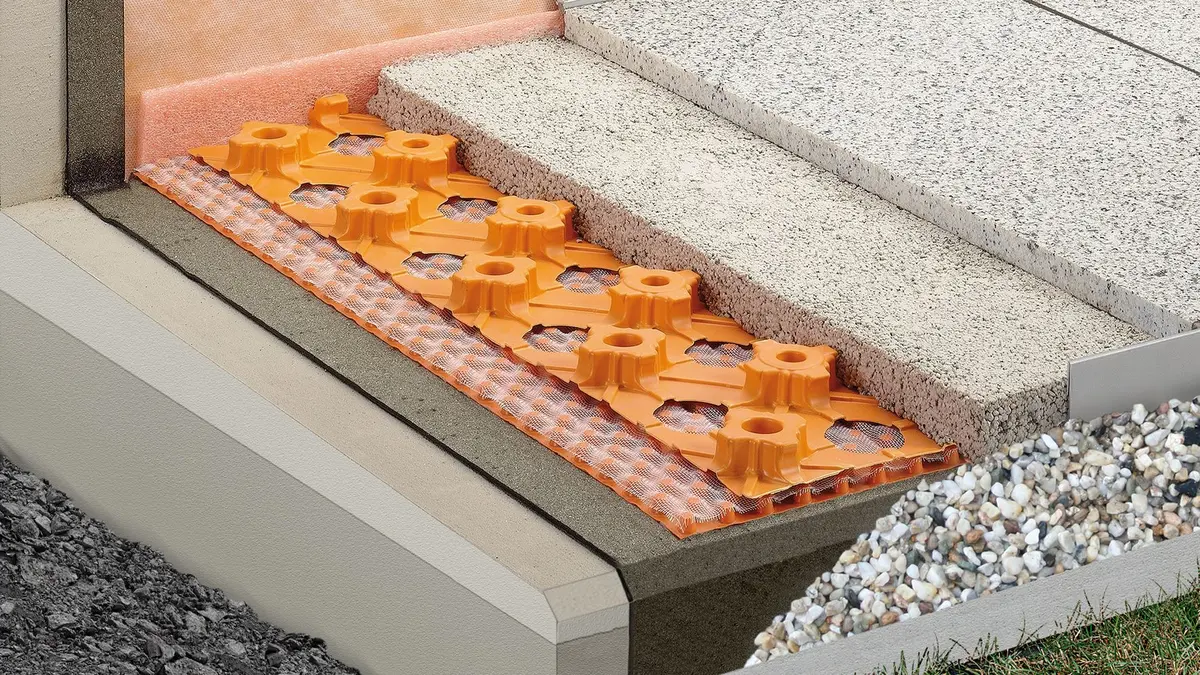

Terrace assembly B.4: Thin covering assembly in mortar bed

Thin covering assembly of a ground-level terrace with mortar bed installation on DIN 18531-compliant waterproofing with BEKOTEC-DRAIN and mortar bed installation on area drainage with TROBA-PLUS 8G.

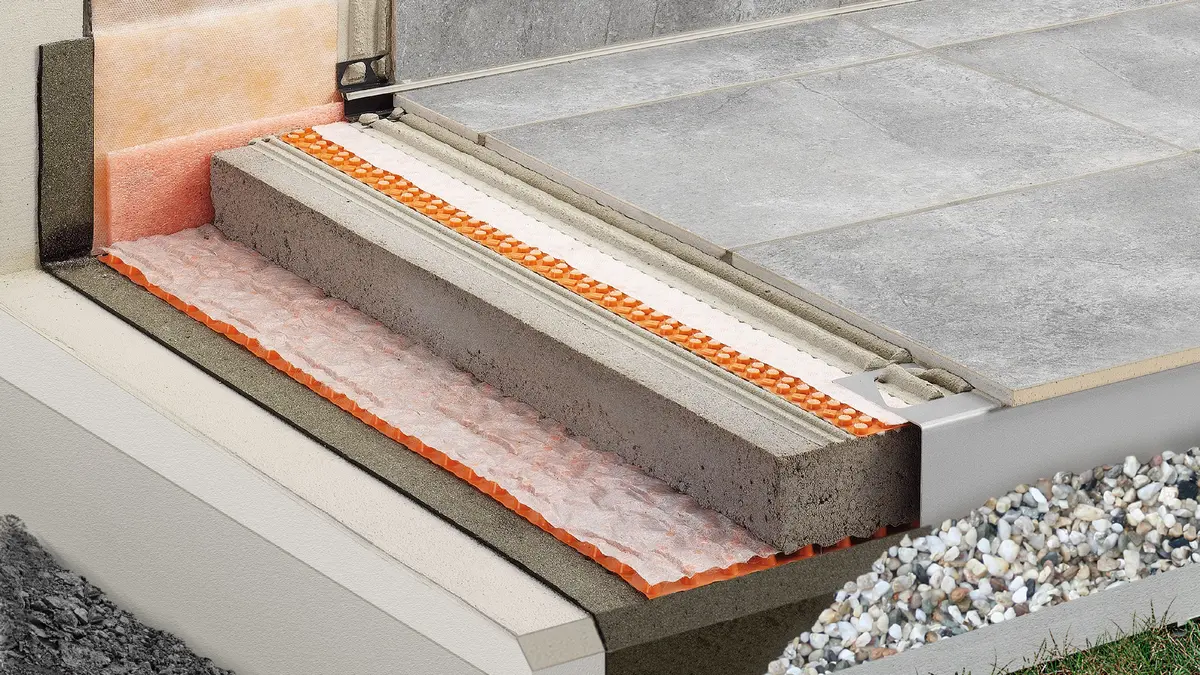

Terrace assembly B.5: Thin covering assembly over waterproofing layers

Covering assembly of a ground-level terrace over waterproofing layers according to DIN 18531 – waterproofing, drainage, load distribution layer, bonded drainage and bonded uncoupling.

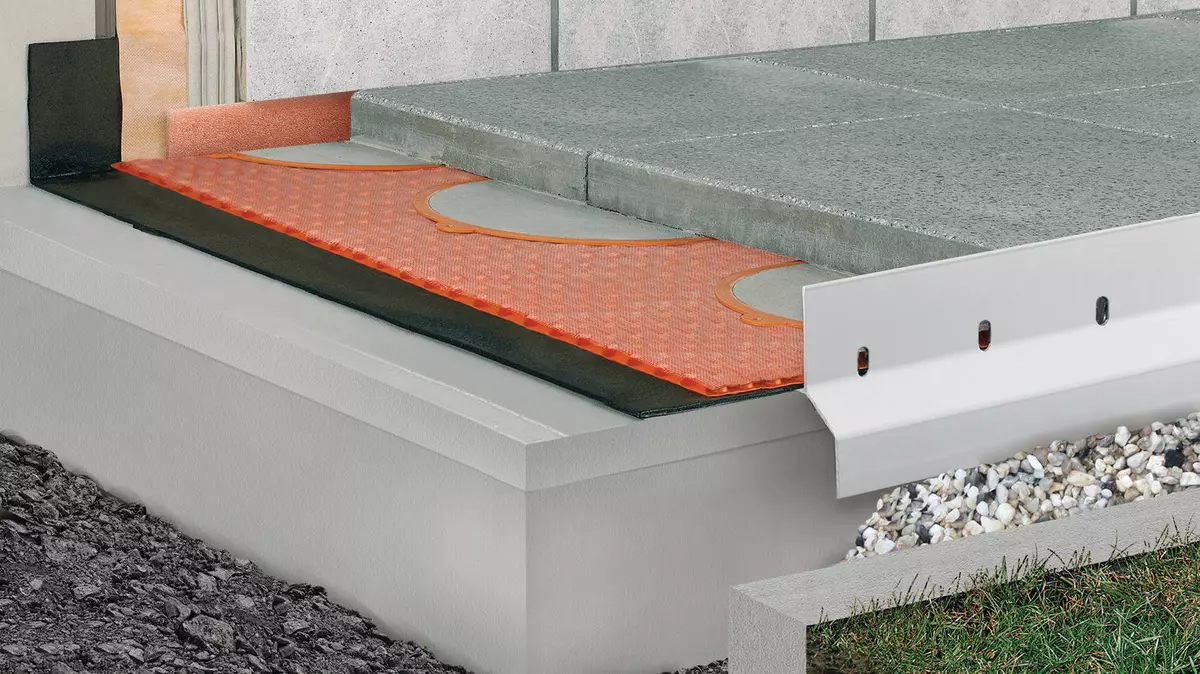

Terrace assembly B.6: Unbonded installation on surface drainage secured with thin-bed mortar spots

Unbonded covering assembly of a ground-level terrace over TROBA-PLUS 8G and thin-bed mortar spots with TROBA-STELZ-DR.

Terrace assembly B.7: Covering assemblies over mortar supports

Unbonded covering assembly of a ground-level terrace over mortar supports with TROBA-STELZ-MR.

Terrace assembly B.8: Unbonded installation on a gravel or crushed stone layer

Unbonded covering assemblies of a ground-level terrace over Schlüter-TROBA in a gravel or crushed stone layer.
