Terrace assembly B.8: Unbonded installation on a gravel or crushed stone layer

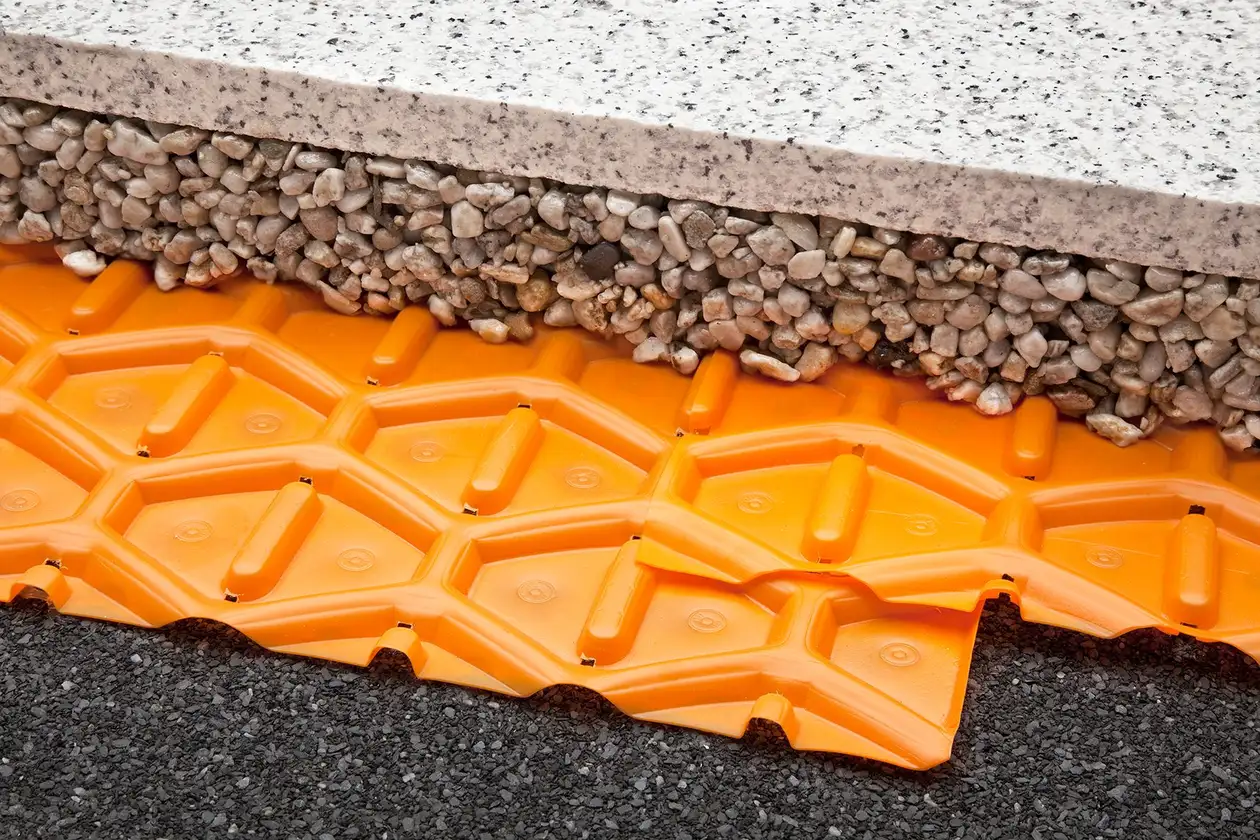

Unbonded installation over TROBA in a gravel or crushed stone layer

© Schlueter-Systems

In this assembly, the area drainage membrane Schlüter-TROBA serves as a protection and separating layer over the waterproofing assembly and protects it from the impression of individual gravel pieces.

Additionally, the product prevents the formation of “ice concrete” when water freezes on the waterproofing assembly. It also allows for the permanently effective drainage of water permeating through the open joints between the self-supporting pavers.

Thanks to the special shape of the trapezoid-shaped studs, loads are directly transferred to the waterproof substrate.

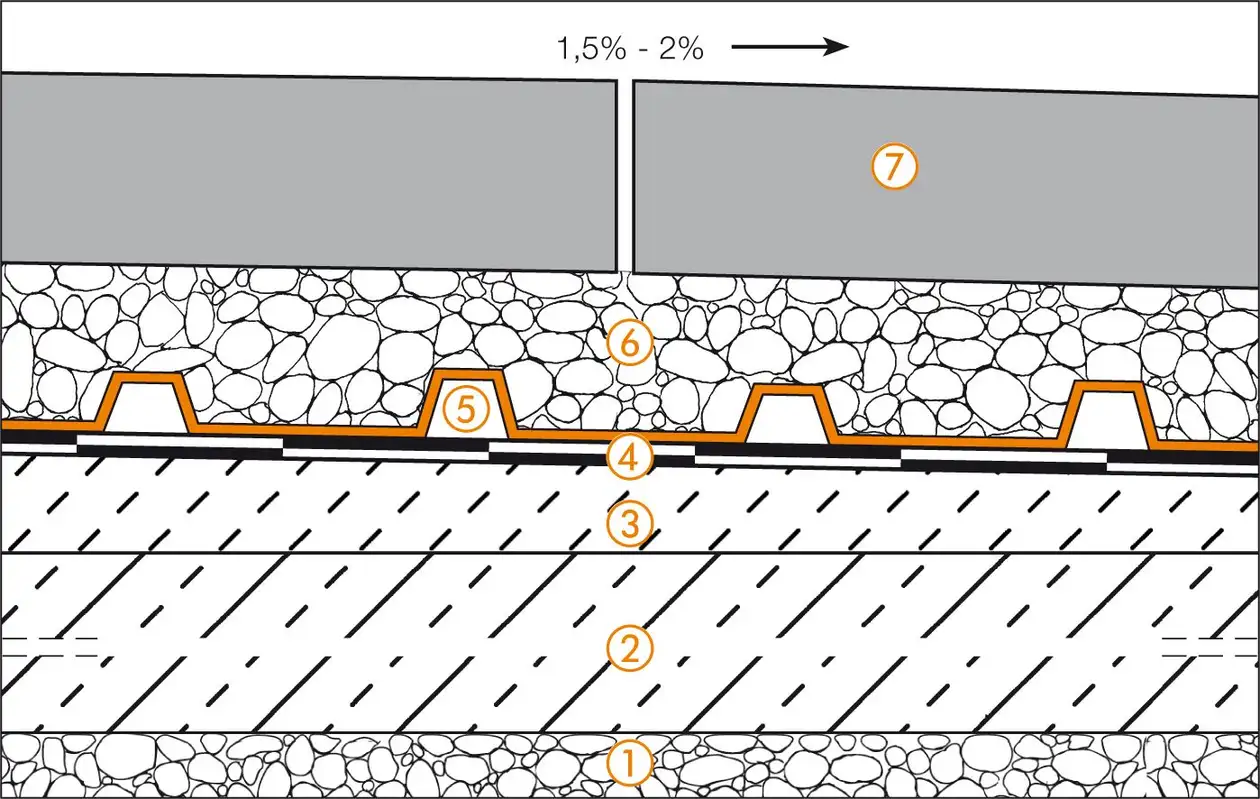

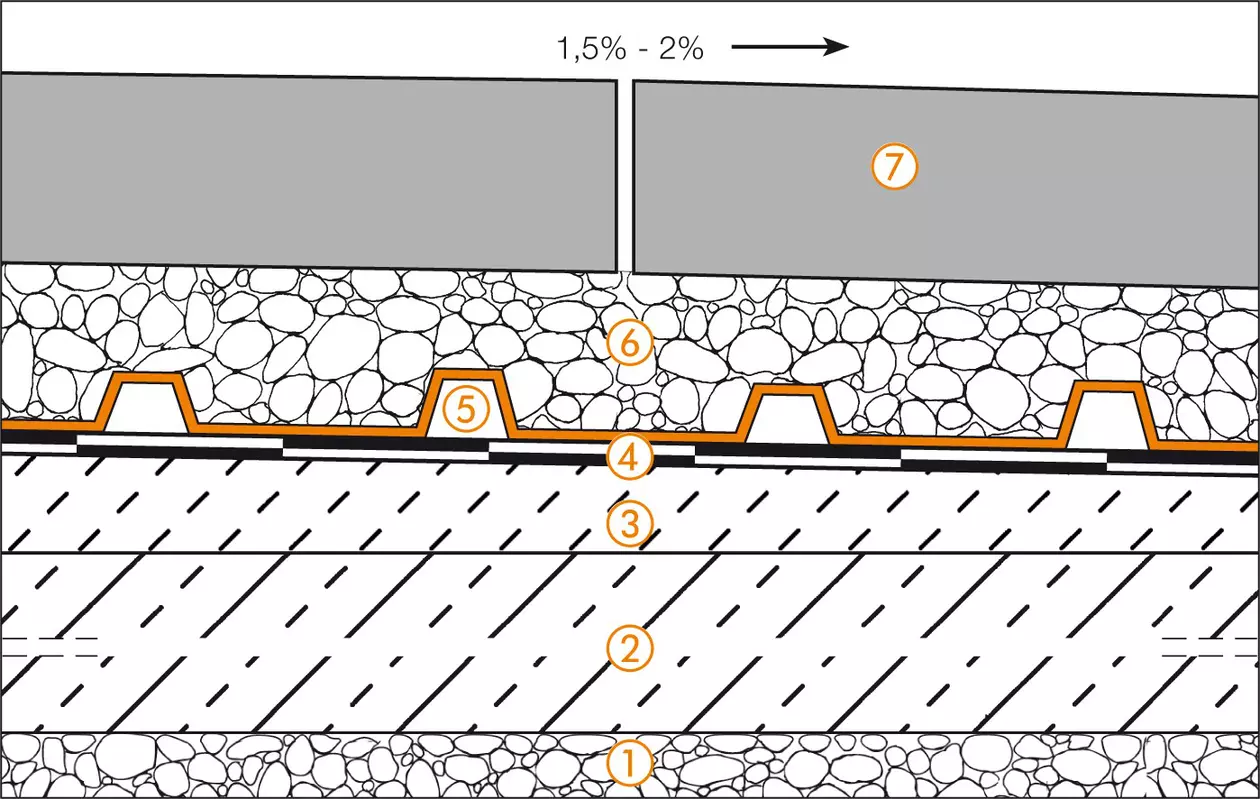

B.8 Unbonded installation on a gravel or crushed stone layer

© Schlueter-Systems

1. Capillary break layer
2. Concrete slab
3. Sloped screed
   An adequate slope (1.5–2%) is required for drainage to ensure that the structure
   is functional
4. Structural waterproofing acc. to DIN 18531
5. Schlüter-TROBA
   is a protection and drainage layer for use over waterproofing layers below crushed stone or gravel layers. It consists of a pressure stable polyethylene sheet with perforated studs for reliable drainage. Make sure drainage is possible!
6. Gravel or crushed stone layer
7. Large format, self-supporting pavers
   Concrete pavers, natural stone or ceramic elements

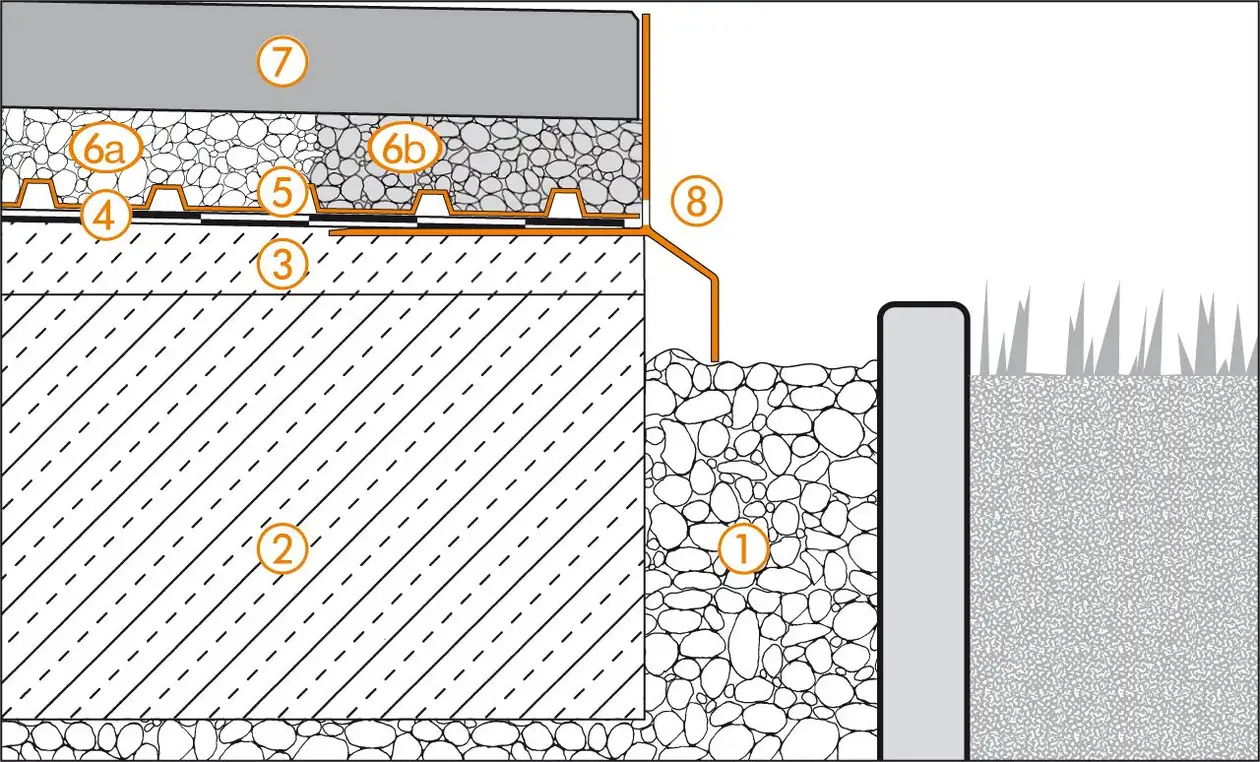

Edge detail 1

© Schlueter-Systems

1. Capillary break layer
2. Concrete slab
3. Sloped screed (1.5–2%)
4. Structural waterproofing acc. to DIN 18531
5. Schlüter-TROBA
6. a) Gravel or crushed stone layer
   b) Gravel or crushed stone layer contained
   at the edge
7. Large format, self-supporting pavers
8. Schlüter-BARA-RKL
   Drainage opening slots must be kept clear!

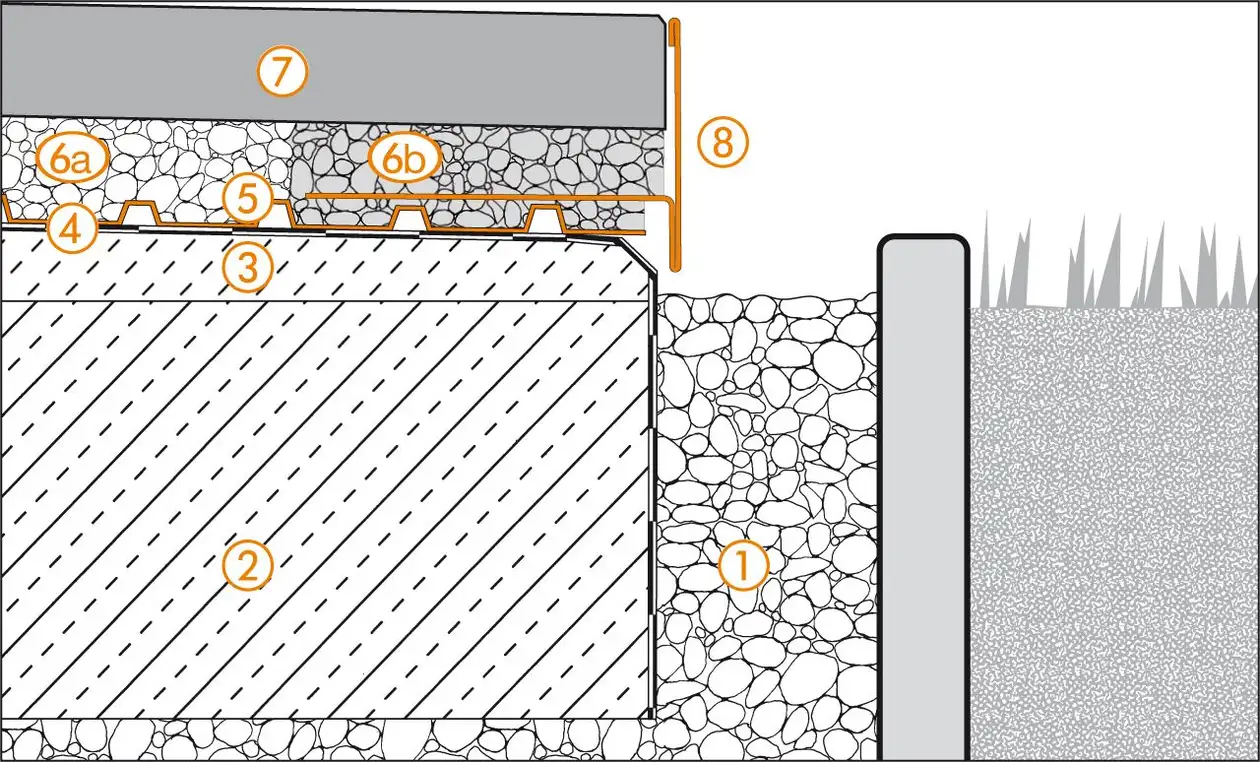

Edge detail 2

© Schlueter-Systems

1. Capillary break layer
2. Concrete slab
3. Sloped screed (1.5–2%)
4. Structural waterproofing acc. to DIN 18531
5. Schlüter-TROBA
6. a) Gravel or crushed stone layer
   b) Gravel or crushed stone layer contained
   at the edge
7. Large format, self-supporting pavers
8. Schlüter-BARA-RT
   Make sure drainage is possible!

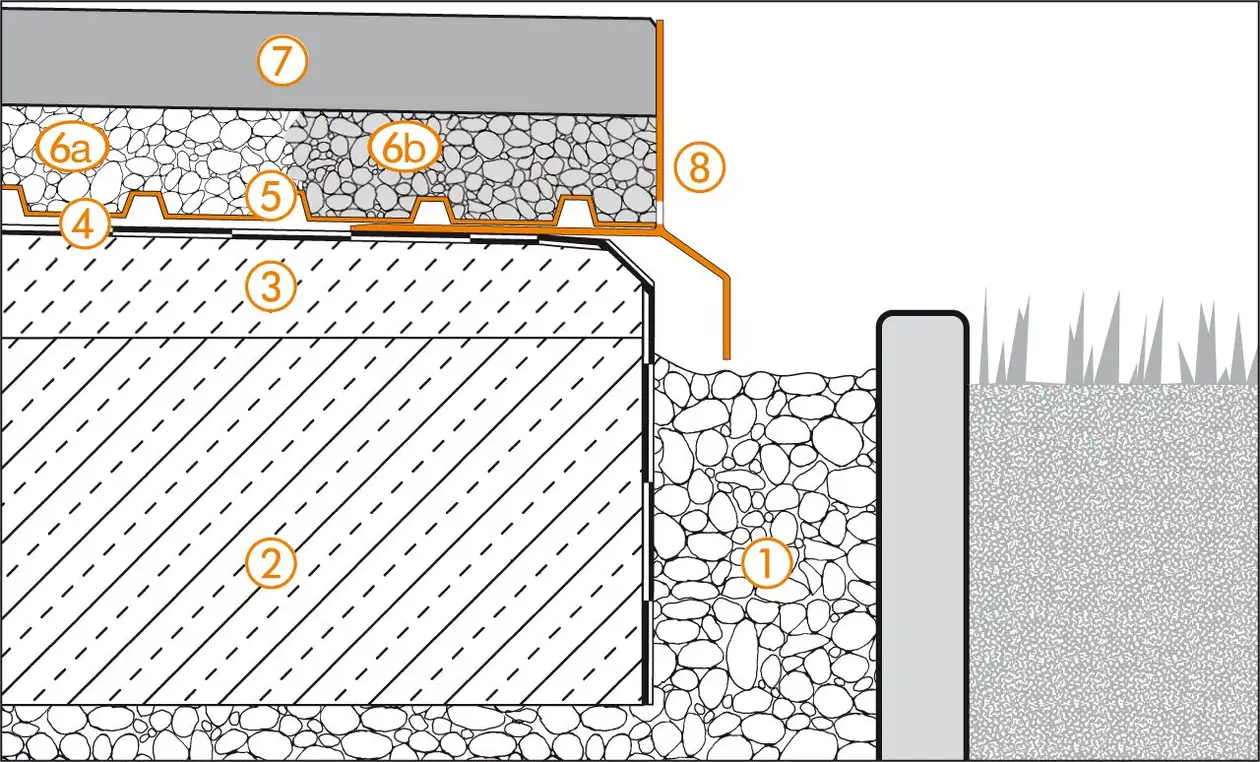

Edge detail 3

© Schlueter-Systems

1. Capillary break layer
2. Concrete slab
3. Sloped screed (1.5–2%)
4. Structural waterproofing acc. to DIN 18531
5. Schlüter-TROBA
6. a) Gravel or crushed stone layer
   b) Gravel or crushed stone layer contained
   at the edge
7. Large format, self-supporting pavers
8. Schlüter-BARA-RKL
   Drainage opening slots must be kept clear!

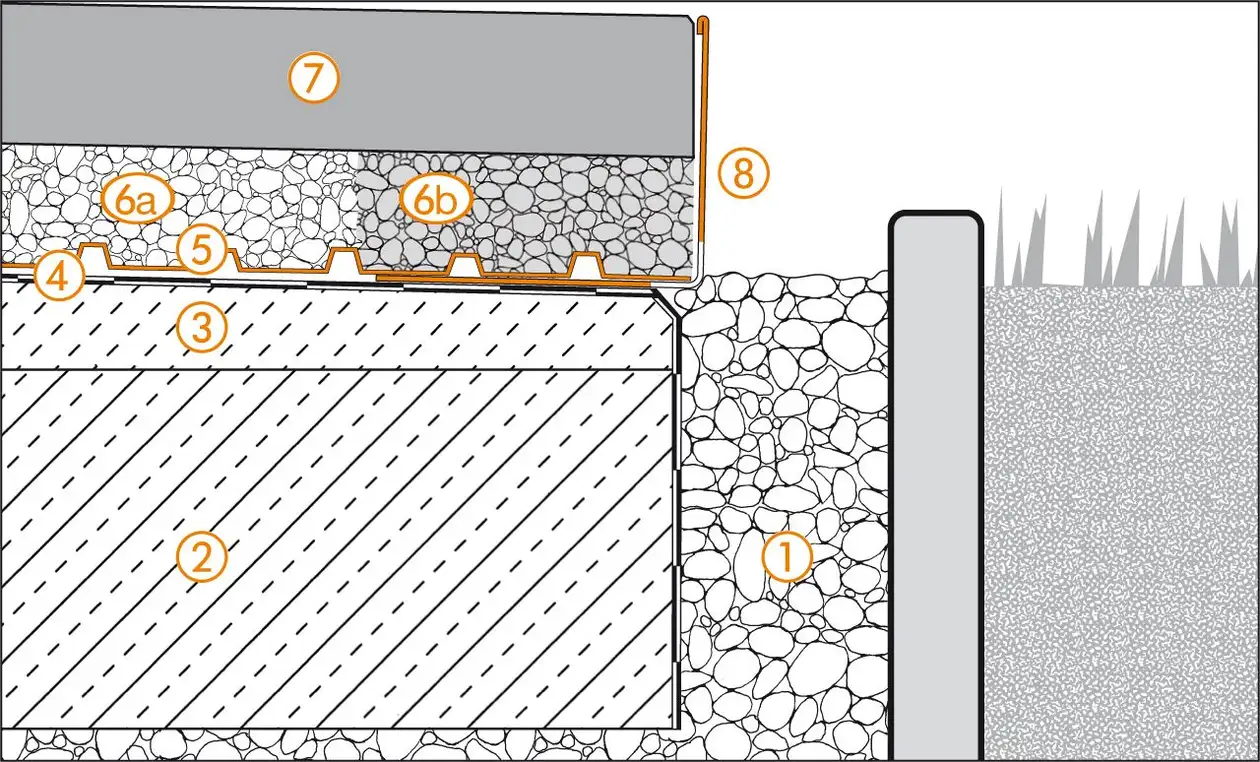

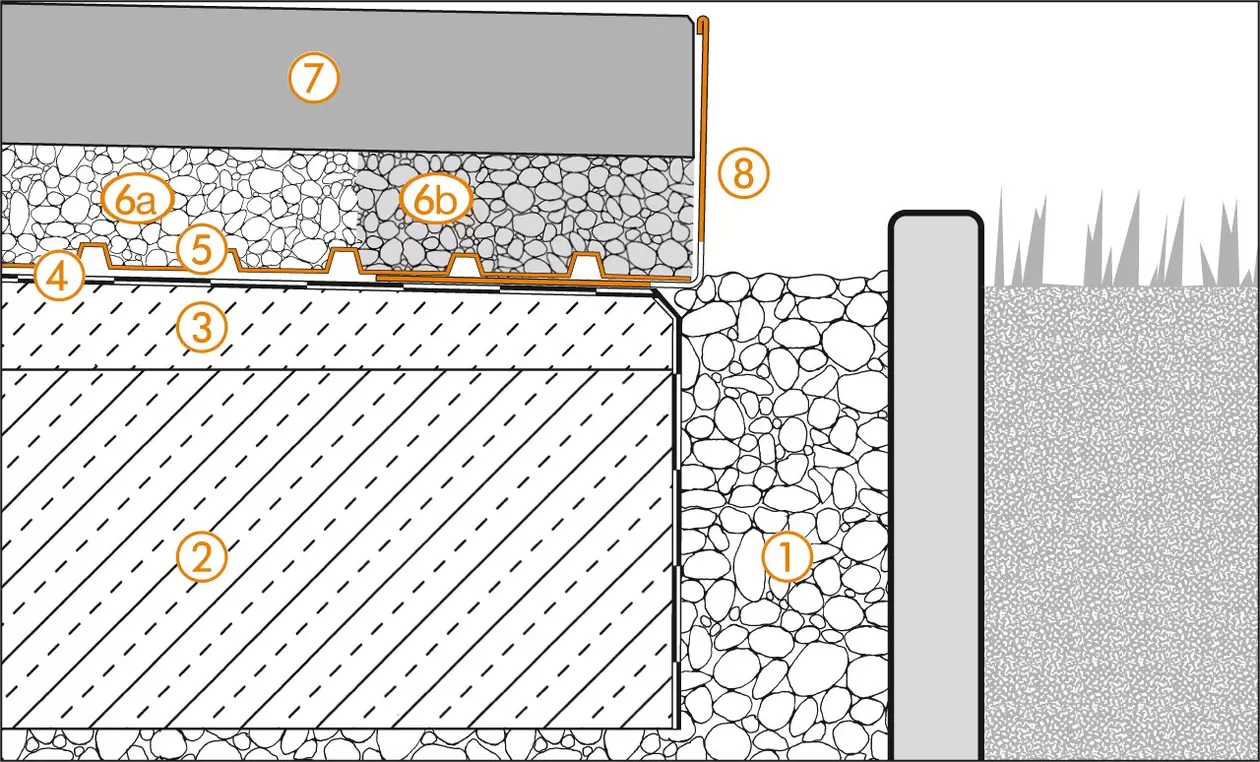

Edge detail 4

© Schlueter-Systems

1. Capillary break layer
2. Concrete slab
3. Sloped screed (1.5–2%)
4. Structural waterproofing acc. to DIN 18531
5. Schlüter-TROBA
6. a) Gravel or crushed stone layer
   b) Gravel or crushed stone layer contained
   at the edge
7. Large format, self-supporting pavers
8. Schlüter-BARA-RWL
   Drainage opening slots must be kept clear!

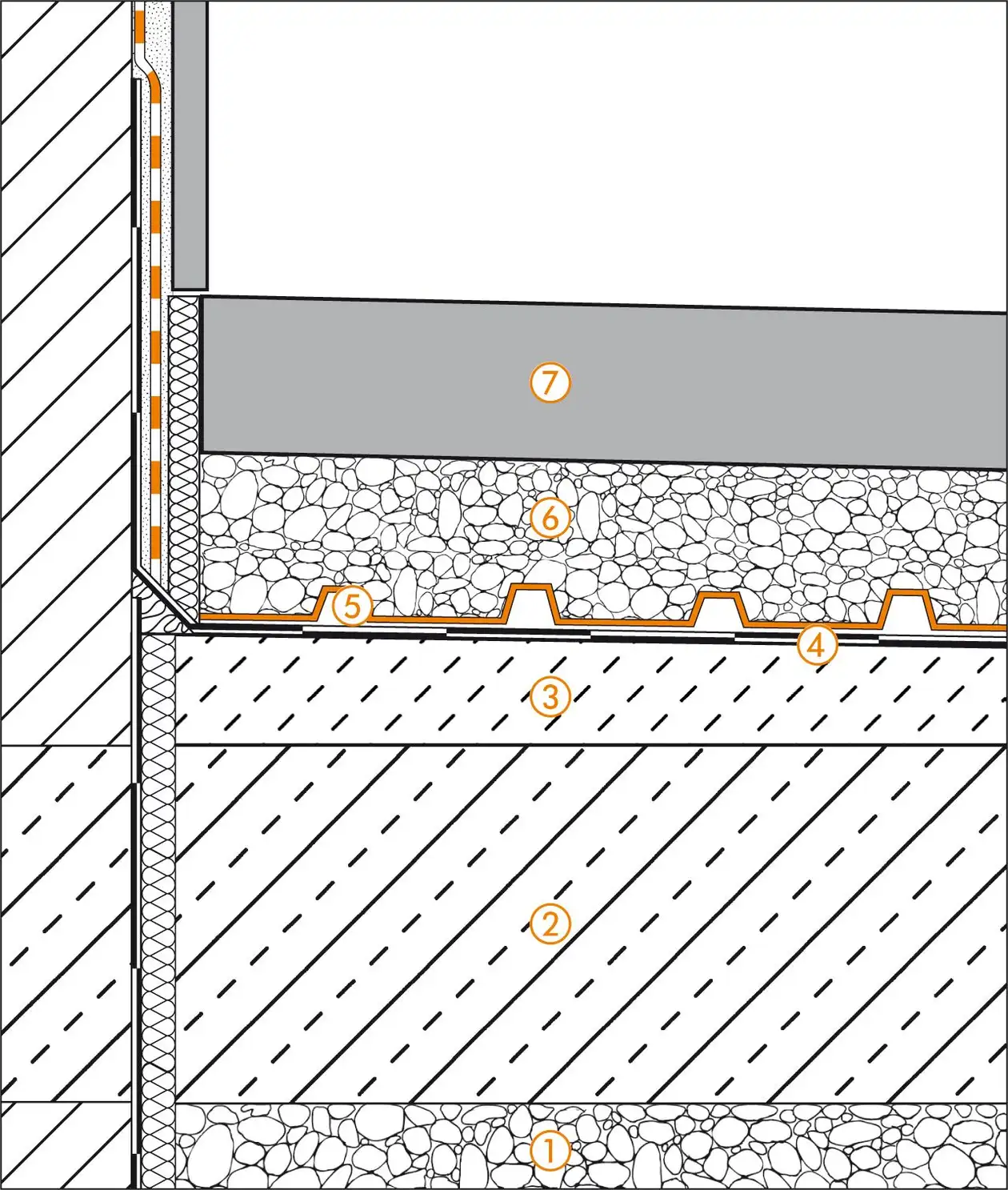

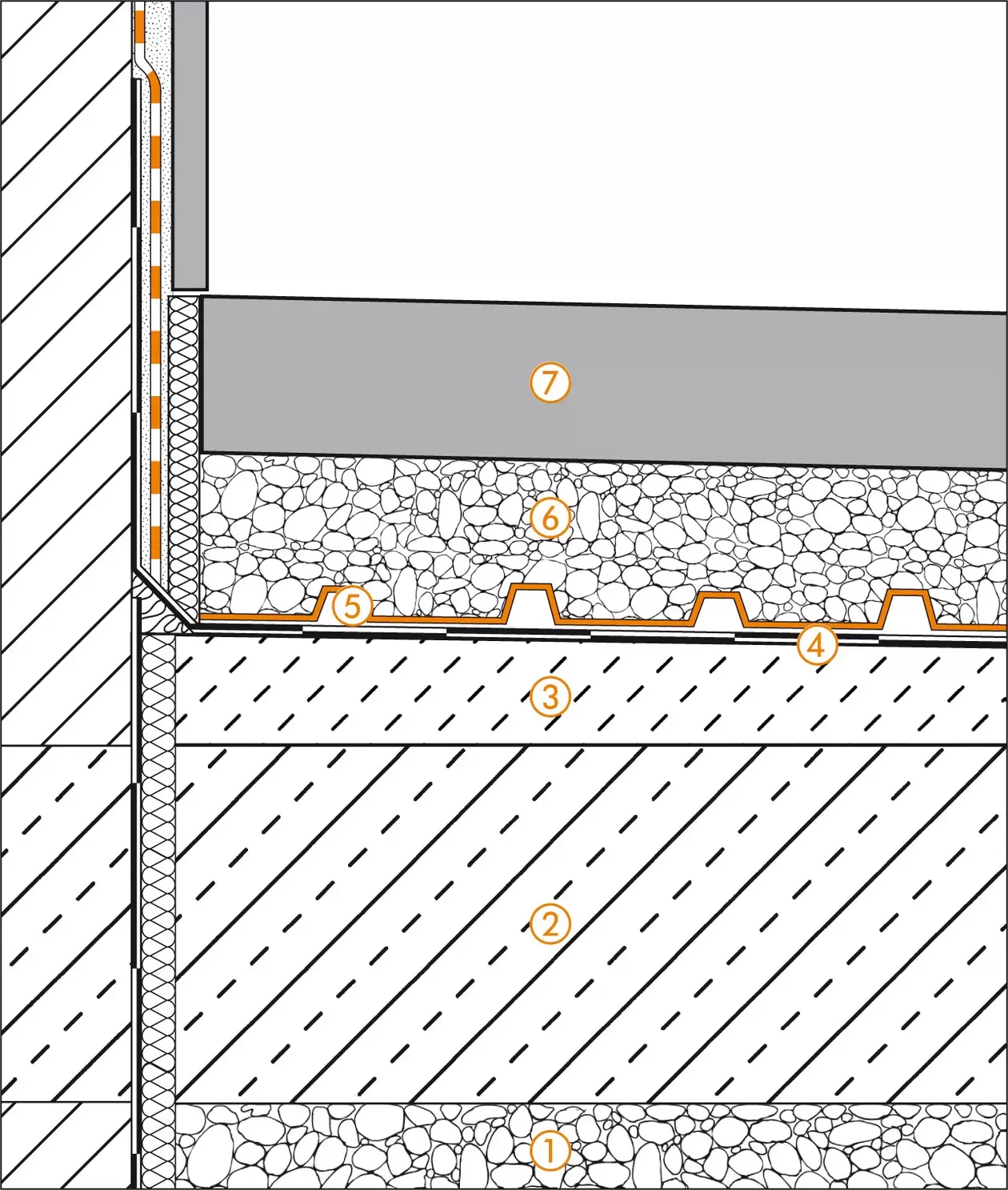

Wall connection detail

© Schlueter-Systems

1. Capillary break layer
2. Concrete slab
3. Sloped screed (1.5–2%)
4. Structural waterproofing acc. to DIN 18531
5. Schlüter-TROBA
6. Gravel or crushed stone layer
7. Large format, self-supporting pavers

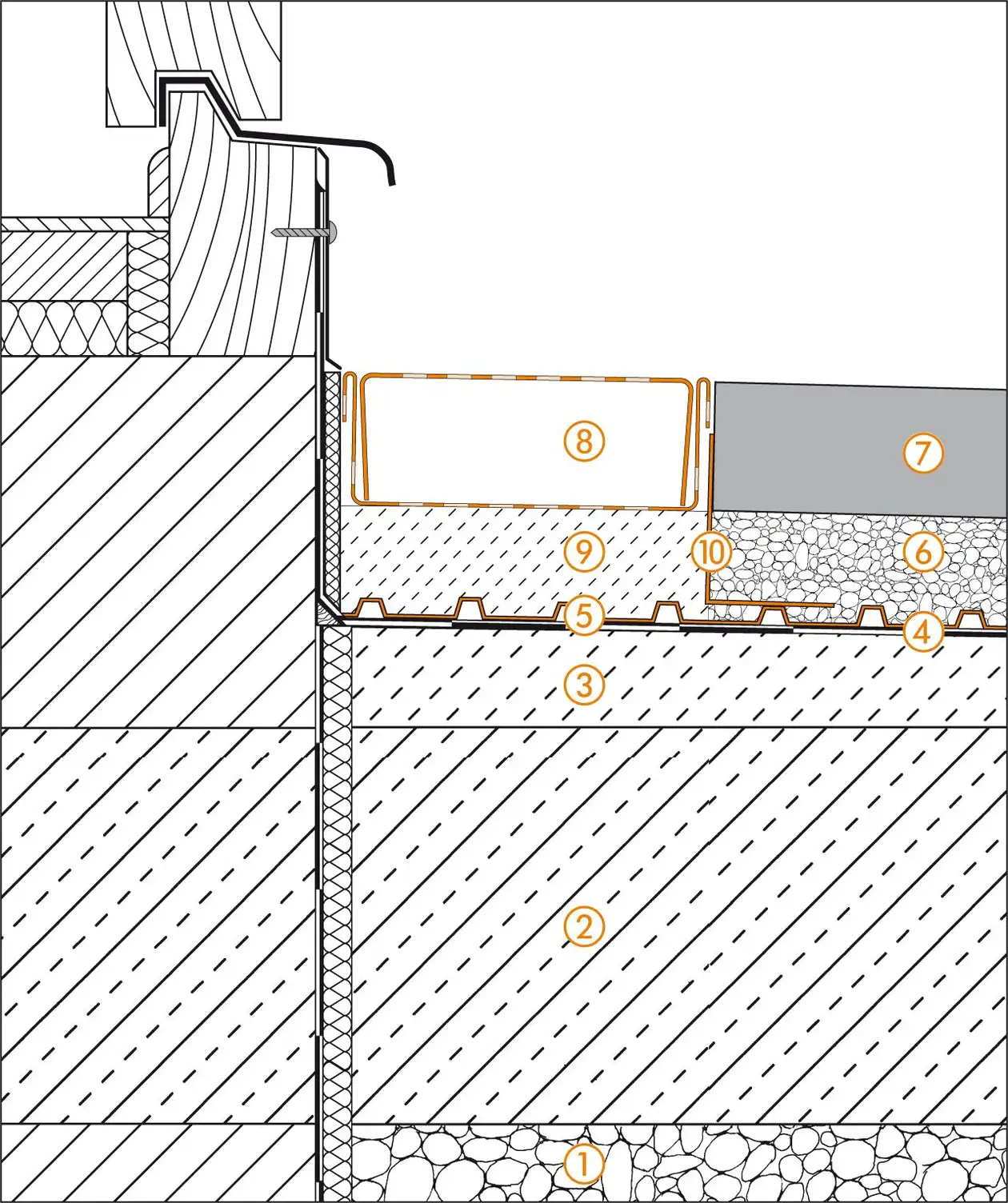

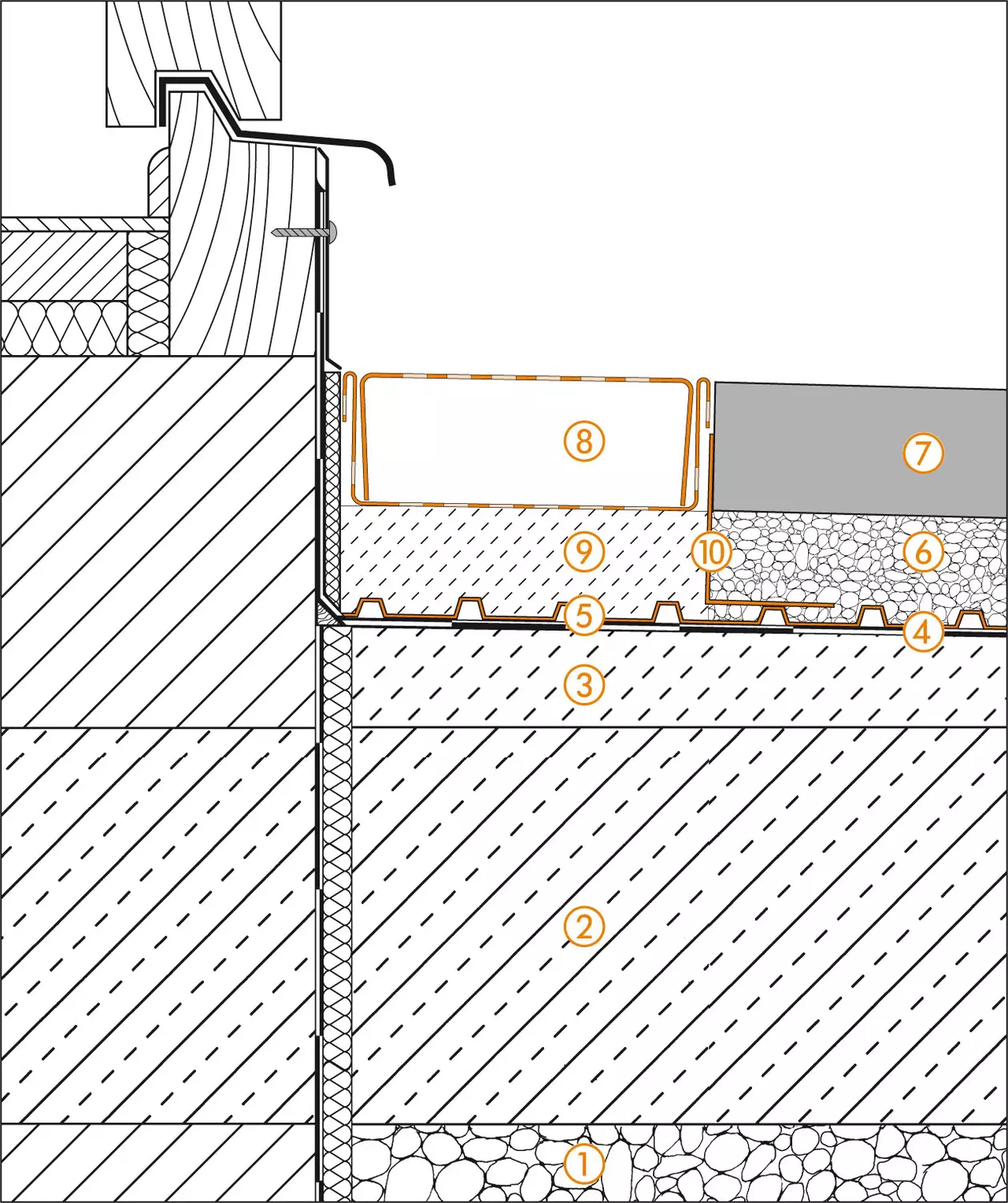

Door transition

© Schlueter-Systems

1. Capillary break layer
2. Concrete slab
3. Sloped screed (1.5–2%)
4. Structural waterproofing acc. to DIN 18531
5. Schlüter-TROBA
6. Gravel or crushed stone layer
7. Large format, self-supporting pavers
8. Schlüter-TROBA-LINE-TL
9. Mortar spot
10. Schlüter-TROBA-LINE-TLK-E
    gravel retaining angle
