Terrace assembly B.2: Covering assembly with bonded drainage over bonded waterproofing

Assemblies B: Ground-level terraces

DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing

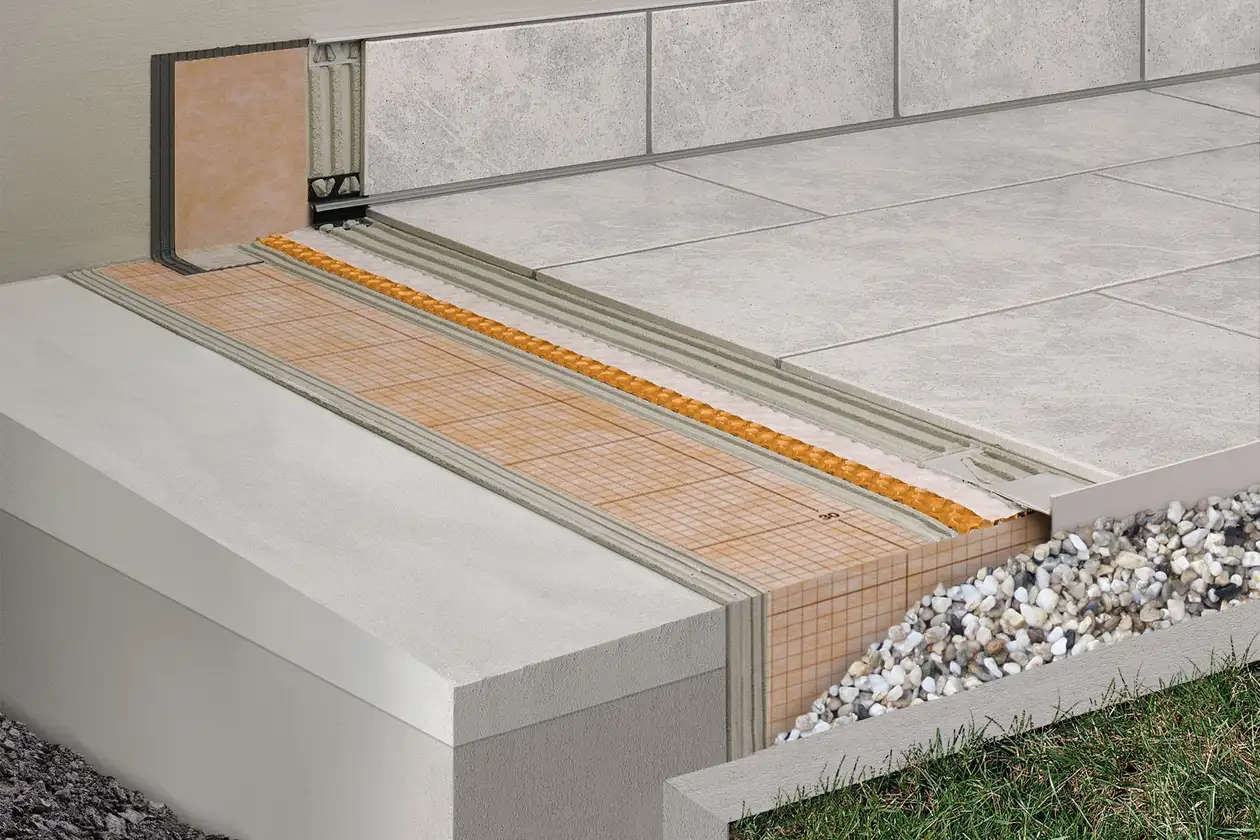

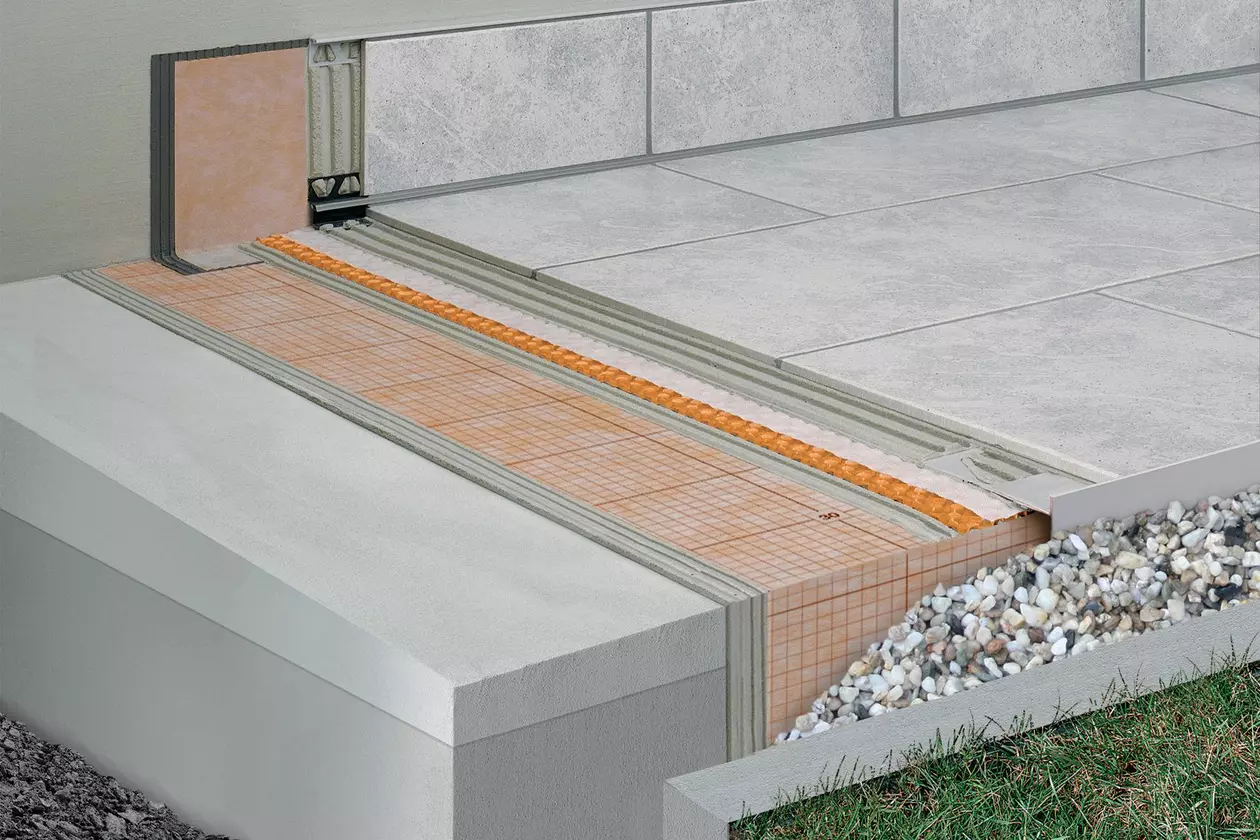

Schlüter-Systems terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Â Schlueter-Systems

The bonded waterproofing assembly Schlüter-KERDI, which is bonded with hydraulically setting thin-bed mortar, protects the supporting structure, which is designed with a surface slope, against permeating moisture.

The passive capillary bonded drainage membrane Schlüter-DITRA-DRAIN is installed in an adhesive between the waterproofing layer and the tile covering. This results in broad subaeration of the top covering, which in turn promotes the quick and even drying/curing of the adhesive.

The uncoupling function of DITRA-DRAIN neutralises any occurring stresses.

B.2 Covering assembly with bonded drainage over bonded waterproofing

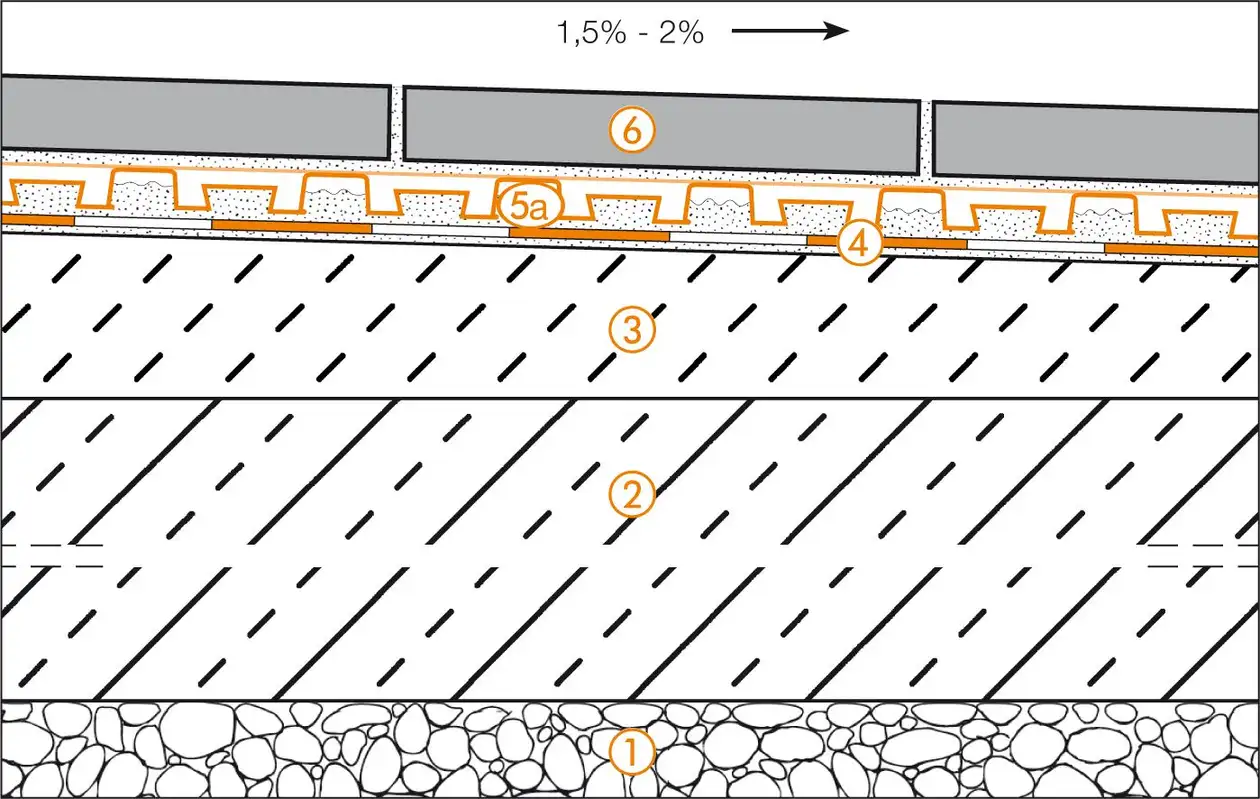

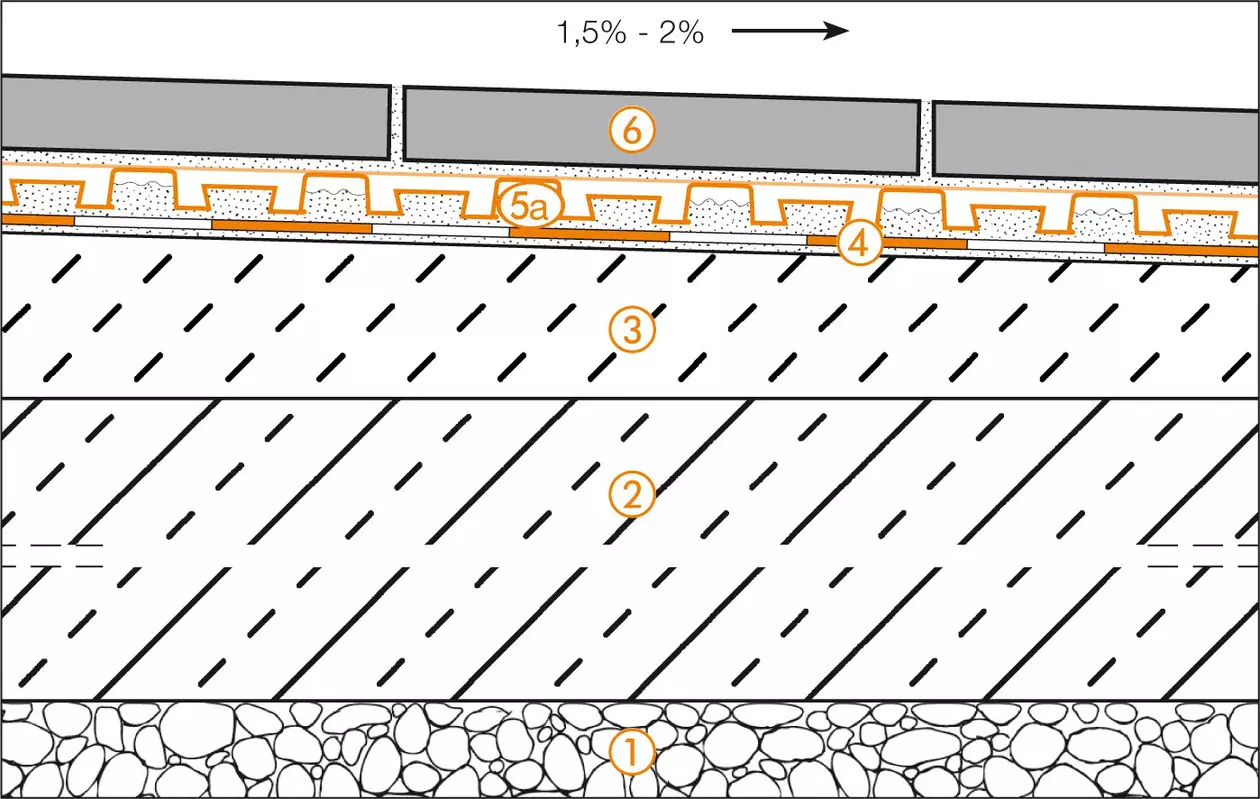

Schlüter-Systems section drawing of terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Schlueter-Systems
Section drawing of terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing
  1. Capillary break layer
  2. Concrete slab
  3. Sloped screed
    An adequate slope (1.5–2%) is required for drainage to ensure that the structure
    is functional
  4. Schlüter-KERDI
    Bonded waterproofing made of polyethylene, installed in thin-bed mortar, joint bonding with sealing adhesive Schlüter-KERDI-COLL-L
  5. a) Schlüter-DITRA-DRAIN 4
    Bonded drainage membrane made of polyethylene, installed in thin-bed mortar, with the functions bonded drainage, ventilation and bonded uncoupling
    b) Schlüter-DITRA-DRAIN 8
    Bonded drainage membrane specially designed for large areas and staircase constructions
  6. Ceramic/porcelain stoneware tiles or natural stone pavers
    Installation – also large formats – with a dry-setting, water and weather-resistant thin-bed mortar

Edge detail 1

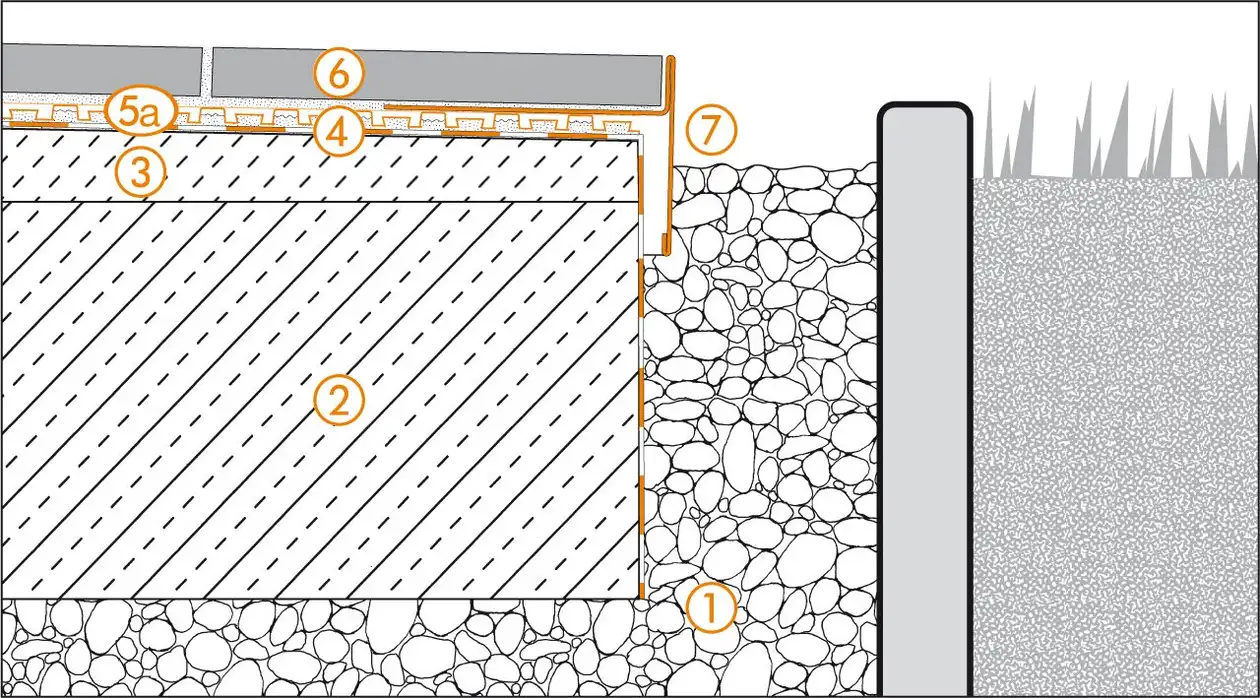

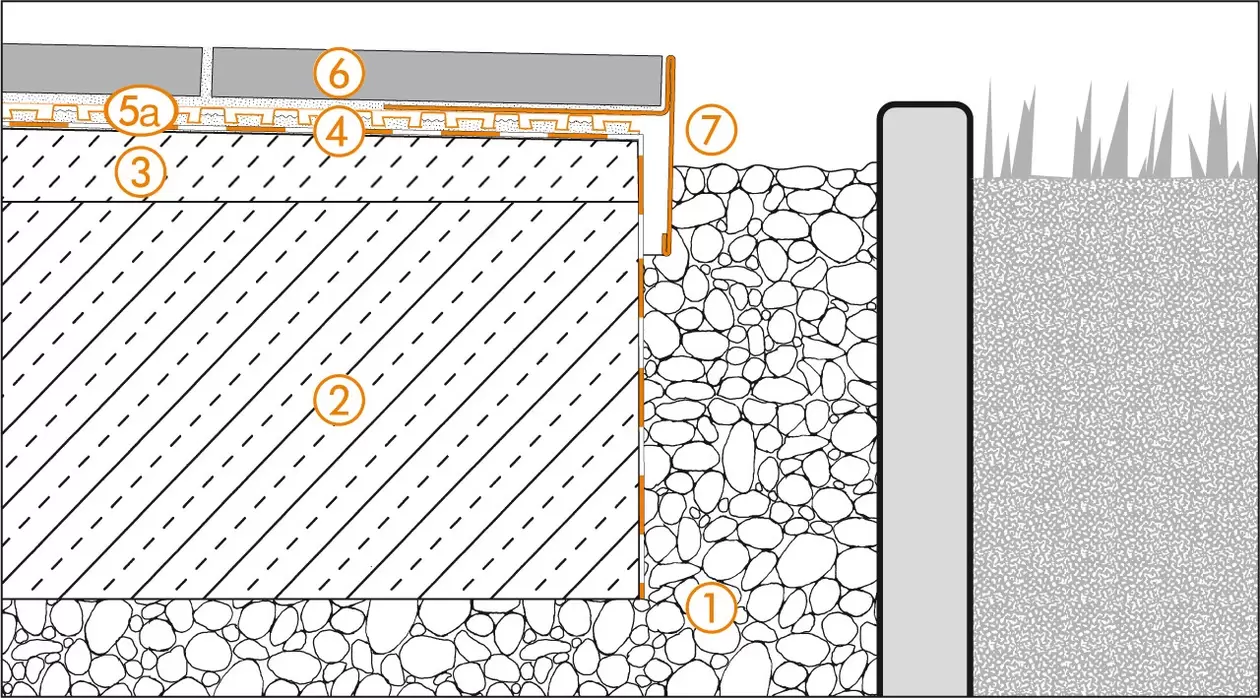

Schlüter-Systems section drawing of edge detail 1 for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Schlueter-Systems
Section drawing of edge detail 1 for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing
  1. Capillary break layer
  2. Concrete slab
  3. Sloped screed (1.5–2%)
  4. Schlüter-KERDI
  5. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-BARA-RT
    Make sure drainage is possible!

Edge detail 2

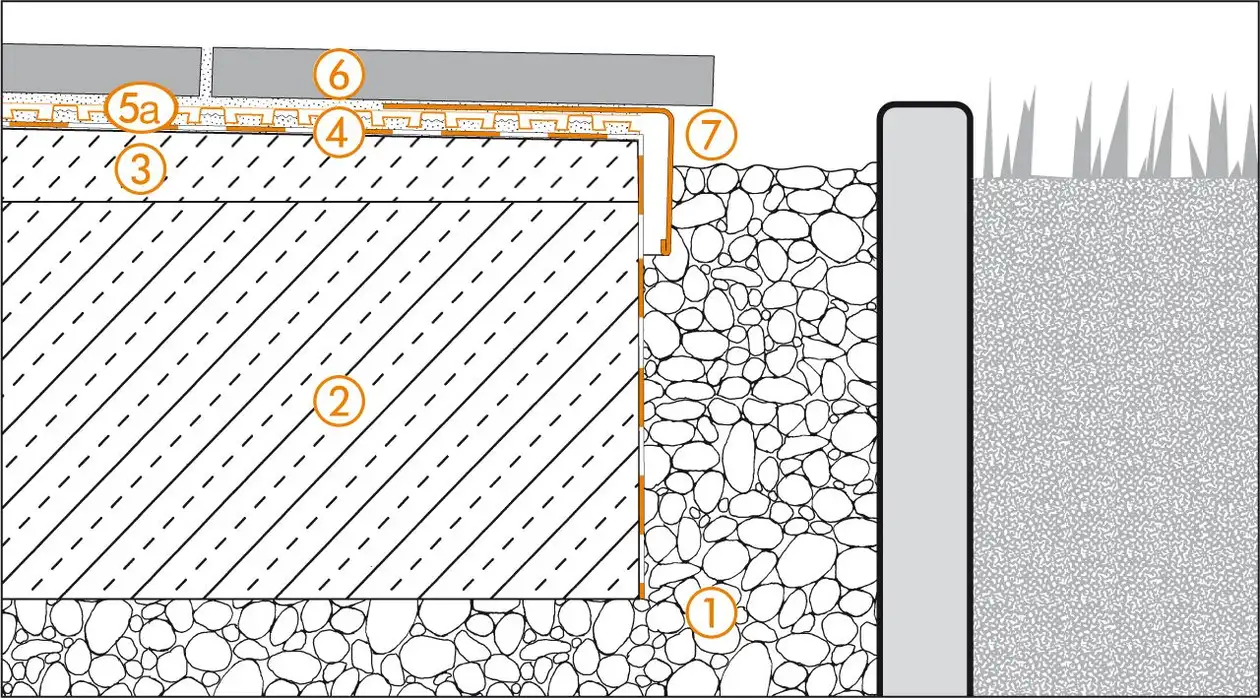

Schlüter-Systems section drawing of edge detail 2 for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Schlueter-Systems
Section drawing of edge detail 2 for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing
  1. Capillary break layer
  2. Concrete slab
  3. Sloped screed (1.5–2%)
  4. Schlüter-KERDI
  5. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-BARA-RW
    Make sure drainage is possible!

Edge detail 3

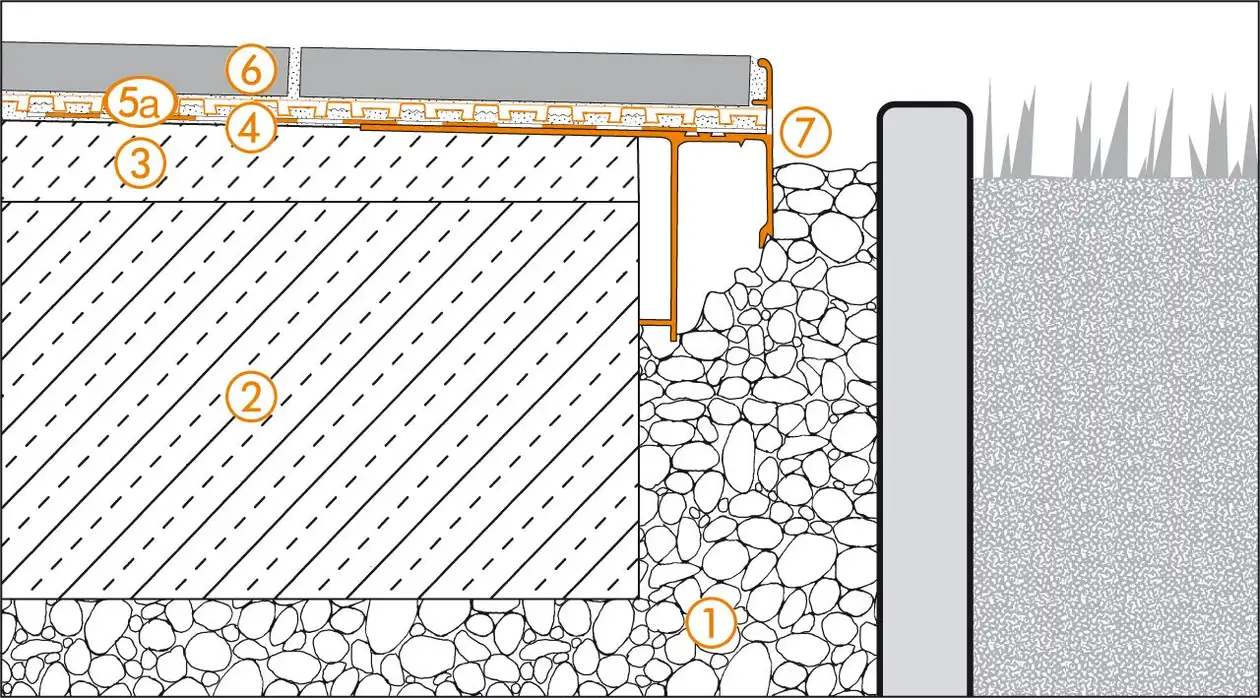

Schlüter-Systems section drawing of edge detail 3 for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Schlueter-Systems
Section drawing of edge detail 3 for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing
  1. Capillary break layer
  2. Concrete slab
  3. Sloped screed (1.5–2%)
  4. Schlüter-KERDI
  5. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-BARA-RAKE
    (drainage opening slots must be kept clear)

Wall connection detail

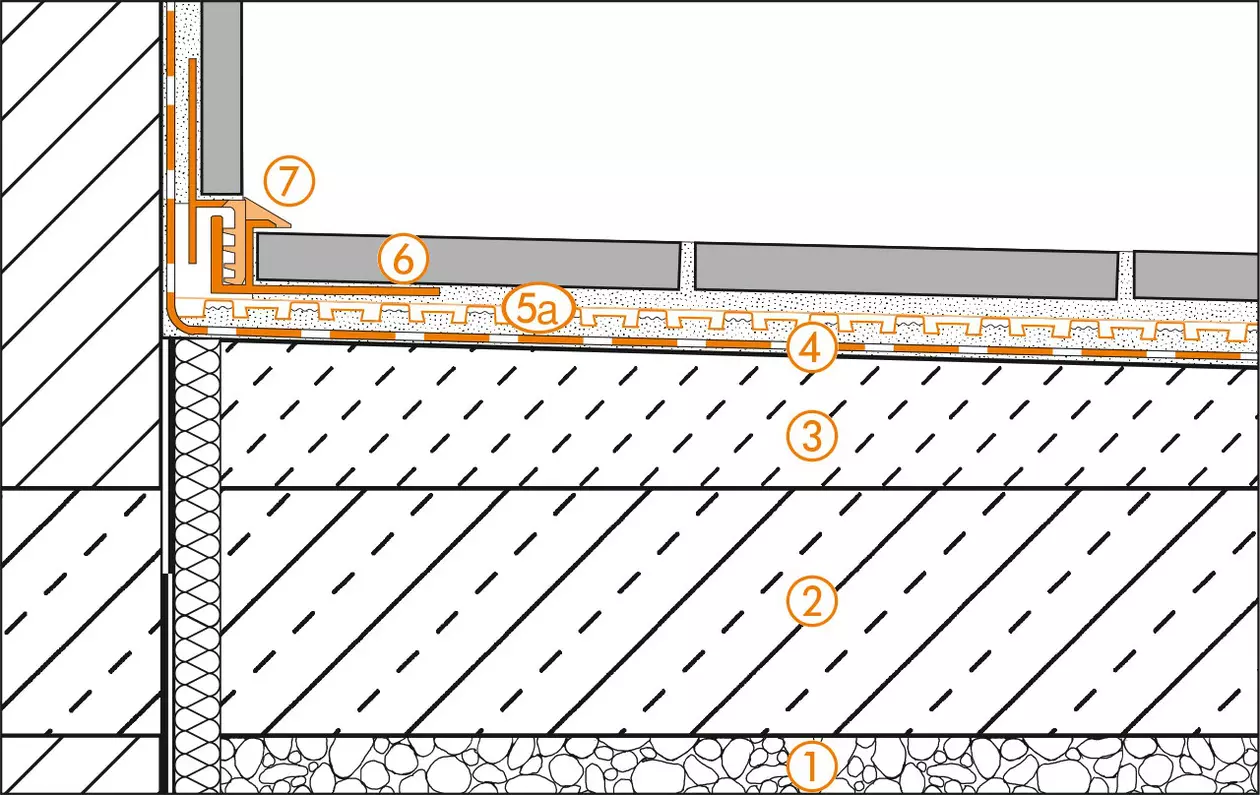

Schlüter-Systems section drawing of the wall connection detail for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Schlueter-Systems
Section drawing of the wall connection detail for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing
  1. Capillary break layer
  2. Concrete slab
  3. Sloped screed (1.5–2%)
  4. Schlüter-KERDI
  5. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-DILEX-EK

Floor drain

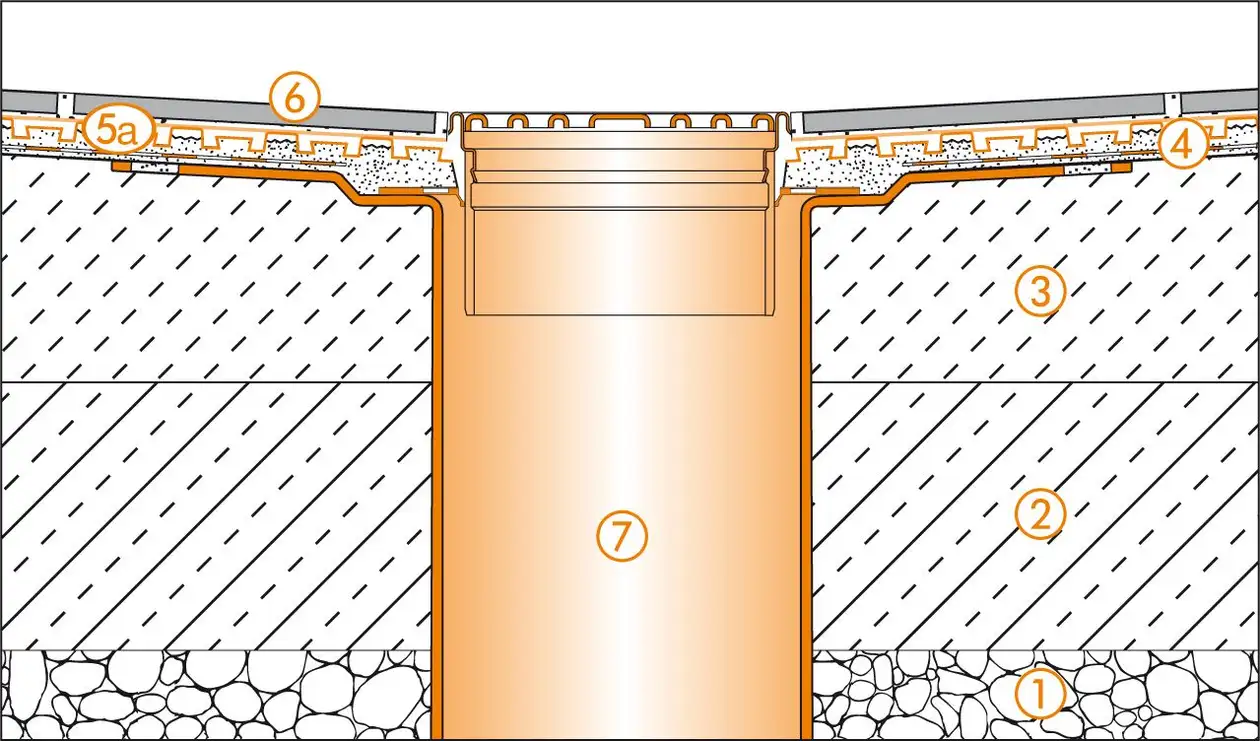

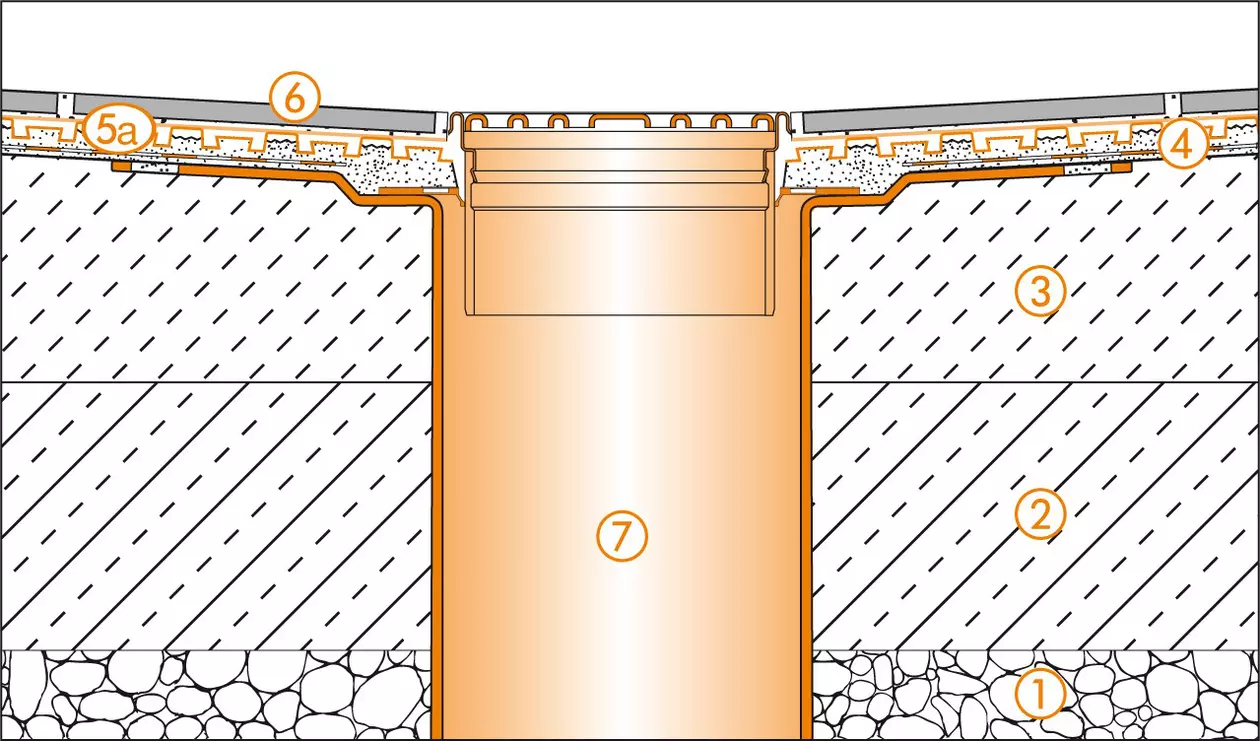

Schlüter-Systems section drawing of the floor drain for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Schlueter-Systems
Section drawing of the floor drain for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing
  1. Capillary break layer
  2. Concrete slab
  3. Sloped screed (1.5–2%)
  4. Schlüter-KERDI
  5. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  6. Ceramic tiles or natural stone pavers
  7. Schlüter-KERDI-DRAIN-RRE
    Grate and frame set KD R10
    Drainage opening slots must be kept clear!

Stair assembly

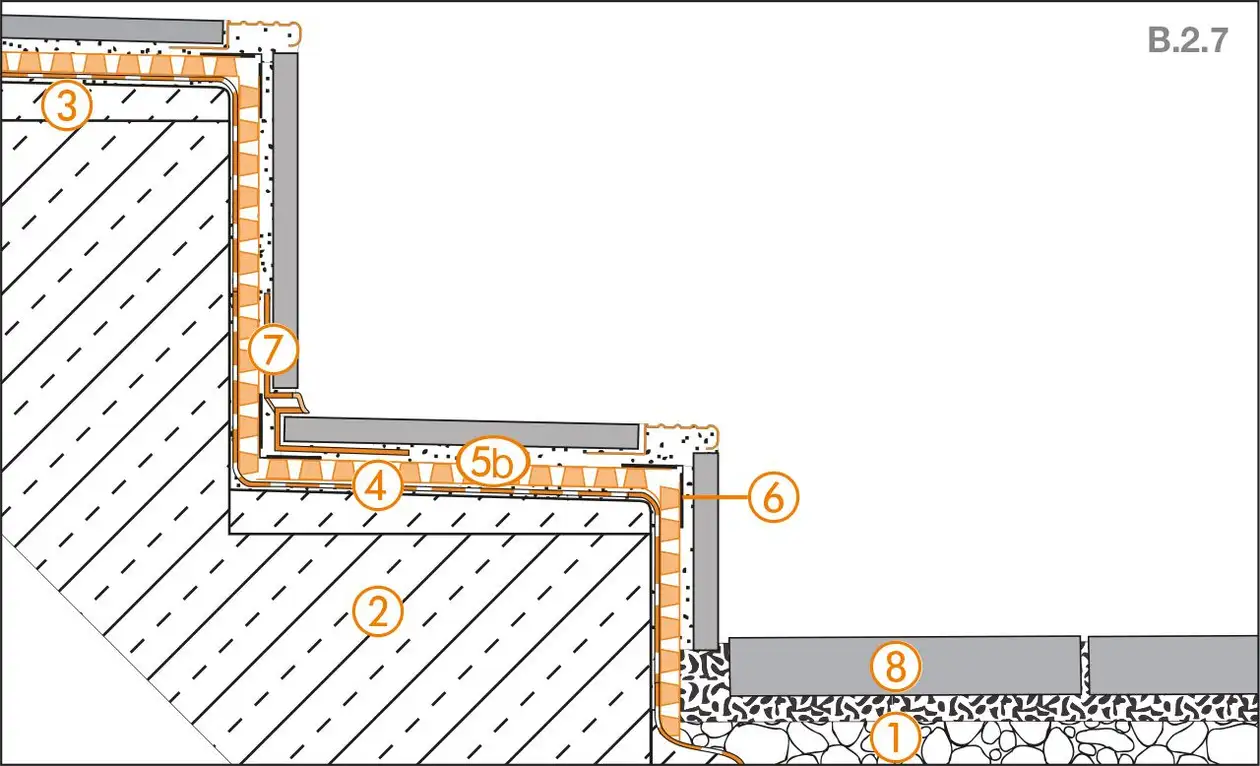

Schlüter-Systems section drawing of the stair assembly for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing © Schlueter-Systems
Section drawing of the stair assembly for terrace assembly B.2 with DITRA-DRAIN for bonded drainage and bonded uncoupling over KERDI bonded waterproofing
  1. Capillary break layer
  2. Concrete
  3. Sloped screed (1.5–2%)
  4. Schlüter-KERDI
  5. b) Schlüter-DITRA-DRAIN 8
  6. Schlüter-DITRA-DRAIN-STU
    Joint covering tape
  7. Schlüter-DILEX-EKE
  8. Ceramic tiles or natural stone pavers
