Terrace assembly B.1: Covering assembly with bonded waterproofing
Assemblies B: Ground-level terracesDITRA for bonded waterproofing, bonded uncoupling and vapour pressure equalisation
Schlüter-DITRA is a bonded waterproofing assembly with tile and panel coverings.
In addition to its waterproofing function, DITRA also has a uncoupling function that neutralises stresses between the substrate and tile covering caused by temperature changes.
Due to the vapour pressure equalisation function of DITRA, the residual moisture of the substrate (e.g. in green screeds) is safely drained away.
Note: Abutting joints and connections to walls and structural elements must be created with Schlüter-KERDI-KEBA sealing bands. Schlüter-KERDI-COLL-L is used for tightly sealed adhesive bonding.

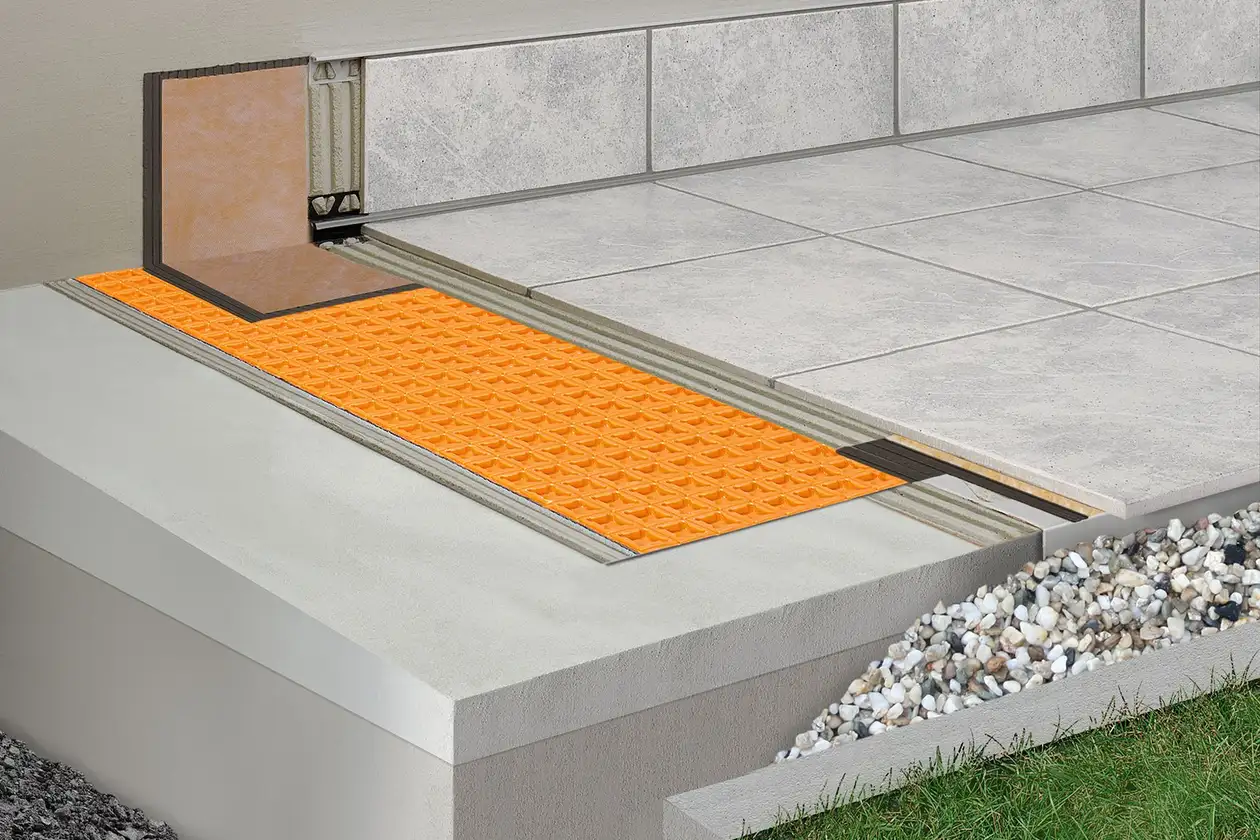

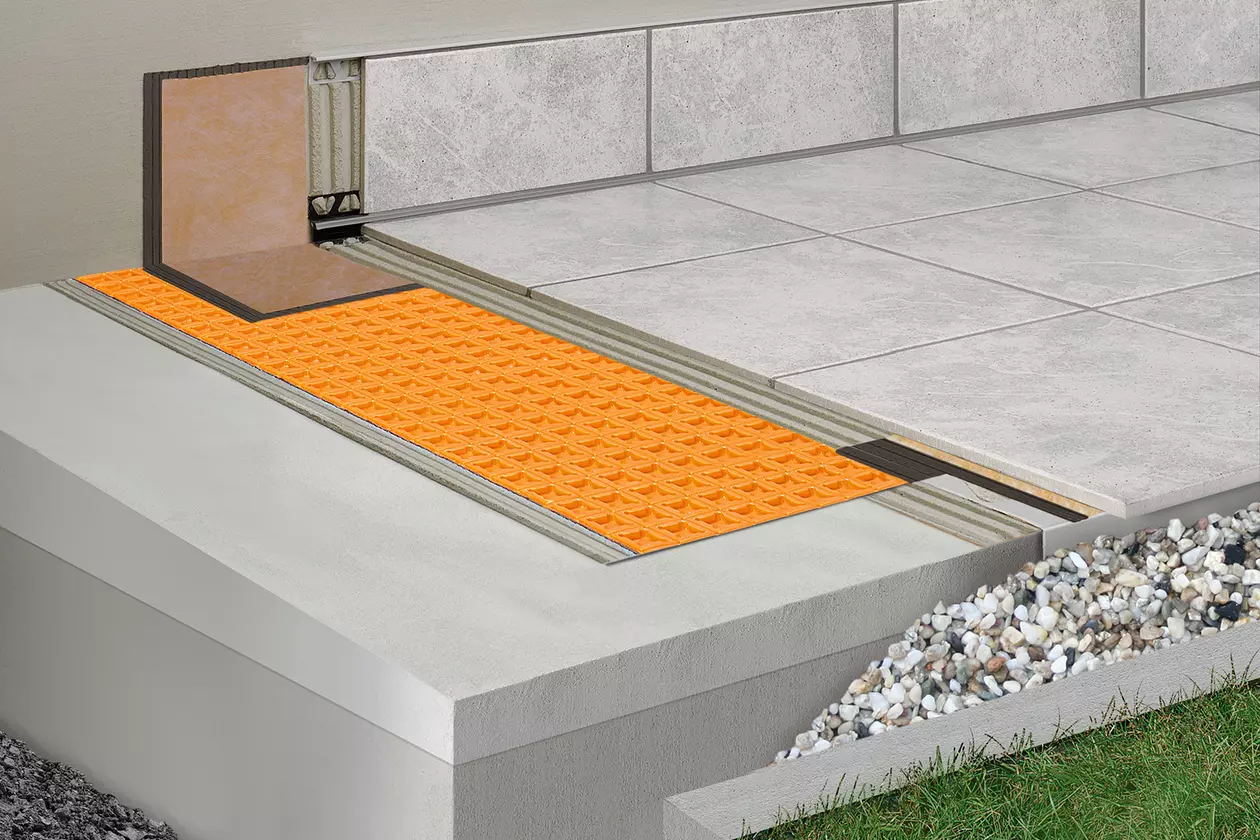

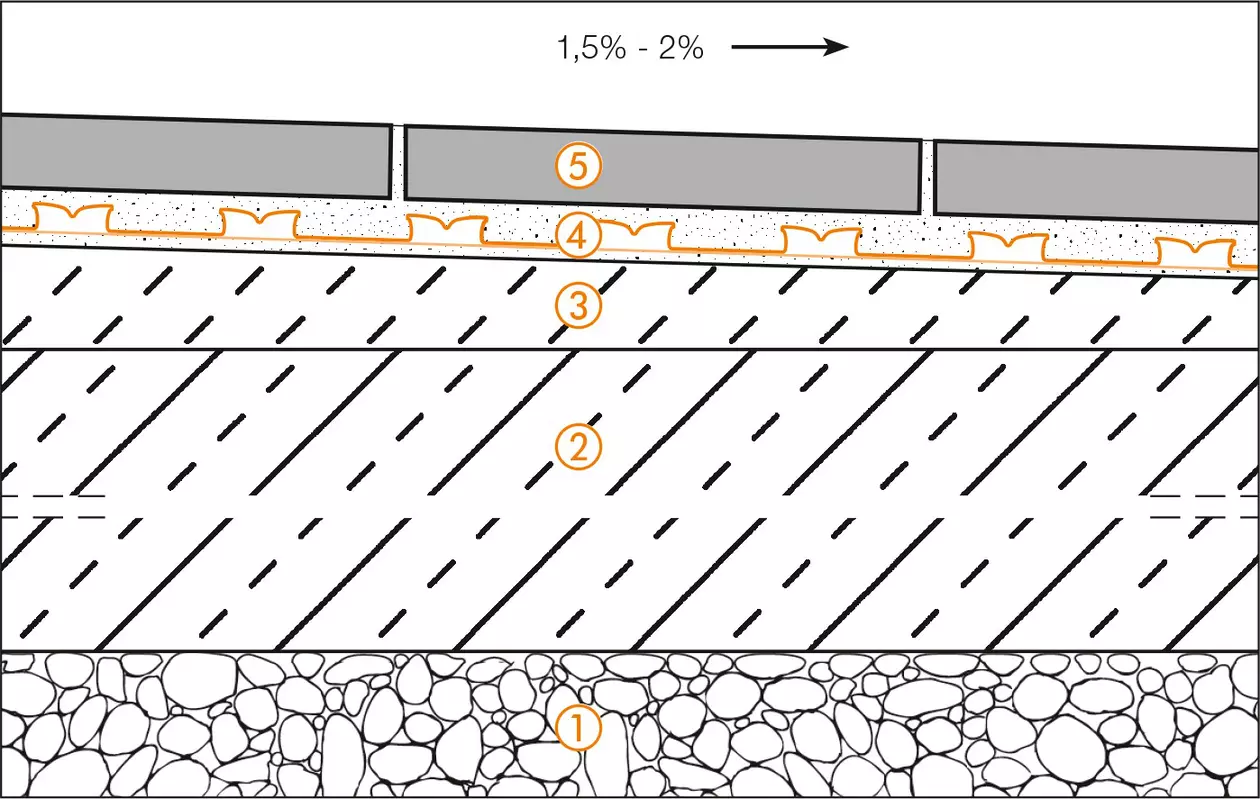

Terrace assembly B.1: Covering assembly with bonded waterproofing
- Capillary break layer
- Concrete slab
- Sloped screed
An adequate slope (1.5–2%) is required for drainage to ensure that the structure
is functional - Schlüter-DITRA
Special polyethylene mat, installed in thin-bed mortar, with the functions bonded waterproofing, bonded uncoupling and vapour pressure equalisation. Seam bonding with sealing band Schlüter-KERDI-KEBA, installed with Schlüter-KERDI-COLL-L sealing adhesive. - Ceramic tiles or natural stone pavers
Installation with a dry-setting, water and weather-resistant thin-bed mortar.
For coverings with an edge length ≥ 30 x 30 cm, we recommend Schlüter-DITRA-DRAIN.

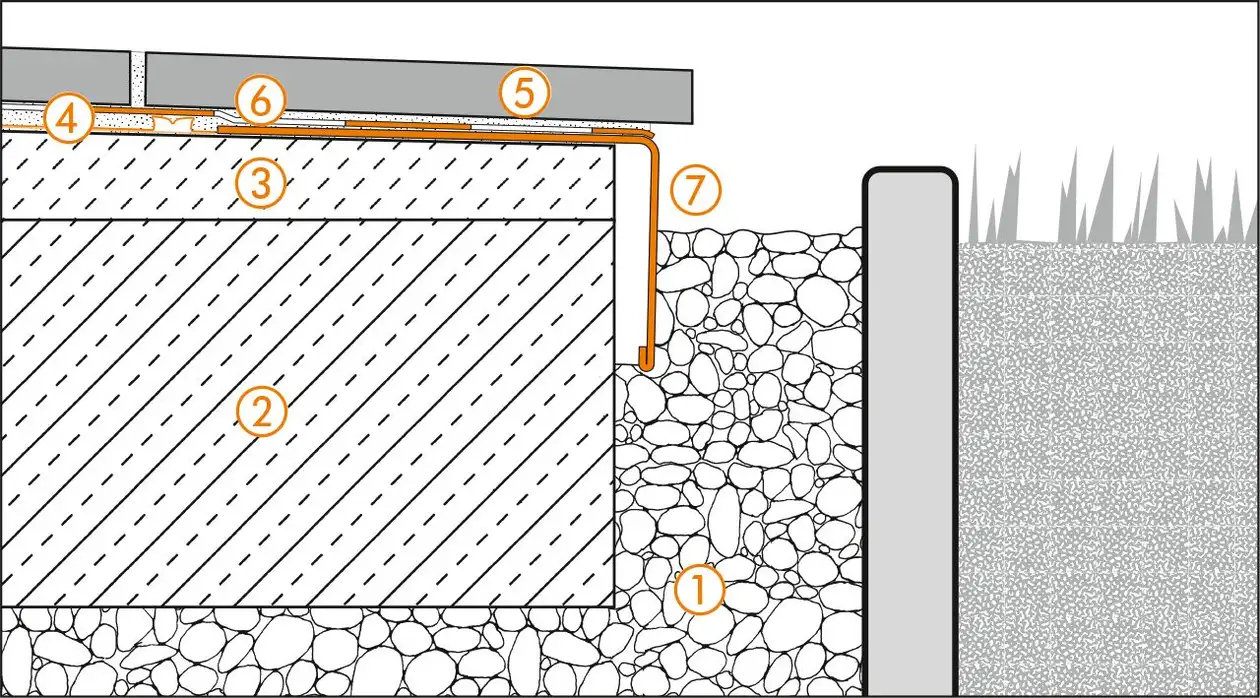

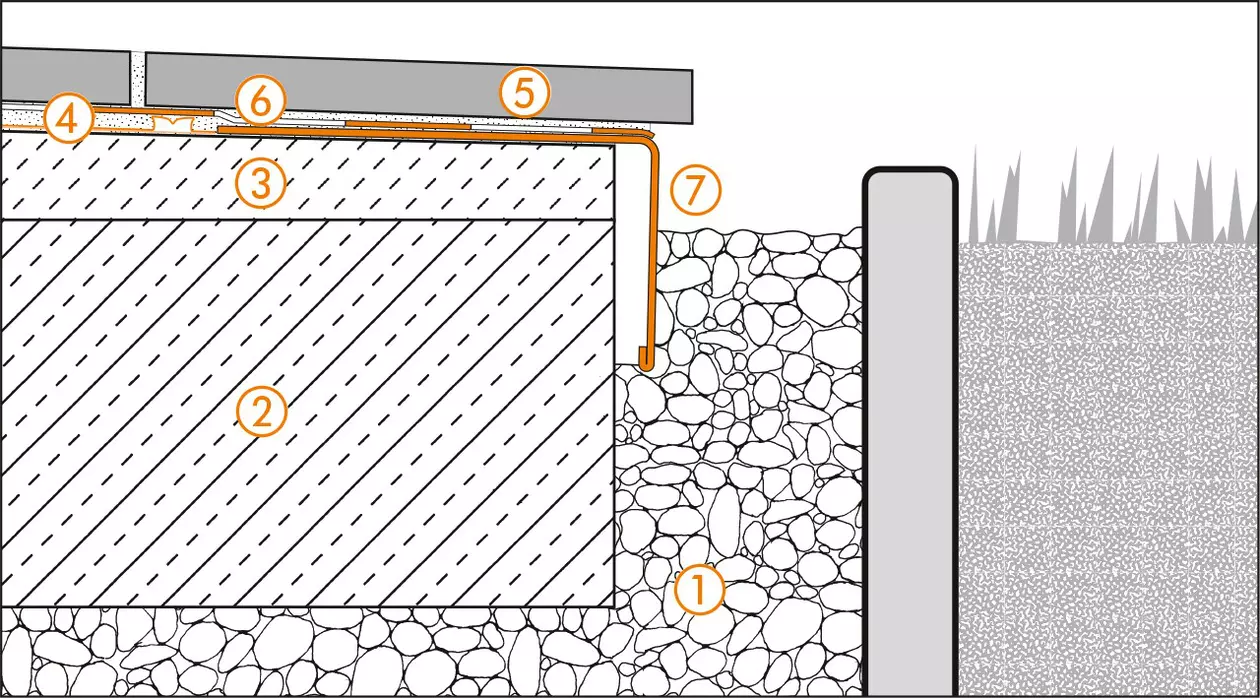

Edge detail 1
- Capillary break layer
- Concrete slab
- Sloped screed (1.5–2%)
- Schlüter-DITRA
- Ceramic tiles or natural stone pavers
- Schlüter-KERDI-KEBA
- Schlüter-BARA-RW

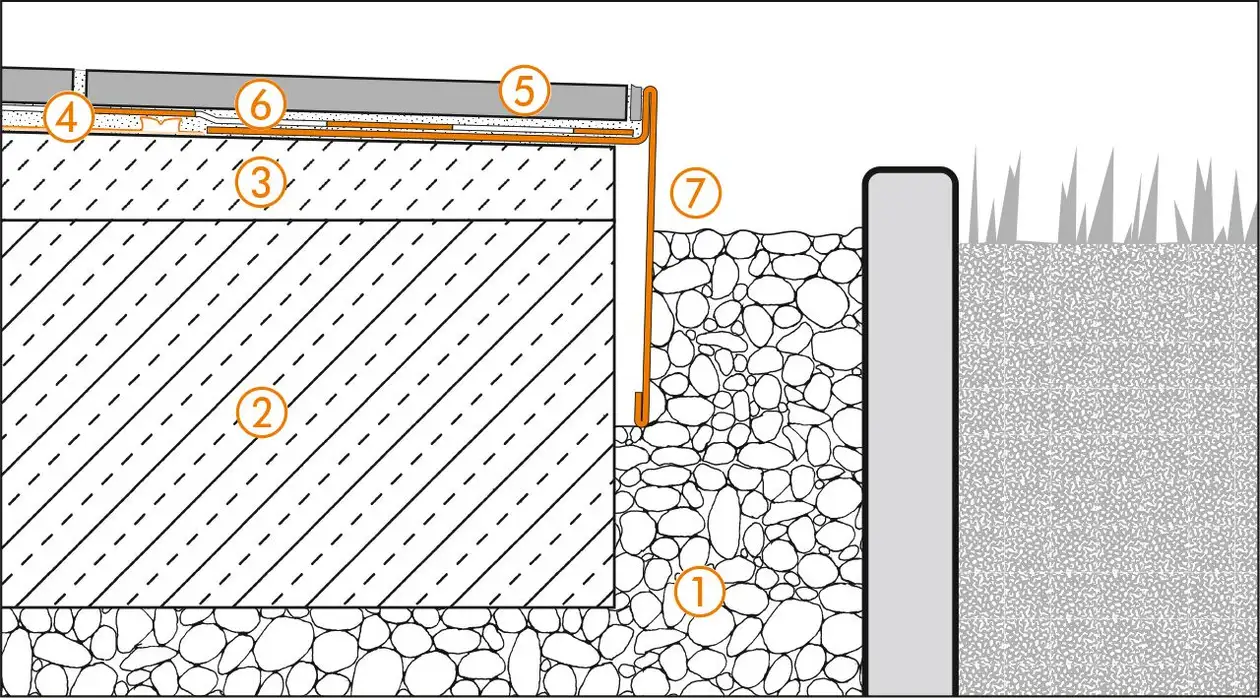

Edge detail 2
- Capillary break layer
- Concrete slab
- Sloped screed (1.5–2%)
- Schlüter-DITRA
- Ceramic tiles or natural stone pavers
- Schlüter-KERDI-KEBA
- Schlüter-BARA-RT

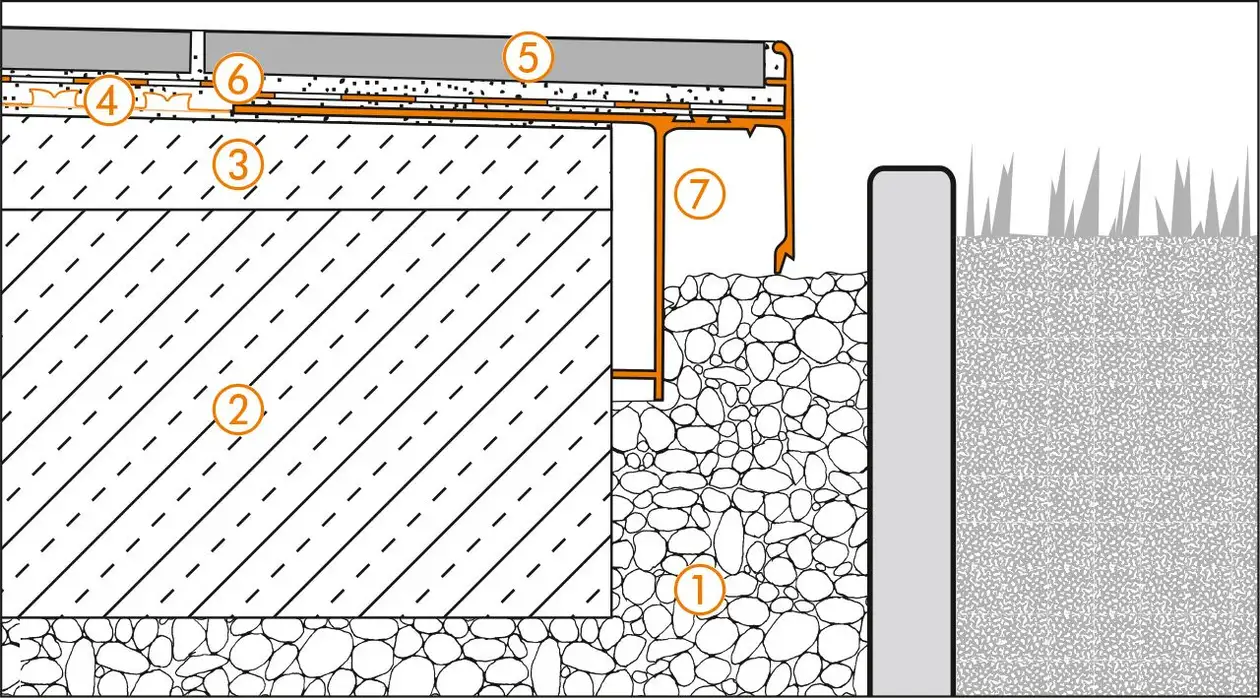

Edge detail 3
- Capillary break layer
- Concrete slab
- Sloped screed (1.5–2%)
- Schlüter-DITRA
- Ceramic tiles or natural stone pavers
- Schlüter-KERDI-KEBA
- Schlüter-BARA-RAKEG

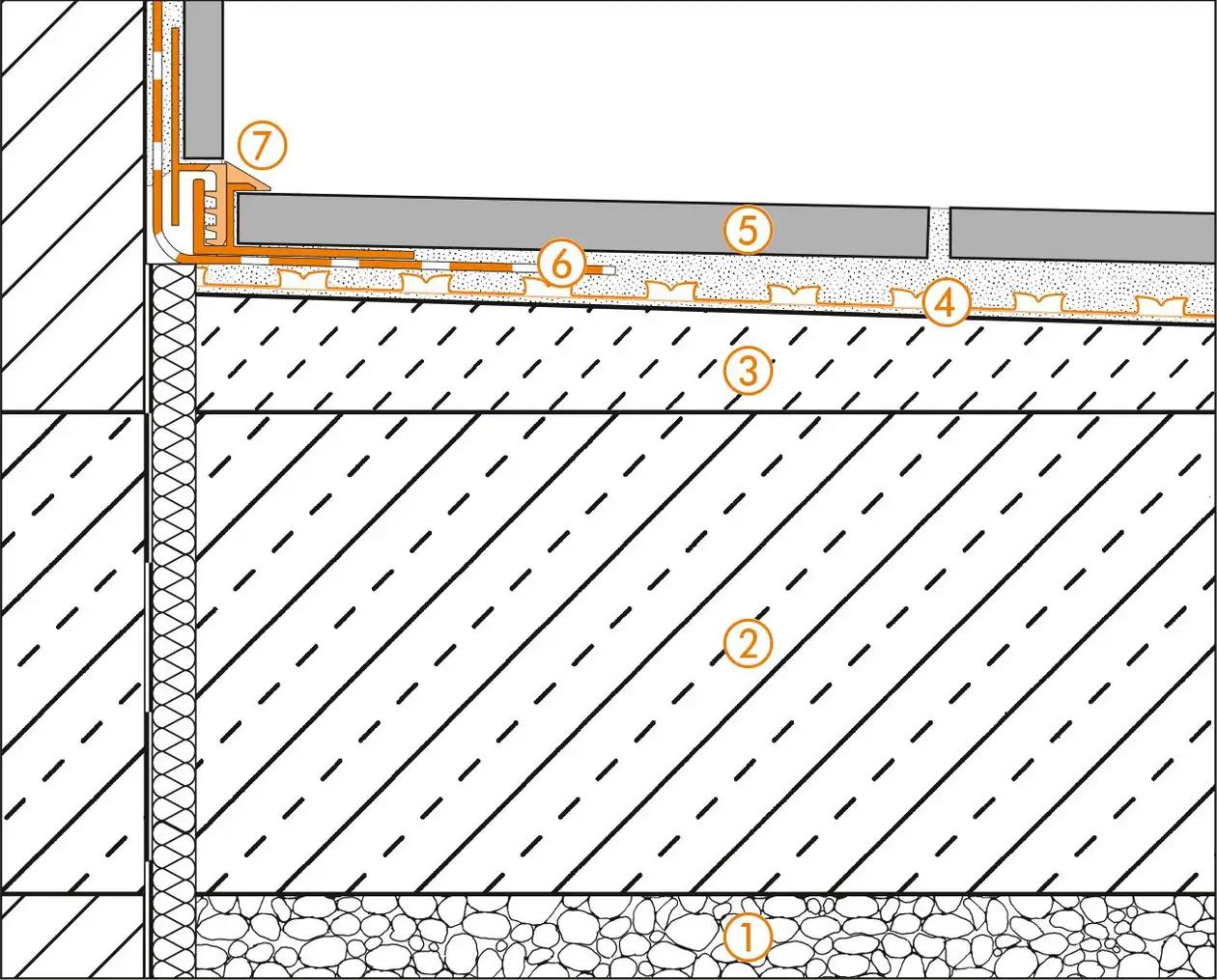

Wall connection detail
- Capillary break layer
- Concrete slab
- Sloped screed (1.5–2%)
- Schlüter-DITRA
- Ceramic tiles or natural stone pavers
- Schlüter-KERDI-KEBA
- Schlüter-DILEX-EK

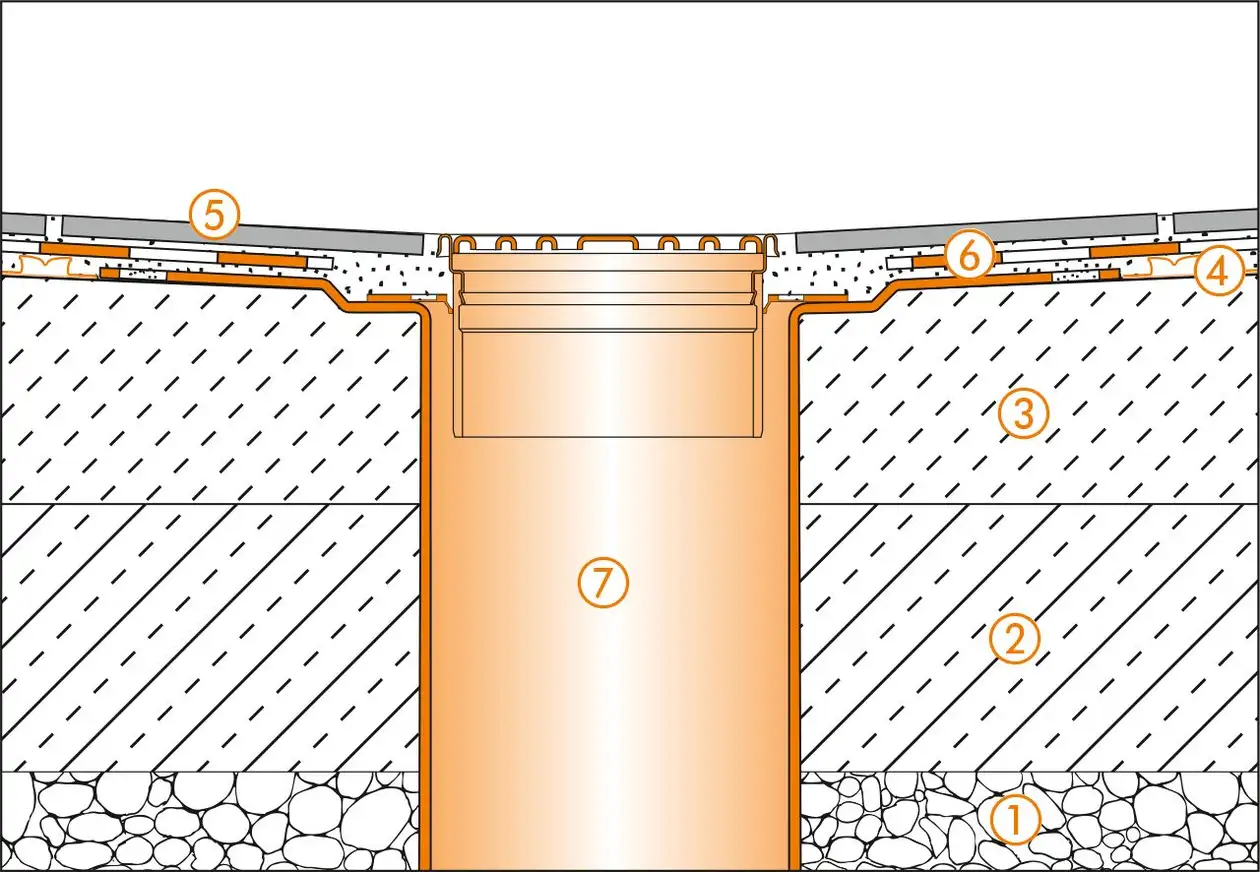

Floor drain
- Capillary break layer
- Concrete slab
- Sloped screed (1.5–2%)
- Schlüter-DITRA
- Ceramic tiles or natural stone pavers
- Schlüter-KERDI-MV
collar - Schlüter-KERDI-DRAIN
thin-bed floor drain
