Roof terrace assembly C.7: Covering assemblies over mortar supports

Covering assembly with TROBA-STELZ-mortar rings

© Schlueter-Systems

Schlüter-TROBA-STELZ-MR are plastic rings that provide assistance in laying large format pavers.

The 25 mm plastic rings are installed at the cross-sections of the pavers and remain in the assembly once they have been filled with fresh mortar (preferably pervious mortar). This allows for easy levelling of the covering surface.

Additionally, the open spaces between the stilts ensure the fast drainage of water permeating through the open paver joints.

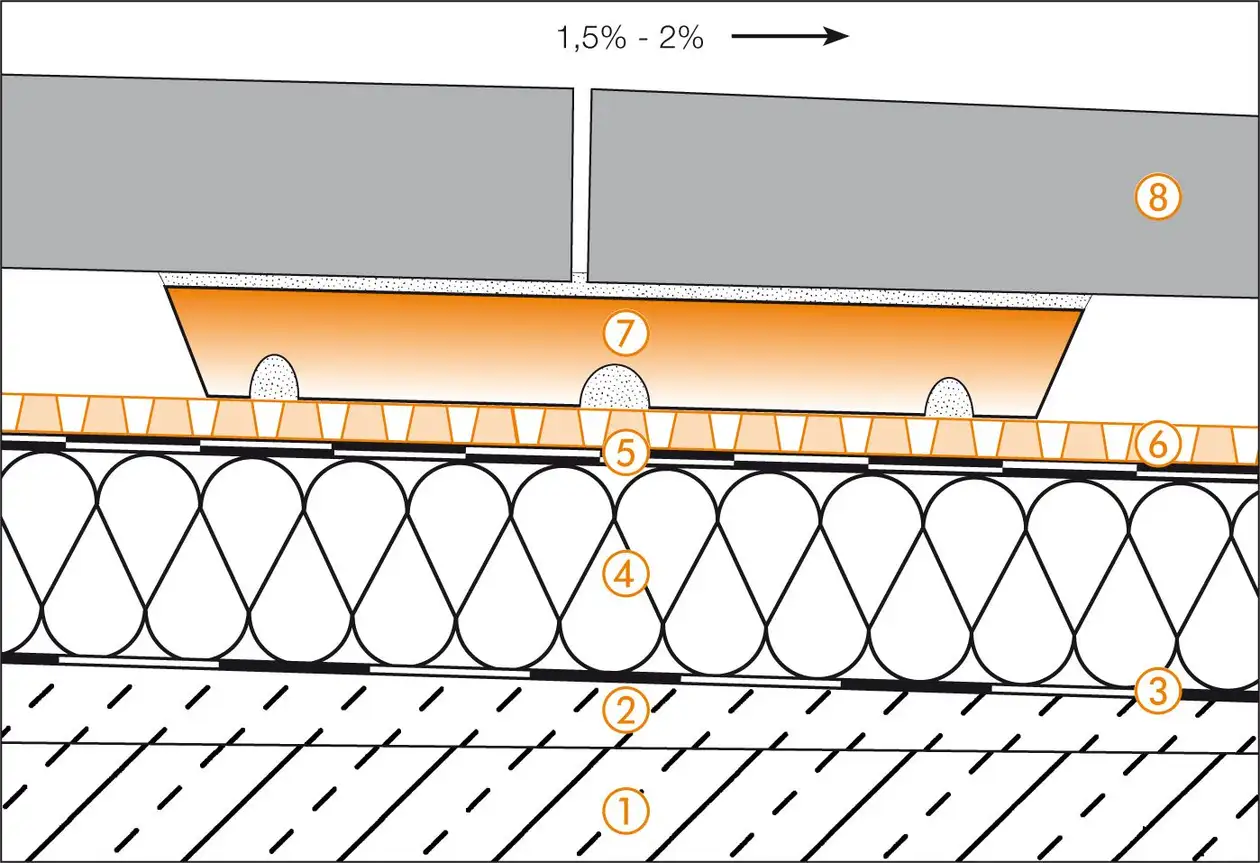

C.7 Covering assembly over mortar supports, installation with mortar rings

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed
   An adequate slope (1.5–2%) is required for drainage to ensure that the structure is functional
3. Vapour barrier acc. to DIN 18531
4. Insulation
   Thickness according to requirements
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
   High-impact drainage membrane as the support layer for self-supporting pavers and for reliable and effective drainage of water entering through the open joints between the pavers.
   Make sure drainage is possible!
7. Schlüter-TROBA-STELZ-MR
   are plastic rings that provide assistance in laying large format pavers on balconies and terraces
8. Large format, self-supporting pavers
   Concrete pavers, natural stone or ceramic elements

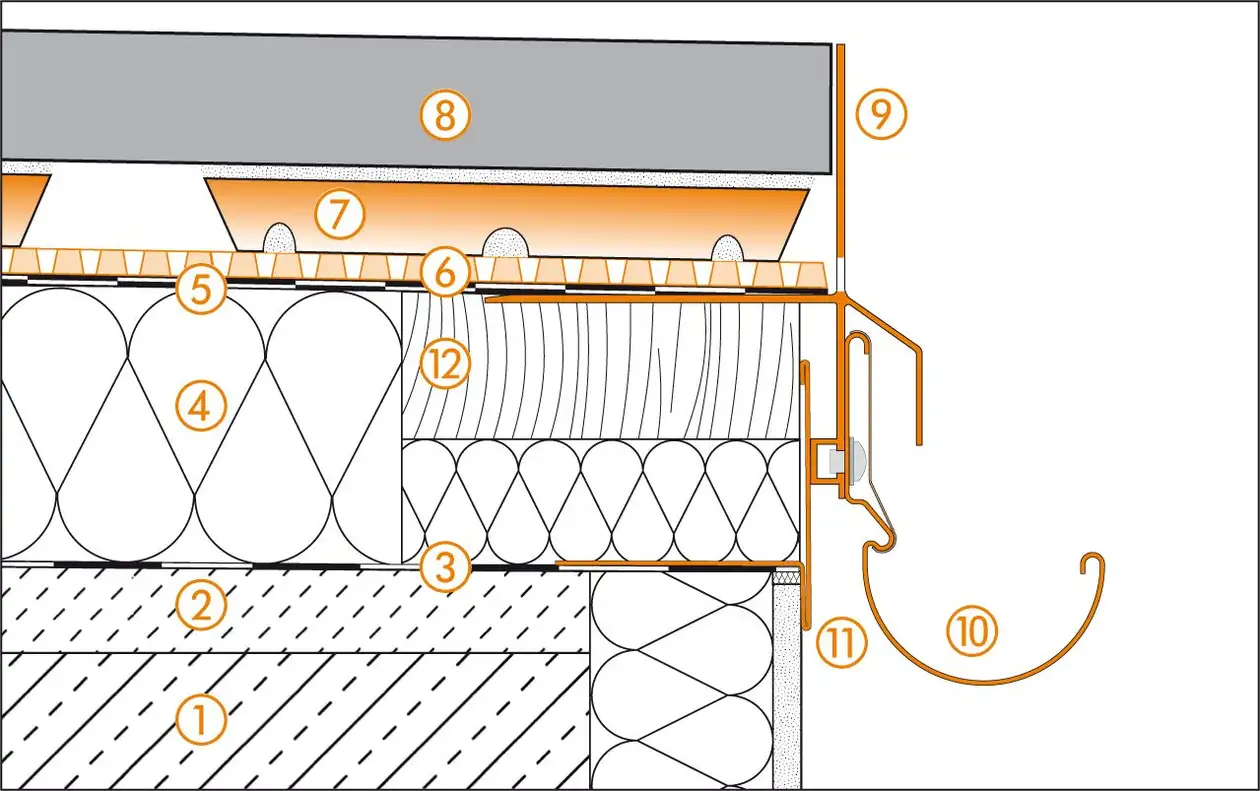

Edge detail 1

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-MR
8. Large format, self-supporting pavers
9. Schlüter-BARA-RKLT
   Keep drainage opening slots clear!
10. Schlüter-BARIN
11. Schlüter-BARA-RT
12. Edge plank

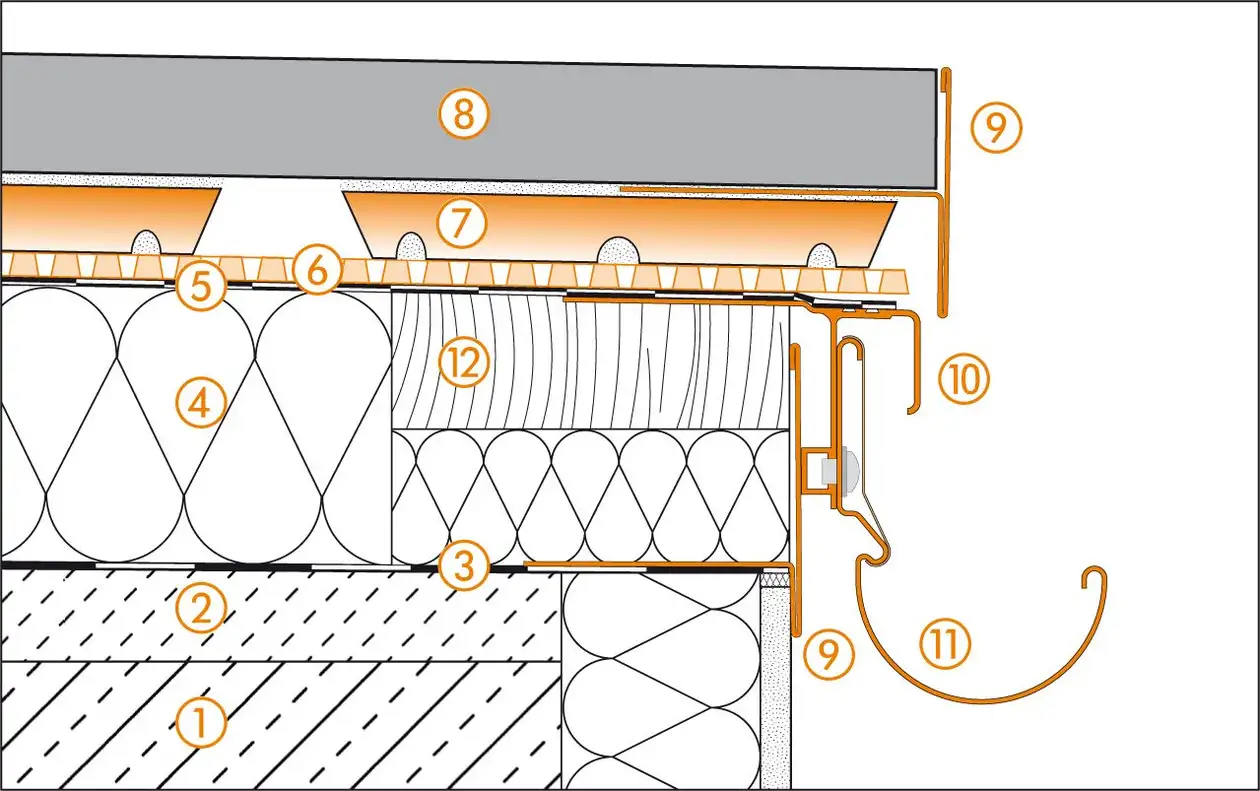

Edge detail 2

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-MR
8. Large format, self-supporting pavers
9. Schlüter-BARA-RT
   Make sure drainage is possible!
10. Schlüter-BARA-RTK
11. Schlüter-BARIN
12. Edge plank

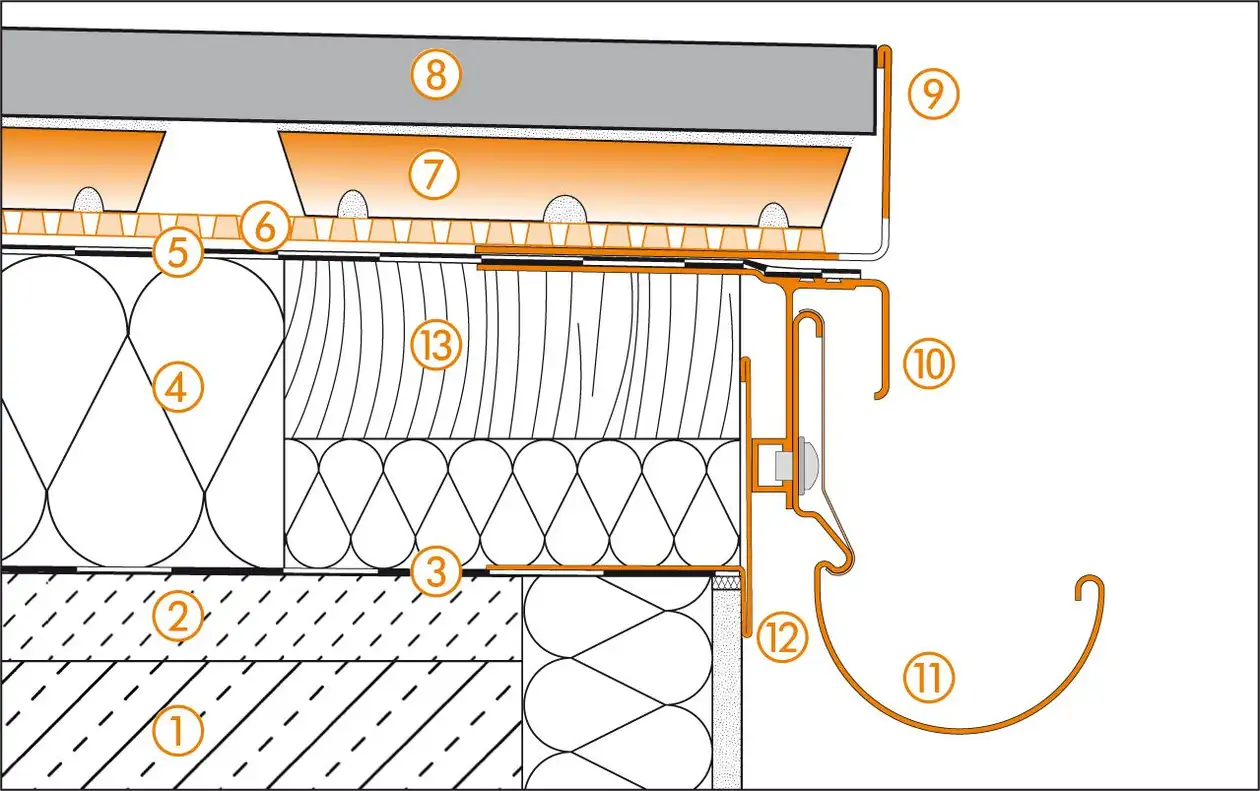

Edge detail 3

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-MR
8. Large format, self-supporting pavers
9. Schlüter-BARA-RWL
   Keep drainage opening slots clear
10. Schlüter-BARA-RTK
11. Schlüter-BARIN
12. Schlüter-BARA-RT
13. Edge plank

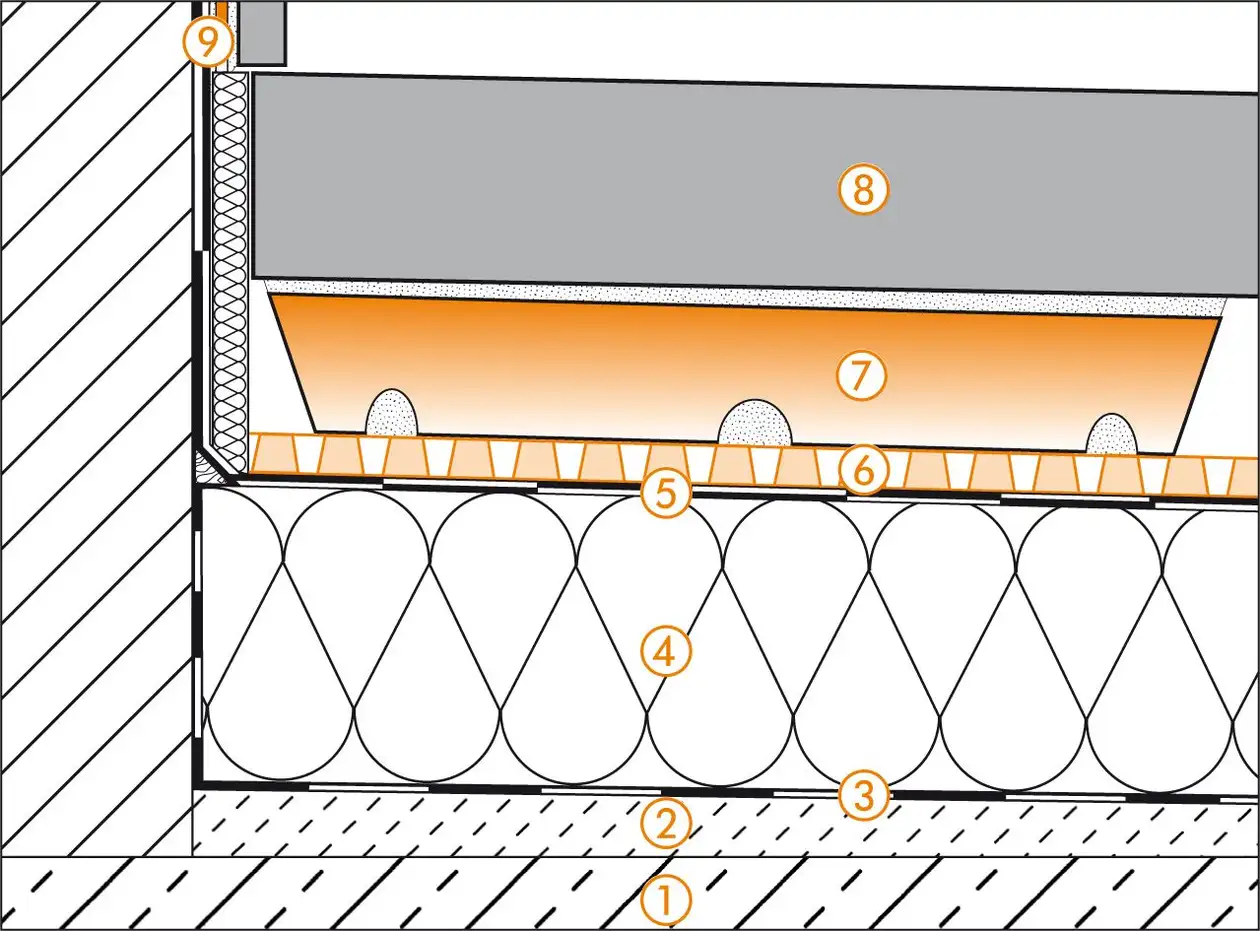

Wall connection detail

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-MR
8. Large format, self-supporting pavers
9. Schlüter-KERDI

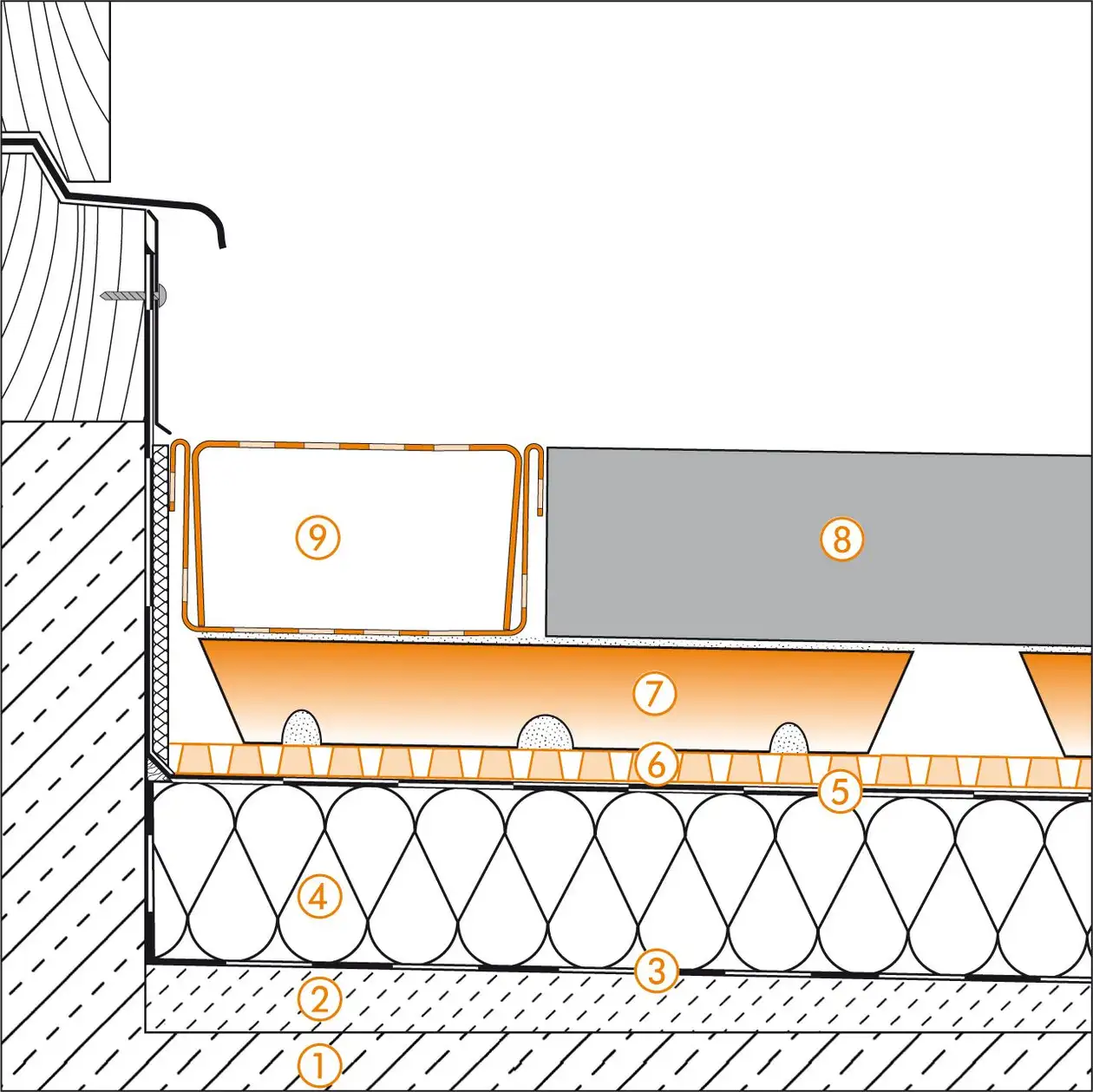

Door transition

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-MR
8. Large format, self-supporting pavers
9. Schlüter-TROBA-LINE-TL

Click here to download additional information:

Download	Selection
