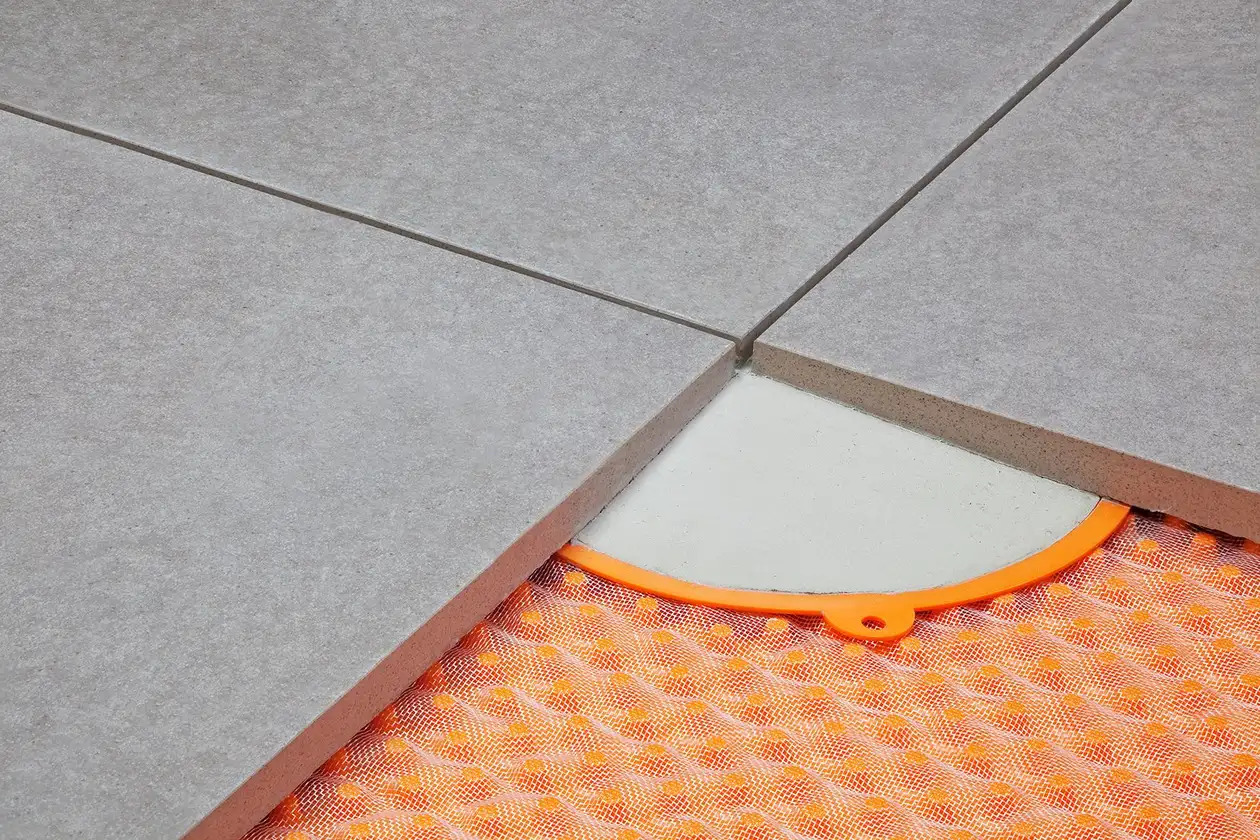

Roof terrace assembly C.6: Unbonded installation over TROBA-PLUS 8G fixed in place with thin-bed mortar spots

Unbonded installation over TROBA-PLUS 8G with TROBA-STELZ-DR

© Schlueter-Systems

In this type of construction, the high-impact area drainage
Schlüter-TROBA-PLUS 8G forms the support layer for self-supporting pavers and guarantees the quick drainage of seepage entering through the open joints between the pavers.

Schlüter-TROBA-STELZ-DR are used as casting mould rings to create evenly spaced support points of thin-bed mortar for the self-supporting pavers.

Note:
The casting mould rings TROBA-STELZ-DR can be removed after the installation of the thin-bed mortar and reused in other applications.

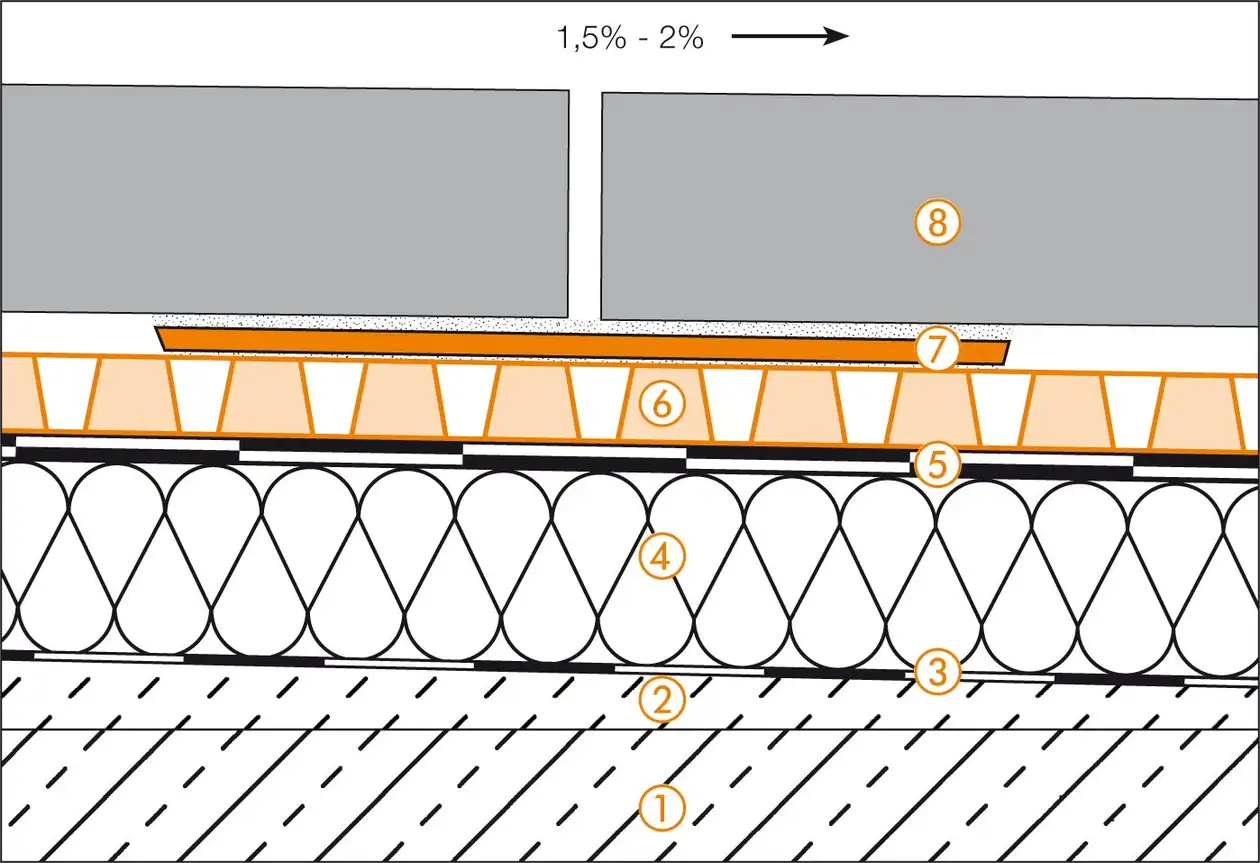

Roof terrace assembly C.6: Unbonded installation over TROBA-PLUS 8G fixed in place with thin-bed mortar spots

© Schlueter-Systems

1. Cantilevered concrete slab
2. Sloped screed
   An adequate slope (1.5–2%) is required for drainage to ensure that the structure
   is functional
3. Vapour barrier acc. to DIN 18531
4. Insulation
   Thickness according to requirements
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
   High-impact drainage membrane as the support layer for self-supporting pavers and for reliable and effective drainage of seepage entering through the open joints between the pavers.
   Make sure drainage is possible!
7. Schlüter-TROBA-STELZ-DR
   Formwork rings for thin-bed mortar
8. Large format, self-supporting pavers
   Concrete pavers, natural stone or ceramic elements

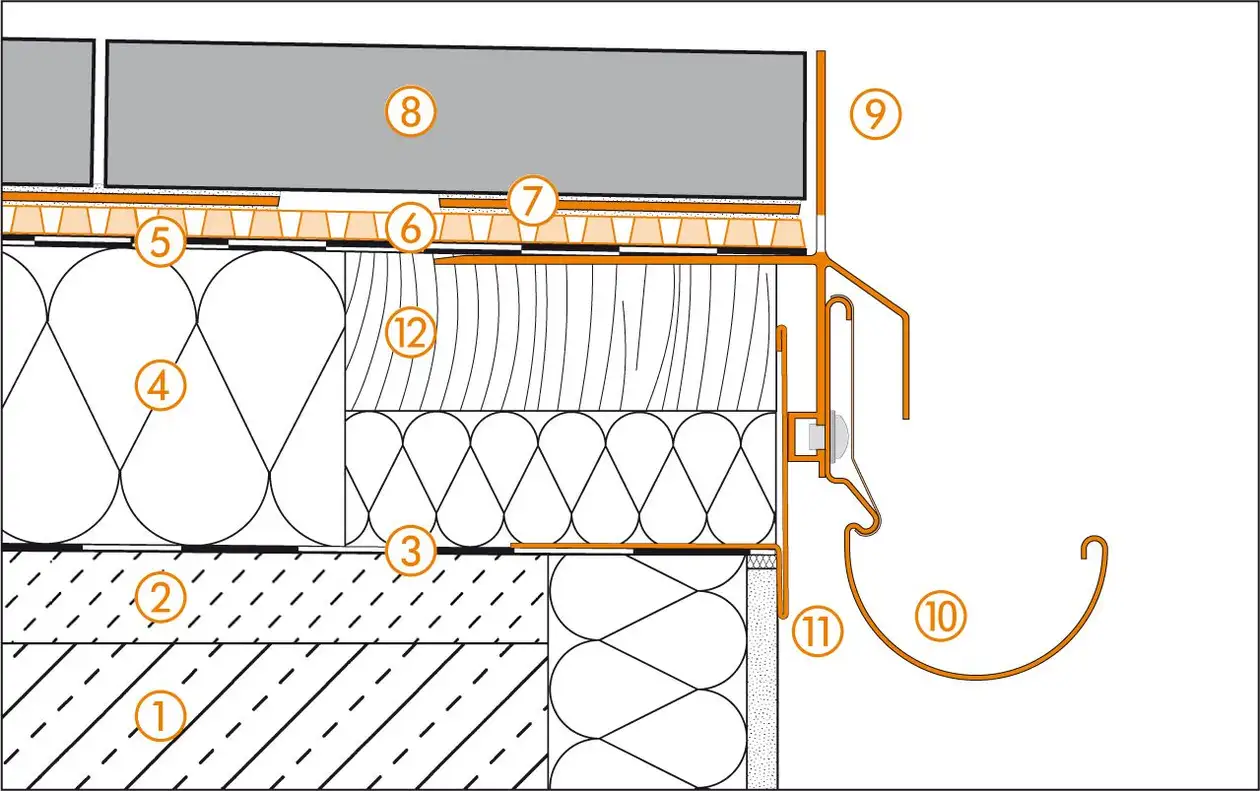

Edge detail 1

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-DR
8. Large format, self-supporting pavers
9. Schlüter-BARA-RKLT
   Keep drainage opening slots clear
10. Schlüter-BARIN
11. Schlüter-BARA-RT
12. Edge plank

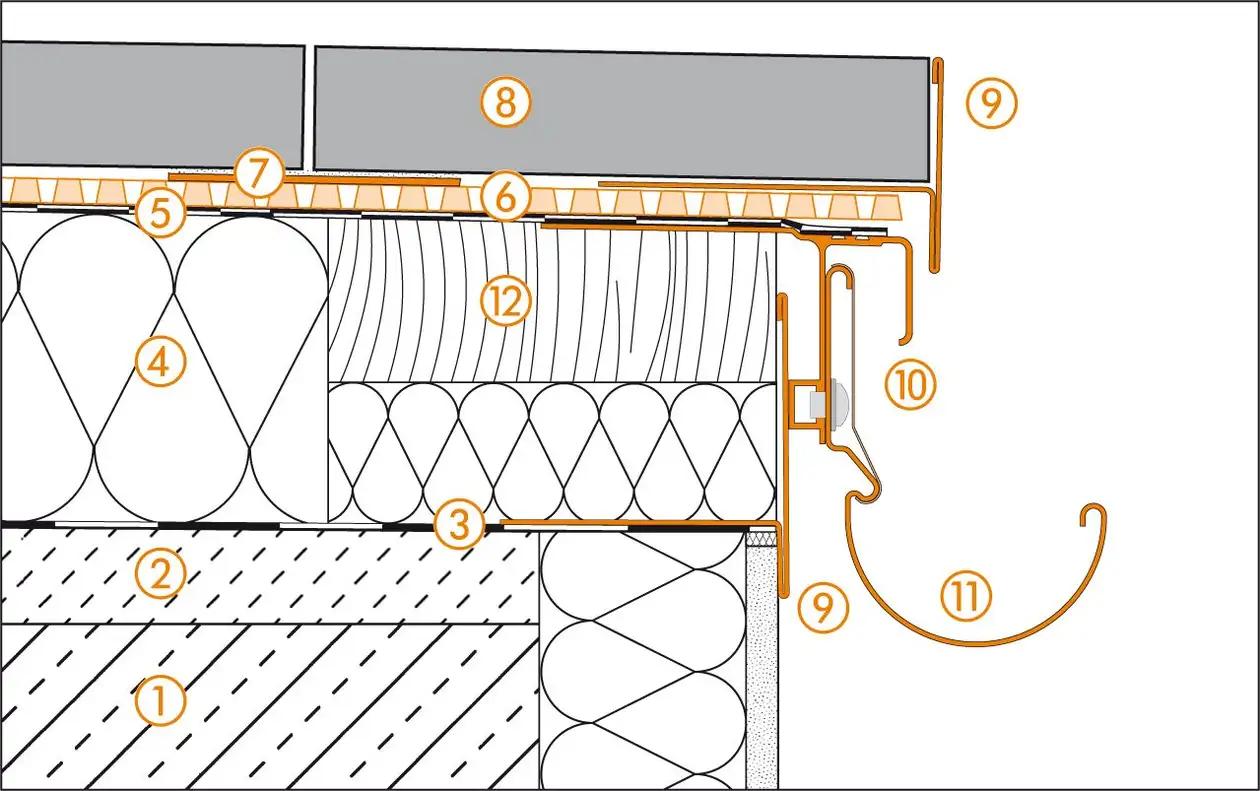

Edge detail 2

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-DR
8. Large format, self-supporting pavers
9. Schlüter-BARA-RT
   Make sure drainage is possible!
10. Schlüter-BARA-RTK
11. Schlüter-BARIN
12. Edge plank

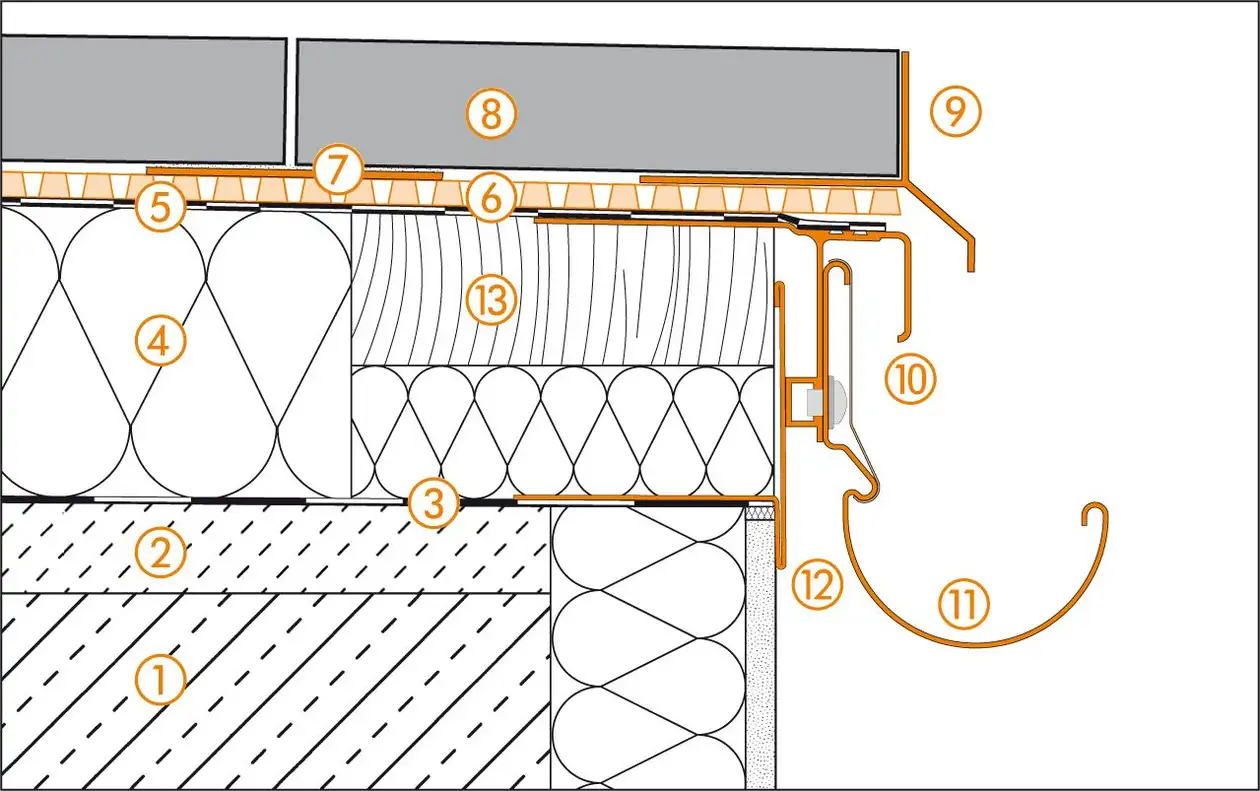

Edge detail 3

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-DR
8. Large format, self-supporting pavers
9. Schlüter-BARA-RK
   Make sure drainage is possible!
10. Schlüter-BARA-RTK
11. Schlüter-BARIN
12. Schlüter-BARA-RT
13. Edge plank

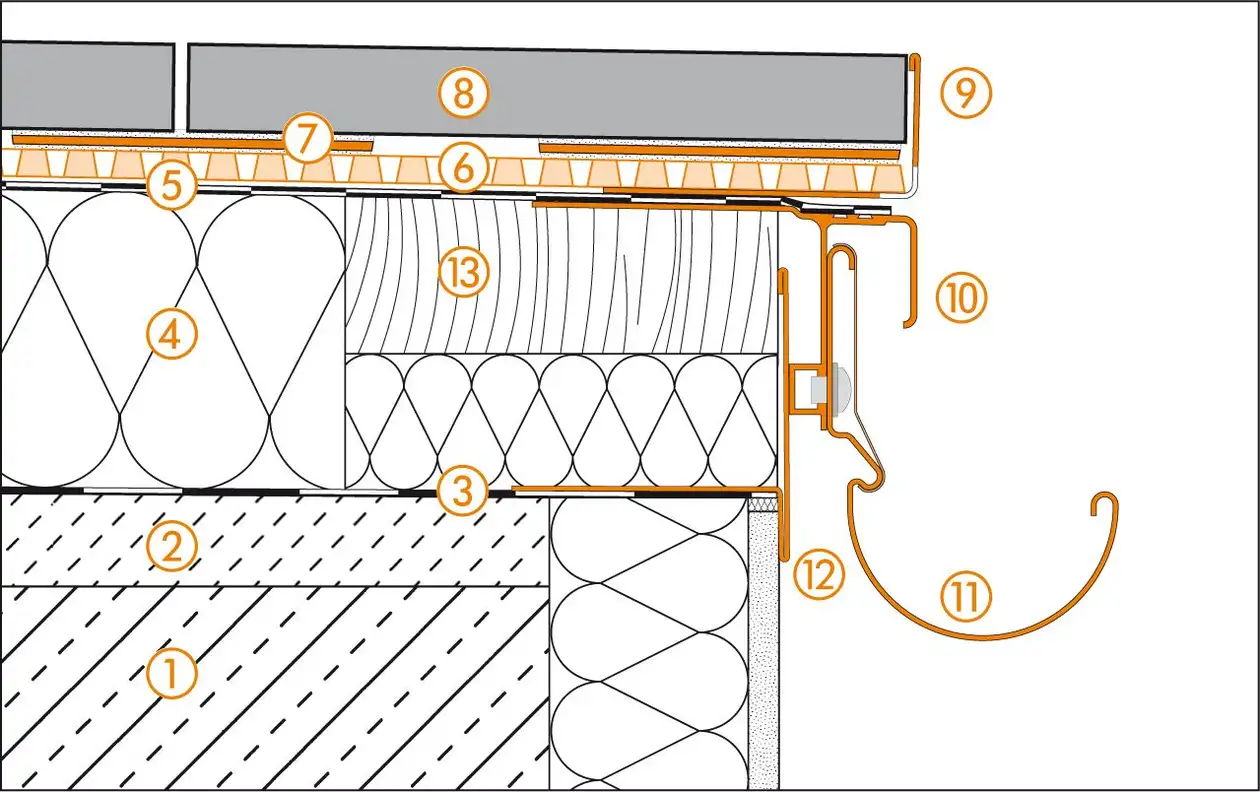

Edge detail 4

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-DR
8. Large format, self-supporting pavers
9. Schlüter-BARA-RWL
   Keep drainage opening slots clear
10. Schlüter-BARA-RTK
11. Schlüter-BARIN
12. Schlüter-BARA-RT
13. Edge plank

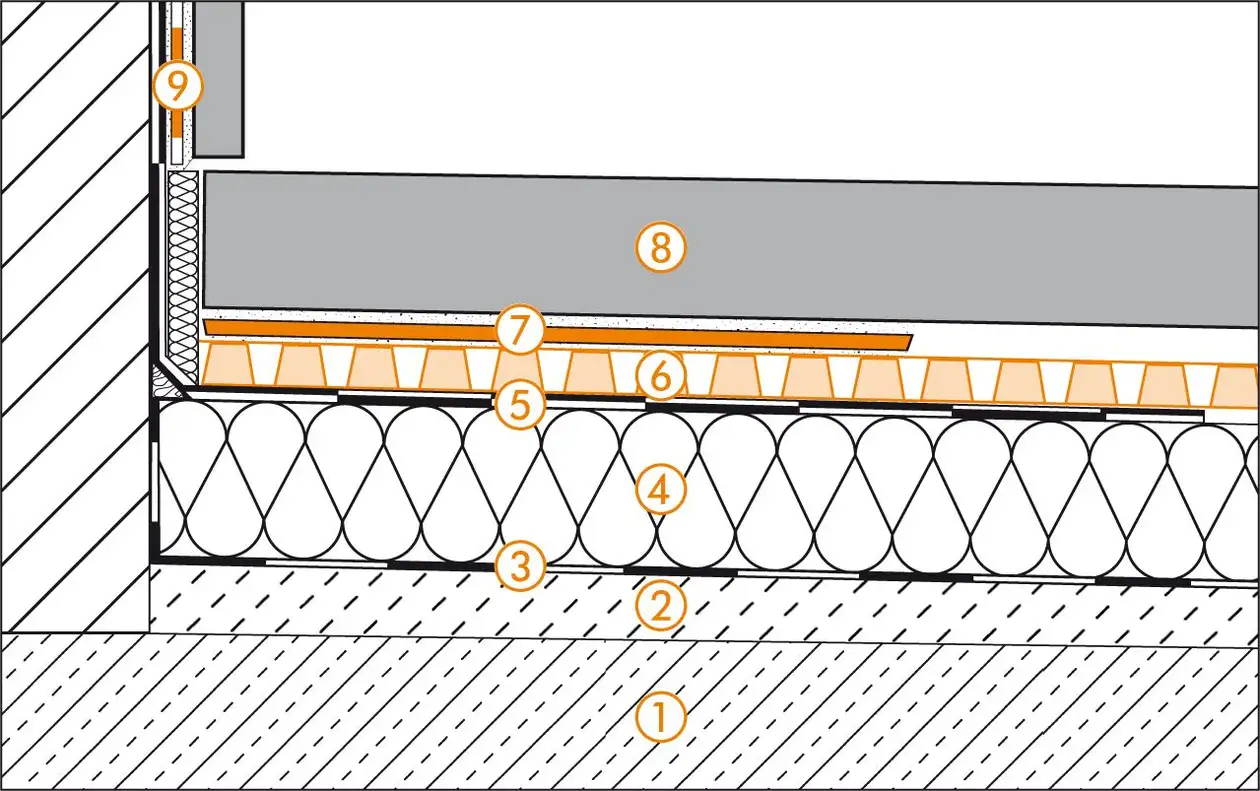

Wall connection detail

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-DR
8. Large format, self-supporting pavers
9. Schlüter-KERDI

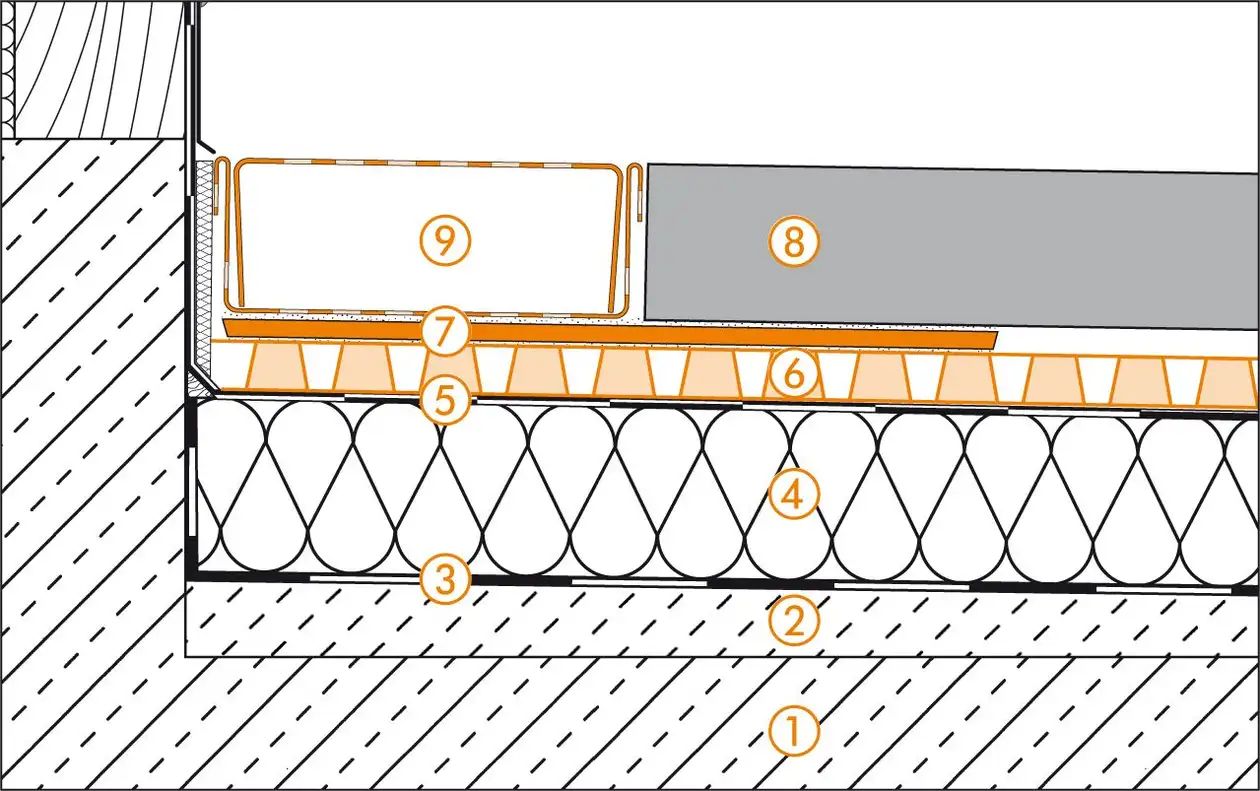

Door transition

© Schlueter-Systems

1. Concrete slab
2. Sloped screed (1.5–2%)
3. Vapour barrier acc. to DIN 18531
4. Insulation
5. Structural waterproofing acc. to DIN 18531
6. Schlüter-TROBA-PLUS 8G
7. Schlüter-TROBA-STELZ-DR
8. Large format, self-supporting pavers
9. Schlüter-TROBA-LINE-TL
