Roof terrace assembly C.5: Covering assembly over waterproofing layers

Assemblies C: Roof terraces

Waterproofing, drainage, load distribution layer, bonded drainage and uncoupling

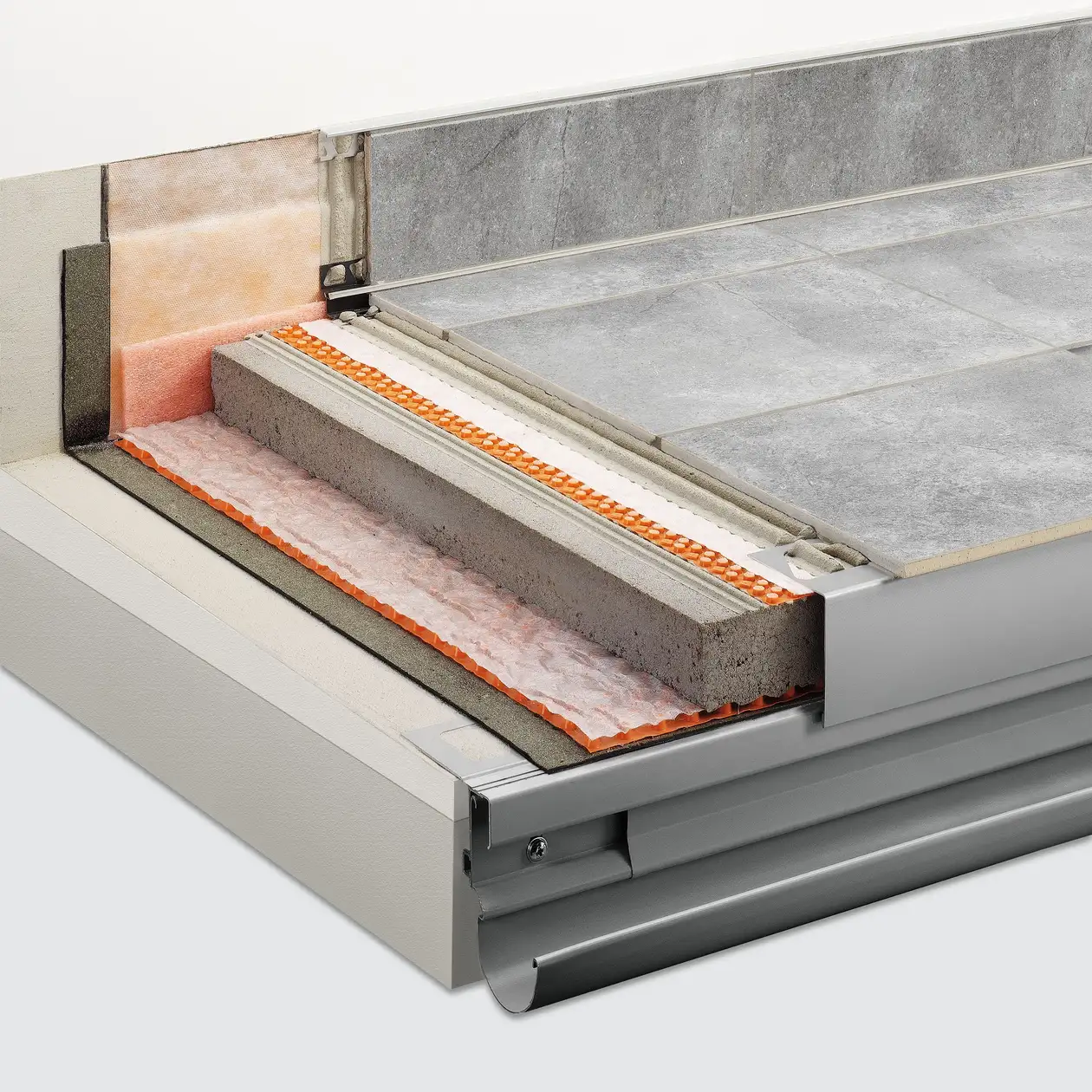

Schlüter-Systems roof terrace assembly Covering assemblies over waterproofing layers according to DIN 18531 © Schlueter-Systems



The waterproofing assembly, designed with a surface slope that meets the requirements of DIN 18531, protects the support structure against the penetration of water.

Schlüter-TROBA-PLUS is installed as a drainage membrane between the waterproofing layer and the load distribution layer (screed) to drain away seepage.

The passive capillary bonded drainage and uncoupling Schlüter-DITRA-DRAIN is installed in thin-bed mortar between the screed and the tile covering.

This results in broad ventilation of the top covering, which in turn promotes the quick and even drying/curing of the thin-bed mortar.

C.5: Covering assemblies over waterproofing layers according to DIN 18531

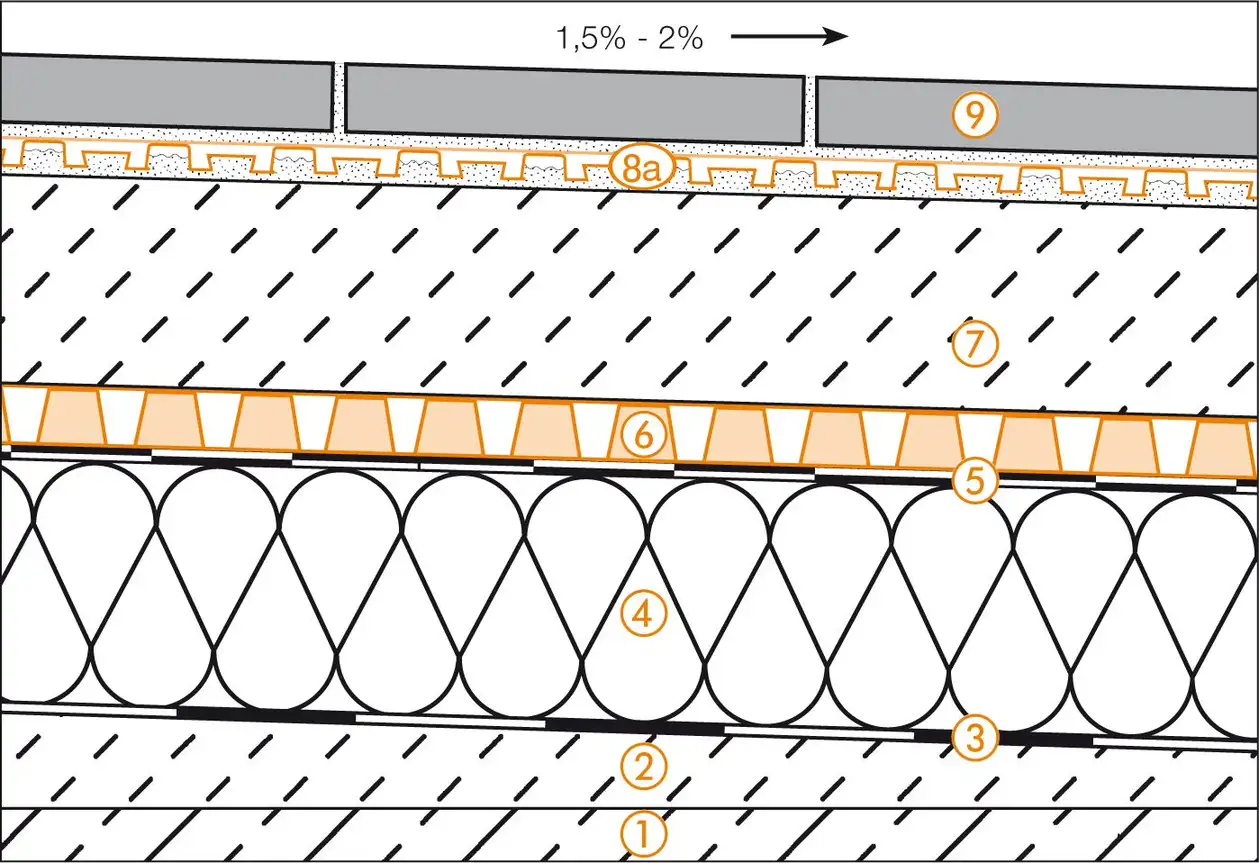

Schlüter-Systems section drawing of roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531 © Schlueter-Systems
Section drawing of roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531
  1. Cantilevered concrete slab
  2. Sloped screed
    An adequate slope (1.5–2%) is required for drainage to ensure that the structure
    is functional
  3. Vapour barrier acc. to DIN 18531
  4. Insulation
    Thickness according to requirements
  5. Structural waterproofing acc. to DIN 18531
  6. Schlüter-TROBA-PLUS
    Passive capillary surface drainage for the effective run-off of water and full-surface ventilation
    Make sure drainage is possible!
  7. Load distribution layer
    Cement screed according to DIN 18560-2 or pervious mortar
  8. a) Schlüter-DITRA-DRAIN 4
    Bonded drainage membrane made of polyethylene, installed in thin-bed mortar, with the functions bonded drainage, ventilation and bonded uncoupling
    b) Schlüter-DITRA-DRAIN 8
    Bonded drainage membrane specially designed for large areas and staircase constructions
  9. Ceramic tiles or natural stone pavers
    Installation – also large formats – with a dry-setting, water and weather-resistant thin-bed mortar

Edge detail 1

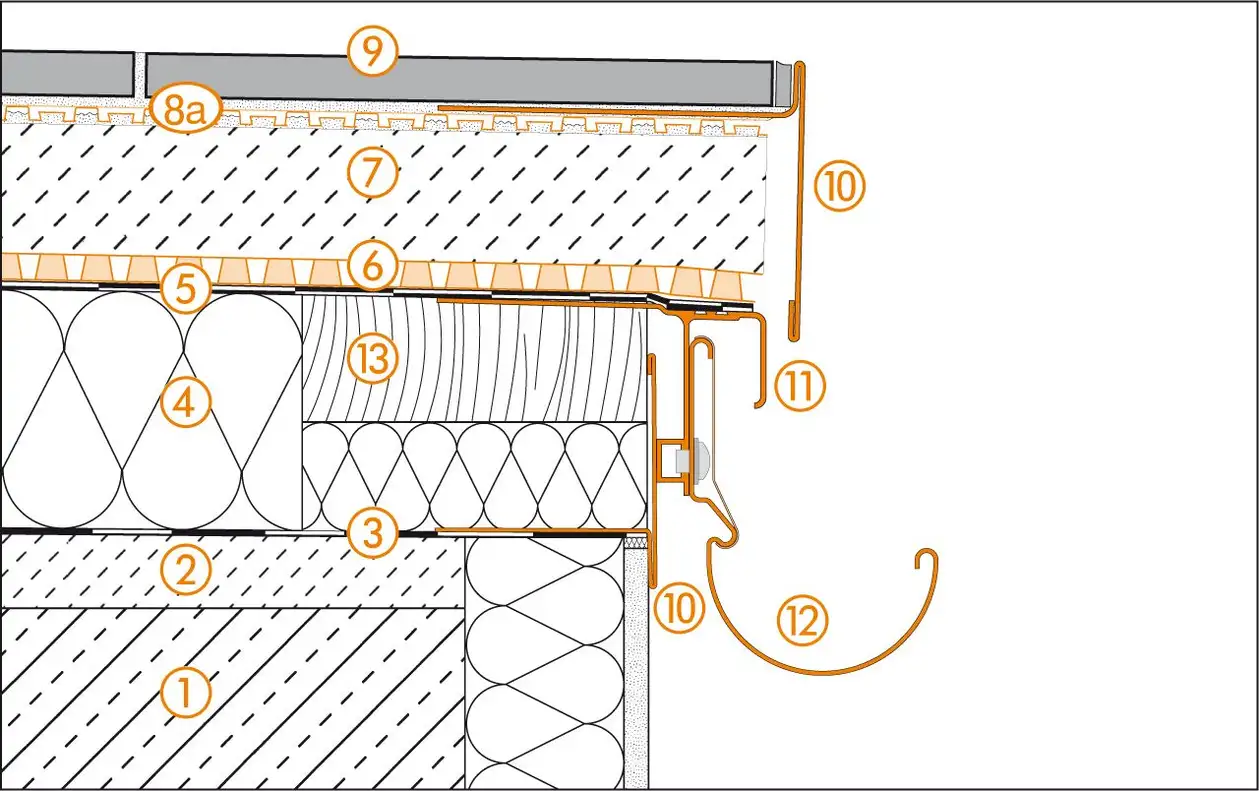

Schlüter-Systems section drawing of edge detail 1 for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531 © Schlueter-Systems
Section drawing of edge detail 1 for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531
  1. Concrete slab
  2. Sloped screed (1.5–2%)
  3. Vapour barrier acc. to DIN 18531
  4. Insulation
  5. Structural waterproofing acc. to DIN 18531
  6. Schlüter-TROBA-PLUS
  7. Load distribution layer
  8. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  9. Ceramic tiles or natural stone pavers
  10. Schlüter-BARA-RT
    Make sure drainage is possible!
  11. Schlüter-BARA-RTK
  12. Schlüter-BARIN
  13. Edge plank

Wall connection detail

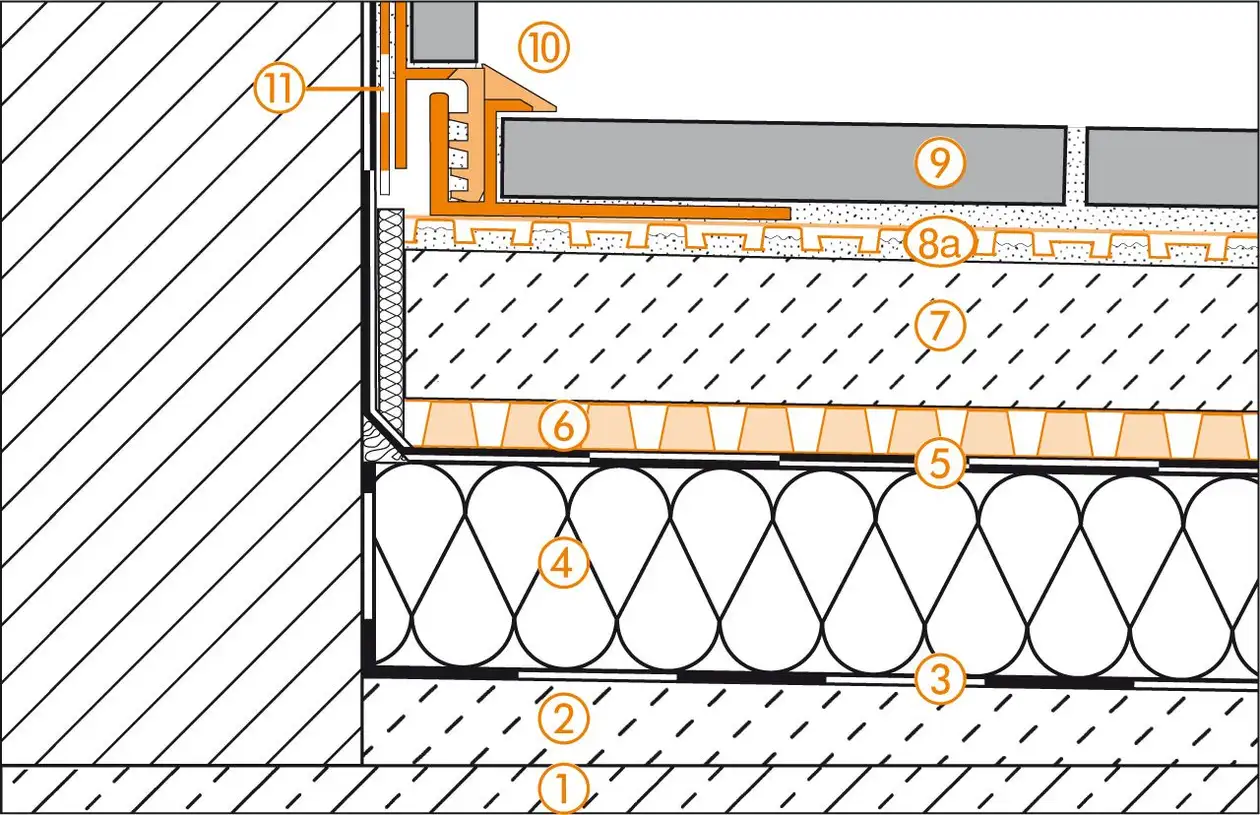

Schlüter-Systems section drawing of the wall connection detail for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531 © Schlueter-Systems
Section drawing of the wall connection detail for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531
  1. Concrete slab
  2. Sloped screed (1.5–2%)
  3. Vapour barrier acc. to DIN 18531
  4. Insulation
  5. Structural waterproofing acc. to DIN 18531
  6. Schlüter-TROBA-PLUS
  7. Load distribution layer
  8. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  9. Ceramic tiles or natural stone pavers
  10. Schlüter-DILEX-EK
  11. Schlüter-KERDI-KEBA

Door transition

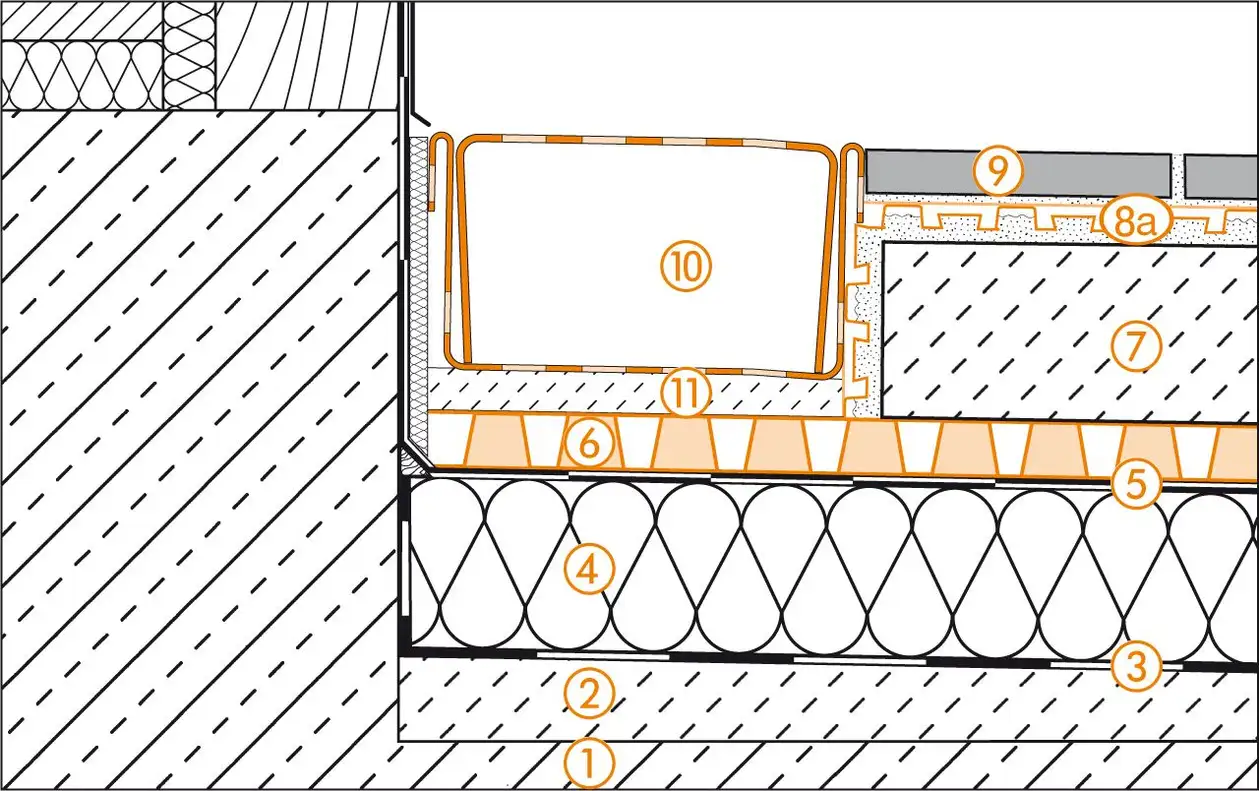

Schlüter-Systems section drawing of the door transition for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531 © Schlueter-Systems
Section drawing of the door transition for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531
  1. Concrete slab
  2. Sloped screed (1.5–2%)
  3. Vapour barrier acc. to DIN 18531
  4. Insulation
  5. Structural waterproofing acc. to DIN 18531
  6. Schlüter-TROBA-PLUS
  7. Load distribution layer
  8. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  9. Ceramic tiles or natural stone pavers
  10. Schlüter-TROBA-LINE-TL
    (drainage opening slots must be kept clear)
  11. Mortar spot

Floor drain

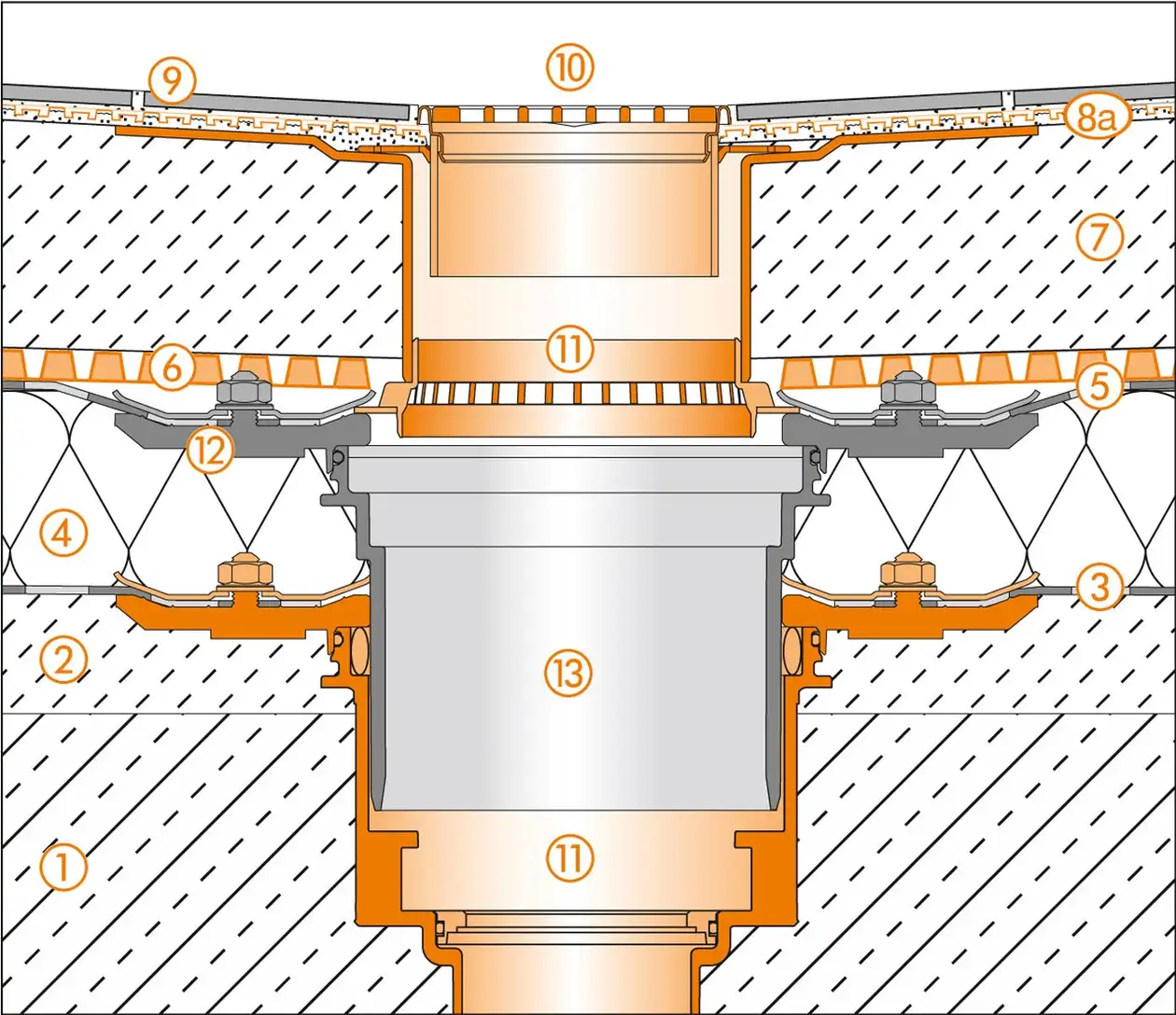

Schlüter-Systems section drawing of the floor drain for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531 © Schlueter-Systems
Section drawing of the floor drain for roof terrace assembly C.5 Covering assemblies over waterproofing layers according to DIN 18531
  1. Concrete slab
  2. Sloped screed (1.5–2%)
  3. Vapour barrier acc. to DIN 18531
  4. Insulation
  5. Structural waterproofing acc. to DIN 18531
  6. Schlüter-TROBA-PLUS
  7. Load distribution layer
  8. a) Schlüter-DITRA-DRAIN 4
    b) Schlüter-DITRA-DRAIN 8
  9. Ceramic tiles or natural stone pavers
  10. Schlüter-KERDI-DRAIN-RRE
    Grate and frame set KD R10
    Drainage opening slots must be kept clear!
  11. Schlüter-KERDI-DRAIN-KDBV
    Floor drain set KD BV 50 MSBB
  12. Sealing connection (on request)
  13. Extension piece for floor drains (on request)
