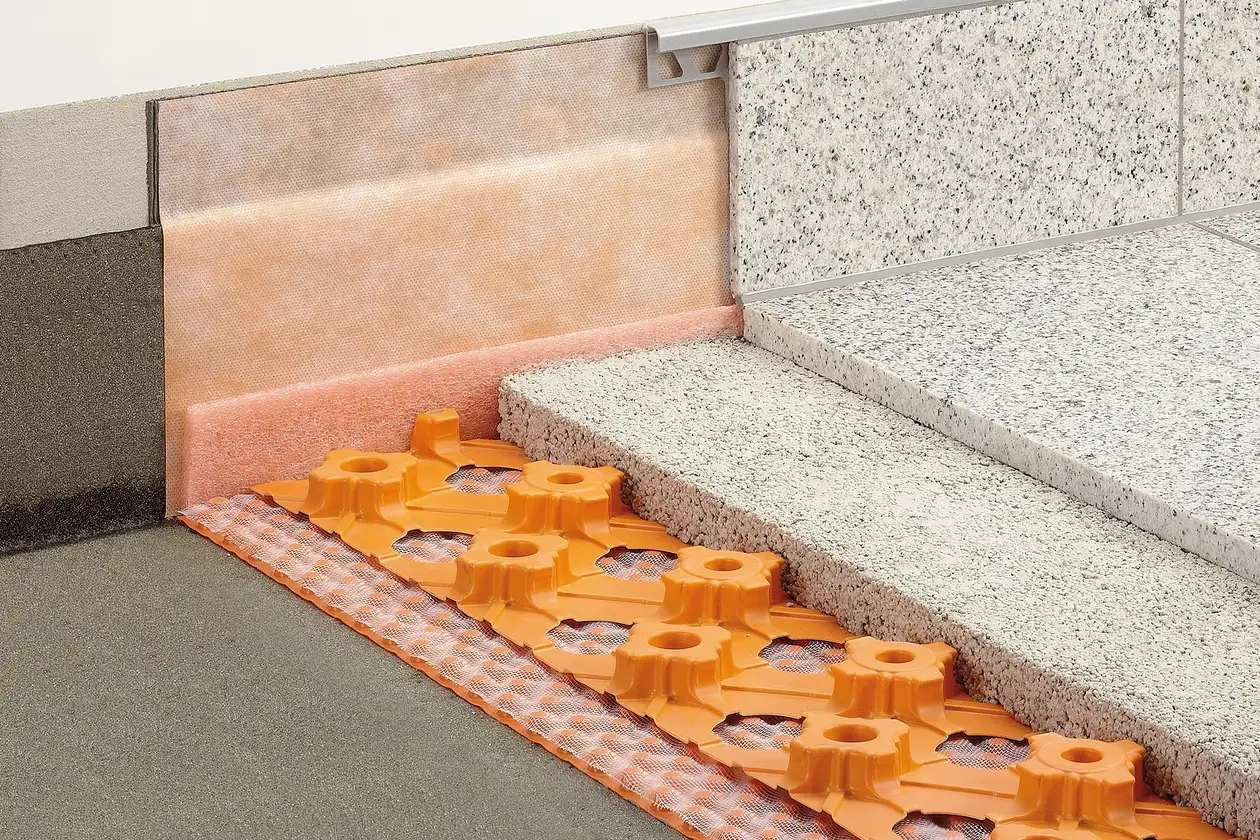

Roof terrace assembly C.4: Thin covering assembly in mortar bed over waterproofing layer according to DIN 18531
Assemblies C: Roof terracesBEKOTEC-DRAIN and mortar bed installation on area drainage with TROBA-PLUS 8G
The waterproofing assembly, designed with a surface slope that meets the requirements of DIN 18531, protects the support structure against the penetration of water.
Schlüter-TROBA-PLUS 8G is installed as a drainage membrane between the waterproofing layer and the load distribution layer (screed) to drain away seepage.
This load distribution layer of cementitious or pervious mortar is installed as a thin layer, using the Schlüter-BEKOTEC-DRAIN system.
The natural stone pavers are embedded in the fresh mortar.

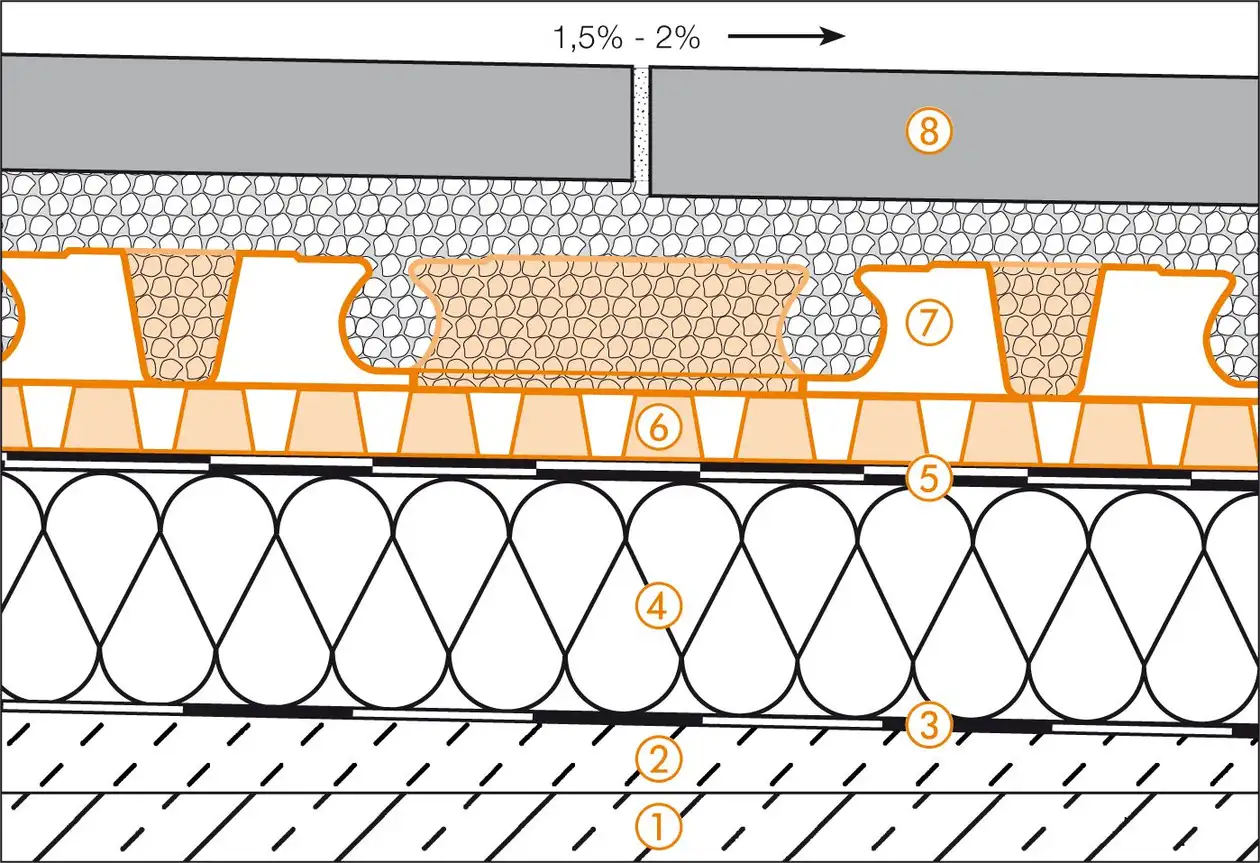

C.4: Thin covering assembly over waterproofing layers in mortar beds according to DIN 18531
- Cantilevered concrete slab
- Sloped screed
An adequate slope (1.5–2%) is required for drainage to ensure that the structure
is functional - Vapour barrier acc. to DIN 18531
- Insulation
Thickness according to requirements - Structural waterproofing acc. to DIN 18531
- Schlüter-TROBA-PLUS 8G
Passive capillary surface drainage for the effective run-off of seepage water and full-surface ventilation. Make sure drainage is possible! - Schlüter-BEKOTEC-DRAIN
Thin film mortar layer as a system for crack-free and functionally safe tile and natural stone coverings, freshly installed with an adhesive in a cementitious or pervious mortar bed, with high water permeability - Ceramic tiles or natural stone pavers
Installation in fresh mortar on the load distribution layer

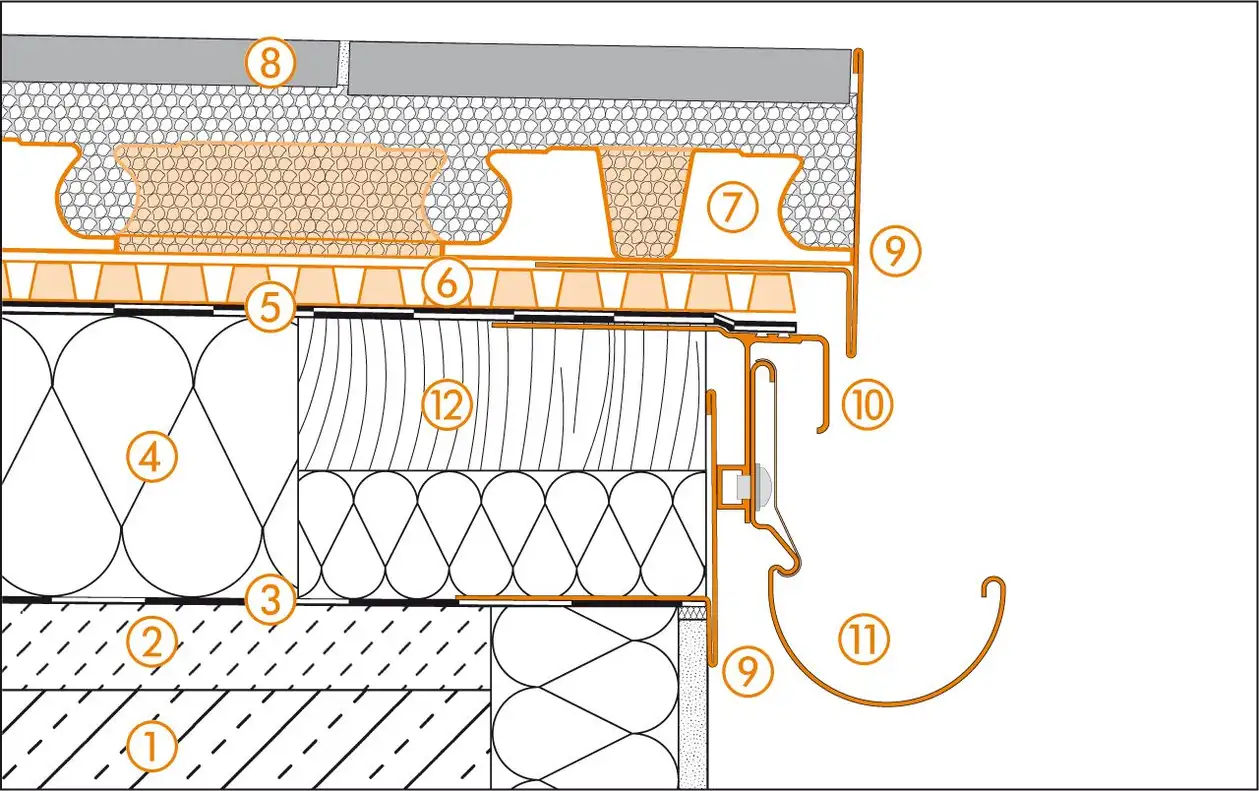

Edge detail 1
- Concrete slab
- Sloped screed (1.5–2%)
- Vapour barrier acc. to DIN 18531
- Insulation
- Structural waterproofing acc. to DIN 18531
- Schlüter-TROBA-PLUS 8G
- Schlüter-BEKOTEC-DRAIN
- Ceramic tiles or natural stone pavers
- Schlüter-BARA-RT
Make sure drainage is possible! - Schlüter-BARA-RTK
- Schlüter-BARIN
- Edge plank

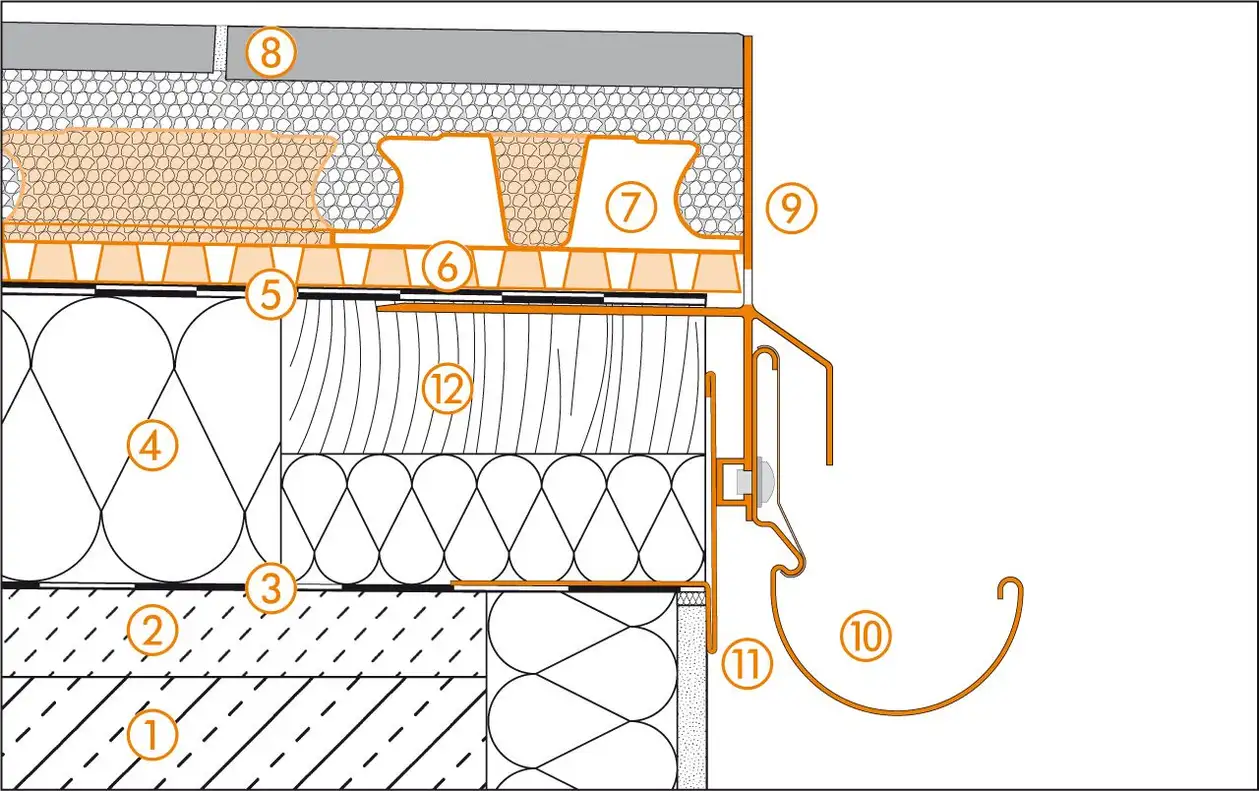

Edge detail 2
- Concrete slab
- Sloped screed (1.5–2%)
- Vapour barrier acc. to DIN 18531
- Insulation
- Structural waterproofing acc. to DIN 18531
- Schlüter-TROBA-PLUS 8G
- Schlüter-BEKOTEC-DRAIN
- Ceramic tiles or natural stone pavers
- Schlüter-BARA-RKLT
Keep drainage opening slots clear - Schlüter-BARIN
- Schlüter-BARA-RT
- Edge plank

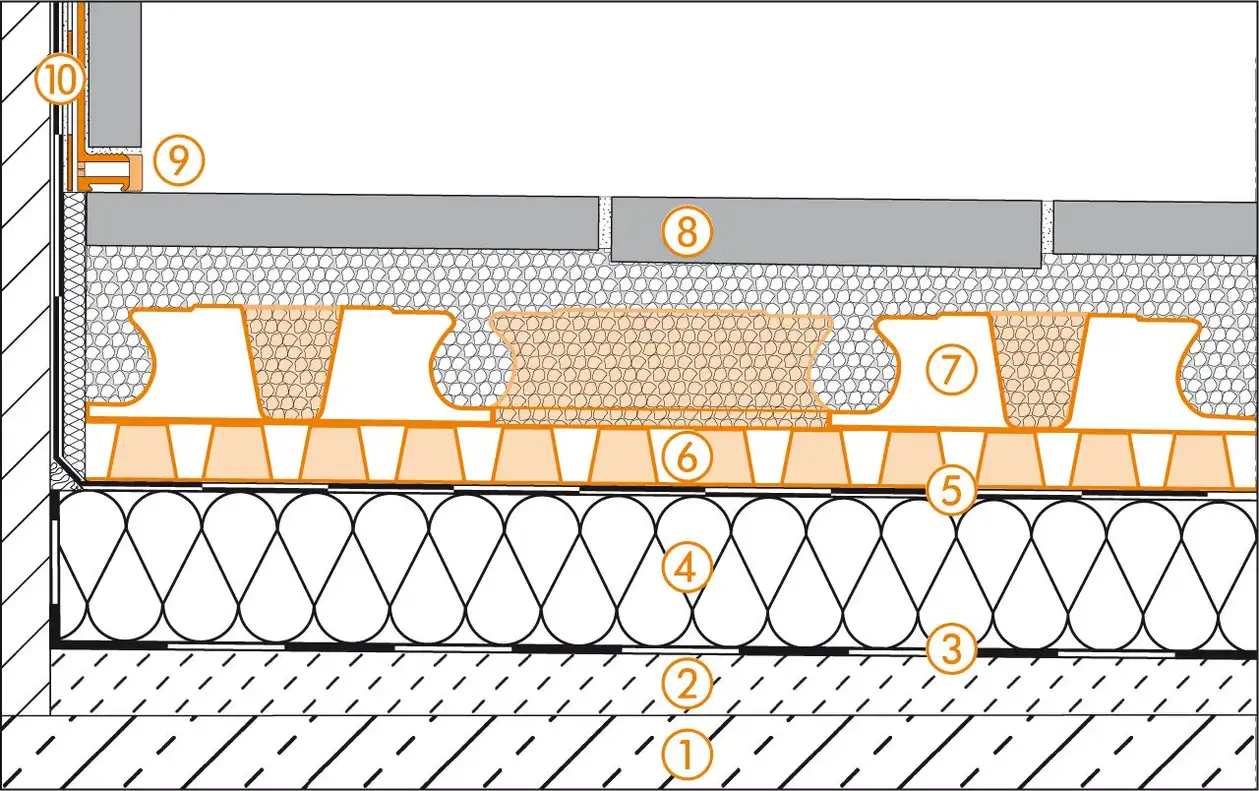

Wall connection detail
- Concrete slab
- Sloped screed (1.5–2%)
- Vapour barrier acc. to DIN 18531
- Insulation
- Structural waterproofing acc. to DIN 18531
- Schlüter-TROBA-PLUS 8G
- Schlüter-BEKOTEC-DRAIN
- Ceramic tiles or natural stone pavers
- Schlüter-DILEX-BWA
- Schlüter-KERDI-KEBA

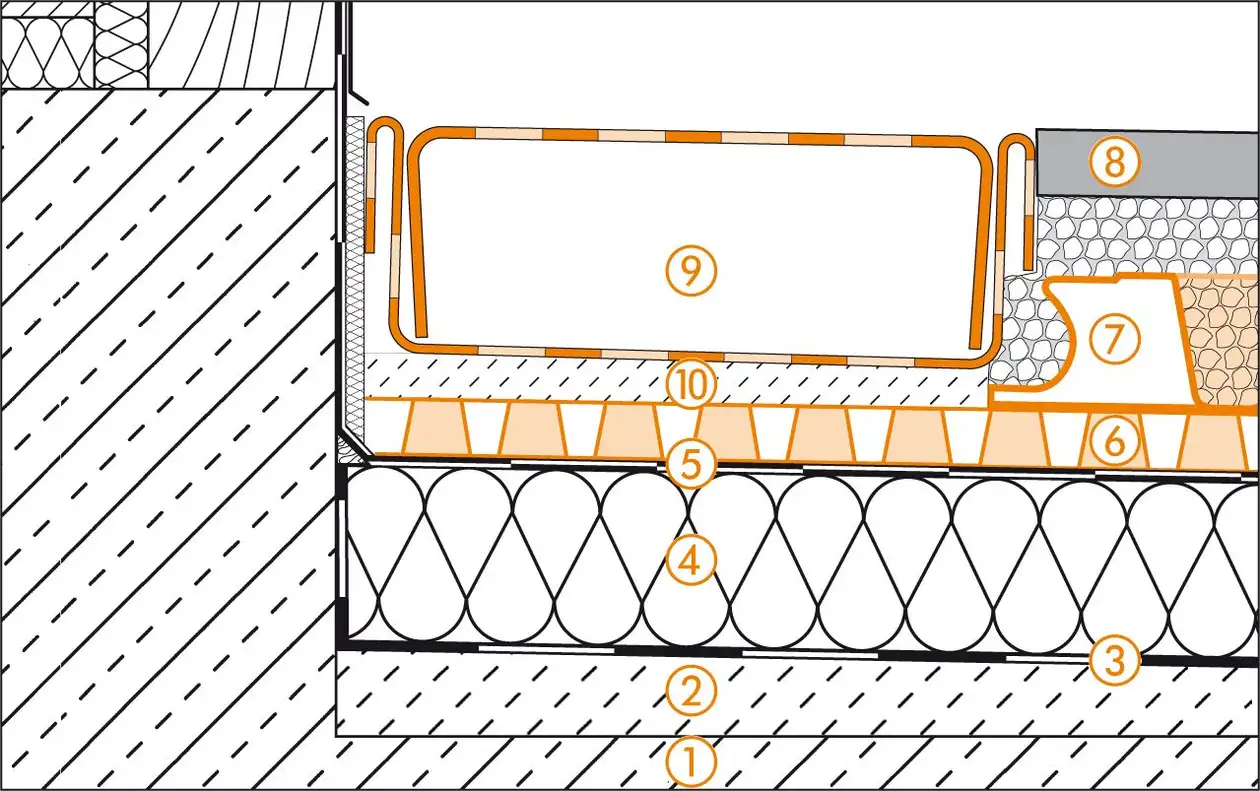

Door transition
- Concrete slab
- Sloped screed (1.5–2%)
- Vapour barrier acc. to DIN 18531
- Insulation
- Structural waterproofing acc. to DIN 18531
- Schlüter-TROBA-PLUS 8G
- Schlüter-BEKOTEC-DRAIN
- Ceramic tiles or natural stone pavers
- Schlüter-TROBA-LINE-TL
- Mortar spot

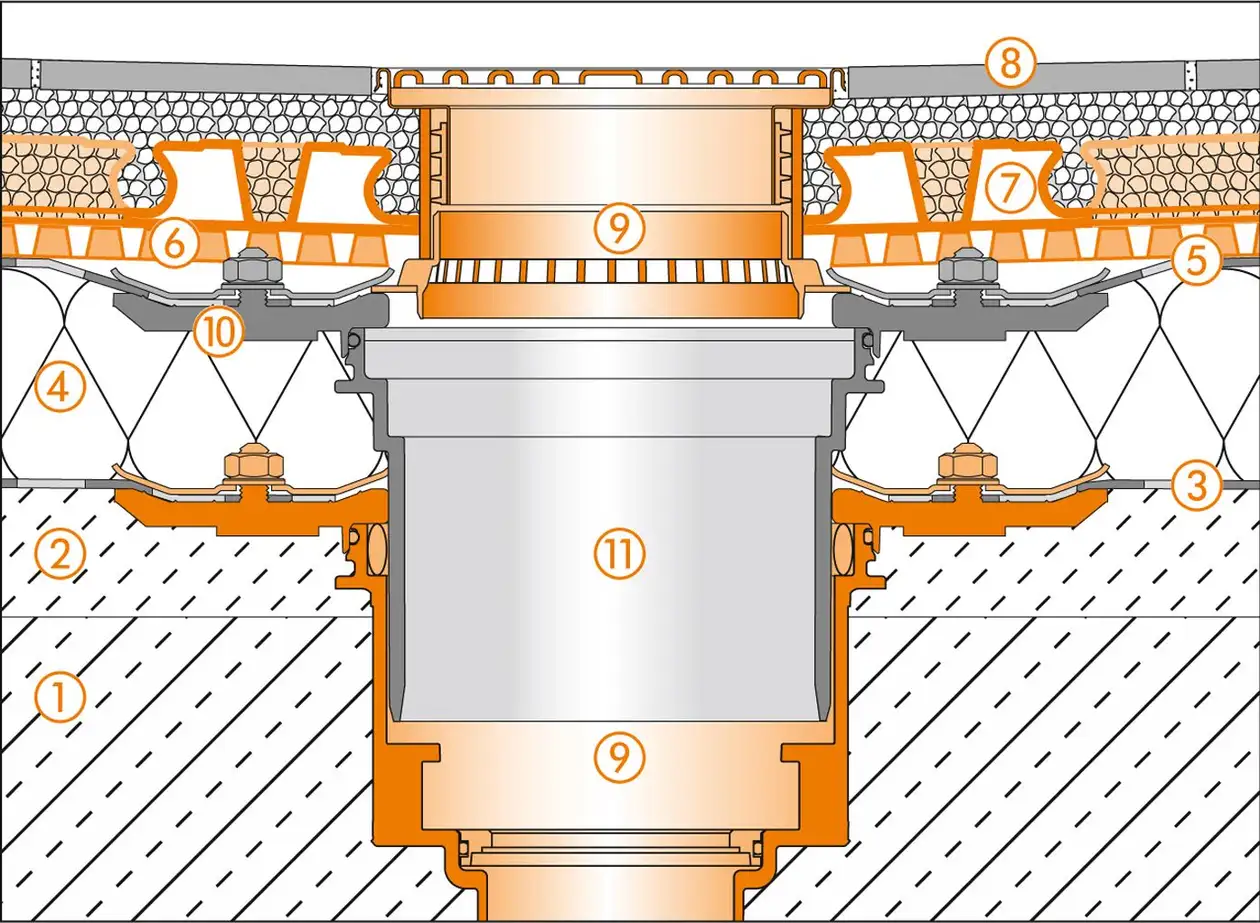

Floor drain
- Concrete slab
- Sloped screed (1.5–2%)
- Vapour barrier acc. to DIN 18531
- Insulation
- Structural waterproofing acc. to DIN 18531
- Schlüter-TROBA-PLUS 8G
- Schlüter-BEKOTEC-DRAIN
- Ceramic tiles or natural stone pavers
- Schlüter-KERDI-DRAIN-KDBV
complete set KD BV 50 ASLVB - Sealing connection (on request)
- Extension piece for floor drains (on request)
