Schlüter-VINPRO-RO  Finishing and edge protection profile

Schlüter-VINPRO-RO is a high-quality finishing and edge protection profile made of anodised aluminium for creating elegant external finishing edges on walls with resilient coverings such as LVT coverings. Its contour forms a symmetrically rounded corner and conceals the edges of the adjoining covering.

The profile is attached to the wall with matching screws or a suitable installation adhesive (e.g. Schlüter-KERDI-FIX).


Schlueter©Schlüter-Systems KG
Schlueter©Schlüter-Systems KG
Schlueter©Schlüter-Systems KG
Schlueter©Schlüter-Systems KG
zoom_out_map search
Schlueter
Schlueter
Schlueter
Schlueter

General product information

How to install this product

Attachment with screws

  1. Select VINPRO-RO according to the thickness of the covering.
  2. Transfer the positions of the drilling holes to the substrate at the edges of the covering and drill holes with a diameter of 5 mm for the screw fixings.
  3. Attach the profile to the wall with counter-sunk screws, Ø 3.5 mm.
  4. Follow the manufacturer’s specifications for installing the covering.

Attachment with installation adhesive

  1. Select VINPRO-RO according to the thickness of the covering.
  2. Adhere the profile with the installation adhesive KERDI-FIX or an equivalent material at the edges of the covering. This installation method is especially suitable for areas where the profile cannot be screwed to the substrate.
  3. Follow the manufacturer’s specifications for installing the covering.
    Note: The substrate must be load-bearing and free from debris.

What this product is made from

Schlüter-VINPRO-RO is available in the following materials:

  • ACGB = brushed chrome anodised aluminium
  • ATGB = brushed titanium anodised aluminium (colour may differ from other Schlüter profiles in ATGB finish)
  • ABGB = brushed antique bronze anodised aluminium

Material properties and areas of application

In special cases, the suitability of the profile must be verified, based on the anticipated chemical or mechanical stresses.

The information provided below is intended as a general guideline.

Anodised aluminium: The aluminium features an anodised finish that may be damaged by aggressive substances or abrasive stresses. Damage to the anodised surface can be restored with paint.

How to look after this product

Schlüter-VINPRO-RO requires no special maintenance or care. Do not use abrasive cleaning agents on the sensitive surfaces.

Damage to the anodised surface can be restored with paint. All cleaning agents must be free of hydrochloric and hydrofluoric acid.

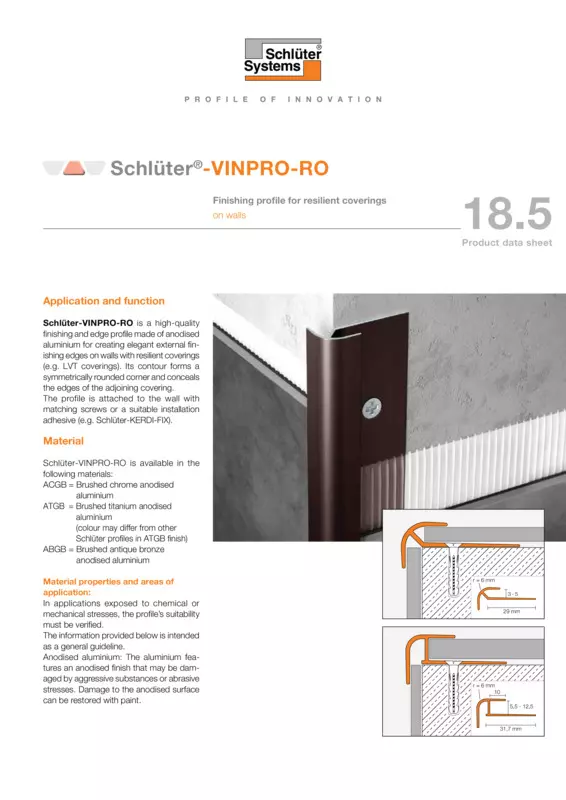

Downloads
