Schlüter-DILEX-EF  Flexible corner profile for internal wall corners

Schlüter-DILEX-EF is a flexible, single piece corner profile made of rigid and soft PVC for internal wall corners or floor-wall transitions, which can be used for non-floating covering assemblies. For this profile, the tiles abut the profile from both sides, leaving a uniform joint space. The tile surface can be either flush with the profile edge or up to approx. 2 mm lower, which allows for choosing a variety of tile thicknesses.

Data sheet
Product image DILEX-EF 1©Schlüter-Systems KG
Product image DILEX-EF 2©Schlüter-Systems KG
Cross-section drawing DILEX-EF 1©Schlüter-Systems KG
zoom_out_map search
Product image DILEX-EF 1
Product image DILEX-EF 2
Cross-section drawing DILEX-EF 1










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

What this product does

Schlüter-DILEX-EF are single-part corner profiles for internal wall corners. If the floor covering is not constructed as a floating screed, DILEX-EF may also be used as flexible floor-wall transitions.

The trapezoid perforated, lateral anchoring legs are firmly embedded in the adhesive below the tile covering. The tiles abut the profile from both sides, leaving a uniform joint space. The tile surface can be either flush with the profile edge or up to approx. 2 mm lower, which allows for choosing a variety of tile thicknesses. Completely fill the joint between the profile and the tiles with grout (or partly with tile adhesive during installation).

The visible movement zone is only 5 mm wide. It must be verified for individual projects whether this 5 mm zone is sufficient for the anticipated movements.

How to install this product

  1. Select Schlüter-DILEX-EF according to the tile thickness to ensure that the tile surface is either flush with the profile edge or up to approx. 2 mm lower.
  2. Embed the trapezoid perforated anchoring legs, firmly press the profile into the adhesive and trowel mortar over the profile legs.
  3. Leave a gap of approx. 2 mm between the tiles and the profile.
  4. Completely fill the space between the profile and the tile with grout.

What this product is made from

Schlüter-DILEX-EF consist of recycled rigid PVC anchoring legs and a movement zone made of soft CPE.

Material properties and areas of application

DILEX-EF are installed as corner movement profiles for floor-wall transitions and internal wall corners. The material is resistant to the chemical stresses that are typically associated with tile coverings. The CPE movement zone is UV resistant and can withstand exposure to weather. It is also resistant to fungi and bacteria and is therefore suitable for use in areas with food contact.

The CPE material is resistant to a number of acids, alkalis, oils, lubricants and solvents.

In special cases, the suitability of a profile type must be verified based on the anticipated chemical, mechanical and/or other stresses.

How to look after this product

Schlüter-DILEX-EF are resistant to fungi and bacteria, and require no special maintenance or care. They can be cleaned with regular household detergents when cleaning the tile covering.

Downloads

DownloadSelection

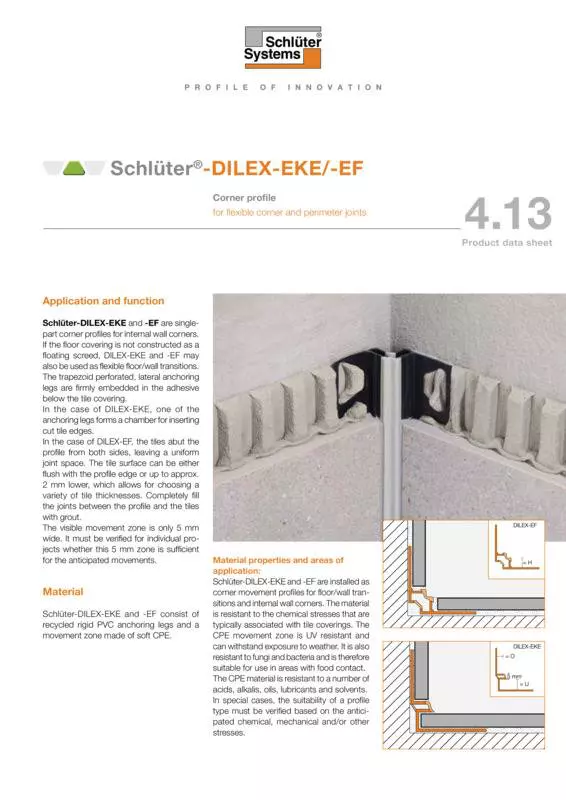

Schlüter-DILEX-EKE /-EF | Product data sheet 4.13
Product data sheet - © Schlueter-Systems
PDF – 0.15 MB
