Schlüter-BARA-RTC  T-shaped finishing profile

BARA-RTC belongs to the balcony profiles. It is a high-quality T-shaped end profile made of powder-coated aluminium. It is available in five colours and six heights. The upper profile leg always has a standard height of 20 millimetres and is therefore suitable as protection for balcony and terrace constructions with 20 mm tiles. The lower profile leg can be selected in six heights between 20 and 100 millimetres in order to cover the pillar with TROBA plate bearings. At the same time it serves as a drip edge.

Data sheet
Product image BARA-RTC 1©Schlüter-Systems KG
zoom_out_map search
Cross-section drawing BARA-RTC 2
Product image BARA-RTC 1
Product image BARA-RTC 2

Filter settings

  • 20 mm
  • 2.5 m
  • aluminium
  • anthracite grey
  • black brown
  • brilliant white
  • grey metallic
  • pastel grey
  • RTC20/100AG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    anthracite grey
  • RTC20/100BW
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    brilliant white
  • RTC20/100GM
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    grey metallic
  • RTC20/100PG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    pastel grey
  • RTC20/100SB
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    black brown
  • RTC20/20AG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    anthracite grey
  • RTC20/20BW
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    brilliant white
  • RTC20/20GM
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    grey metallic
  • RTC20/20PG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    pastel grey
  • RTC20/20SB
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    black brown
  • RTC20/40AG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    anthracite grey
  • RTC20/40BW
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    brilliant white
  • RTC20/40GM
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    grey metallic
  • RTC20/40PG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    pastel grey
  • RTC20/40SB
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    black brown
  • RTC20/50AG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    anthracite grey
  • RTC20/50BW
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    brilliant white
  • RTC20/50GM
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    grey metallic
  • RTC20/50PG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    pastel grey
  • RTC20/50SB
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    black brown
  • RTC20/60AG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    anthracite grey
  • RTC20/60BW
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    brilliant white
  • RTC20/60GM
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    grey metallic
  • RTC20/60PG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    pastel grey
  • RTC20/60SB
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    black brown
  • RTC20/80AG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    anthracite grey
  • RTC20/80BW
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    brilliant white
  • RTC20/80GM
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    grey metallic
  • RTC20/80PG
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    pastel grey
  • RTC20/80SB
    Height
    20 mm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    black brown

General product information

How to install this product

Installation with self-supporting pavers on spots of mortar with BARA-RTC

  1. When installing on top of TROBA-PLUS with thin-bed moulding rings, Schlüter-TROBA-STELZ-DR, the BARA-RTC finishing profile will cover the exposed edge of the assembly. The outside thin-bed contact points are positioned on the trapezoid perforated anchoring leg of BARA-RTC. The self-supporting pavers are then laid onto the contact points.
  2. When using the stilted construction with Schlüter-TROBA-STELZ-MR, the profile BARA-RTC is integrated into the mortar point. The finishing profile covers the exposed edge of the cover assembly. The self-supporting pavers are then installed on top of the stilted construction.

Note: A sufficiently large space for drainage must be provided to allow for unobstructed water drainage in the edge area of the cover assembly.

Installation with self-supporting pavers on the paver support system TROBA-LEVEL with BARA-RTC

  1. Select BARA-RTC according to the thickness of the edge area to be covered.
  2. If using the paver support system TROBA-LEVEL, the BARA-RTC finishing profile covers the exposed edge of the cover assembly.

Edge/corner solution:

Paver supports created with TROBA-LEVEL-PL10 / PL30 at the edge can be stacked with a 90° offset to reach the necessary assembly height. TROBA-LEVEL-PL 10 paver supports can be cut into halves or quarters for use along edges or in corners (min. paver width 60 mm). Any unnecessary connectors of the paver support can be tapped off. If using rotatable TROBA-LEVEL-PLV 60 paver supports, remove the bottom plate at the cutting mark on the underside. Any unnecessary connectors of the paver support can be tapped off (min. paver width 85 mm).

Place BARA-RTC on the supports and pre-drill 1 or 2 holes above the paver supports. A distance of 5 mm must be maintained between profile ends. Use a corresponding drill bit for countersunk screws. Attach the profiles to the paver supports with countersunk screws.

Apply setting material to the horizontal anchoring leg of BARA-RTC with Schlüter-KERDI-FIX and then embed the self-supporting pavers in the fresh mortar bed.

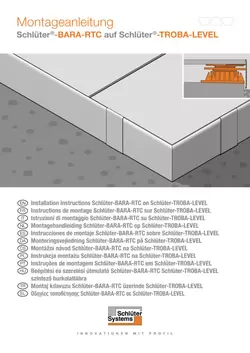

Note: For further information and detailed installation recommendations for TROBA-LEVEL, please refer to our data sheet 7.6 TROBA-LEVEL or the installation instructions for BARA-RTC over TROBA-LEVEL.
