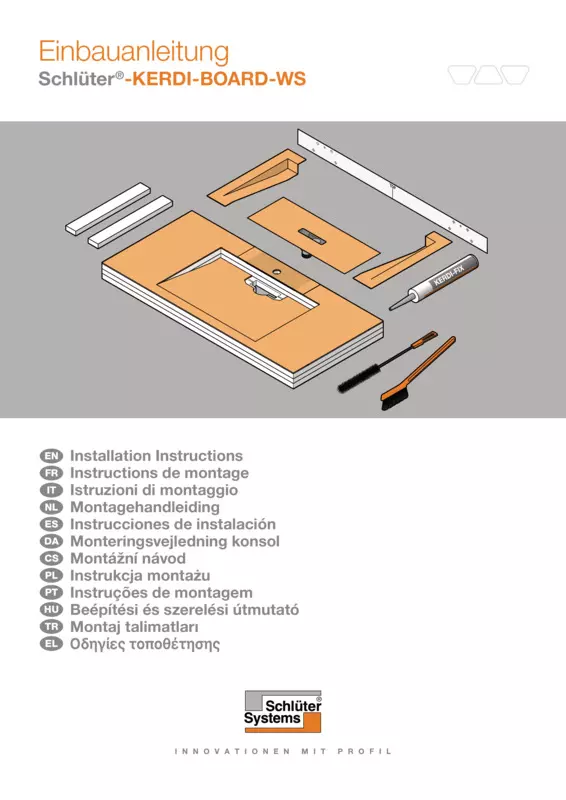

Schlüter-KERDI-BOARD-WS  Vanity unit set for mono-bloc mixer taps

KERDI-BOARD-WS – Floating installation with optionally available wall brackets:

Caution: The wall substrate must be level, even and capable of taking the required loading.

1. The KERDI-BOARD-WS can be individually adapted to site requirements as shown in the data sheet.
2. Mark the locations of drill holes using the drilling template supplied.
3. Apply a sufficient amount of KERDI-FIX to the back of the vanity unit and slide it onto the wall brackets to join firmly with the wall.
4. To provide waterproofing, adhere the KERDI-KERS waterproofing collars included in the set with KERDI-COLL-L sealing adhesive (not included).
5. Secure the drain adapter with KERDI-FIX near the drain opening.

KERDI-BOARD-WS – Free-standing installation on support feet and niche installation:

1. Determine the installation heights as shown in data sheet.
2. The KERDI-BOARD vanity unit can be individually adapted to site requirements as shown in the data sheet. For free-standing installation, two supports made of at least 50 mm thick KERDI-BOARD are used that can be positioned variably to left and right between the basin and the ends of the vanity unit.
3. The trap does not need to be taken into consideration as the drainage connection is far enough away from the wall.
4. The components are force-fitted together using the KERDI-FIX installation adhesive included in the set. Insert the filler pieces into the openings provided for securing the wall brackets.
5. Waterproofing is achieved by increasing the amount of Schlüter-KERDI-COLL-L sealant adhesive (not included in the scope of supply). Secure the drain adapter with KERDI-FIX near the drain opening.
6. For installation in a niche, ensure a minimum layer of 20 mm across the entire width of the vanity unit.
7. Before tiling, it is advisable to install the tile in the area around the fitting and to drill a suitable hole using a diamond drill bit (not included in the scope of supply).

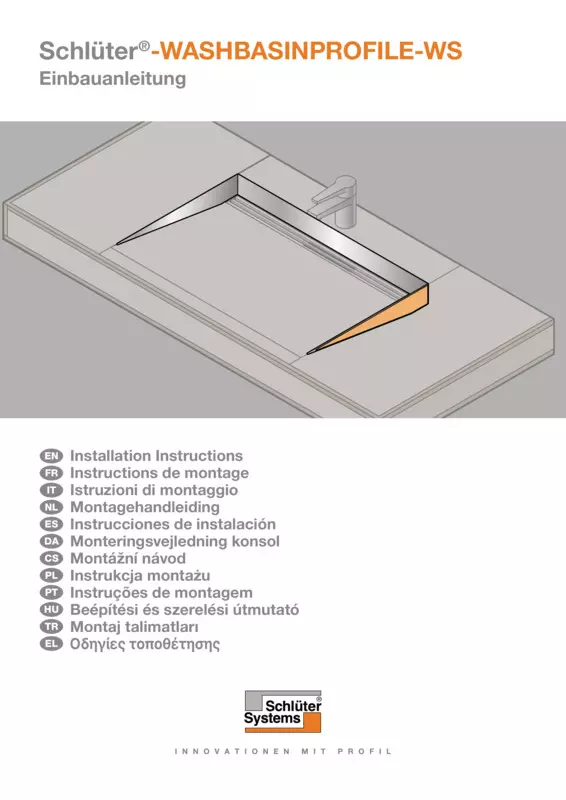

Schlüter-WASHBASIN - Installation of triangular profiles for KERDI-BOARD-WS:

1. First, apply suitable tile adhesive and glue the tile in the area around the fitting. Before tiling, it is advisable to install the tile in the area around the fitting and to drill a suitable hole using a diamond drill bit (not included in the scope of supply).
2. Glue the WASHBASIN-R profiles into the still wet tile adhesive on the front side and align to the upper tile.
3. Lay the tiles on the storage surface and press down lightly to ensure good adhesion.
4. Press the WASHBASIN-S profiles into the still wet tile adhesive on the side surfaces and carefully align them so they are straight and level.
5. Make sure that the top edge of the profile is flush with the surface of the tile above.
6. Tile the remaining surfaces of the vanity unit.

Schlüter-KERDI-LINE-INCOVE - Installation of the profile for KERDI-BOARD-WS:

1. Set the INCOVE drainage profile without tile adhesive into the final position in the height adjustment option to determine the dimensions for the floor tile.
2. If the selected tile is > 11 mm thick, shorten the profile accordingly and fit the enclosed end caps on both sides.
3. The INCOVE drainage profile must be inserted with tile adhesive.
4. Use the double-sided adhesive tape already applied to glue the XPS strips supplied to the top of the profile.
5. Firmly install the floor tiles using suitable tile adhesive.
6. Tile the remaining surfaces of the vanity unit.

Note:

The Schlüter-INCOVE drainage profile is not compatible with Schlüter triangular profiles.

When using the COVE and WAVE drainage profiles, follow the installation recommendations in data sheet 8.10.

Schlüter-KERDI-BOARD-WS and -WW are a composite material and consists of four layers of extruded rigid XPS foam with board thicknesses of 28 mm, 2x 25 mm and 5 mm (KERDI-BOARD-WW) or 28 mm, 27 mm, 25 mm and 5 mm (KERDI-BOARD-WS). The surfaces of the 28 mm and 5 mm boards are laminated with a special, cement-free reinforcement material and a fleece fabric on both sides for effectively anchoring thin-bed mortars or rendered covering materials. The fabric features a 10 x 10 mm printed gridline pattern for easier cutting. The boards are fully bonded. KERDI-BOARD-WS also has an integrated reinforcement layer to stabilise the fitting.

The brackets consist of a 6 mm thick flange and a rigidly welded rectangular tube of dimensions 50 x 25 x 2 mm. Both parts are made of galvanised structural steel 235JR.

The connection adapter is made of highly impact-resistant PP (polypropylene).

The KERDI waterproofing collar that is bonded on the drain adapter and the prefabricated moulded KERDI-KERS corner parts for connecting to the bonded waterproofing is made from a polyethylene membrane.

The triangular profiles made of brushed stainless steel V4A or aluminium with a high-quality powder coating have fleece on the back for anchoring in the tile adhesive.

The INCOVE profile and the enclosed end caps are made of stainless steel V4A (material no.: 1.4404 = AISI 316L) with a brushed surface.

Material properties and areas of application:

The surface of the Schlüter®-KERDI-BOARD vanity units is waterproof and resistant to any chemical stresses that typically occur in conjunction with ceramic tiled coverings. Where required, certified bonded waterproofing can be created in conjunction with Schlüter-KERDI or KERDI-BOARD.

KERDI-BOARD vanity units have a flat surface and are resistant to warping, ageing and are highly stable, even when exposed to temperature or humidity on one side. They are ideal for a wide variety of applications. Substrates should be checked for sufficient stability and other project-related requirements.

The wall brackets are versatile and can be used in the bathroom, for example, as a practical solution for saving space and creating a tidy appearance. Wall-mounted KERDI-BOARD vanity units can also be used to construct barrier-free installations.

They are made of robust material and are extremely stable and durable.

Note:

After installation and covering with tiles or natural stone, the KERDI-BOARD-WS and KERDI-BOARD-WW vanity units can bear a load of up to 50 kg in any installation variant.

The WASHBASIN triangular profiles are available in a wide variety of different finishes. Their suitability must be verified in applications exposed to chemical or mechanical stresses. The information provided below is intended as a general guideline.

WASHBASIN-S and -R profiles with TS coating (aluminium textured coating) feature surfaces with a natural appearance. The aluminium is suitably pre-treated and then powder coated with a polyurethane covering. The coating is colour-stable and UV and weather-resistant. Visible edges should be protected against abrasion and scratching.

The WASHBASIN-S and -R profiles, made of stainless steel V4A (material no. 1.4404 = AISI 316L) with a brushed surface, are ideal when high mechanical or specific chemical loads can be expected.

Even stainless steel of quality 1.4404 is not resistant to all chemical stresses, and may be affected by hydrochloric and hydrofluoric acid or certain chloride and brine concentrations, which may occur in cleaning agents or in swimming pools. Suitability for particular anticipated stresses should therefore be clarified in advance.

The KERDI-LINE-INCOVE drainage profile made of brushed stainless steel V4A (material no. 1.4404 = AISI 316L) is particularly well suited for applications that, in addition to high mechanical strength, require resistance to chemicals such as acidic or alkaline media and cleaning agents. (For further properties, see WASHBASIN-PROFIL made of brushed stainless steel V4A.)
