Protecting tile against the elements

Already in 1983, Werner Schlüter invented the first drainage mat as a surface drainage system specifically for balconies and terraces. From surface drainage, bonded waterproofing, uncoupling and edge profiles to drainage channels – Schlüter-Systems now offers a complete product range of matching components for every structure from a single source.

Loose lay

The unbonded installation of tiles and elements on balconies and terraces is a clever alternative to conventional bonded installation. In this way, balcony tiles can be installed in just a few steps and often more quickly than in a bonded installation. The tiles can be removed without destroying the structure of the balcony.

Schlüter-Systems offers innovative system products for various construction structures for a damage-free installation with unbonded tiling:

With Schlüter-TROBA-LEVEL, you can quickly install self-supporting pavers on balconies and terraces with lasting precision. The small number of different product components can be variably combined to reliably level virtually any slope and construction site situation.

The drainage mat Schlüter-TROBA is used as a protective and separating layer for waterproofing in order to install unbonded, self-supporting pavers and elements on gravel or crushed stone.

With Schlüter-TROBA-STELZ-DR you can install self-supporting pavers fixed at specific points and drain off seepage water via the Schlüter-TROBA-PLUS-G surface drainage system. For greater installation heights, TROBA-STELZ-MR offers the option of installing the covering assembly over mortar supports in an unbonded manner.

Schlüter-TROBA-LEVEL

Schlüter-TROBA-LEVEL

Next-level unbonded installation. Thanks to variably combinable components, almost any slope can be reliably levelled.

Schlüter-TROBA

Schlüter-TROBA

The sustainable protective and separating layer for self-supporting pavers on gravel or crushed stone. Our pressure-stable studded polyethylene sheet has been successfully used as an effective surface drainage for over 25 years.

Schlüter-TROBA-STELZ

Schlüter-TROBA-STELZ

Depending on the installation height, use our mortar rings or formwork rings as a convenient installation aid for self-supporting pavers in outdoor areas.

Schlüter-TROBA-PLUS-G

Schlüter-TROBA-PLUS-G

Our capillary-breaking surface drainage is especially well suited for installing self-supporting pavers on TROBA-STELZ-DR with thin-bed mortar support rings.

Waterproofing and drainage membranes

Large tiles and natural stone pavers are en vogue! This goes for tiling in outdoor areas as well, with building owners and planners now requesting tiles in sizes larger than 30 x 30 cm. As the tile size increases, the number of joints in the structure decreases which leads to higher requirements regarding the quality of the installation. Especially with conventional bonded installation, the substrate has to be carefully prepared so that the floor coverings in outdoor areas remain free of cracks and protected even in adverse weather conditions.

To ensure that you can enjoy the flooring of your balcony or terrace for many years to come, we have developed various system products that are compatible with each other to provide effective bonded uncoupling and bonded waterproofing.

Schlüter-KERDI

Schlüter-KERDI

Put an end to damage caused by moisture: optimal waterproofing beneath the tile can be recognised by the colour orange! Discover our popular KERDI products with all their benefits.

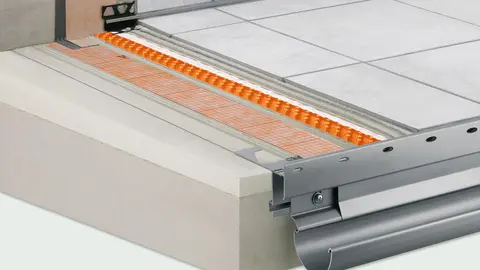

Schlüter-DITRA-DRAIN 8

Schlüter-DITRA-DRAIN 8

Two functions in one: discover our uncoupling mat combined with bonded drainage developed specifically for outdoor areas.

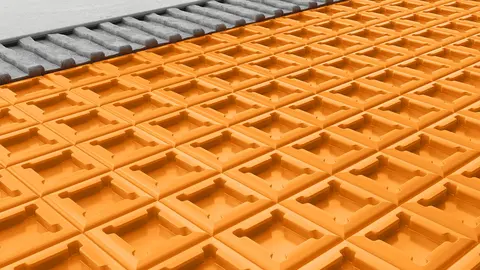

Schlüter-DITRA-DRAIN-STU

Schlüter-DITRA

Use our DITRA for effective bonded waterproofing and bonded uncoupling of substrate and floor covering.

Balcony edge profiles

The perimeters of balconies and terraces are constantly exposed to the weather. The high-quality edge profiles from the Schlüter-BARA range effectively protect these areas and form a smooth finish. Some of our aluminium profiles for the edges of balconies or terraces can also be ordered in individual colours – find out more about the design possibilities with MyDesign by Schlüter-Systems.

The corresponding BARA profiles can be quickly and easily fitted with various elements from our Schlüter-BARIN gutter system. These channel elements and covers are made of high-quality, colour-coated aluminium and are screwed to the balcony edge profiles using fixing screws in just a few installation steps. The elongated openings on the underside of the gutters allow for setting up a slope of up to 30 mm.

Drainage systems

The targeted leading away of moisture to the drainage level is one of the essential challenges to be tackled when constructing balconies and terraces. Our products from the Schlüter-TROBA range offer you a variety of drainage solutions for different assemblies. They all have one thing in common: lasting functionality and high load-bearing capacity.

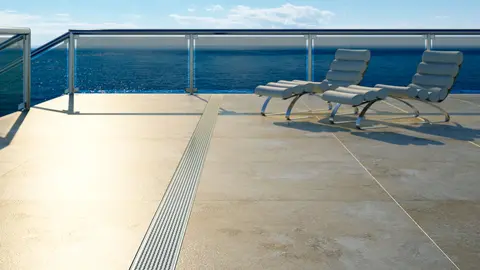

High-quality drainage channels from the Schlüter-TROBA-LINE are particularly well suited for the safe drainage of water that has accumulated. If you are planning a drainage channel in front of your balcony or terrace door, you can even create a low-barrier assembly of lower height.

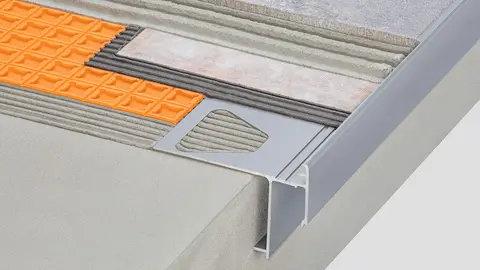

Schlüter-BARA

Schlüter-BARA

The perimeters of balconies and terraces are constantly exposed to the weather. Our high-quality edge profiles effectively protect these areas and form a smooth finish.

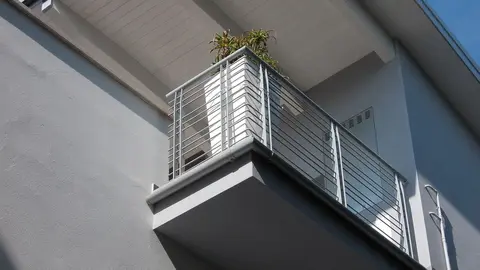

Schlüter-BARIN

Schlüter-BARIN

Combine our BARA profiles with the matching gutter systems for safe drainage of rainwater or cleaning water from balconies and terraces.

Schlüter-TROBA

Schlüter-TROBA

Discover our clever system solutions for the targeted leading away of moisture to the drainage level when constructing balconies and terraces.
