Schlüter-KERDI-TS  Complete set for waterproof connection

Structural components in wet areas, such as bathtubs and shower trays, require a reliable waterproof connection in accordance with DIN 18534-1. This is possible with the practical KERDI-TS complete set. The main component, which comes in three lengths, is a sealing band made of polyethylene with double-sided fleece fabric and self-adhesive sound insulation strip. The set is completed by the proven KERDI-FIX installation adhesive, cleaning cloths and one or two installation corner pieces depending on the variant.

Set includes:

  • Sealing band (2, 2.8 or 3.8 m)
  • KERDI-FIX installation adhesive
  • Cleaning cloths
  • Corner piece(s)
Where to buy

Schlüter-KERDI-TS  Complete set for waterproof connection

Product image KERDI-TS 1©Schlüter-Systems KG
Product image KERDI-TS 2©Schlüter-Systems KG
Cross-section drawing KERDI-TS 1©Schlüter-Systems KG
zoom_out_map search
Product image KERDI-TS 1
Product image KERDI-TS 2
Cross-section drawing KERDI-TS 1










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

What this product does

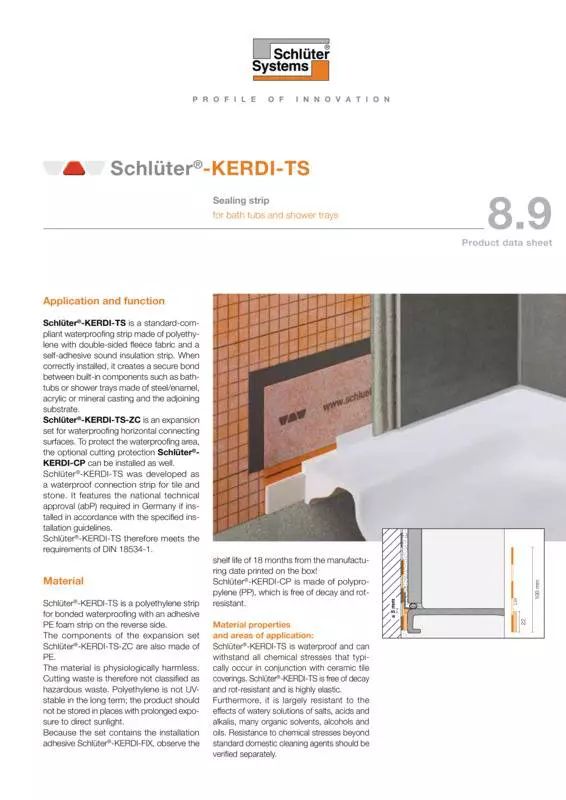

Schlüter-KERDI-TS is a standard-compliant waterproofing strip made of polyethylene with double-sided fleece fabric and a self-adhesive sound insulation strip. When correctly installed, it creates a secure bond between built-in components such as bathtubs or shower trays made of steel/enamel, acrylic or mineral casting and the adjoining substrate.

Schlüter-KERDI-TS was developed as a waterproof connection strip for tile and stone. It features the national technical approval (abP) required in Germany if installed in accordance with the specified installation guidelines. Schlüter-KERDI-TS therefore meets the requirements of DIN 18534-1.

How to install this product

A sufficient adhesive bond between the installation adhesive KERDI-FIX (see product data sheet 8.3) and the shower tray and bath tub material is required. Remove any protective films, etc. prior to installation.

  1. Thoroughly clean the surface area of the bath tub or shower tray with the enclosed cleaning cloth and allow it to dry for at least 2 minutes.
  2. Remove the protective film from the self-adhesive corner piece(s) and adhere it/them to the shower tray and bath tub in the corner area (dependent on the number of corners that abut the wall, additional corner pieces may be required).
  3. Cut the sealing strip Schlüter-KERDI-TS to 25 mm longer than the side of the shower tray or bath tub and adhere it firmly in a single piece. Use the marking line for a minimum installation depth of 5 mm (= upper edge of insulation strip to upper edge of tub) for guidance. Remove the protective film of the self-adhesive sound insulation strip during the installation. Trim off any excessive lengths.

    Note: The sealing strip Schlüter-KERDI-TS should not be cut and folded to form a corner and has to be installed in conjunction with the associated corner pieces in all cases.

  4. The building component must be in its final position, fully levelled and professionally attached.
    1. Fully embed Schlüter-KERDI-TS at the adjoining surfaces, using the sealing adhesive Schlüter-KERDI-COLL-L (available separately) and a notched trowel (3 x 3 or 4 x 4 mm).
      See the next point for special solutions for connecting surfaces.
    2. The expansion set KERDI-TS-ZC should be used to create a waterproof seal around the corner to any adjacent horizontal surface. Attach the installation corner piece included in the set (see step 2) and adhere the previously cut waterproofing collar with KERDI-COLL-L. The fleece-free area of the collar is used for proper sealing with KERDI-FIX.

      The thickness of the tiles must be taken into consideration for horizontal connection surfaces.

  5. Clean the joint area with the second cleaning cloth and cover the edge surface of the built-in component with masking tape. Use the installation adhesive Schlüter-KERDI-FIX to seal the joint up to the upper edge of the tub. Remove the masking tape.
    Fresh residue of KERDI-FIX can be removed with spray oil (such as WD-40), followed by thorough degreasing of the area.

Note:
The installation adhesive Schlüter-KERDI-FIX is a system component that may not be replaced with other products.

As an option, the cutting protection strip Schlüter-KERDI-CP can be embedded in the freshly installed adhesive Schlüter-KERDI-FIX. It protects the connection seal when the silicone joint is removed and replaced at a later time. To this end, prefold the previously cut plastic profile and adhere it to the adjoining wall with KERDI-FIX if applicable.

What this product is made from

Schlüter-KERDI-TS is a polyethylene strip for bonded waterproofing with an adhesive PE foam strip on the reverse side.

The material is physiologically harmless. Cutting waste is therefore not classified as hazardous waste. Polyethylene is not UV-stable in the long term; the product should not be stored in places with prolonged exposure to direct sunlight.

Because the set contains the installation adhesive Schlüter-KERDI-FIX, observe the shelf life of 18 months from the manufacturing date printed on the box!

Material properties and areas of application

Schlüter-KERDI-TS is waterproof and resistant to any chemical stresses that typically occur in conjunction with tiled coverings. Schlüter-KERDI-TS is free of decay and rot-resistant and is highly elastic.

Resistance to chemical stresses beyond standard domestic cleaning agents should be verified separately.

Always check the substrates on which Schlüter-KERDI-TS is to be installed to make sure they are level, stable and dry. Remove all surface components that may weaken the bond.

Schlüter-KERDI-TS has been designed to protect waterproof applications such as bathrooms, wet rooms where the bath, shower tray, etc. abut the waterproof substrate. Correctly installed it provides a watertight connection to the substrate, and seal to the bath or tray.
