Luxury Steam Room

Category: Residential | Location: Lancashire
Focus: KERDI, KERDI-BOARD, KERDI-LINE, DITRA

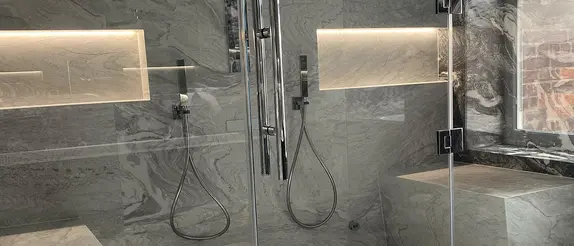

Shower area in the steam bath with two seating areas, two niches and two showers on the two sides.

Luxury steam room gets the Schlüter treatment

It is not unusual for us to receive a call when a bathroom or wetroom installation fails. If the preparation hasn’t been executed to the appropriate standard, it will likely lead to failure later down the line. If this is the case, recognising and rectifying this before any further work is carried out is the best course of action. An example of this was a residential property in Lancashire which saw a variety of Schlüter-KERDI products aid in the correction of a previous installation, resulting in a stunning high-end steam room ensuite.

Shower area in the steam bath with two seating areas, two niches and two showers on the two sides © Schlueter-Systems

The steam bath, which can be closed off with glass elements, can also be used as a shower. For drainage, the KERDI-LINE-D with frameless channel cover was used.

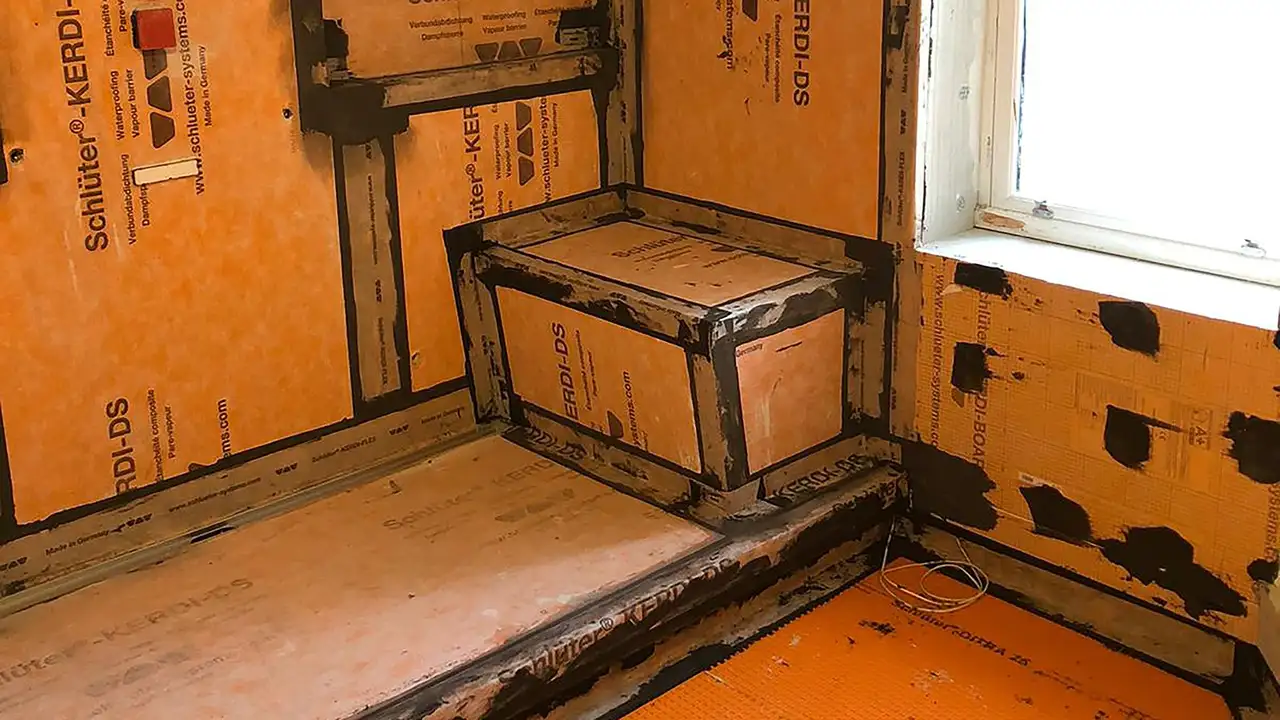

Prepared surfaces for tile installation in a steam room with Schlüter-KERDI products. © Schlueter-Systems

Schlüter products such as KERDI-DS and DITRA ensure reliable waterproofing and a perfect tiling substrate in the new steam bath.

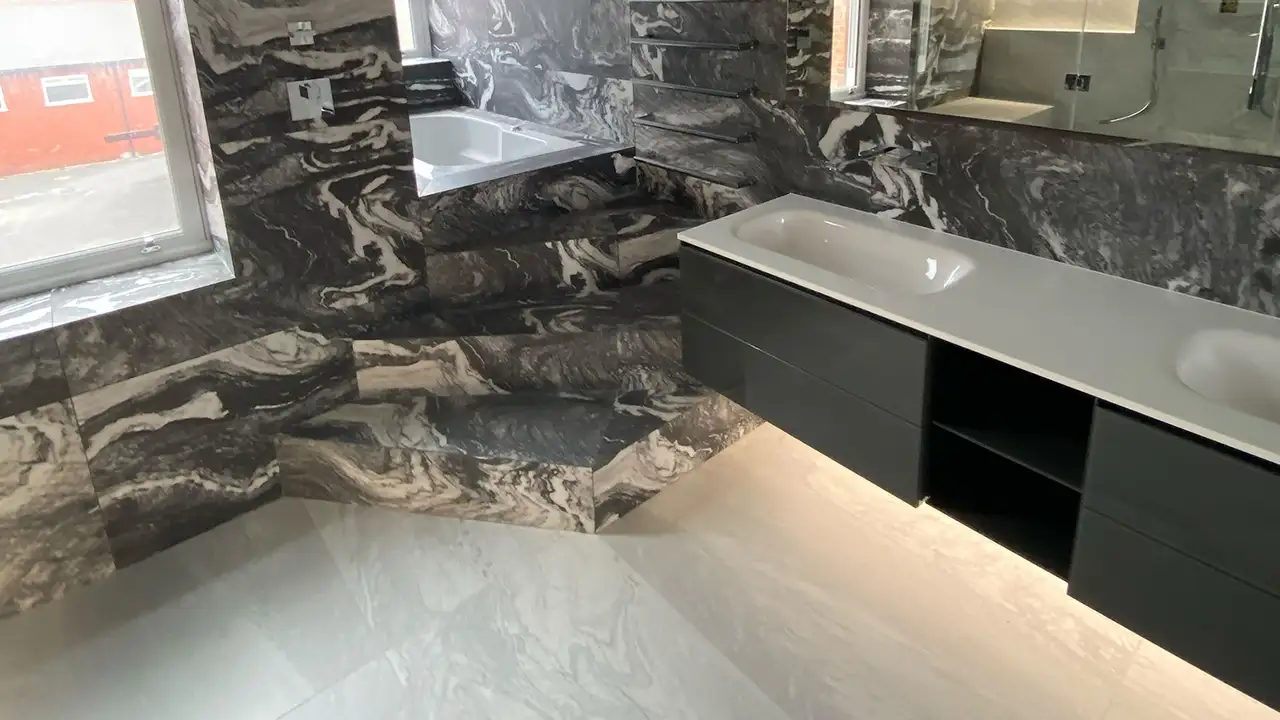

A wall-mounted vanity unit on the right and a whirlpool with access steps in the background. © Schlueter-Systems

A secluded bath and wall hung double vanity unit are also featured in this ensuite.

zoom_out_map search
Shower area in the steam bath with two seating areas, two niches and two showers on the two sides
Prepared surfaces for tile installation in a steam room with Schlüter-KERDI products.
A wall-mounted vanity unit on the right and a whirlpool with access steps in the background.

Assessing what was needed to get started

Although the task at hand was a challenging one, Steve Wagstaff of Pro-Tilers UK was not deterred. Initially brought in to finish off the project with the addition of some beautiful tiles, he saw that the original work was not up to scratch.

Having previously attended one of our popular training courses, Steve became well versed in all things orange. He comments, “After seeing what the client was left with, it became clear that we needed a reliable solution to get it right this time around – Schlüter products have always worked well for us especially in this type of area, so it was the perfect fit.” This quickly put the client at ease and reassured them that the products chosen would assist in the necessary course correction.



Creative interior design and reliable waterproofing

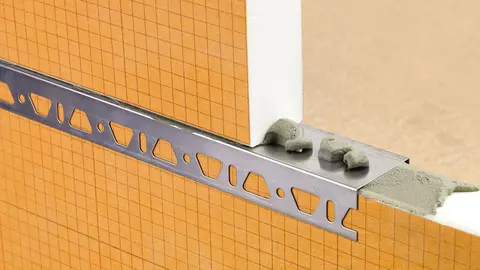

Once this decision was made, Steve got to work installing Schlüter products within the shower/steam area of the ensuite. He created two benches using the popular tile backerboard Schlüter-KERDI-BOARD, which became a prominent and beautiful feature within the room once finished. This process was simplified using Schlüter-KERDI-BOARD-ZB, a U-shaped stainless-steel profile, which specifically connects structures made from panels of Schlüter-KERDI-BOARD.

The steam room section, which was separated by a glass screen, was waterproofed using Schlüter-KERDI-DS along with Schlüter-KERDI-COLL-L and sealing band Schlüter-KERDI-FLEX giving a reliable and long-lasting waterproof solution. To finish off the steam area, a frameless Schlüter-KERDI-LINE-D drain was installed, nestled between the benches for a seamless and attractive tiled finish.

Combining forces to achieve a successful result

As a piped, water-fed, underfloor heating system had already been installed, it made sense to add the uncoupling membrane Schlüter-DITRA 25 (now DITRA) on top of it to ensure that the tiles could be installed without any issues of cracking later down the line.

Illustrating the importance of sub-surface preparation using a variety of Schlüter products and solutions, the result of a stunning steam room has given the homeowner a calming and relaxing space within their home to enjoy for many years to come.

The team at Schlüter were on hand to provide advice and support throughout this entire process. They suggested out of the box ideas for the space and were quick to come back with the perfect Schlüter solution. We were thrilled to see how pleased the client was with the finished steam room that they could finally enjoy using.

Steve Wagstaff, Pro-Tilers UK
