Schlüter-BARA-FAP  Balcony edge profile with drip lip

Schlüter-BARA-FAP is an edge profile with a drip lip that is designed to cover the exposed perimeters of cantilevered balconies. It has a height of 160 mm and is made of high-quality, colour-coated aluminium. Depending on the properties of the exposed perimeters, the profile can be attached mechanically or adhered with the adhesive Schlüter-KERDI-FIX.

BARA-FAP is compatible with all profiles and colours of the BARA product family. We recommend the joint covering Schlüter-BARA-STU as a connector.

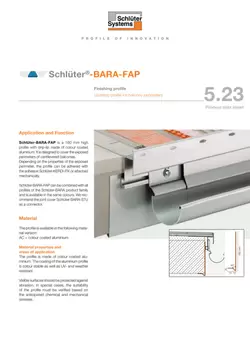

Data sheet
Product image BARA-FAP 1©Schlüter-Systems KG
zoom_out_map search

Filter settings

  • 16.5 cm
  • 2.5 m
  • aluminium
  • black brown
  • brilliant white
  • grey metallic
  • pastel grey
  • FAP 165 BW
    Height
    16.5 cm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    brilliant white
  • FAP 165 GM
    Height
    16.5 cm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    grey metallic
  • FAP 165 PG
    Height
    16.5 cm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    pastel grey
  • FAP 165 SB
    Height
    16.5 cm
    Length
    2.5 m
    Material
    aluminium
    Colour/surface
    Image of undefined
    black brown

General product information

How to install this product

  1. Place the horizontal leg of the product flush on the concrete slab.
  2. Depending on the properties of the exposed perimeters, it can be adhered with the adhesive Schlüter-KERDI-FIX or attached mechanically.
    Note:
    Substrates on which the profile is to be installed need to be evaluated for their stability. Prior to the use of KERDI-FIX, all components of the surface that may weaken the bond must be removed. If that is not an option, use anchors and screws for additional mechanical attachment.
    If screw attachment is necessary, position the screws in the top area of the profile. They can then be covered with an edge profile of the Schlüter-BARA product family.

Note: Abut the profile ends of BARA-FAP with a joint of approx. 5 mm and conceal the joint with the joint covering Schlüter-BARA-STU. To avoid vibrations in the screw-attached option, additional adhesion is recommended in the lower section.
