Schlüter-JOLLY-TS  Finishing profile with TRENDLINE textured coating

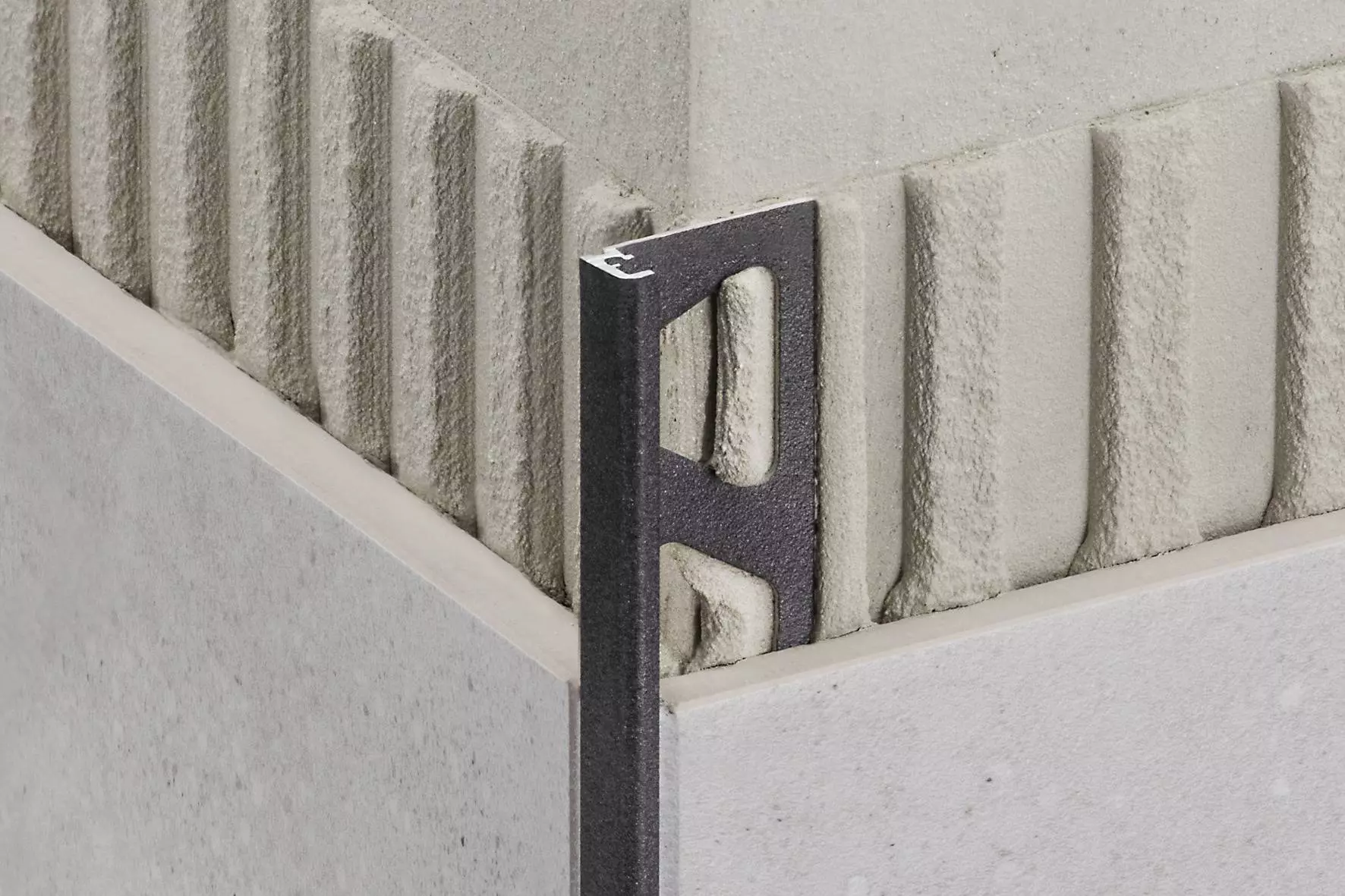

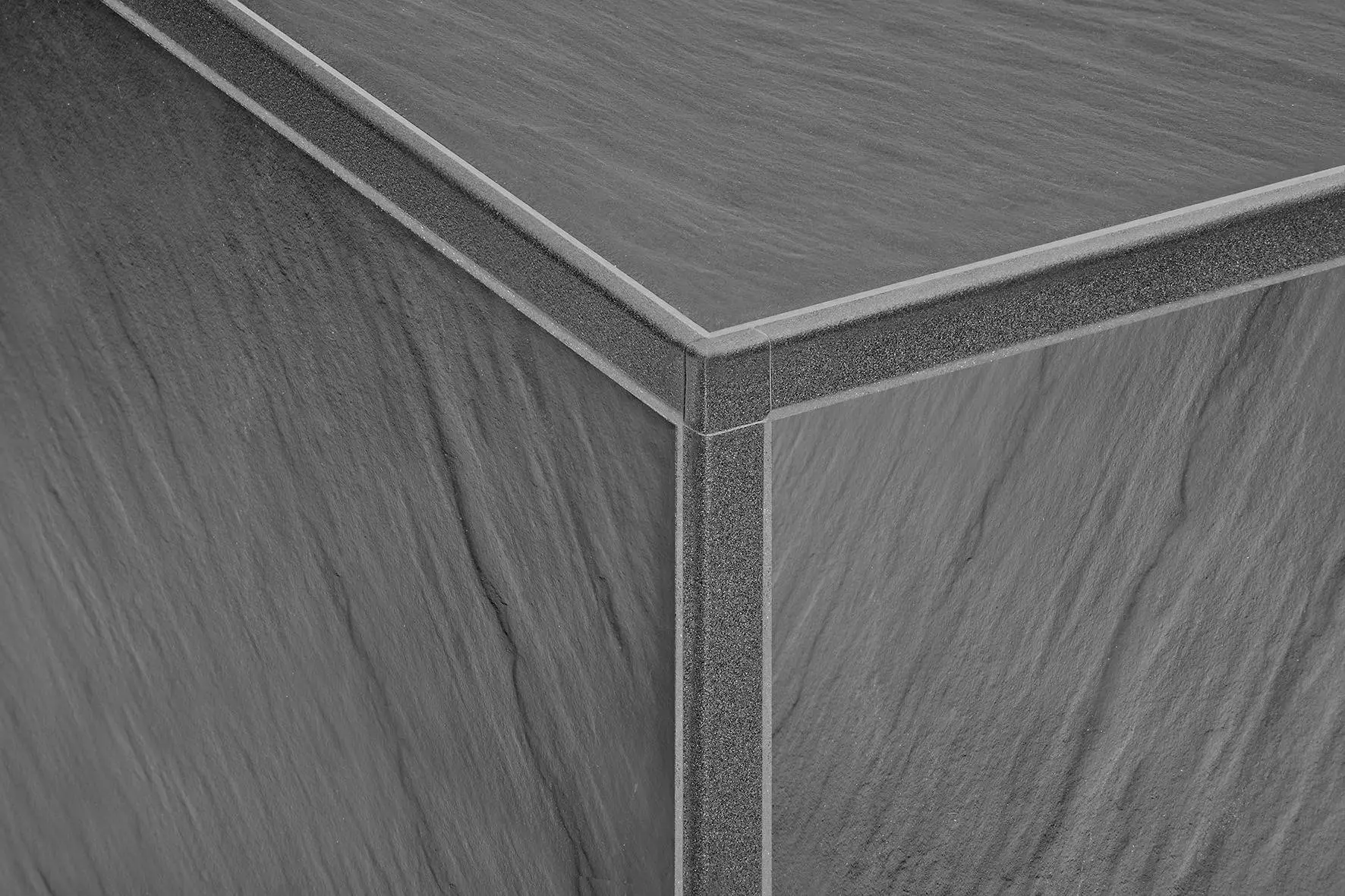

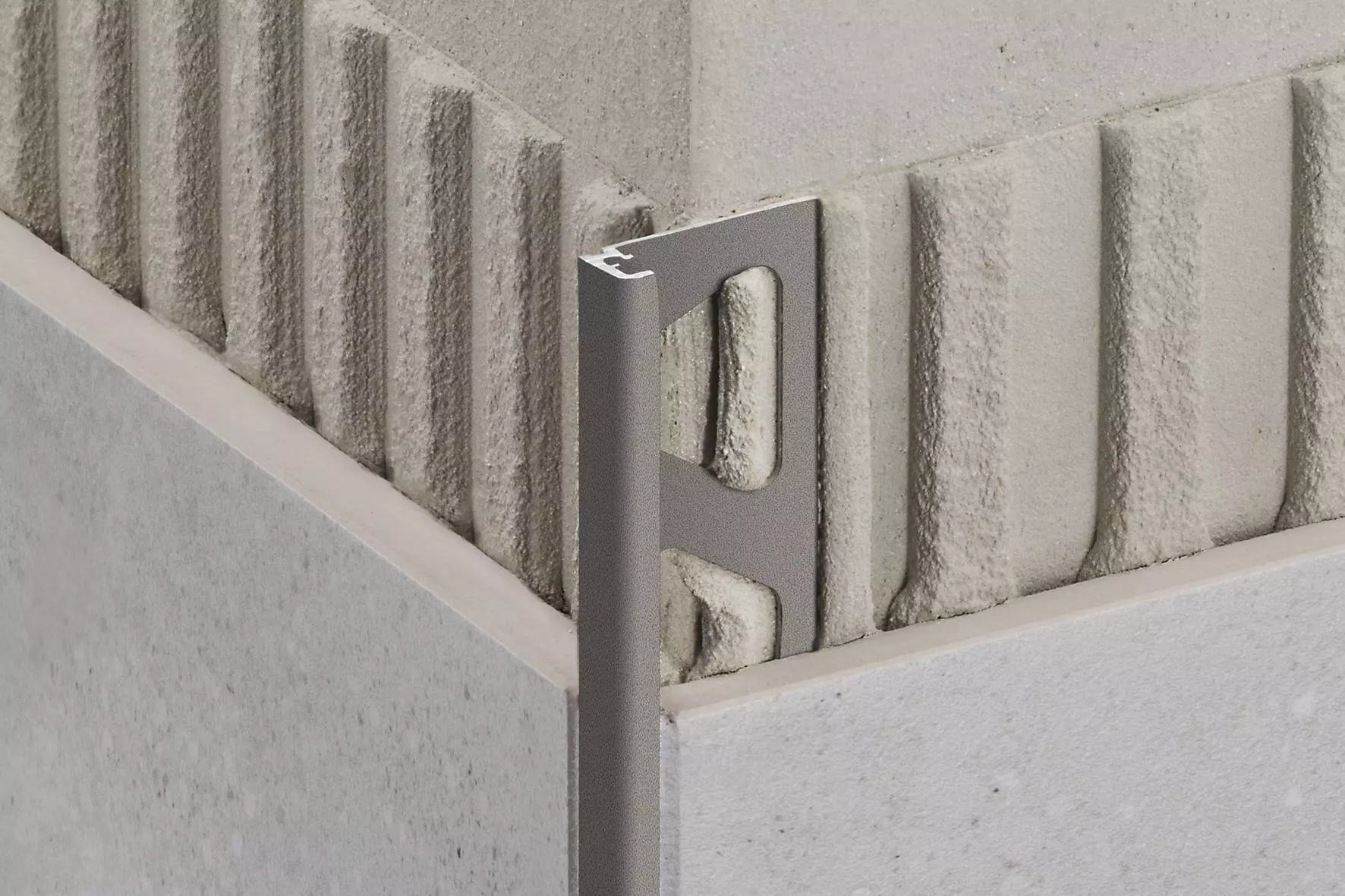

Schlüter-JOLLY-TS is a finishing profile with a 90 degree angle made of aluminium with a special textured coating. These decorative profiles create elegant and stylish external corners in tile coverings and finished edges of tiled skirtings and coverings. The joint spacers on both sides create a uniform grout joint with the tile. The geometric profile undercutting offers additional bonding surface for the grout.

All ten TRENDLINE colour variants feature a high-quality textured powder coating that combines attractive colours with a superior aesthetic experience. You can match the edges of the covering with the tile and grout colours or create interesting contrasts for decoration. In addition, our JOLLY profiles also offer reliable edge protection against mechanical impact for the tiles in the edge area.

Matching corners with an innovative plug-in connection system are also available for all our JOLLY-TS profiles, making it easy to create neat and decorative corner designs.


  • Also available in 3 m
  • Radius perforation

Schlüter-JOLLY-TS  Finishing profile with TRENDLINE textured coating

Product image JOLLY-TS 1©Schlüter-Systems KG
Product image JOLLY-TS 2©Schlüter-Systems KG
Product image JOLLY-TS 3©Schlüter-Systems KG
Product image JOLLY-TS 4©Schlüter-Systems KG
Product image JOLLY-TS 5©Schlüter-Systems KG
Cross-section drawing JOLLY-TS 1©Schlüter-Systems KG
zoom_out_map search
Product image JOLLY-TS 1
Product image JOLLY-TS 2
Product image JOLLY-TS 3
Product image JOLLY-TS 4
Product image JOLLY-TS 5
Cross-section drawing JOLLY-TS 1










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

How to install this product

  1. Select the profile height of JOLLY-TS according to the tile thickness and the installation method.
  2. Apply tile adhesive to the area where the tile covering will end, using a notched trowel. If the JOLLY-TS profile is to be installed in wall corners, complete the tiling of one wall, then apply tile adhesive in the corner area of the second wall.
  3. Firmly press the trapezoid-perforated anchoring leg of the JOLLY-TS profile into the adhesive and align it.
  4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
  5. Fully embed the adjoining tiles and adjust them in such a way that the upper lip of the profile is flush with the tile.
    Note: The profile may slightly protrude or be recessed in the wall area to offset dimensional variations in the covering material.
  6. Set the tile to the lateral joint spacer to ensure a uniform joint of 1.5 mm.
  7. Completely fill the space between the tile and the JOLLY-TS profile with grout.
  8. Use suitable materials and tools for the sensitive surfaces to avoid scratches or other damage. Setting materials must be removed immediately, especially on aluminium.

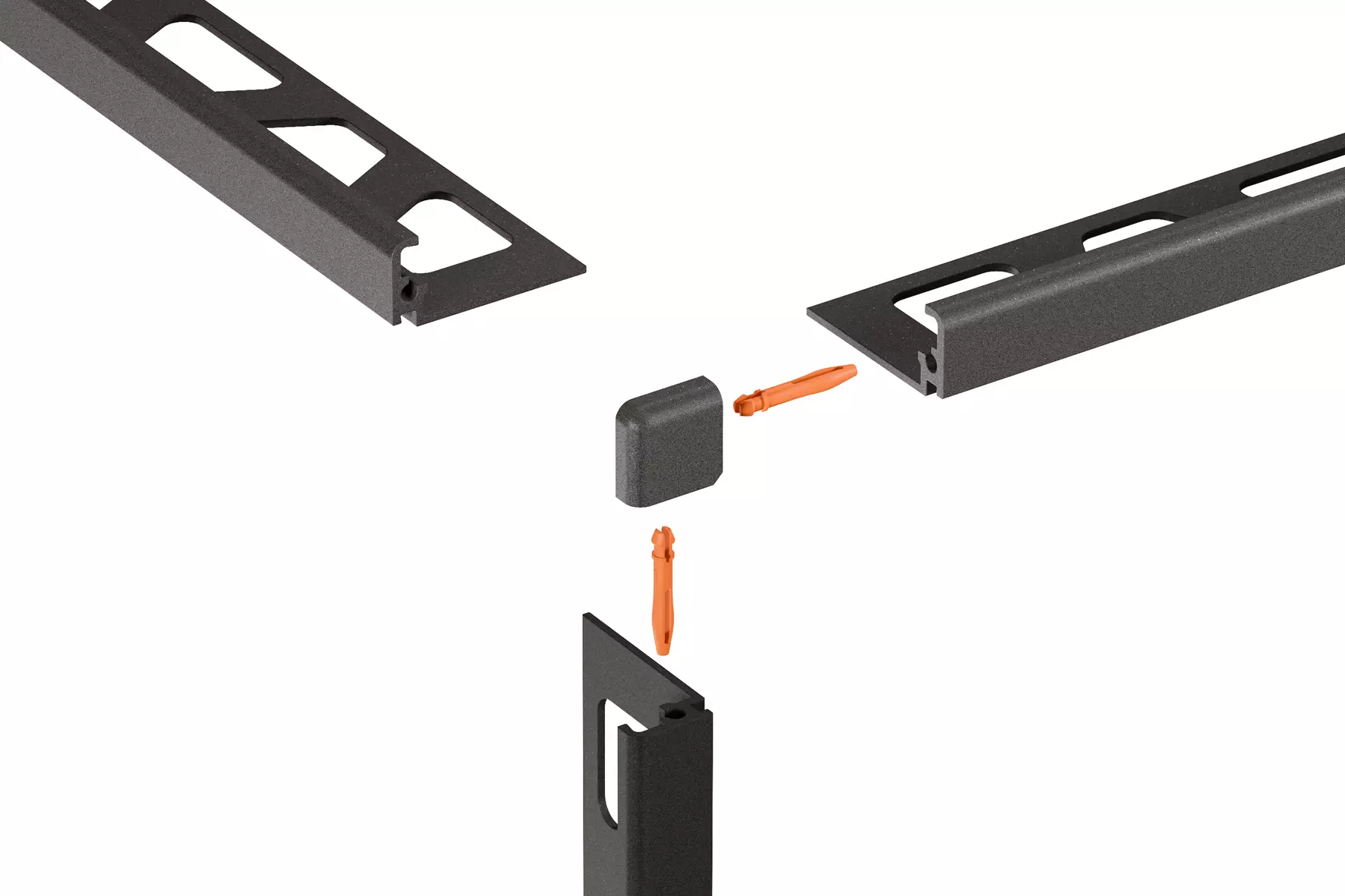

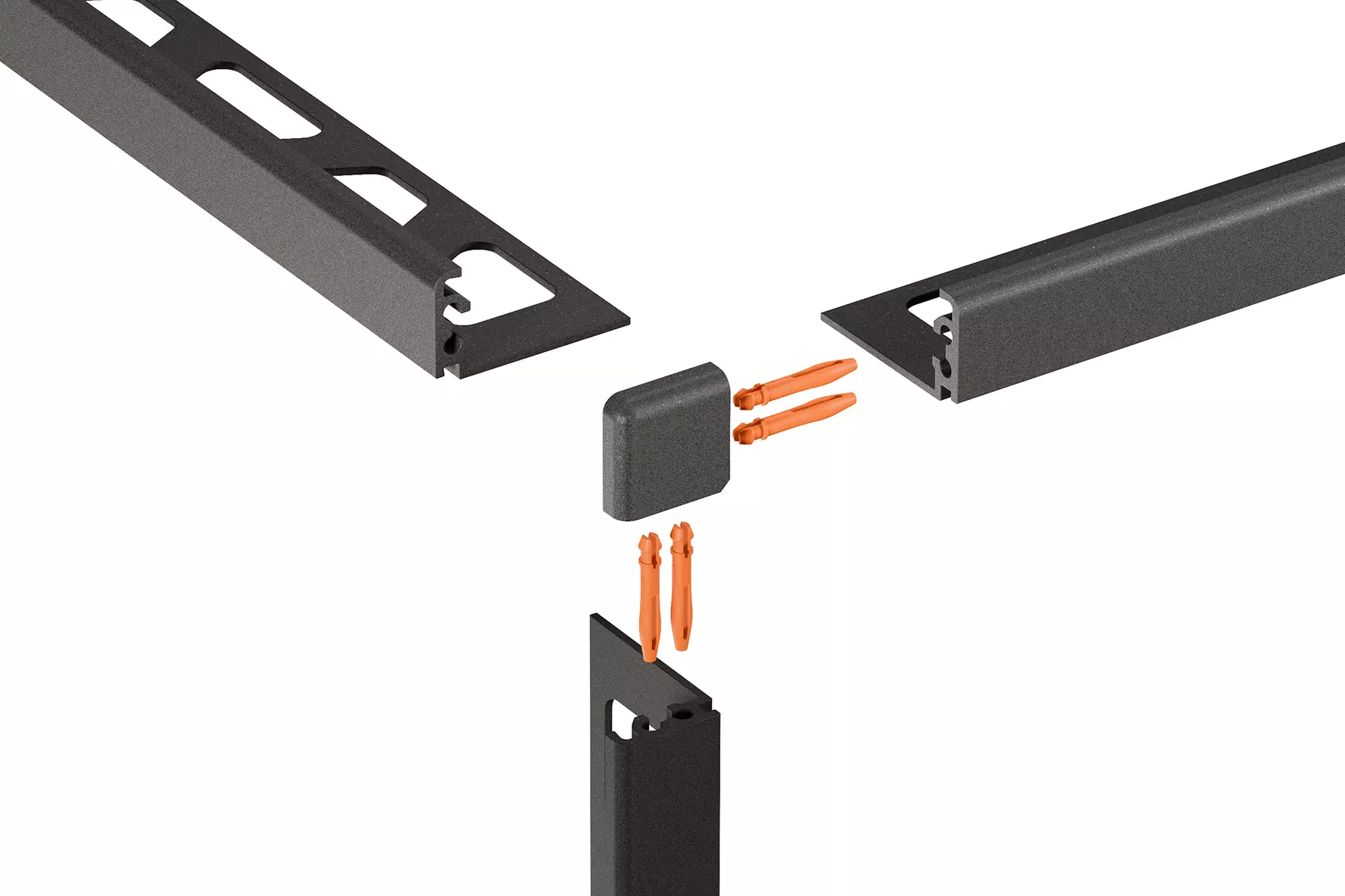

  9. External wall corners with JOLLY-TS profiles can also be created with mitre cuts or with the optionally available external corner pieces. If using an external corner piece, the supplied plastic pins serve as an alignment aid between the profile and the corner piece. The application of grout then gives the assembly the necessary strength.

What this product is made from

Schlüter-JOLLY-TS is available in the following material versions:

  • TS = aluminium, TRENDLINE textured coating

Material properties and areas of application

In special cases, the suitability of a proposed type of profile must be verified, based on anticipated chemical, mechanical and/or other stresses.

JOLLY-TS (textured coated aluminium) features surfaces with a natural appearance. The aluminium is pre-treated, then colour coated with a polyurethane powder coat. The coating is colour stable, UV resistant, and suitable for exterior use. Protect visible edges against abrasion or scratching.

How to look after this product

Schlüter-JOLLY-TS requires no special maintenance or care. Do not use abrasive cleaning agents on sensitive areas. Damaged anodised surfaces can be restored with paint.

Note: Due to different manufacturing processes, slight colour discrepancies between the profiles and the corners may occur.
