Schlüter-SHELF-E-S2  Pentagonal corner wall shelf

The pentagonal wall shelf Schlüter-SHELF-E-S2 for corner-to-corner installation, which can be mounted during or after tile installation turns your tile covering into a true eye-catcher. It not only offers convenient storage space, but also stands out for its modern designs . You can choose from the design variants FLORAL, CURVE, PURE, SQUARE or WAVE in the material options brushed stainless steel or powder-coated aluminium. What's more, the aluminium versions can be ordered in eight popular TRENDLINE colours and in 190 MyDesign RAL colours. This provides nearly unlimited options for blended aesthetics or interesting contrasts.

By the way, the coordinated design variants of KERDI-LINE-STYLE and KERDI-DRAIN-STYLE are an ideal match for the wall shelves.

  • MyDesign RAL color
Product image SHELF-E-S2 1©Schlüter-Systems KG
Product image SHELF-E-S2 2©Schlüter-Systems KG
Product image SHELF-E-S2 3©Schlüter-Systems KG
Product image SHELF-E-S2 4©Schlüter-Systems KG
Cross-section drawing SHELF-E-S2 1©Schlüter-Systems KG
zoom_out_map search
Product image SHELF-E-S2 1
Product image SHELF-E-S2 2
Product image SHELF-E-S2 3
Product image SHELF-E-S2 4
Cross-section drawing SHELF-E-S2 1

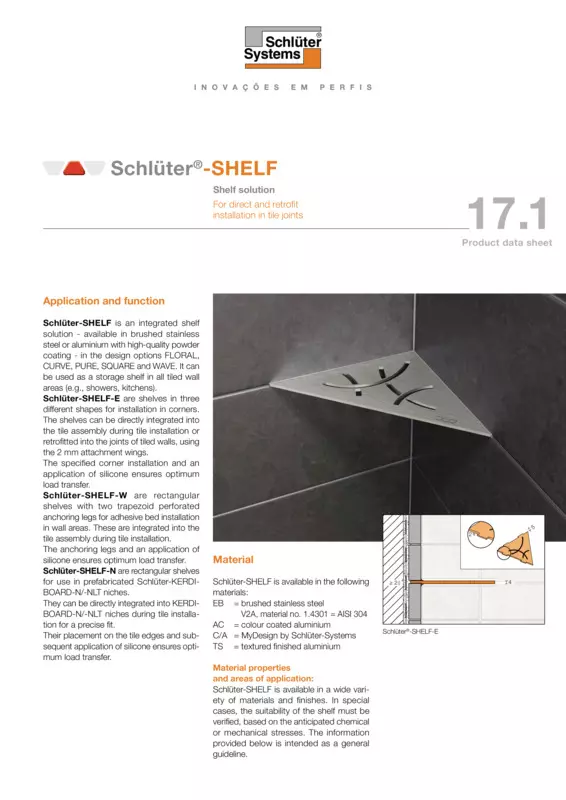

General product information

What this product does

Schlüter-SHELF is an integrated shelf solution - available in brushed stainless steel or aluminium with the premium TRENDLINE textured powder coating or in your preferred RAL colour - in the design variants FLORAL, CURVE, PURE, SQUARE and WAVE. It can be used as a storage shelf in all tiled wall areas (e.g., showers, tiled kitchen surfaces).

Schlüter-SHELF-E are shelves in three different shapes for installation in corners. The shelves can be directly integrated into the tile assembly during tile installation or retrofitted into the joints of tiled walls, using the 2 mm attachment wings.

The specified corner installation and an application of silicone ensures optimum load transfer.

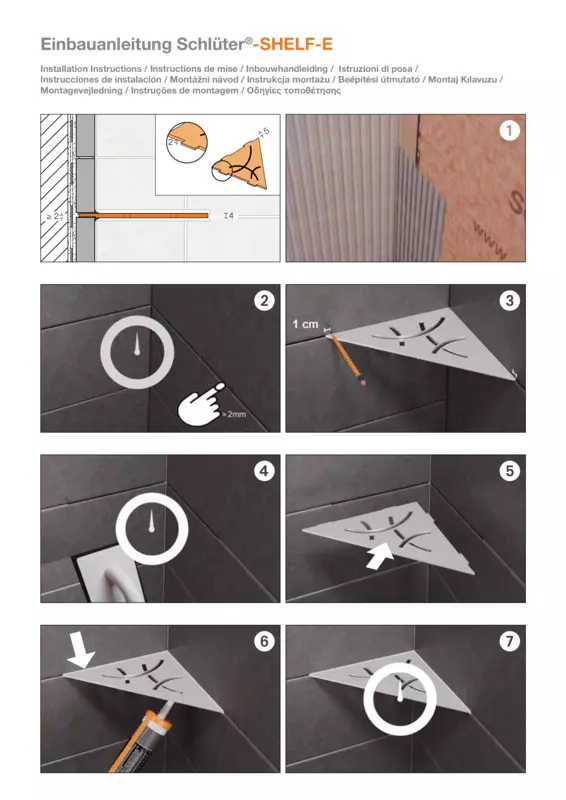

How to install this product

Corner – direct integration as part of tile installation

  1. Install the tile covering with a joint width of ≥ 2 mm.
  2. Once the tile adhesive has set, position SHELF-E and mark the tile, moving about 1 cm from the outside edge of the shelf toward the inside. Remove the shelf during grout application to protect it against staining. Leave the joints in the marked area open.
  3. Once the grout material has set, the shelf can be put in its final position.
  4. Apply a silicone bead around it on all sides.
  5. Observe the curing time of the silicone bead before using the shelf.

Corner - retrofit installation

  1. Determine the joint where SHELF-E is to be placed.
  2. Now mark the areas where no grout will be applied to accommodate the attachment wings.
  3. Grind the tile joint with a suitable tool (grooving tool, angle grinder etc.).
    Caution: Watch the depth of the cut to avoid damaging any waterproofing layers installed behind the tiles.
  4. Position the shelf and apply a silicone bead around it on all sides.
  5. Observe the curing time of the silicone bead before using the shelf.

What this product is made from

Schlüter-SHELF is available in the following materials:

  • EB = brushed stainless steel V2A material no. 1.4301 = AISI 304
  • TS = textured coated aluminium

Material properties and areas of application

Schlüter-SHELF is available in a wide variety of materials and finishes.

In special cases, the suitability of the shelf must be verified, based on the anticipated chemical or mechanical stresses.

The information provided below is intended as a general guideline.

Schlüter-SHELF-EB is made of brushed stainless steel V2A (material no. 1.4301 = AISI 304). Stainless steel is particularly well suited for applications that, in addition to heavy mechanical stresses, require resistance to chemicals such acidic or alkaline media and detergents. Even stainless steel is not resistant to all chemical stresses, and may be affected by e.g. hydrochloric and hydrofluoric acid or certain chloride and brine concentrations. In certain cases, that also applies to seawater pools. Special anticipated stresses should therefore be verified in advance.

SHELF-TS (textured coated aluminium) features surfaces with a natural appearance. The aluminium is powder-coated with a polyurethane covering. The colour-stable coating is UV and weather-resistant. Visible edges should be protected against abrasion.

How to look after this product

Schlüter-SHELF requires no special maintenance or care. Do not use abrasive cleaning agents on the sensitive surfaces.

Stainless steel surfaces exposed to the environment or aggressive substances should be cleaned periodically using a mild household cleaner. Regular cleaning maintains the neat appearance of stainless steel and reduces the risk of corrosion.

All cleaning agents must be free of hydrochloric and hydrofluoric acid.

Avoid contact with other metals, such as regular steel, to prevent corrosion. This also includes installation tools such as trowels or steel wool, e.g. for the removal of mortar residue.
