Schlüter-SHOWERPROFILE-WSC/-WSL Splashguard lip inserts made of PVC

These inserts are to be installed in conjunction with the support profiles SHOWERPROFILE-WS or -WSK.

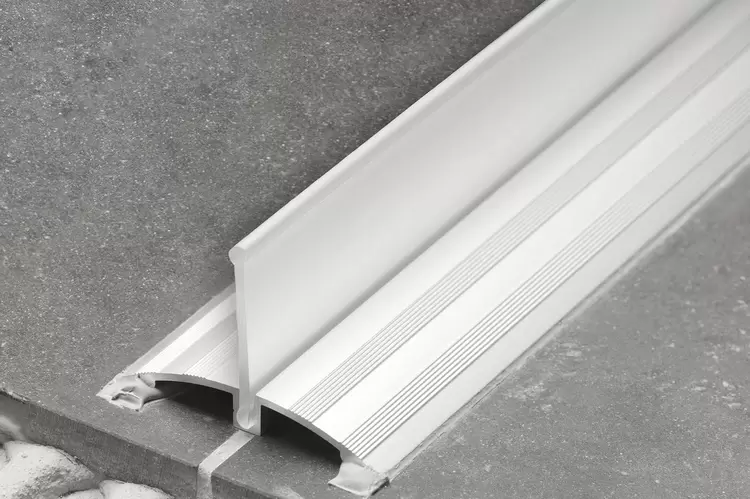

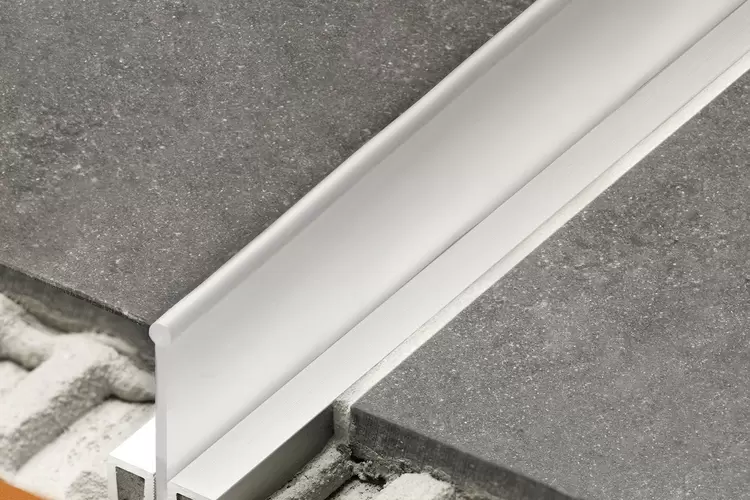

Schlüter-SHOWERPROFILE-WSL is a straight lip insert made of transparent soft PVC with a total height of 37 mm. The installation creates an upright splash protection to prevent the spread of water in shower areas with an inadequate slope.

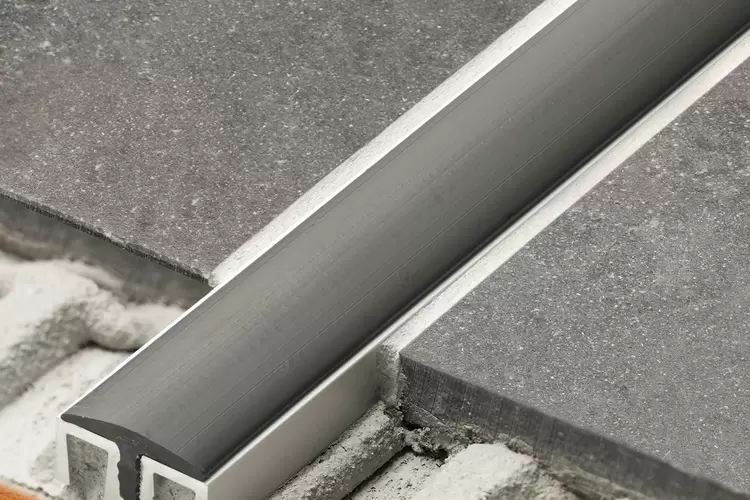

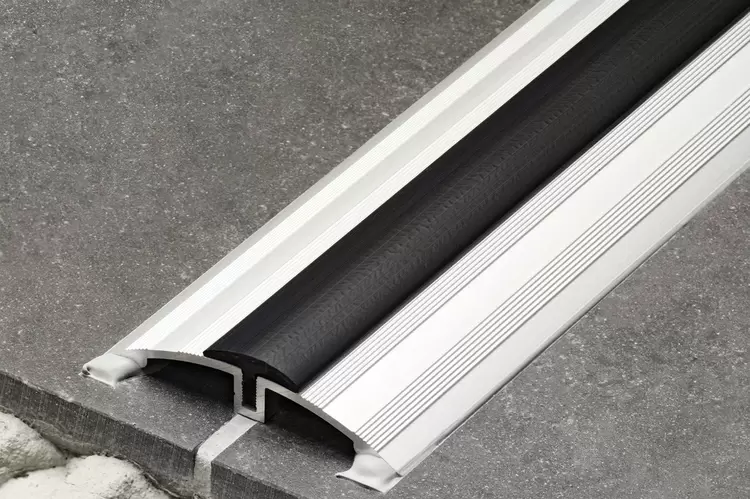

Schlüter-SHOWERPROFILE-WSC is a flat variant of our lip insert made of semi-rigid PVC. Thanks to its low assembly height of just 2 mm and visible area of 16 mm, this semi-circular splashguard lip creates an unobtrusive transition from the shower area to the adjoining surface and helps to contain water to the shower floor area.

Both variants are suitable for use with a wheelchair, which makes them ideally suited for barrier-free bathrooms.

Where to buy Data sheet

zoom_out_map search

Function

What this product does

These inserts are to be installed in conjunction with the support profiles SHOWERPROFILE-WS or -WSK.

Schlüter-SHOWERPROFILE-WSL is a straight lip insert made of transparent soft PVC with a total height of 37 mm. The installation creates an upright splash protection to prevent the spread of water in shower areas with an inadequate slope.

Schlüter-SHOWERPROFILE-WSC is a flat variant of our lip insert made of semi-rigid PVC. Thanks to its low assembly height of just 2 mm and visible area of 16 mm, this semi-circular splashguard lip creates an unobtrusive transition from the shower area to the adjoining surface and helps to contain water to the shower floor area.

Both variants are suitable for use with a wheelchair, which makes them ideally suited for barrier-free bathrooms.

Installation

How to install this product

For installation instructions, please refer to the product data sheet under Downloads.

Material

What this product is made from

Schlüter-SHOWERPROFILE-WSC/-WSL is available in the following materials:

Insert:

PVC = Polyvinyl chloride

Maintenance & Care

How to look after this product

The lip inserts Schlüter-SHOWERPROFILE-WSL and -WSC are resistant to fungi and bacteria, and they require no special maintenance or care.

Downloads

Download	Selection
Schlüter-SHOWERPROFILE-WS /-WSK \| Product data sheet 14.2 Product data sheet - © Schlueter-Systems PDF – 0.26 MB
