Schlüter-TREP-EFK  Stair nosing profile without anchoring leg

Schlüter-TREP-EFK is a variant of the V4A stainless steel stair nosing profile TREP-E without anchoring legs which means it can be retrofitted on stairs with tile or natural stone coverings. It features a slip-resistant surface to create safe and attractive stair edges. It can be adhered with installation adhesive in the matching milled grooves or retrofitted on stairs.

Where to buyCAD drawing requestsData sheet

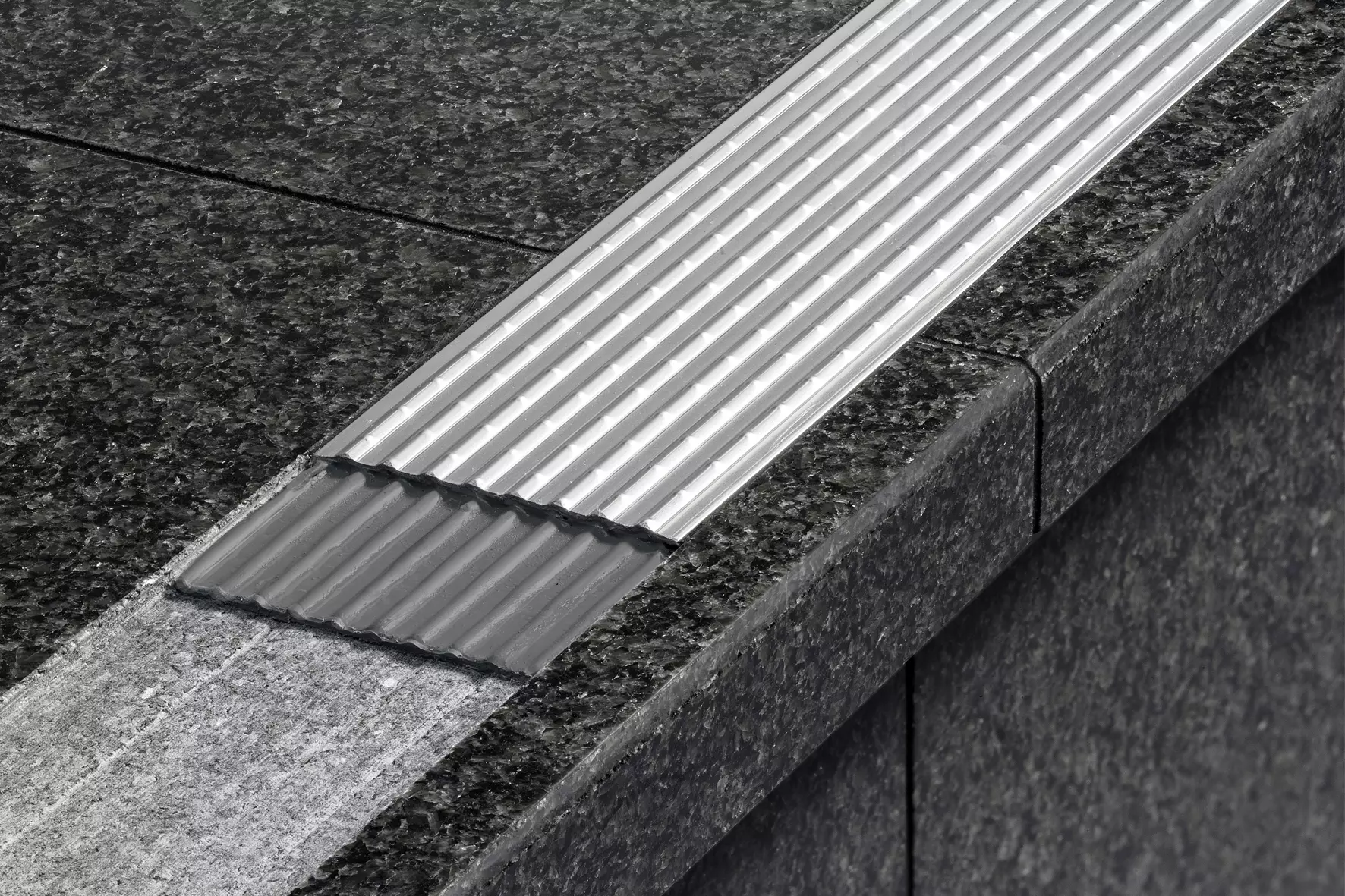

Product image TREP-EFK 1©Schlüter-Systems KG

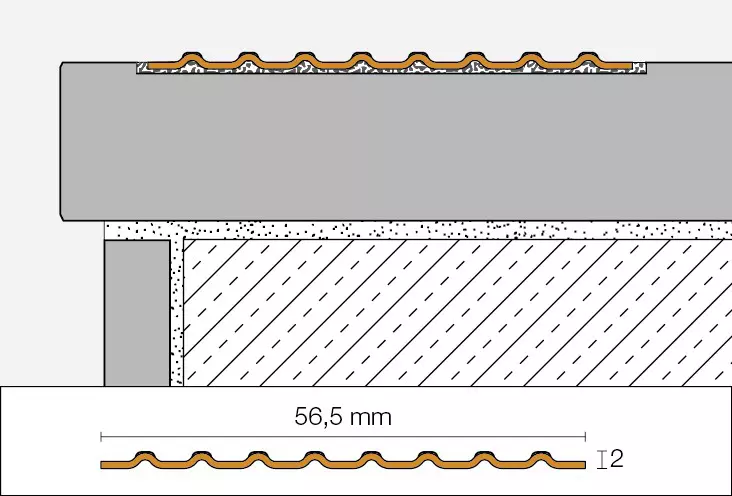

Cross-section drawing TREP-EFK 1©Schlüter-Systems KG
zoom_out_map search
Product image TREP-EFK 1
Cross-section drawing TREP-EFK 1










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

  1. Clean the stair nosings and repair damaged areas if applicable.
  2. Clean and degrease the underside of Schlüter-TREP-EK/-EFK.
  3. Adhere the profiles by fully embedding them into a suitable adhesive e.g. epoxy resin or Schlüter-KERDI-FIX (see product data sheet 8.3), depending on the substrate.
    Note: The upper profile edge is approx. 2.5 mm (or approx. 2 mm if using Schlüter-TREP-EFK) higher than the stair covering.

Schlüter-TREP-EFK is made of:

  • E = stainless steel V4A, material no. 1.4404 = AISI 316L

Material properties and areas of application

The suitability of a proposed type of profile must be verified based on the anticipated chemical, mechanical, and/or other stresses.

Schlüter-TREP-E is particularly well suited for applications that, in addition to heavy mechanical stresses, require resistance to chemicals such acidic or alkaline media and detergents. The use of V4A is recommended if consistent exposure is expected, for example in the case of swimming pools (fresh water). Even stainless steel is not resistant to all chemical stresses, and may be affected by hydrochloric and hydrofluoric acid or certain chloride and brine concentrations. In certain cases, this also applies to seawater pools. Special anticipated stresses should therefore be verified in advance.

The profiles require no special maintenance or care.

Stainless steel surfaces exposed to the environment or aggressive substances should be cleaned periodically using a mild household cleaner. Regular cleaning maintains the neat appearance of stainless steel and reduces the risk of corrosion. All cleaning agents must be free of hydrochloric and hydrofluoric acid.

Avoid contact with other metals, such as regular steel, to prevent corrosion. This also includes installation tools such as trowels or steel wool, e.g. for the removal of adhesive and grout residue. We recommend the use of the stainless steel cleaning polish Schlüter-CLEAN-CP.

Schlüter-TREP-E /-EK /-EFK | Product data sheet 3.3©Schlüter-Systems KG

Schlüter-TREP-E /-EK /-EFK | Product data sheet 3.3
