Schlüter-LIPROTEC-LLPM  LED module

Do you want to accentuate the internal and external corners of your walls with accent lighting? This is particularly easy with the plug-and-play connections from LIPROTEC-EASY.

Schlüter-LIPROTEC-LLPM is an LED module consisting of a fully encased LED strip with homogeneous light dispersion and an attachment profile with a trapezoidal perforated anchoring leg. It is made of either aluminium or stainless steel. The LED module is available either with a fixed white-light colour temperature of 3000 K or 4900 K, or with a RGB+W colour range. The latter makes it possible to choose from more than 16 million hues and colour temperatures from 2500 K – 6500 K. The white LED module is available with a flat installation height of 11 mm, which means it can be installed flush with the tile.

LIPROTEC-LLPM can be easily shortened at the marked cutting points and sealed with the supplied end caps (LIPROTEC-PES) to maintain its IP degree of protection. We recommend LIPROTEC-LLPM/EK as end caps for the profile.

Where to buy
  • Ceilings
  • Walls in interior spaces
  • Walls in exterior spaces
  • Floors in private use areas
  • Walls in showers
  • Pool landscapes (not under water)
  • Low assembly height
  • Plug-and-play
  • LED can be shortened
  • IP X7

Schlüter-LIPROTEC-LLPM  LED module

Product image LIPROTEC-LLPM 1©Schlüter-Systems KG
Product image LIPROTEC-LLPM 2©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 1©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 2©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 3©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 4©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 5©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 6©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 7©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 8©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 9©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 10©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 11©Schlüter-Systems KG
Illustration LIPROTEC-LLPM 12©Schlüter-Systems KG
zoom_out_map search
Product image LIPROTEC-LLPM 1
Product image LIPROTEC-LLPM 2
Illustration LIPROTEC-LLPM 1
Illustration LIPROTEC-LLPM 2
Illustration LIPROTEC-LLPM 3
Illustration LIPROTEC-LLPM 4
Illustration LIPROTEC-LLPM 5
Illustration LIPROTEC-LLPM 6
Illustration LIPROTEC-LLPM 7
Illustration LIPROTEC-LLPM 8
Illustration LIPROTEC-LLPM 9
Illustration LIPROTEC-LLPM 10
Illustration LIPROTEC-LLPM 11
Illustration LIPROTEC-LLPM 12










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

What this product does

Schlüter-LIPROTEC-LLPM/-LLP/-LLPE are LED modules made from a flexible, fully sheathed LED strip with homogeneous light distribution and an attachment profile made of aluminium or brushed stainless steel. The LED modules are available either with a fixed white-light colour temperature of 3000 K or 4900 K, or with a RGB+W colour range. The latter makes it possible to choose from more than 16 million hues and colour temperatures from 2500 K – 6500 K.

The carrier profiles enable use in areas with difficult ambient conditions from an installation height from 11 mm. The modules can be installed in walls, ceilings and shower areas. In light indoor traffic areas, the Schlüter-LIPROTEC-LLPM LED modules with white LED strips can also be installed in the floor area. For use in pool areas and exterior walls, the Schlüter-LIPROTEC-LLPM LED module has to be inserted in attachment profiles made of V4A stainless steel.

The LED modules are available as plug-and-play versions in different lengths.

The LED strips can be shortened at the marked cutting points (WW / NW at distances of 25 mm, RGB+W at distances of 62.5 mm) and sealed in compliance with IP specifications by means of the included end cap sets. Depending on the light characteristics, the LED modules can be connected within a system, using cable connectors and distributors. Power supplies and the Bluetooth control required for the RGB+W system are also designed as plug & play versions to facilitate installation. Matching system accessories such as profile end caps, cable connections, distributors and hollow wall boxes with sealing function are available.

Schlüter-LIPROTEC-LLPM

The LIPROTEC module with the Schlüter-DECO-SG attachment profile made of anodised aluminium or stainless steel (V4A) with a trapezoid-perforated anchoring leg makes it possible to create a line of light with the light colour RGB+W as accent lighting. Use in pool areas and exterior walls requires LIPROTEC-LLPM LED modules with attachment profiles made of V4A stainless steel.

The LED module with white light is available with an installation depth of 11 mm, and thus can be installed flush with tiles, even in floor areas. In the RGB+W version for walls and ceilings, the LED strip protrudes approx. 3 mm from the profile.

(Also see product data sheet 2.16 Schlüter-DECO-SG).

Request a product data sheet in accordance with Regulation (EU) 2019/2015 here: certification-eu@schlueter.de

How to install this product

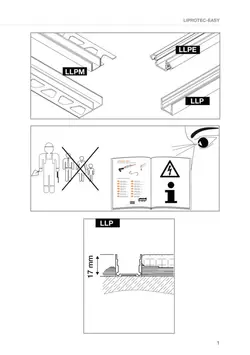

  1. For information on installing the supply cable, the power supply and the controller, refer to the installation manual.
  2. Before the modules are installed, their functionality has to be checked.
  3. In advance, the supply cable has to be positioned as appropriate for the cable opening in the attachment profile.
  4. The LED strip has to be removed from the profile before the profile is installed. Please refer to the respective data sheets for installation details of the individual profiles. During installation of the profile, the bushing of the connecting cable has to be routed through the cable opening of the attachment profile from the rear.
  5. If used in a wet zone, the IP-protected LED strip has to be shortened at an angle of 45° at the marked positions. The Schlüter-PROCUT special cutting tool is particularly suitable for this purpose. Make sure that the LED strip has been separated from the power supply before working on it.

    The cut surface of the LED strip has to be waterproofed with the supplied silicone sealing caps and special glue. First, apply an adequate amount of adhesive to the bonding surfaces of the silicone sealing cap. Subsequently, insert the silicone sealing cap into the LED strip and press it in position for approx. 30 seconds. Check whether the end cap is properly connected to the LED strip. Remove excess adhesive with a cloth. After a curing period of approx. 30 minutes, the silicone end cap is firmly glued in place. The LED strip has been sealed and can now be used.

  6. After the profiles have been installed, the LED strip is connected to the supply cable by means of the plug-&-play connection and is carefully pressed into the attachment profile.
Installation in wet zones

The modules can be installed in areas subject to wet conditions (e.g. showers) by using the Schlüter-LIPROTEC-PZH hollow wall box with attached Schlüter-KERDI waterproofing collar. It creates a hollow space for plug connections, to reversibly install the plug-and-play LED modules. To insert the hollow wall box, a cutout with a size of 40 x 120 mm and a depth of min. 20 mm has to be made in the wall. The connection cable has to be routed through the cable duct. Make sure that the heat shrink tube on the connection cable ends up in the area with the sealing collar. The cable conduit is fastened crosswise with two cable ties included in the scope of supply, and thus sealed. Subsequently the cable ties have to be shortened. The hollow wall box is placed in the cutout produced and the sealing collar is sealed on the bonded waterproofing with Schlüter-KERDI-COLL-L. The self-adhesive KERDI collar has to be placed in such a way that the hollow wall box is sealed on all sides. Make an opening only where the cable opening of the attachment profile will later be positioned.

Note: In high-moisture areas, position the hollow wall box in such a way that water cannot permanently accumulate in it.

Installation in exterior walls

The installation of Schlüter-LIPROTEC-LLPM for accent lighting on exterior walls requires the use of LED modules in the supplied length (uncut), which must be inserted into the attachment profile Schlüter-DECO-SG in stainless steel quality V4A. The permissible surface temperature of the wall ranges from -20 to +65 °C. The design must take length fluctuations in the material caused by temperature effects into account. The maximum installation height specified by the applicable regulations and building codes must be observed.

System components for control and power supplies must be installed in protected interior areas. Based on the substrate assembly, design the cable feed to the LIPROTEC-LLPM accent lighting in compliance with fire protection regulations and for full functionality. This may include waterproofing measures. Keep in mind that the LED modules must be accessible for replacement.

The positioning of Schlüter-LIPROTEC-LLPM must rule out permanent contact with water or snow.

The anticipated service life (L70F10) of LED modules in exterior areas (with consideration for environmental factors and ambient conditions) is 20,000 h.

What this product is made from

Schlüter-LIPROTEC modules are available in the following material versions:

Profiles:

  • AE = anodised aluminium
  • EB = brushed stainless steel V4A material no. 1.4404 = AISI 316L

LED strip:

  • Fluorinated, platinum-cured silicone, Shore hardness 60, degree of protection IP67

Material properties and areas of application

In special cases, the suitability of LIPROTEC modules must be verified, based on the anticipated chemical or mechanical stresses. The information provided below is intended as a general guideline.

Anodised aluminium: The aluminium features an anodised finish that retains a uniform appearance during normal use.

Aluminium is sensitive to alkaline media.

Cementitious materials, in conjunction with moisture, become alkaline, which may result in corrosion depending on the concentration and length of exposure (aluminium hydroxide formation).

Remove adhesive or grout immediately from visible areas and don't cover freshly installed assemblies with a protective foil. The profile has to be solidly embedded in the tile adhesive to prevent water from accumulating in small cavities.

Stainless steel: Stainless steel can withstand high mechanical stress and is highly resistant against chemicals. Even stainless steel of quality 1.4404 is not resistant to all chemical stresses. Substances such as hydrochloric or hydrofluoric acid or certain chloride and brine concentrations may cause damage. Special anticipated stresses should therefore always be verified in advance.

Uncut LED modules have IP67 protection. Shortened LED modules can reach compliance with protection level IP67 if they are properly sealed with the supplied end caps.

The fluorinated LED strips made of platinum-cured silicone are dirt-repellent and have a Shore hardness of 60.

How to look after this product

Schlüter-LIPROTEC modules require no special maintenance or care. Do not use abrasive cleaning agents on the sensitive surfaces. Damaged anodised surfaces can be restored with paint. All cleaning agents must be free of hydrochloric and hydrofluoric acid, as well as naphtha (ingredient of silicone removers).
