Schlüter-BARIN-SR  Gutter system

Our gutter system Schlüter-BARIN-SR combines modern design with practical functionality. We recommend the system for draining your balcony or terrace surface and as an elegant accessory that matches the design of our Schlüter-BARA finishing profiles. BARIN-SR is made of premium aluminium, which is available in various colour shades. It can be easily attached to the BARA profiles provided to create the perfect rain gutter for your balcony.

Where to buyData sheet
  • Custom corner
Product image BARIN-SR 1©Schlüter-Systems KG
Product image BARIN-SR 2©Schlüter-Systems KG
zoom_out_map search
Product image BARIN-SR 1
Product image BARIN-SR 2










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

What this product does

All necessary pre-fabricated parts such as attachment screws, internal and external corners, connectors, end pieces, outlets, down pipes and spouts can be ordered as system accessories for the Schlüter-BARIN gutter elements.

The BARIN gutter system is attached to the balcony finishing profiles Schlüter-BARA-RKLT, -RTK, -RTKE, -RTKEG or -RTP intended for this purpose with mounting screws. The elongated openings on the underside of the gutters allow for setting up a slope of up to 30 mm.

All Schlüter-BARIN system components are attached to the gutter with screw-mounted connectors.

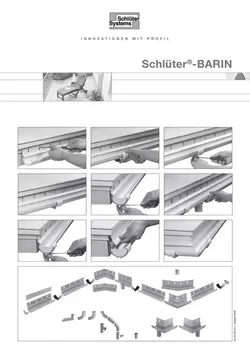

How to install this product

  1. Schlüter-BARIN gutter components are cut to size and connected to the Schlüter-BARA profile with the screws provided. The slots allow the gutter to be sloped, if required.
  2. A waterproof connection between two abutting gutter sections is achieved by centring a connector over the joint.
  3. The rubber seal ensures a waterproof connection at the joints.
  4. For inside and outside corners, the corner pieces are attached using two connectors, centred over the joint.
  5. To connect a down pipe, a gutter section with an outlet of approximately 20 cm is attached with two clip on connectors, which are centred over the gutter joints.
  6. The end caps are held against the gutter from below and attached with a connector.
  7. The screws and slots are covered by clipping on the cover profile.
  8. The last step is to adhere the edge covers.

Please refer to the product data sheet for the different mounting options.

What this product is made from

BARIN gutter elements and covers as well as end pieces, internal/external corners and connectors are made of colour coated aluminium.

Further components for the BARIN gutter system such as down pipes, pipe clamps, elbows, tee pipes, spouts, drain flap and connecting sleeves are also made of colour coated aluminium.

Material properties and areas of application

The BARIN gutter system is made of colour coated aluminium.

The coating of the aluminium gutter is colour-stable, as well as UV- and weather-resistant. Visible surfaces should be protected against abrasion.

How to look after this product

The BARIN gutter system requires no special maintenance or care. The powder coated surface of the aluminium profile is colour-stable. Damaged visible surfaces can be restored with paint.
