Schlüter-TROBA-LINE-TL/H  Height adjustment insert

Schlüter-TROBA-LINE-TL/H offers even more flexibility for installing our perforated TROBA-LINE drainage channels. The insert enables the seamless height adjustment of TROBA-LINE-TL, TROBA-LINE-TLR and TROBA-LINE-TLR-E from 0 to 40 mm.

Where to buy

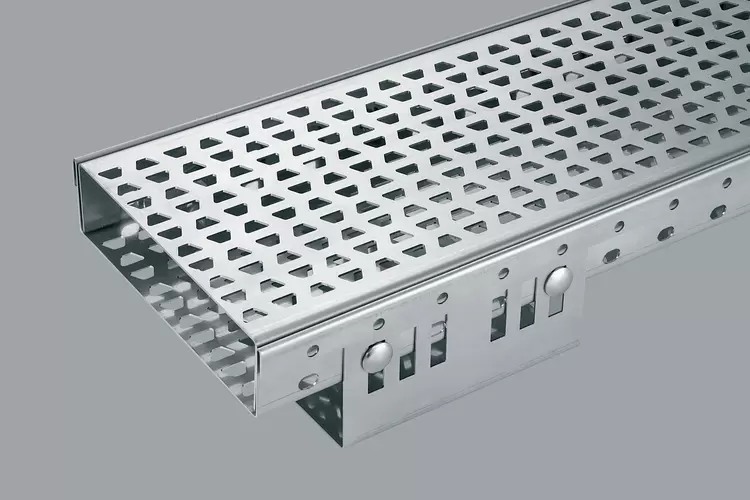

Product image TROBA-LINE-TL/H 1©Schlüter-Systems KG

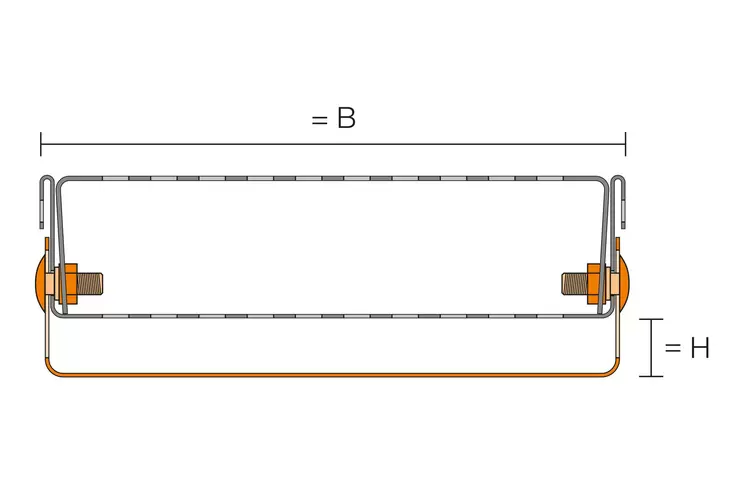

Cross-section drawing TROBA-LINE-TL/H 1©Schlüter-Systems KG
zoom_out_map search
Product image TROBA-LINE-TL/H 1
Cross-section drawing TROBA-LINE-TL/H 1

General product information

What this product does

Schlüter-TROBA-LINE-TL/H is a height adjustment insert that allows for the seamless height adjustment of the 40 mm perforated drainage channels TROBA-LINE-TL and TROBA-LINE-TLR/-TLR-E with a height of 0 to 40 mm.

TL2 H height adjustment of H = 0 - 20 mm
TL4 H height adjustment of H = 20 - 40 mm

Width: 75 mm / 110 mm / 160 mm
Length: 135 mm

How to install this product

  1. Balconies or terraces must feature a functional and sloped waterproofing assembly.
  2. Place TROBA-LINE-TL on spots of mortar or use the height adjustment TROBA-LINE-TL/H in the area of door elements or wall connections to prevent the accumulation of water. When installing TROBA-LINE, make sure that the number of mortar spots or the height adjustments supporting TROBA-LINE are appropriate for the anticipated stresses. To ensure proper water drainage, place mortar only under a part of the channel.
  3. As a general rule, TROBA or TROBA-PLUS should be installed over the waterproofing assembly as a surface drainage and protection mat. Regardless of the covering system, be sure to leave a sufficiently large drainage space above the waterproofing assembly to safely channel the water through TROBA-LINE-TL to the drainage exit.
  4. Multiple channel elements can be connected with the supplied U-shaped brackets. These U-shaped brackets can also serve as end caps.
  5. The screed or other selected covering assembly can now be installed in such a way that it abuts the properly aligned
    TROBA-LINE-TL.

Reinforcement:

Depending on the anticipated stresses, it may be necessary to install the reinforcement Schlüter-TROBA-LINE-TL/V for the drainage channels TROBA-LINE-TL and -TLG in the widths 110 mm and 160 mm.

How to look after this product

Schlüter-TROBA-LINE-TL/H requires no special maintenance or care. We recommend the use of the stainless steel cleaning polish Schlüter-CLEAN-CP.
