Schlüter-RENO-RAMP  Transition profile with edge protection

Schlüter-RENO-RAMP is a profile for creating stepless transitions between heavily used tile coverings to adjoining coverings of a lower height, for example at the transition from tiles to carpet. The profile is especially suited for areas where the edges of coverings have to withstand shopping carts, forklifts or wheelchairs. The low incline of this transition profile creates an access ramp that makes the transition to a different height easy to manage. RENO-RAMP also offers effective edge protection for the adjacent covering edges.


Product image RENO-RAMP 1©Schlüter-Systems KG
Product image RENO-RAMP 2©Schlüter-Systems KG
Cross-section drawing RENO-RAMP 1©Schlüter-Systems KG
zoom_out_map search
Product image RENO-RAMP 1
Product image RENO-RAMP 2
Cross-section drawing RENO-RAMP 1

General product information

What this product does

Schlüter-RENO-RAMP is a profile for a stepless transition between floor coverings of different heights, for example for the transition from tiles to carpet. In addition, it protects the edge of adjacent coverings. The joint spacer creates a uniform joint cavity with the tile.

RENO-RAMP is the preferred solution for areas exposed to heavy vehicular traffic. Thanks to the flat incline – approximately 5° to 10° depending on the profile height – and the shallow edge, the profile is well suited for forklift or lift truck traffic. RENO-RAMP is also suited to create stepless transitions in areas that must comply with disabled access requirements.

The joint spacer creates a uniform joint cavity with the tile. The inclined transition leg is supported by braces and features anti-slip grooves on the surface. In addition, the transition leg ends flush with the substrate. This makes the profile a good fit for all renovation projects in which tiles and natural stone coverings are adhered to existing coverings or where they don't adjoin other coverings in new construction.

How to install this product

  1. Select Schlüter-RENO-RAMP according to the tile thickness.
  2. Fill the hollow space on the underside of the profile with tile adhesive.
  3. Apply tile adhesive to the area where the tile covering will end, using a notched trowel.
  4. Press the trapezoid-perforated anchoring leg of Schlüter-RENO-RAMP firmly into the adhesive and align it.
  5. Trowel additional adhesive over the trapezoid perforated anchoring leg to ensure full coverage.
  6. Firmly press the adjoining tiles into place and align them in such a way that the upper profile edge is flush with the tile (the profile should not protrude over the surface of the covering; preferably, it should be approx. 1 mm below the top level of the covering). All tiles in the profile area must be fully embedded.
  7. The tile is set to the lateral joint spacer, which ensures a uniform joint of 1.5 mm.
  8. Completely fill the space between the tile and the profile with grout.

What this product is made from

Schlüter-RENO-RAMP and -RAMP-K are available in the following material version:

AE = anodised aluminium

Material properties and areas of application

In special cases, the suitability of a proposed type of profile must be verified, based on anticipated chemical, mechanical, and/or other stresses.

Schlüter-RENO-MU are profiles made of brass. Minor manufacturing flaws are unavoidable on their untreated surfaces. They are suitable for absorbing high mechanical stresses. Brass is resistant to most chemicals used in tiled environments.

Brass that is exposed to air will oxidise, resulting in a natural patina. Exposure to moisture or aggressive substances can reinforce the oxidation, resulting in stains on the profile surface.

Schlüter-RENO-AU are profiles made of aluminium. Technically, these are so-called semi-finished products, in which minor manufacturing traces also cannot be avoided. The suitability of the profiles should be reviewed based on the anticipated chemical stresses. Aluminium is sensitive to alkaline media.

Cementitious materials, in conjunction with moisture, become alkaline, which may result in corrosion depending on the concentration and length of exposure (aluminium hydroxide formation). Any adhesive, mortar or grout must therefore be removed from visual areas immediately. Solidly embed the profile in the setting material to prevent alkaline water from accumulating in small cavities.

In case of more demanding visual requirements, Schlüter-RENO-AEU or -EBU with post-treated, high-quality finishes are available.

Schlüter-RENO-AEU/-RAMP profiles made of anodised aluminium have an anodised finish that retains a uniform appearance during normal use. The finish may be damaged by aggressive substances or abrasive stresses. Tile adhesive, mortar and grout can scratch the surface of the profile; therefore, any residue must be removed immediately. Otherwise, the description regarding aluminium applies.

Schlüter-RENO-EU/-EBU are made of stainless steel 1.4301 (V2A) and are particularly well suited for applications that, in addition to heavy mechanical stresses, require resistance to chemicals such as acidic or alkaline detergents.

Even stainless steel is not resistant to all chemical stresses.

Substances such as hydrochloric or hydrofluoric acid or certain chloride and brine concentrations may cause damage. In certain cases, this also applies to seawater pools. Special anticipated stresses should therefore be verified in advance.

How to look after this product

The profiles require no special maintenance or care. Oxidation films on brass or aluminium may be removed with a common polishing agent; however, they do reoccur. Damaged anodised surfaces can be restored with paint. Stainless steel surfaces exposed to the environment or aggressive substances should be cleaned periodically using a mild household cleaner. Regular cleaning maintains the neat appearance of stainless steel and reduces the risk of corrosion. All cleaning agents must be free of hydrochloric and hydrofluoric acid.

Avoid contact with other metals, such as regular steel, to prevent corrosion. This also includes installation tools such as trowels or steel wool, e.g. for the removal of mortar residue. We recommend the use of the stainless steel cleaning polish Schlüter-CLEAN-CP.

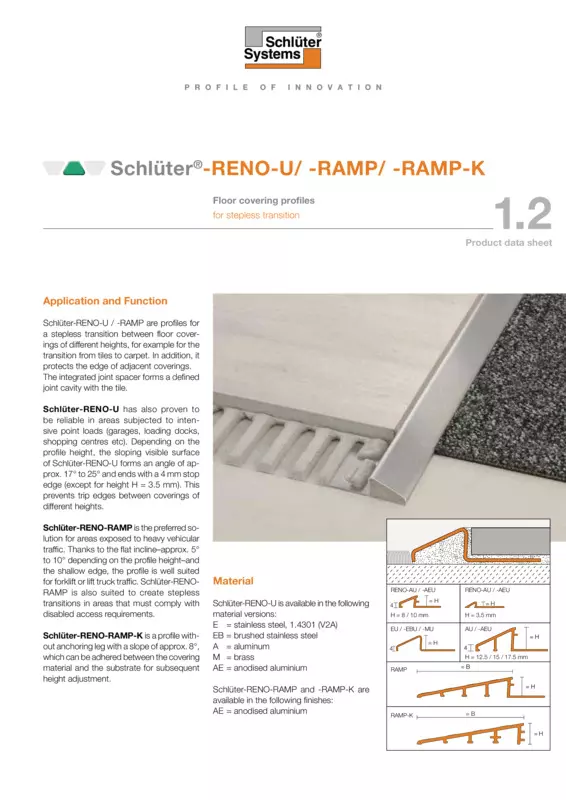

Downloads
