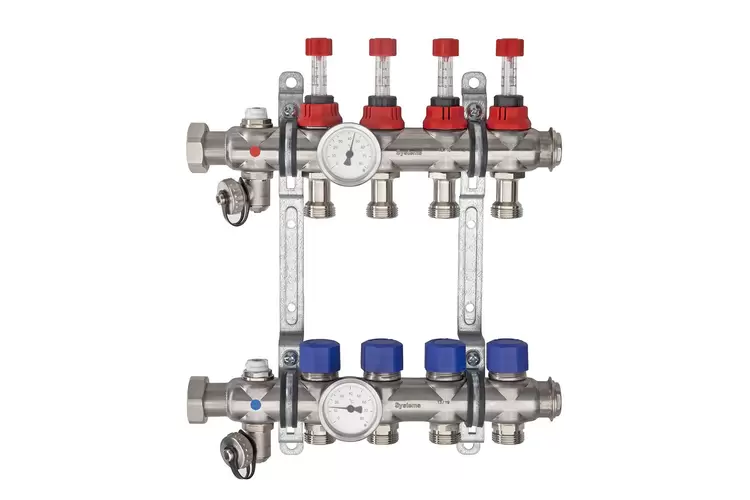

Distributes thermal comfort in your living space: Schlüter-BEKOTEC-THERM-HVT/DE is a heating circuit distributor DN 25 of stainless steel with hot and cold leg bars, with an outside diameter of 35 mm. Two distributor manifold brackets with sound insulation inserts (matching the Schlüter distributor cabinet), as well as a wall mounting set are included loosely in the package for installation.

The scope of supply includes the following pre-assembled components:

• Hot leg flow meter with transparent scale, adjustable from 0.5 to 3.0 l/min. for regulating flow quantities
• Integrated temperature gauge, can be mounted on both sides
• Thermostat valves, adjustable manually for every heating circuit, matching the electronically controlled Schlüter actuators (BEKOTEC-THERM-ESA and BEKOTEC-THERM-EAHB)
• One manual vent, nickel plated brass for hot and cold leg, respectively
• Filling and evacuation valve, 1/2" (DN 15), rotatable, nickel plated brass
• End plug 3/4" (DN 20), nickel plated brass
• Distributor connection, with 1" flat gasket male fitting (DN 25)
• Heating circuit terminals, spaced 50 mm apart, consisting of connector nozzle 3/4" (DN 20) AG with cone, matching Schlüter clamp connections
