Schlüter-ECK-E  Stainless steel corner profile for external wall corners

The edges of tiled walls are sometimes exposed to high levels of stress e.g industrial kitchens, washrooms and hospitals. The stainless steel corner profile Schlüter-ECK-E offers reliable edge protection against damage to external wall corners caused by mechanical stress – as well as a clean, decorative finish to the wall corner.

The outer surface of the ECK-E profile forms a symmetrically rounded external corner along tiled walls and can be combined with the stainless steel cove-shaped profiles DILEX-EHK as an internal wall corner and DILEX-EHKS as a floor-wall transition.

Data sheet
Product image ECK-E 1©Schlüter-Systems KG
Cross-section drawing ECK-E 1©Schlüter-Systems KG
zoom_out_map search
Product image ECK-E 1
Cross-section drawing ECK-E 1










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

How to install this product

  1. Select the profile height according to the tile thickness and the installation method.
  2. To embed the anchoring legs, apply fresh tile adhesive appropriate to the installation substrate.
  3. Press the perforated anchoring leg of ECK-E into the tile adhesive and align. The profile should be embedded fully in the mortar if extreme stresses are to be anticipated.
  4. Trowel additional fresh tile adhesive over the entire surface of the anchoring legs to ensure it embeds fully.
  5. The tiles adjoining the profile must be solidly embedded into the adhesive bed and aligned flush with the upper profile edge.
  6. A joint of approx. 2 mm should be left between the tile and the profile. Fill the joint with grout.
  7. Remove the protective film immediately after grouting.

What this product is made from

Schlüter-ECK-E is available in the following materials:

  • E = stainless steel
    • V2A, material no. 1.4301 = AISI 304
    • V4A, material no. 1.4404 = AISI 316L

The visible surfaces of the profile are covered with a protective film.

Material properties and areas of application

In special cases, the suitability of the profile must be verified, based on the anticipated chemical or mechanical stresses.

The information provided below is intended as a general guideline.

ECK-E is made of roll formed V2A (material no. 1.4301) or V4A (material no. 1.4404) stainless steel. ECK-E is highly durable and especially suited for application areas that must be resistant to chemicals and acids, such as the food industry, breweries, dairies, industrial kitchens and hospitals as well as private residences.

Depending on the anticipated stresses, customers can choose between the alloy materials 1.4301 (V2A) or 1.4404 (V4A). The use of V4A is recommended if consistent exposure is expected, for example in the case of swimming pools (fresh water).

Even stainless steel of quality V4A is not resistant to all chemical stresses such as hydrochloric and hydrofluoric acid or certain chloride and brine concentrations.

In certain cases, this also applies to seawater pools. The anticipated stresses should therefore be verified in advance.

How to look after this product

Schlüter-ECK-E requires no special maintenance or care. The profile can be cleaned along with the tile covering, using suitable detergents.

To obtain a bright finish on the visible surface of the profile, use a chrome polishing agent or similar. Stainless steel surfaces exposed to the environment or aggressive substances should be cleaned periodically using a mild household cleaner. Regular cleaning not only maintains the neat appearance of stainless steel, but also reduces the risk of corrosion. All cleaning agents must be free of hydrochloric and hydrofluoric acid. Do not use abrasive cleaning agents on the sensitive surfaces.

Avoid contact with other metals, such as regular steel, to prevent corrosion. This also includes installation tools such as trowels or steel wool, e.g. for the removal of mortar residue.

We recommend the use of the stainless steel cleaning polish Schlüter-CLEAN-CP.

Downloads

DownloadSelection

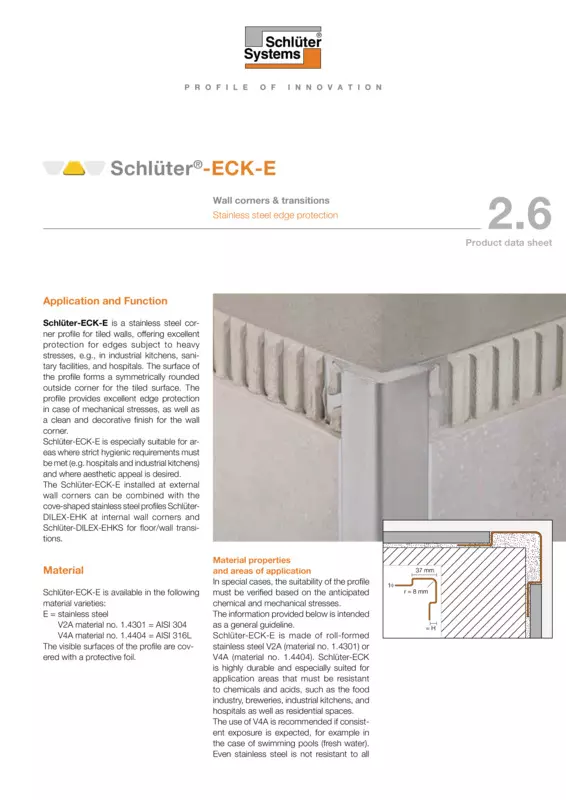

Schlüter-ECK-E | Product data sheet 2.6
Product data sheet - © Schlueter-Systems
PDF – 0.30 MB
