Schlüter-BEKOTEC-EN-FI  The low-noise and insulated studded screed panel

Schlüter-BEKOTEC is the substrate for the water-based and energy-saving floor heating system Schlüter-BEKOTEC-THERM.

The Schlüter-BEKOTEC-EN-FI studded screed panel – as well as the other BEKOTEC studded panels – creates a crack-free, functionally safe screed that forms the basis for permanently crack-free ceramic and natural stone coverings.

The BEKOTEC-EN-FI is efficient in several ways:

  • The attachment of Schlüter heating pipes with a diameter of 14 mm or 16 mm enables flexibility. The 16 mm heating pipe permits slightly longer heating circuits.
  • The integrated sound insulation made of EPS effectively reduces impact sound by up to 28 decibels.
  • The integrated heat insulation made of EPS directs the heat upwards into the room.
  • It saves time and material during installation.
  • Its thin-layer design makes it especially energy efficient.

A matching levelling panel is also available with Schlüter-BEKOTEC-ENFGI-30, which facilitates the installation of heating pipes in the distribution cabinet.

Where to buy

Schlüter-BEKOTEC-EN-FI  The low-noise and insulated studded screed panel

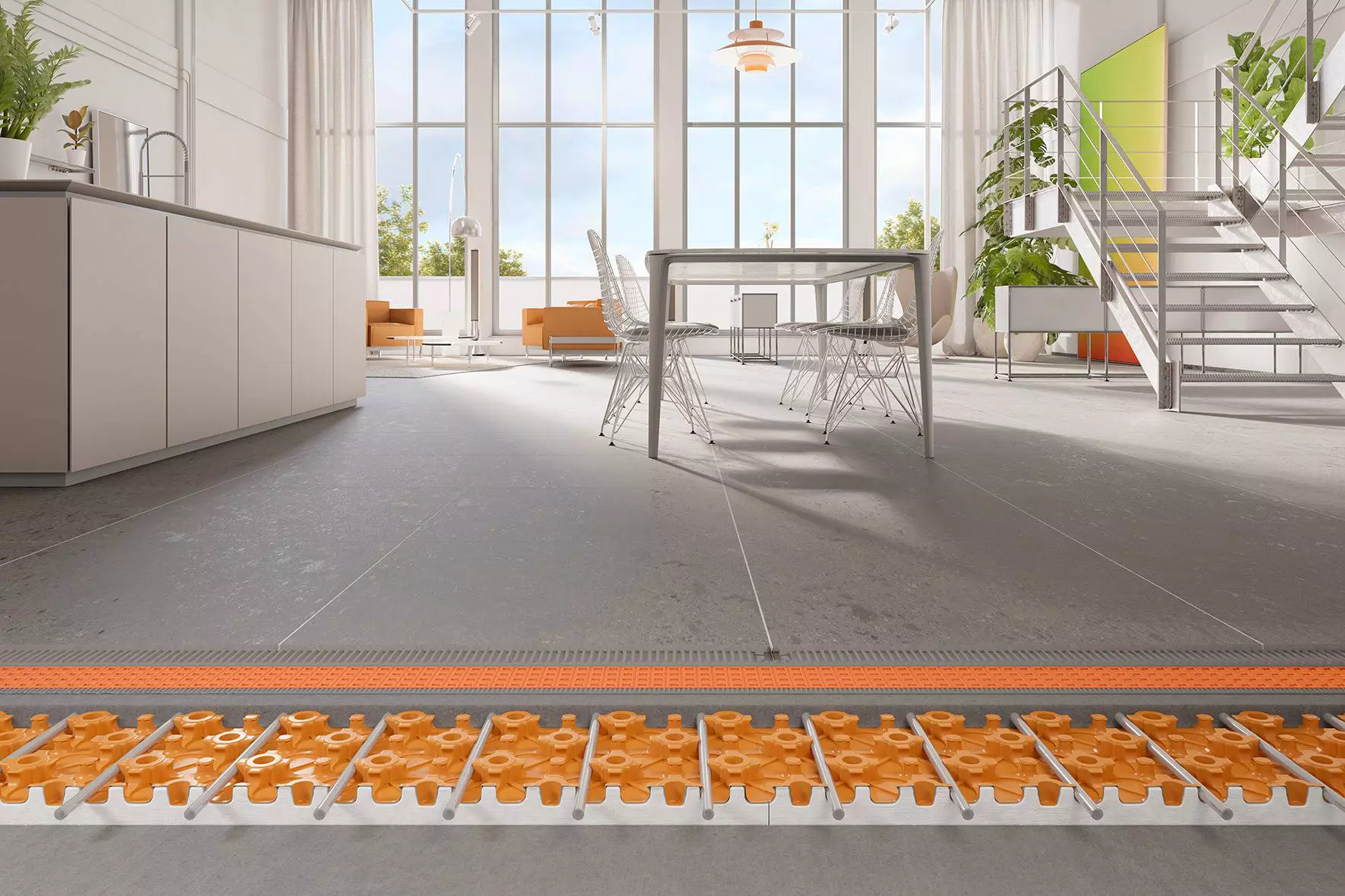

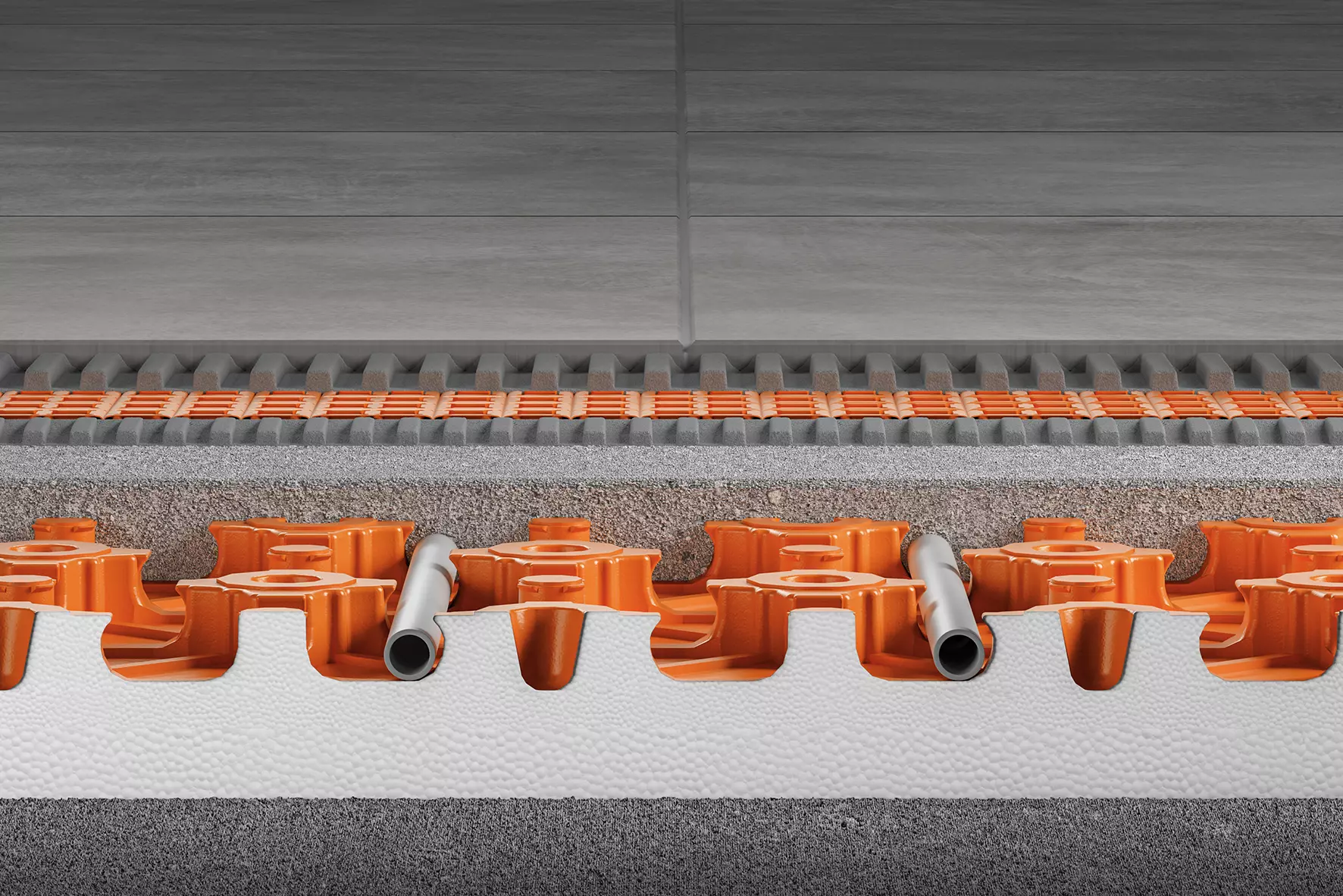

Product image BEKOTEC-EN-FI 1©Schlüter-Systems KG
Product image BEKOTEC-EN-FI 2©Schlüter-Systems KG
Product image BEKOTEC-EN-FI 3©Schlüter-Systems KG
Product image BEKOTEC-EN-FI 4©Schlüter-Systems KG

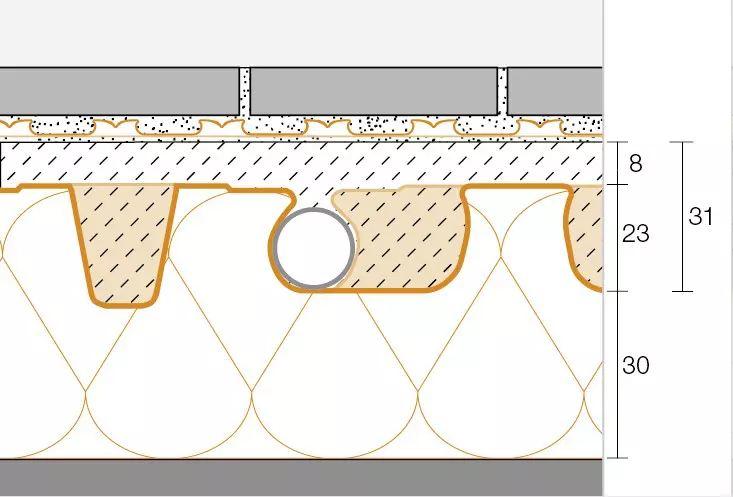

Cross-section drawing BEKOTEC-EN-FI 1©Schlüter-Systems KG

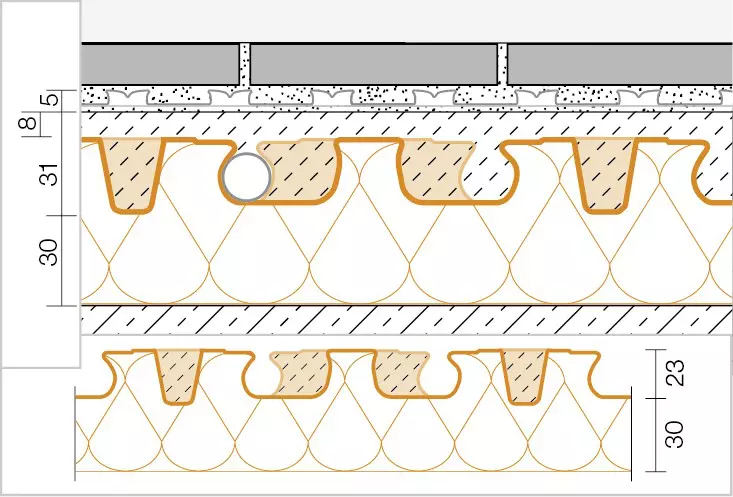

Cross-section drawing BEKOTEC-EN-FI 2©Schlüter-Systems KG
zoom_out_map search
Product image BEKOTEC-EN-FI 1
Product image BEKOTEC-EN-FI 2
Product image BEKOTEC-EN-FI 3
Product image BEKOTEC-EN-FI 4
Cross-section drawing BEKOTEC-EN-FI 1
Cross-section drawing BEKOTEC-EN-FI 2










  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

What this product does

The reliable Schlüter-BEKOTEC covering assembly technology is a system for crack-free and functionally safe floating screeds and heated screeds, with coverings made of ceramics, natural stone and other materials.

The system is based on the studded screed foil panel Schlüter-BEKOTEC-EN-23 FI-30, which is foam-backed with heat and sound insulation made of polystyrene (EPS) and can be directly installed on top of a load-bearing substrate or also over conventional heat insulation panels.

The geometry of the BEKOTEC-EN-23-FI-30 studded panel dictates a minimum screed layer thickness of 31 mm between and 8 mm above the studs. The stud spacing allows for clamping the heating pipes of the system, which have a diameter of 14 mm and 16 mm*, in a 75 mm grid to produce a heated screed. Since only a relatively small amount of screed has to be heated or cooled (with a coverage of 8 mm, approx. 58 kg/m² ≙ 28.5 l/m²), the floor heating system is easily adjustable and ideally suited for operation at low supply temperatures.

The curing stresses that occur in the screed due to shrinkage are absorbed by the studded pattern. Stresses resulting from contraction buckling do not, therefore, affect the entire area, and it is not necessary to install movement joints in the screed. Once the cement screed is ready to support weight, the Schlüter-DITRA uncoupling mat (alternatively, Schlüter-DITRA-DRAIN 4 or Schlüter-DITRA-HEAT) can be installed (gypsum-based screed ≤ 2 CM %). The ceramic tiles or natural stone are then installed directly over this layer, using the thin-bed method. Movement joints in the covering layer have to be created with Schlüter-DILEX according to industry standards.

Cover materials that are not susceptible to cracking, such as parquet or carpeting, are installed directly over the screed as soon as it reaches the corresponding residual moisture level.

How to install this product

  1. Install BEKOTEC-EN-23 FI-30 on a sufficiently weight-bearing and level substrate. Correct uneven sections in the floor with screeds or suitable bound fills in advance.
    If required, install additional suitable heat insulation over the substrate in accordance with the applicable sound insulation and/or heat insulation requirements. The max. compressive strength CP3 (≤ 3 mm) must be taken into consideration for selection.
  2. Cover the edges of the covering at walls or structural elements with BEKOTEC-BRS edging strips according to the screed type or height.
  3. The BEKOTEC-EN-23-FI-30 studded panels must be precisely cut to size in the edge areas. The protruding studded foil must be removed in the edge area of the first row. Cut segments that are longer than ≥ 30 cm can fit into the next row. Snap the studded panels into the tapered connection studs.

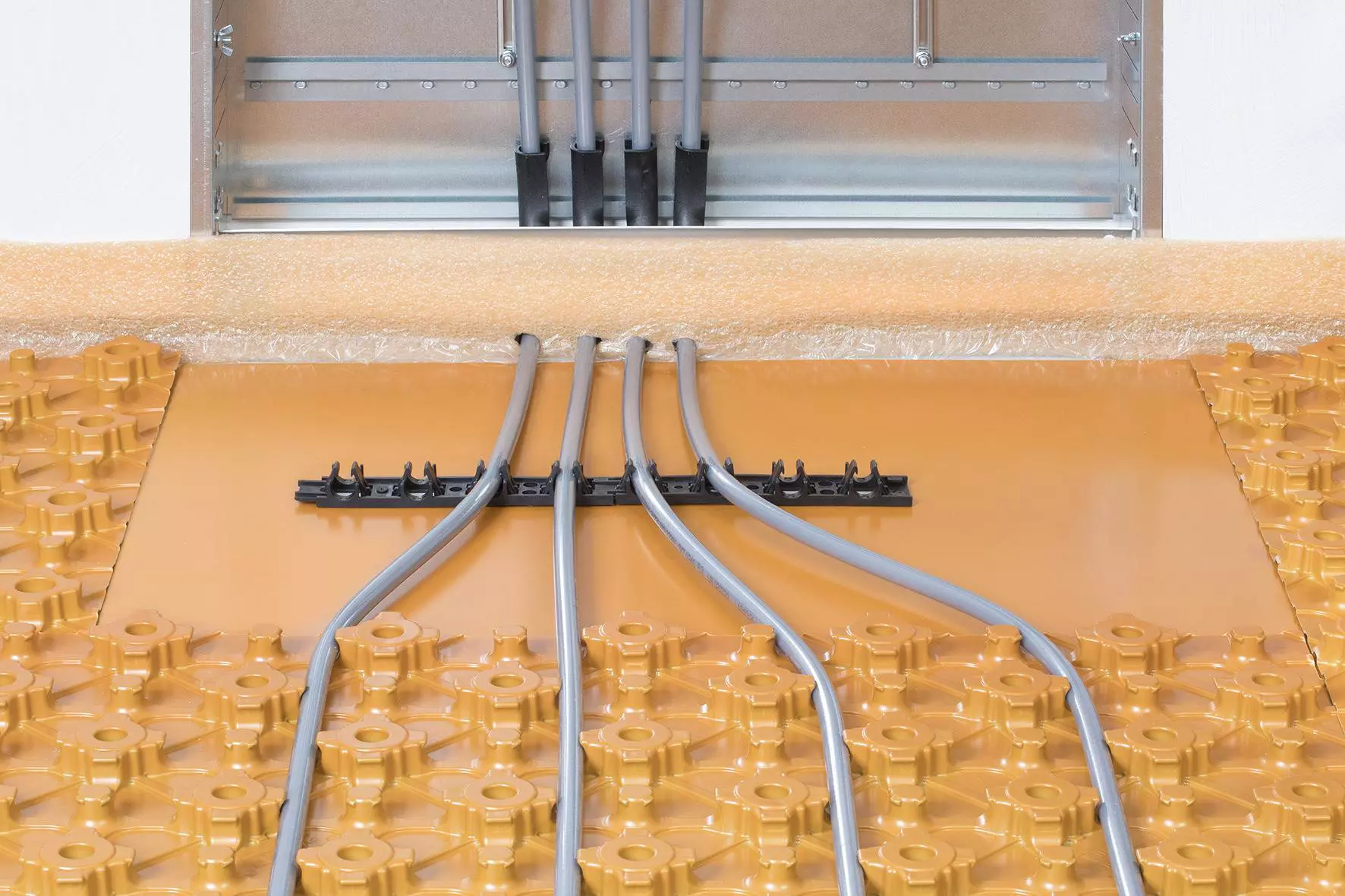

    In door threshold areas and near distributor boxes, the smooth levelling panel Schlüter-BEKOTEC-ENFGI-30 may be used to simplify the pipe installation. This is also laminated on the underside with 30 mm expanded polystyrene (EPS). The self-adhesive pipe clamping strip Schlüter-BEKOTEC-ZRKL allows for precise pipe placement in this area.
  4. Clamp the system pipes with a diameter of 14 mm or 16 mm between the cutback studs to create a Schlüter-BEKOTEC-THERM floor heating system. The spacing of the pipes must be determined on the basis of the required heating output, as shown in the Schlüter-BEKOTEC heating diagrams.
  5. As part of the screed installation, fresh cement- or gypsum-based screed is installed with a minimum screed cover of 8 mm over the studded panels. A compressive strength of C20 to C35, as well as a flexural tensile strength of F4, max. F5, must be maintained for both cement- and gypsum-based screeds. If the cement screed has a shrinkage class of SW1, using products with a higher flexural tensile strength is also possible. The layer thickness can be partially increased to max. 25 mm for levelling. When installing a flowing screed, carefully place the studded panels and seal the abutting edges/end points. Make sure that the screed does not flow underneath the BEKOTEC panels. Observe the system approval for this application.
    Note: Please contact our Technical Department in advance to discuss different screed properties for specific projects. To prevent impact sound transmission between two rooms, separate the screed in the relevant places with the Schlüter-DILEX-DFP expansion joint profile.
  6. The DITRA uncoupling mat (or, alternatively, DITRA-DRAIN 4 or DITRA-HEAT) can be installed in accordance with the installation instructions of the relevant product data sheets as soon as the screed is ready to bear weight. The uncoupling mat can be installed over gypsum-based screeds as soon as they have reached a residual moisture level of 2 CM % or less.
  7. Coverings of ceramic tile or natural stone can then be directly installed on top of the uncoupling mat, using the thin bed method. Divide the covering above the uncoupling mat into fields, using movement joints in accordance with the applicable regulations. We recommend the movement joint profiles Schlüter-DILEX-BWB, -BWS, -KS, -AKW or -F for creating movement joints (see product data sheets 4.6 – 4.8, 4.18 and 4.23).
  8. Install the Schlüter-DILEX-EK or Schlüter-DILEX-RF corner movement profile as a flexible edge joint in the area of the floor/wall transition (see product data sheet 4.14). Cut off the protruding part of the Schlüter-BEKOTEC-BRS edging strip in advance.
  9. If the Schlüter-BEKOTEC-THERM ceramic thermal comfort floor is to function as a floor heating system, the full covering assembly is ready for heating just 7 days after completion. Start from a water temperature of 25 degrees C and increase the supply temperature by no more than 5 degrees C a day until the desired usage temperature has been reached.
  10. Covering materials that are not susceptible to cracking (e.g. parquet, carpet or vinyl coverings) can be installed without the uncoupling mat, directly on top of the BEKOTEC screed. The screed thickness must be adjusted to the relevant material thicknesses.
    Note: In addition to the applicable installation guidelines, the permissible residual moisture level of the screed must be observed for the selected covering material.
    For detailed installation instructions in conjunction with non-ceramic surface coverings, please refer to our technical manual for Schlüter-BEKOTEC-THERM or contact our Technical Department.

What this product is made from

BEKOTEC-EN-23 FI-30 is made of impact-resistant structured polystyrene which is foam-backed on the underside with expanded polystyrene (EPS). It is suited for use with conventionally applied cement or gypsum screeds as well as flowing screed.

How to look after this product

Before and during the installation of the screed, the studded panel may need to be protected from mechanical damage with suitable measures, such as the laying out of timber boards.
Schlüter-BEKOTEC-EN-23 FI-30, -ENFGI 30, -BRS and -BTS do not rot and require no special maintenance or care.
When dismantling the BEKOTEC-EN-23 FI-30, the thermoforming sheet can be separated from the polystyrene support panel.
