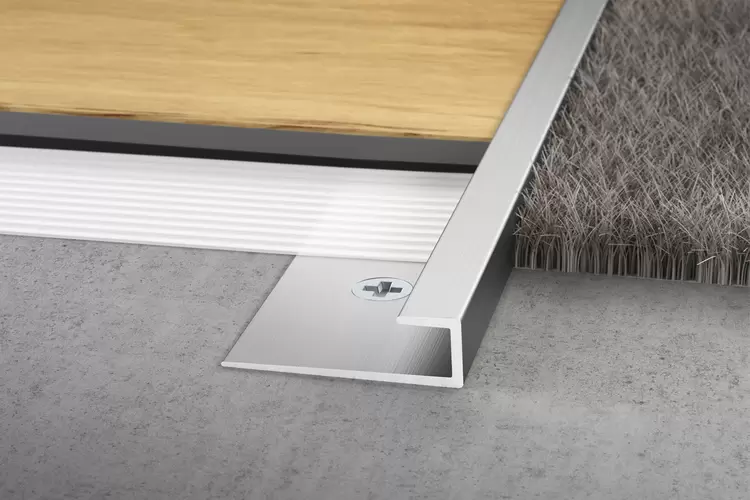

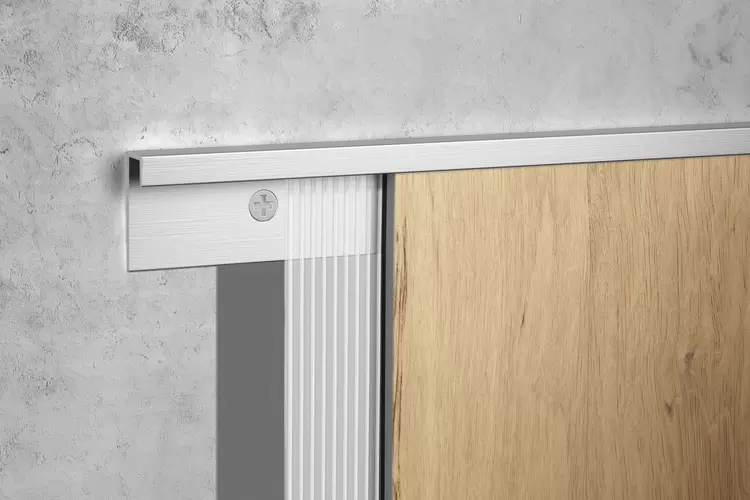

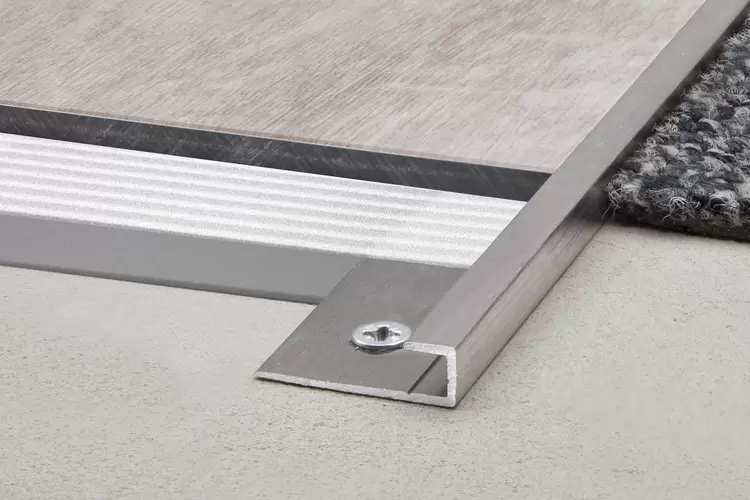

Attachment with screws

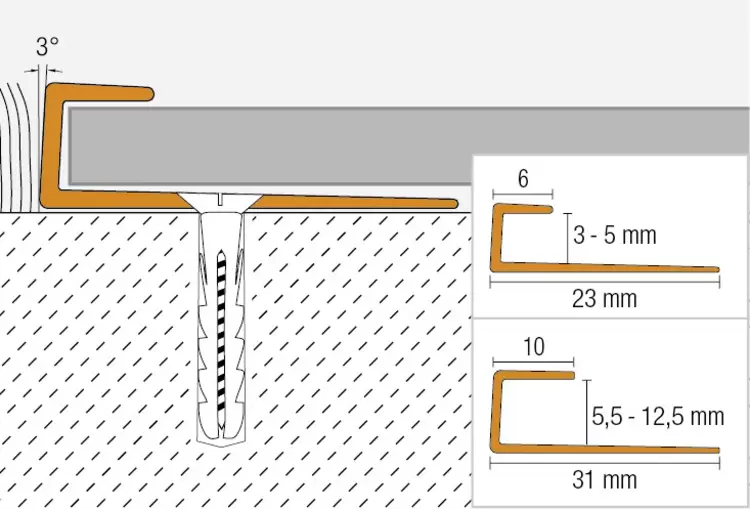

1. Select VINPRO-S according to the thickness of the covering.
2. Transfer the positions of the drilling holes to the substrate at the edges of the covering and drill holes with a diameter of 5 mm for the screw fixings.
3. Attach the profile to the floor or wall with counter-sunk screws, Ø 3.5 mm.
4. Follow the manufacturer’s specifications for installing the covering.

Attachment with installation adhesive

1. Select VINPRO-S according to the thickness of the covering.
2. Adhere the profile with the installation adhesive Schlüter-KERDI-FIX or an equivalent material at the edges of the covering. This installation method is especially suitable for areas where the profile cannot be screwed into the floor.
3. Follow the manufacturer’s specifications for installing the covering.
   Note: The substrate must be load-bearing and free from debris.

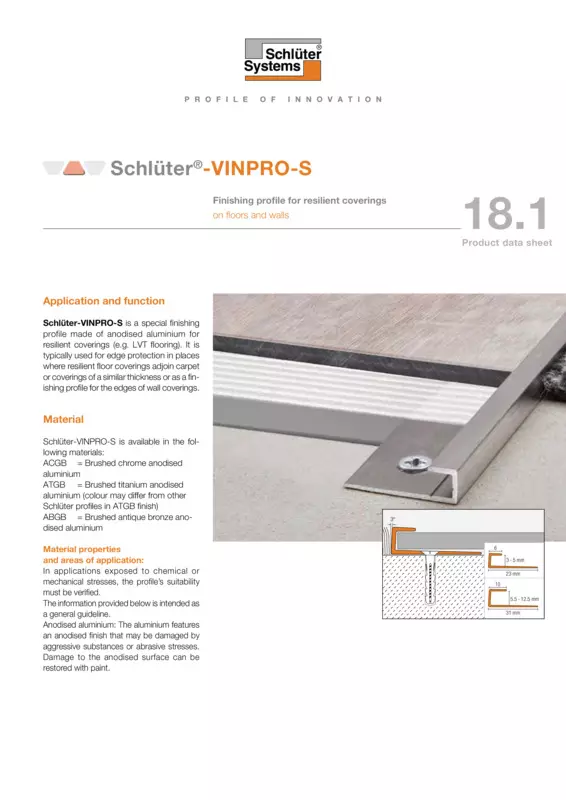

Schlüter-VINPRO-S is available in the following materials:

• ACGB = brushed chrome anodised aluminium
• ATGB = brushed titanium anodised aluminium (colour may differ from other Schlüter profiles in ATGB finish)
• ABGB = brushed antique bronze anodised aluminium

Material properties and areas of application

In special cases, the suitability of the profile must be verified, based on the anticipated chemical or mechanical stresses.

The information provided below is intended as a general guideline.

Anodised aluminium: The aluminium features an anodised finish that may be damaged by aggressive substances or abrasive stresses. Damage to the anodised surface can be restored with paint.
