Schlüter-JOLLY-P  Finishing profile made of coloured PVC

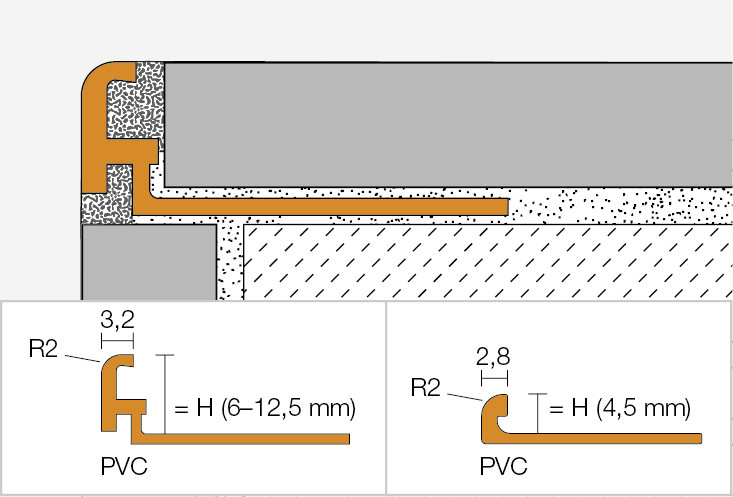

Schlüter-JOLLY-P is a decorative finishing profile with a 90 degree angle made of coloured PVC to finish and protect tiled external wall corners and other tiled edges, e.g. in tiled skirtings. The right angled profile geometry forms a neat finish for tile coverings. In addition to its decorative effect, JOLLY-P also offers reliable edge protection against mechanical impact for tiles. The joint spacers on both sides create a uniform grout joint with the tile.

Where to buyData sheet

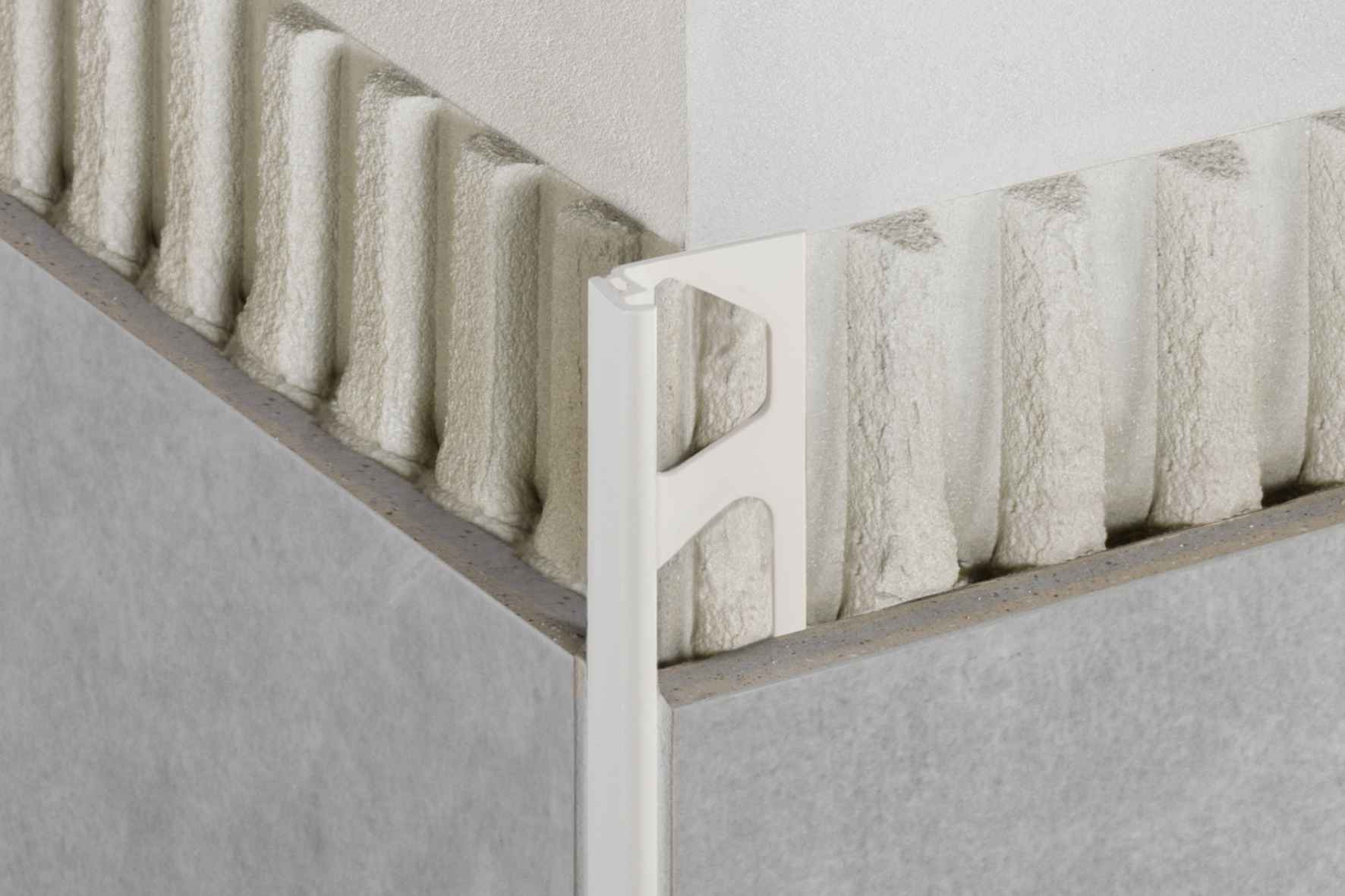

Product image JOLLY-P 1©Schlüter-Systems KG
zoom_out_map search








  •










  •










  •










  •










  •










  •










  •










  •










  •










  •











General product information

How to install this product

  1. Select the profile height of JOLLY-P according to the tile thickness and the installation method.
  2. Apply tile adhesive to the area where the tile covering will end, using a notched trowel. If the JOLLY-P profile is to be installed in wall corners, complete the tiling of one wall, then apply tile adhesive in the corner area of the second wall.
  3. Firmly press the trapezoid-perforated anchoring leg of the JOLLY-P profile into the adhesive and align it.
  4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
  5. Fully embed the adjoining tiles and adjust them in such a way that the upper lip of the profile is flush with the tile.
    Note: The profile may slightly protrude or be recessed in the wall area to offset dimensional variations in the covering material.
  6. Set the tile to the lateral joint spacer to ensure a uniform joint of 1.5 mm.
  7. Completely fill the space between the tile and the JOLLY-P profile with grout.
  8. Use suitable materials and tools for the sensitive surfaces to avoid scratches or other damage. Residue of grout and tile adhesive should be removed immediately.
  9. External wall corners with JOLLY-P profiles can also be created with mitre cuts or with the optionally available external corner pieces. If using an external corner piece, the supplied plastic pins serve as an alignment aid between the profile and the corner piece. The application of grout then gives the assembly the necessary strength.
