Schlüter-DILEX-AHK  Anodised aluminium cove shaped profile

Schlüter-DILEX-AHK is a cove shaped anodised aluminium profile for internal wall corners, countertops and shelving with ceramic tile coverings. The outer surface of the profiles forms a symmetrically rounded internal corner along the surface edge. The integrated joint spacer forms a defined joint cavity with the tile. DILEX-AHK-TS is also designed for attaching tile coverings on two sides.

Where to buy
  • MyDesign Printing
Product image DILEX-AHK 1©Schlüter-Systems KG
Product image DILEX-AHK 2©Schlüter-Systems KG
Cross-section drawing DILEX-AHK 1©Schlüter-Systems KG
zoom_out_map search

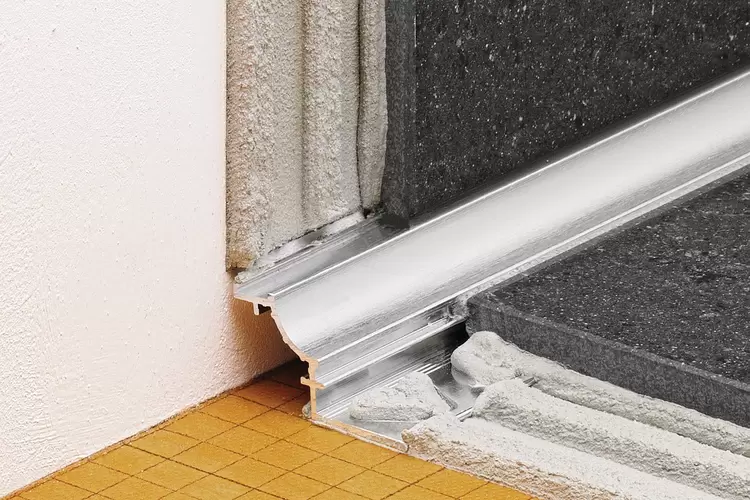

Product image DILEX-AHK 1

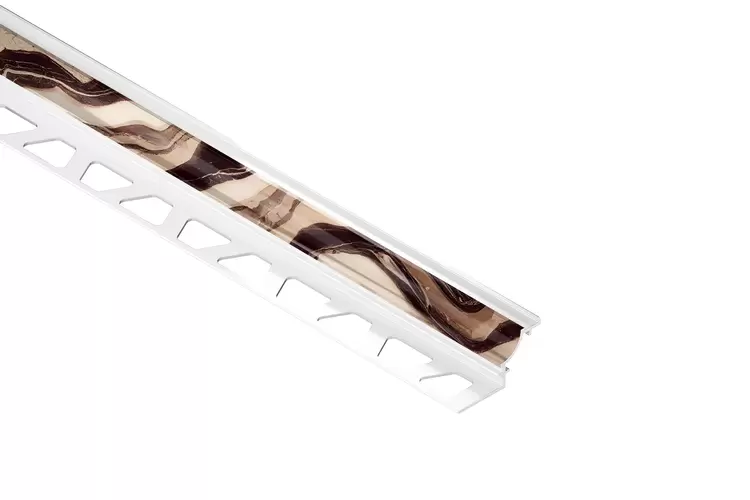

Product image DILEX-AHK 2
Cross-section drawing DILEX-AHK 1

General product information

What this product does

The profiles, which are available in a wide range of anodised finishes, allow for decorative design and create interesting visual contrasts. In addition to their visual appeal, they simplify the thorough cleaning of internal corners. DILEX-AHK are ideally suited for combination with other Schlüter profiles that have the same surface finish. These include our DESIGNLINE borders and the finishing profiles from our RONDEC and RONDEC-STEP series (for kitchen countertops).

Matching pre-formed pieces are available to create elegant connections to the profiles at internal and external corners.

How to install this product

  1. Select Schlüter-DILEX-AHK according to tile thickness.
  2. Apply tile adhesive, using a notched trowel, over the area where the profile is to be placed.
  3. Press the perforated anchoring leg of DILEX-AHK firmly into the adhesive and align it.
  4. Trowel additional setting material over the perforated anchoring leg to ensure full coverage.
  5. Solidly embed the adjoining tiles and align them flush with the top edge of the profile. All tiles in the profile area must be solidly embedded.
  6. The tile is set to the lateral joint spacer, which creates an evenly spaced joint of about 1.5 mm. Fill the joint completely with grout.
    Note: Create a connection with an elastic material in sufficient width at internal corners where movements can be anticipated.
  7. Use suitable materials and tools for the sensitive surfaces to avoid scratches or other damage. Mortar and tile adhesive should be removed immediately.
  8. Matching preformed inside and outside corner pieces are available.

What this product is made from

Schlüter-DILEX-AHK are made of aluminium featuring a variety of finish options.

  • AE = anodised aluminium
  • ACG = polished chrome anodised aluminium
  • ACGB = brushed chrome anodised aluminium

Material properties and areas of application

The suitability of DILEX-AHK should be reviewed based on the anticipated chemical stresses. Aluminium is sensitive to alkaline media. Cementitious materials, in conjunction with moisture, become alkaline. Since aluminium is sensitive to alkaline substances, exposure to the alkali (depending on the concentration and time of exposure) may result in corrosion (aluminium hydroxide formation).

Remove adhesive or grout immediately from visible areas and don't cover freshly installed assemblies with a protective foil.

Surfaces with an anodised surface layer retain a uniform appearance during normal use. They must be protected against abrasion.

Solidly embed the profiles in the setting material to prevent alkaline water from accumulating in small cavities.

How to look after this product

The visible surfaces of Schlüter-DILEX-AHK require no special maintenance or care. Do not use abrasive cleaning agents on sensitive surfaces. Damage to the anodised surfaces can be restored with paint.
