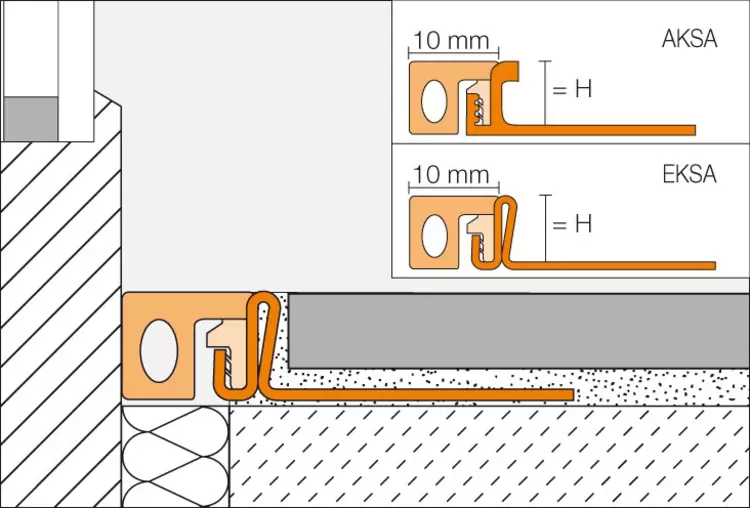

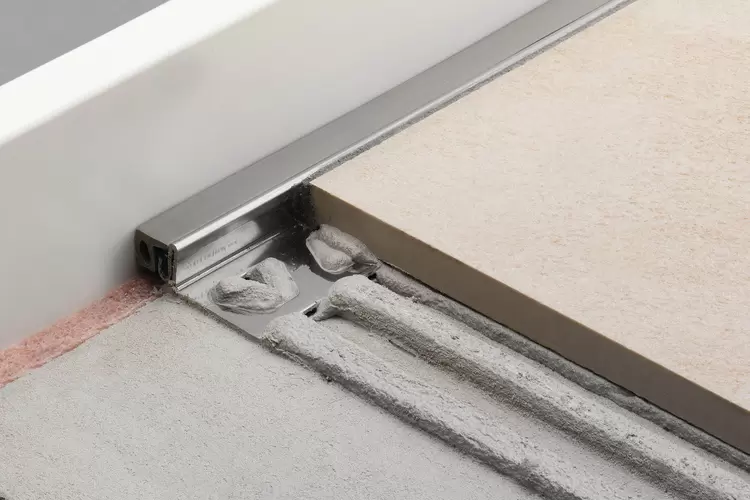

Schlüter-DILEX-KSA is used to create flexible connection joints with fixed structural components. The self-adhesive strips allow for the precise attachment of the profile, e.g. at window and door elements. DILEX-KSA uses the same trapezoid perforated anchoring leg as DILEX-KS to ensure an identical visual appearance.

DILEX-KSA assists in reducing the transmission of impact sound in coverings.

1. Select the profile height according to the tile thickness and the installation method.
2. Apply tile adhesive to the area where the profile is to be installed, using a notched trowel.
3. Peel off the silicone paper of the self-adhesive strip at the profile. Attach the profile to the cleaned structural element with the self-adhesive strip in such a way that the trapezoid perforated anchoring leg can be pressed into the fresh tile adhesive.
4. Trowel tile adhesive over the trapezoid perforated anchoring leg to ensure full coverage. Trowel tile adhesive against the vertical anchoring legs at an angle.
5. Firmly press the adjoining tiles into place and align them in such a way that the upper profile edge is flush with the tile (profile should not protrude over the surface of the covering; preferably, it should be approx. 1 mm below the top level of the covering). All tiles in the profile area must be solidly embedded. Always adjoin the uncut tile edge to the profile.
6. Leave a 2 mm joint to the profile, and completely fill the joint between the profile and the tile with grout.

• E = stainless steel

V2A, material no. 1.4301 = AISI 304

V4A, material no. 1.4404 = AISI 316L

• A = aluminium

The movement zone consists of highly flexible thermoplastic rubber with inserts made of a harder material.

Material properties and areas of application

The suitability of the selected profile type must be verified based on the anticipated chemical, mechanical, and/or other stresses.
The support profiles of Schlüter-DILEX-EKSB are made of stainless steel 1.4301 (V2A). The support profiles of DILEX-EKSN and -EKSA are made of stainless steel 1.4301 (V2A) or 1.4404 (V4A). Stainless steel is particularly well suited for applications that, in addition to heavy mechanical stresses, require resistance to chemicals such acidic or alkaline media, detergents or de-icing salts. Depending on the anticipated stresses, you can choose between the alloy materials 1.4301 (V2A) or 1.4404 (V4A). The use of V4A is recommended if consistent exposure is expected, for example in the case of swimming pools (fresh water).

Even stainless steel of quality 1.4404 is not resistant to all chemical stresses such as hydrochloric and hydrofluoric acid or certain chloride and brine concentrations. In certain cases, this also applies to seawater pools. Any particular stresses anticipated should therefore always be clarified in advance.

Schlüter-DILEX-AKSN and -AKSA with lateral anchoring leg profiles of aluminium are sensitive to alkaline media.
Cementitious materials, in conjunction with moisture become alkaline. Since aluminium is sensitive to alkaline substances exposure to the alkali (depending on the concentration and duration of exposure) may result in corrosion (aluminium hydroxide formation).
For this reason, remove mortar or grouting material immediately from all visible areas and do not cover freshly installed coverings until the adhesive and grout have dried. Solidly embed the profile in the setting material to prevent alkaline water from accumulating in small cavities.

The movement zones of all DILEX-KS and -KSA profile types consist of highly flexible thermoplastic rubber. This material is UV-resistant, suitable for outdoor use, and resistant to the chemical stresses typically associated with tile coverings and has been specially treated to resist fungi and bacteria.

The insert is resistant to temperatures ranging from -60 °C to +100 °C. The synthetic rubber can be heat bonded to extend the profile length.
The tile inserts DILEX-KS/K are available in all colours for cross joints created with the movement profiles DILEX-KS.
