Wetroom Systems - Module One

Thanks for attending Wetroom Systems - Module One! Here you'll find further information about the products installed on the day.

Product overview

Below you'll find a few summary points and information about the main systems installed on the day. For your convenience, we have directed you to the relevant product pages which contain further information.

Our price lists are available here.

Wall waterproofing: Schlüter-KERDI-200

© Schlueter-Systems

Areas of application: Existing backgrounds such as plasterboards
Installation: 3 x 3 or 4 x 4 mm notched trowel using rapid setting cement based adhesive (weather permitting!).
Item reference: KSS 5 (5m kit), KSS 10 (10m Kit)
Price list page: 186

Jump to product page

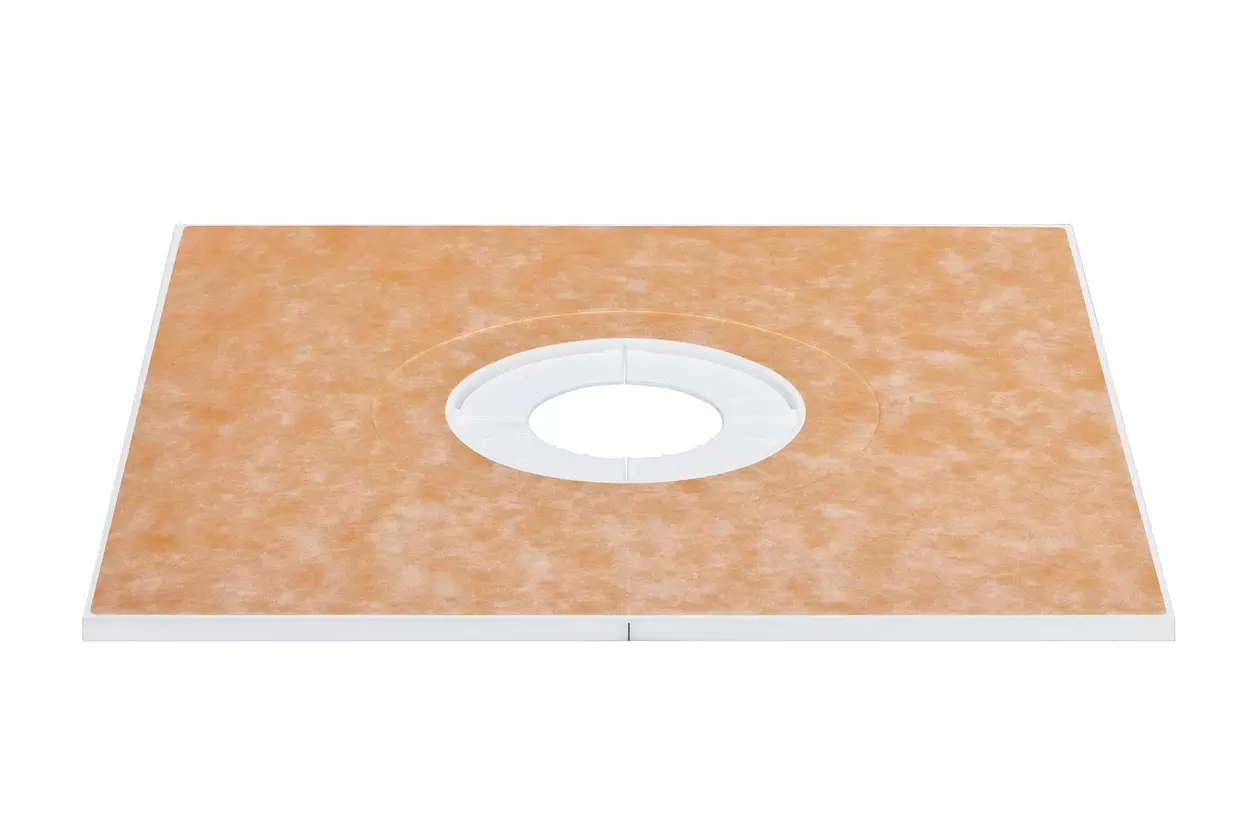

Shower tray: Schlüter-KERDI-SHOWER-TT

© Schlueter-Systems

Installation: 6 x 6 or 8 x 8 mm notched trowel
Item reference: KST 915 BF (BF denoting "Barrier Free" e.g. low profile)
Dimensions: 915 x 915 x 22 mm (other sizes available)
Price list page: 252

Jump to product page

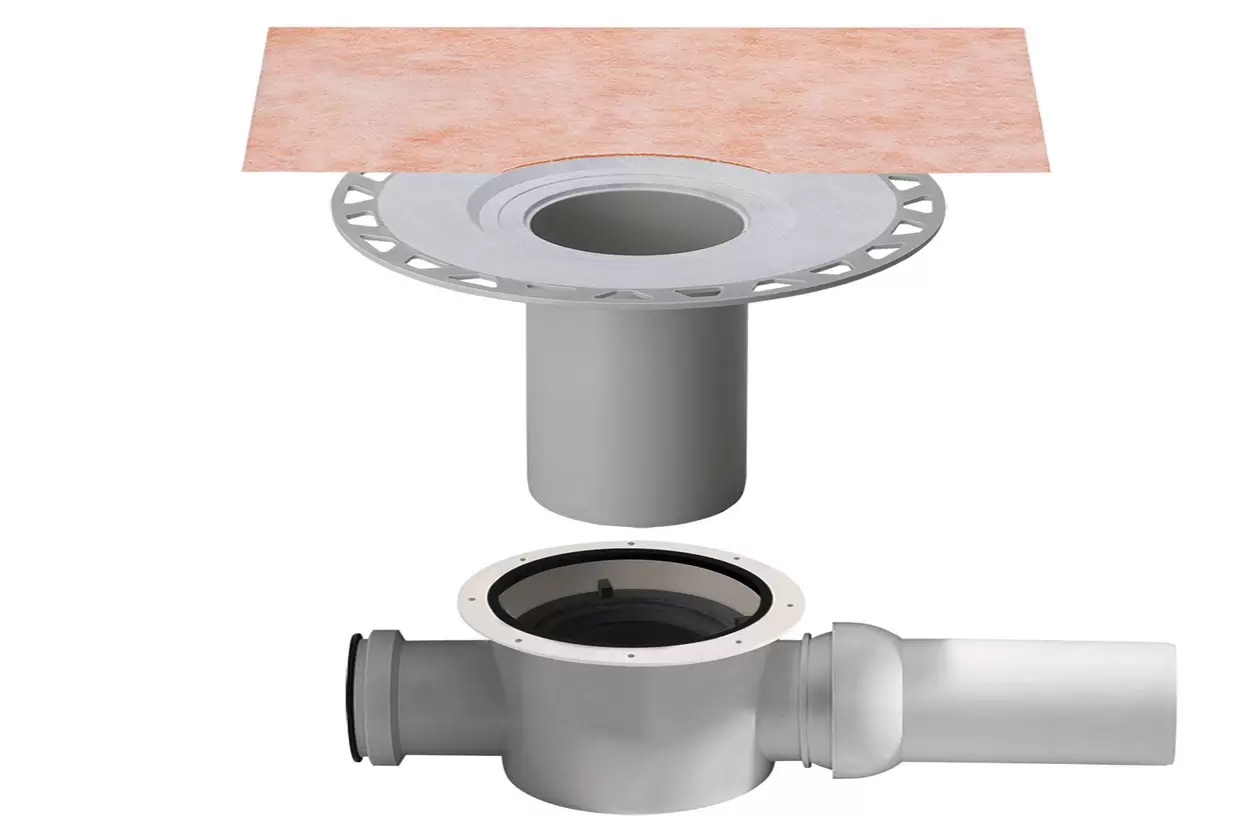

Point drain: Schlüter-KERDI-DRAIN (horizontal DN50)

© Schlueter-Systems

Installation: Screw mounted to the underside
Item reference: KD BH 50 GV
Dimensions: 100 x 100 mm
Item reference: KD R10 ED1S
Price list page: 234

Jump to product page

Uncoupling: Schlüter-DITRA

© Schlueter-Systems

Areas of application: Load bearing substrates, including plywood and heated/unheated screeds/concrete
Installation: 3 x 3 or 4 x 4 mm notched trowel using rapid setting cement based adhesive (weather permitting)
Item reference: DITRA (also available by the metre, standard roll 1m x 30m)
Price list: Page 167

Jump to product page
